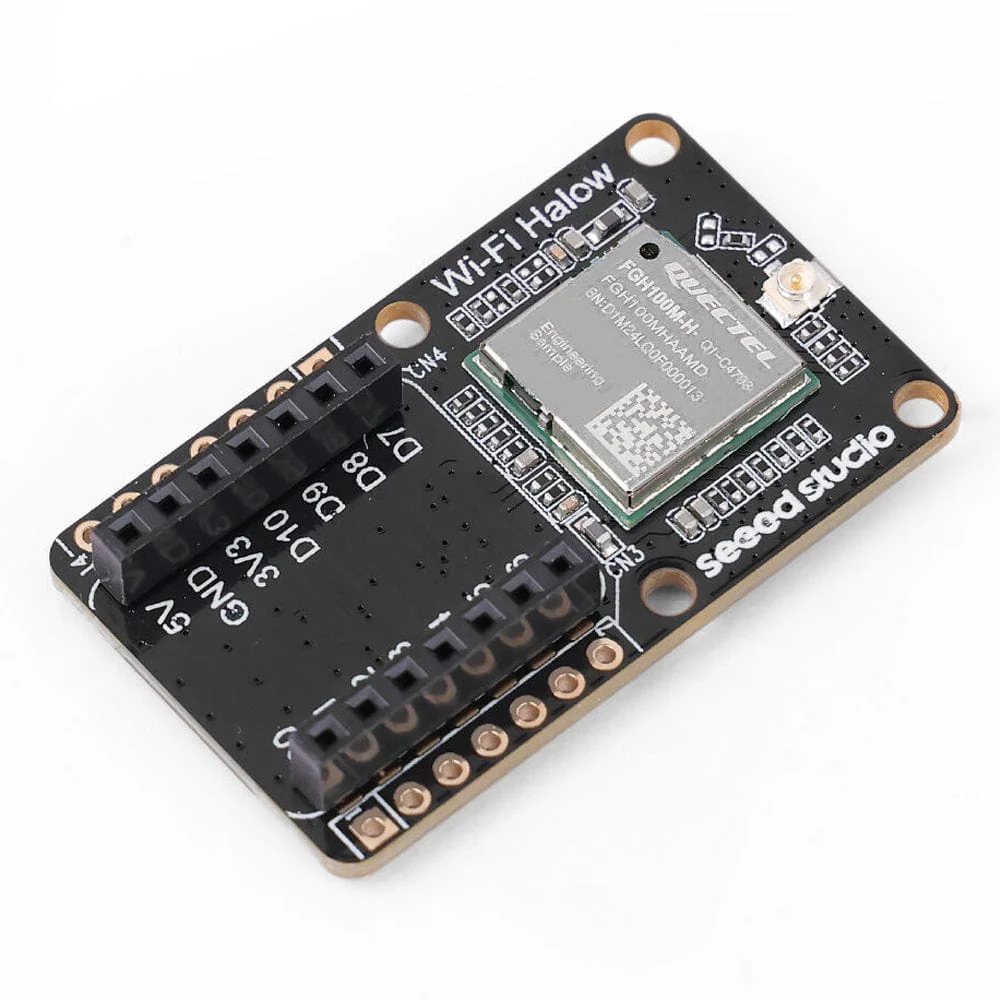

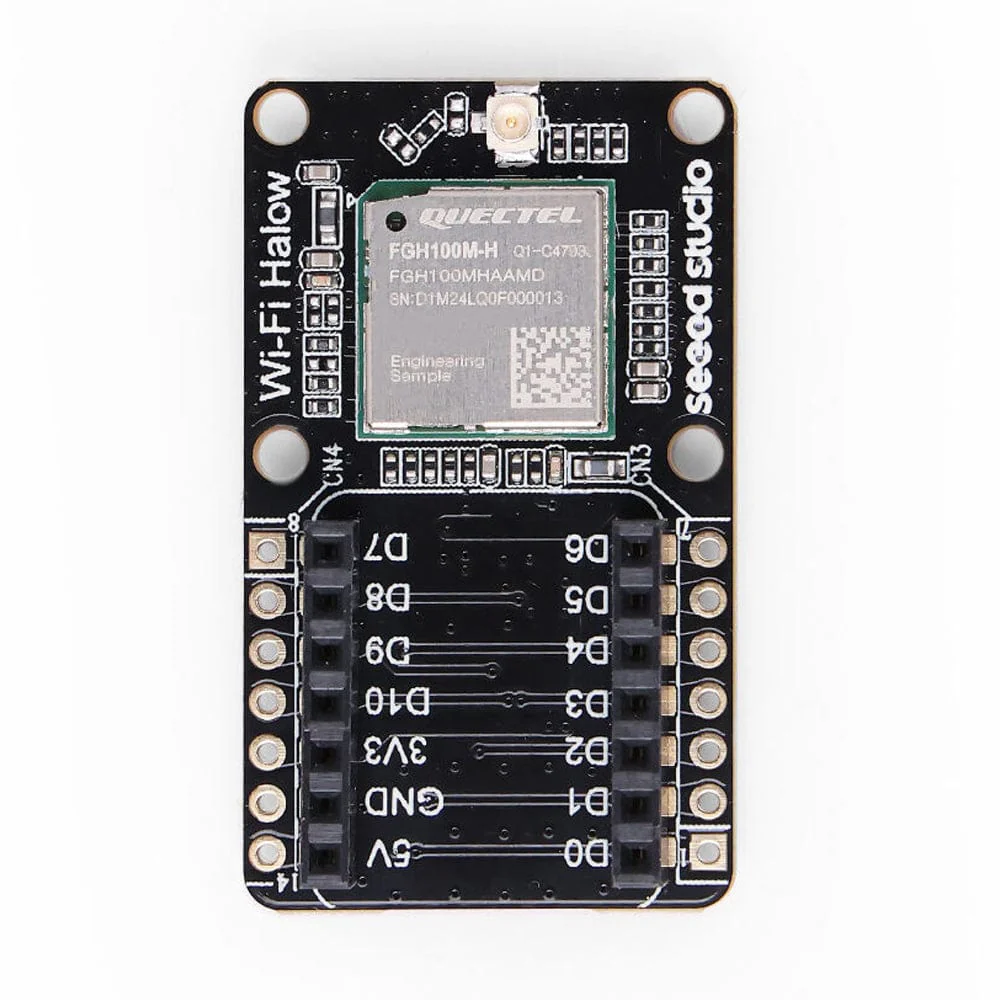

The Wi-Fi HaLow Board (FGH100M-H) operates in the 902–928MHz band, providing long-range, low-power wireless connectivity with strong signal penetration. Designed for smart home and IoT applications, it integrates seamlessly with the Seeed Studio XIAO ecosystem for reliable network performance.
The Wi-Fi HaLow Board based on the FGH100M-H module is a high-performance, long-range Wi-Fi HaLow solution. Operating in the 902-928 MHz frequency band, it offers excellent penetration and coverage, making it ideal for smart home and IoT applications. With its compact design and compatibility with the Seeed Studio XIAO ecosystem, this card ensures reliable and efficient connectivity for various projects.
This expansion board is currently not directly compatible with the XIAO nRF54L15 series because Arduino is not supported. However, the hardware interface is fully compatible, and developers can manually adapt the software if needed. Official software support from Seeed Studio is under development - stay tuned for updates!
Features
Long-Range Connectivity: Complies with IEEE 802.11ah standard, operating in 902-928 MHz frequency band, providing coverage up to 1 km with superior penetration performance.
Low Power Consumption: Optimized power efficiency design, making it ideal for power-sensitive IoT applications.
Robust Security: Implements comprehensive security features including AES, SHA-256, SHA-384, SHA-512, and WPA3 encryption.

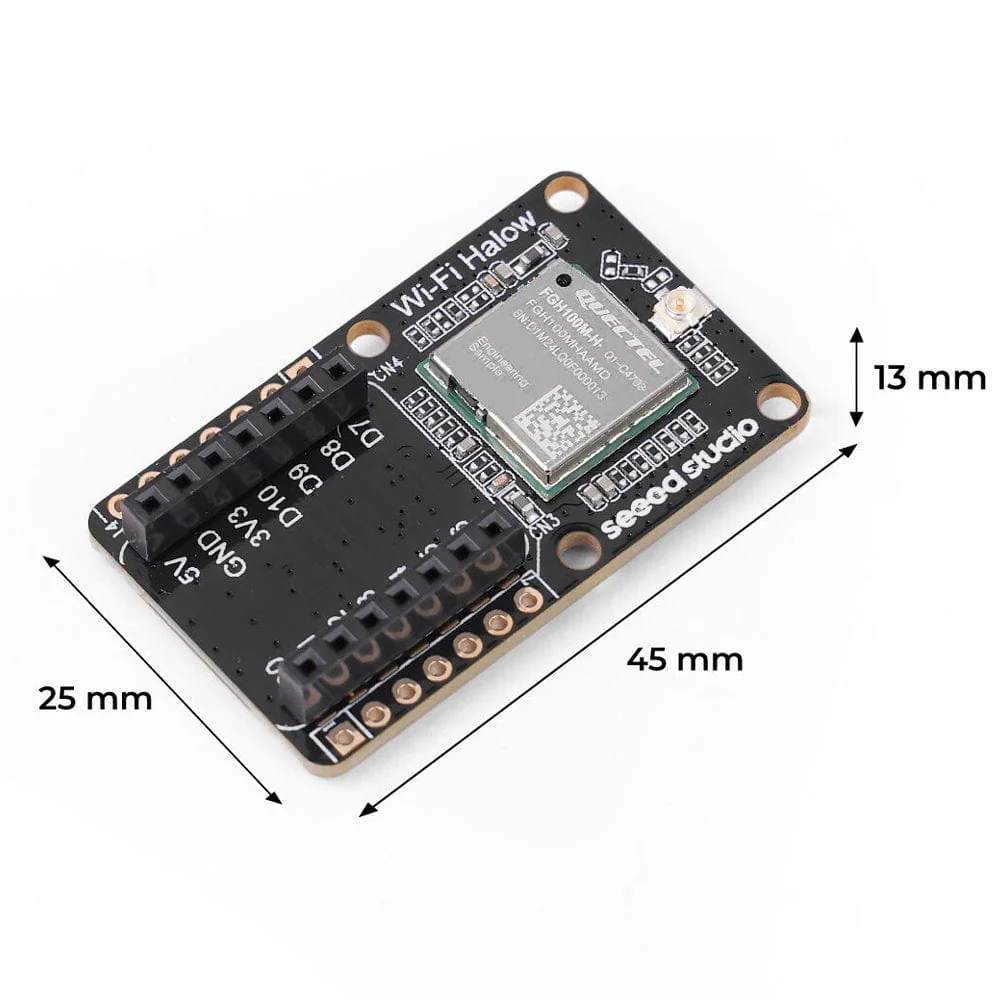

Seamless Integration with Seeed Studio XIAO Boards: Sized at 42 x 25mm, it's compatible with the Seeed Studio XIAO Boards (Pre-Soldered) via easy snap-on. (We recommended to use XIAO ESP32 series.)
Specifications
Parameters
Details
WLAN Protocol
IEEE 802.11ah
Wi-Fi Frequency Band
902–928 MHz
Wi-Fi Antenna
1 x 1
Wi-Fi Modulation Mode
OFDM,BPSK, QPSK, 16QAM, 64QAM
Encryption Mode
AES, SHA-256, SHA-384, SHA-512, WPA3
Wi-Fi Operating Mode
AP/ STA
Operating Temperature Range
-30 °C to +85 °C
Extended Temperature Range
-40 °C to +85 °C
Physical Rate (Max.)
802.11ah: 32.5 Mbps
Power Supply Voltage
VBAT: 3.0–3.6 V, typ. 3.3 V
I/O Power Supply Voltage
VDD_IO: 1.62–3.6 V, typ. 1.8/3.3 V
FEM Power Supply Voltage
VDD_FEM: 3.0–5.25 V, typ. 5 V
Supplier Code
109100041
Resources
Getting Started
Package Contents
1x Wi-Fi HaLow Module
$5.92
Original: $19.74
-70%
Wi-Fi HaLow Transceiver for Seeed XIAO—
$19.74
$5.92
Description
The Wi-Fi HaLow Board (FGH100M-H) operates in the 902–928MHz band, providing long-range, low-power wireless connectivity with strong signal penetration. Designed for smart home and IoT applications, it integrates seamlessly with the Seeed Studio XIAO ecosystem for reliable network performance.
The Wi-Fi HaLow Board based on the FGH100M-H module is a high-performance, long-range Wi-Fi HaLow solution. Operating in the 902-928 MHz frequency band, it offers excellent penetration and coverage, making it ideal for smart home and IoT applications. With its compact design and compatibility with the Seeed Studio XIAO ecosystem, this card ensures reliable and efficient connectivity for various projects.
This expansion board is currently not directly compatible with the XIAO nRF54L15 series because Arduino is not supported. However, the hardware interface is fully compatible, and developers can manually adapt the software if needed. Official software support from Seeed Studio is under development - stay tuned for updates!
Features
Long-Range Connectivity: Complies with IEEE 802.11ah standard, operating in 902-928 MHz frequency band, providing coverage up to 1 km with superior penetration performance.
Low Power Consumption: Optimized power efficiency design, making it ideal for power-sensitive IoT applications.
Robust Security: Implements comprehensive security features including AES, SHA-256, SHA-384, SHA-512, and WPA3 encryption.
Seamless Integration with Seeed Studio XIAO Boards: Sized at 42 x 25mm, it's compatible with the Seeed Studio XIAO Boards (Pre-Soldered) via easy snap-on. (We recommended to use XIAO ESP32 series.)
Specifications
Parameters
Details
WLAN Protocol
IEEE 802.11ah
Wi-Fi Frequency Band
902–928 MHz
Wi-Fi Antenna
1 x 1
Wi-Fi Modulation Mode
OFDM,BPSK, QPSK, 16QAM, 64QAM
Encryption Mode
AES, SHA-256, SHA-384, SHA-512, WPA3
Wi-Fi Operating Mode
AP/ STA
Operating Temperature Range
-30 °C to +85 °C
Extended Temperature Range
-40 °C to +85 °C
Physical Rate (Max.)
802.11ah: 32.5 Mbps
Power Supply Voltage
VBAT: 3.0–3.6 V, typ. 3.3 V
I/O Power Supply Voltage
VDD_IO: 1.62–3.6 V, typ. 1.8/3.3 V
FEM Power Supply Voltage
VDD_FEM: 3.0–5.25 V, typ. 5 V
Supplier Code
109100041
Resources
Getting Started
Package Contents
1x Wi-Fi HaLow Module
