M5Stack ATOM Matrix ESP32

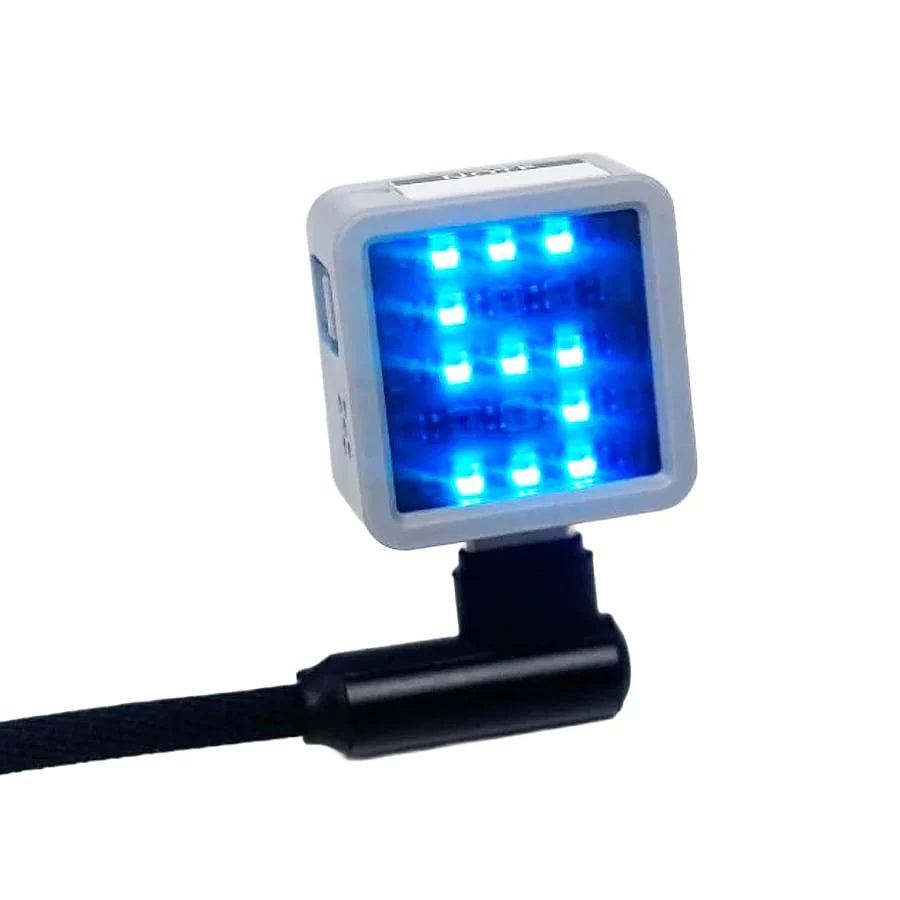

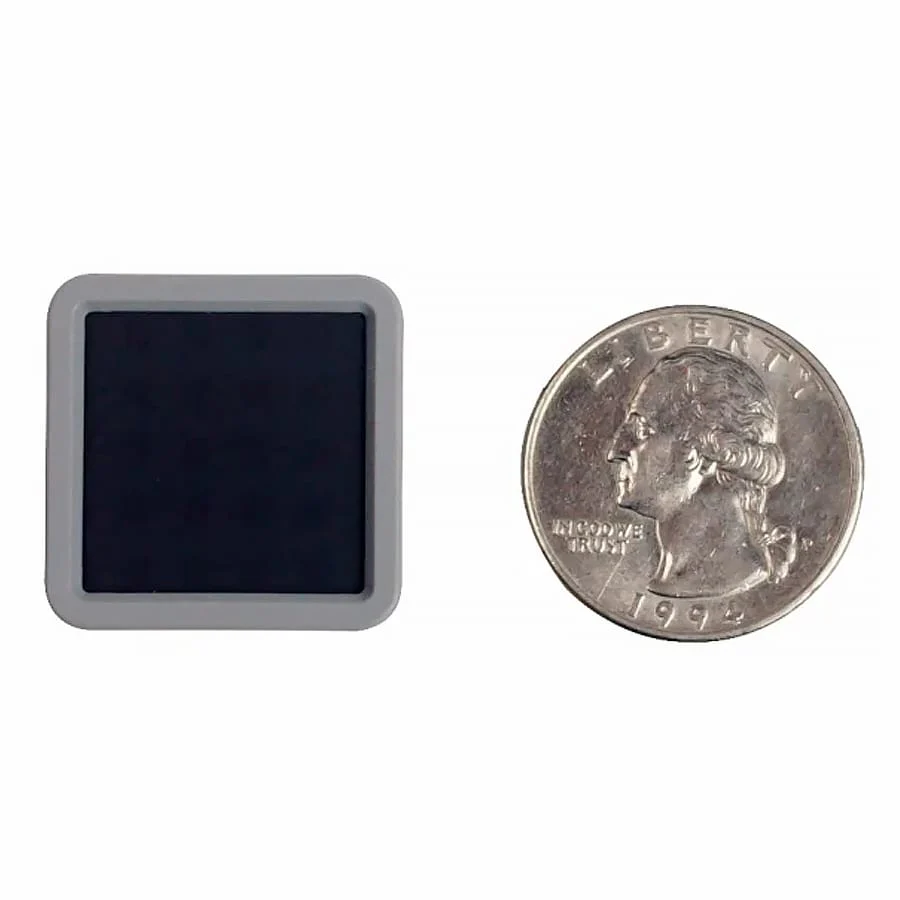

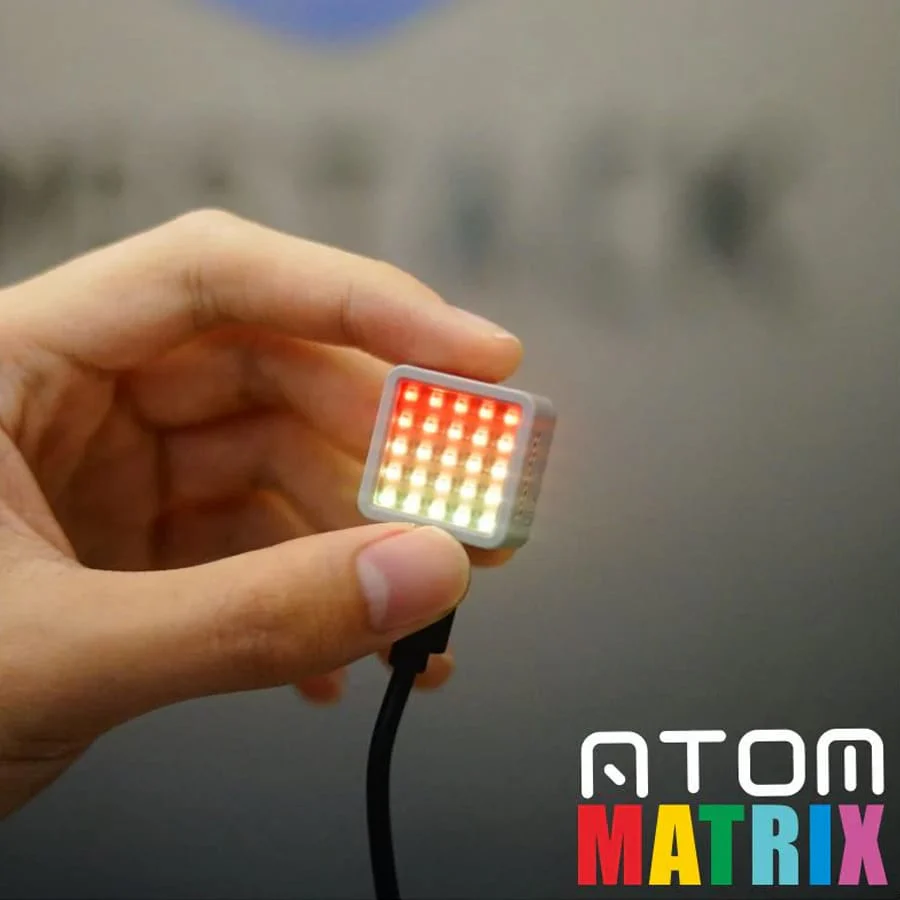

Tiny ESP32 powered dev kit with a built in 5x5 RGB LED matrix, which also functions as a programmable button. At only 24x24mm, it's great for fitting into projects where space is at a premium!
These little fellas would be super for incorporating into all sorts of projects which would benefit from a smart, wifi connected button that's capable of showing visual feedback. You could set up an IoT thermostat system, use one as as a synth controller, or as a calendar connected busy light/doorbell for your home office.
It's programmable via Arduino IDE, but also by the graphical drag and drop programming interface UIFlow, ideal for folks new to ESP32 microcontrollers. If you don't need the LEDs, we sell the basic ATOM here , and we also stock a compatible plug and play battery!
For more information and for help getting started, click here
Features
- ESP32-PICO-D4 chip
- Onboard wifi and Bluetooth
- 4MB of integrated SPI flash memory
- Programmable button
- 5 x 5 RGB LED matrix panel
- Built-in Infra-red LED
- Built-in MPU6886 Inertial Sensor

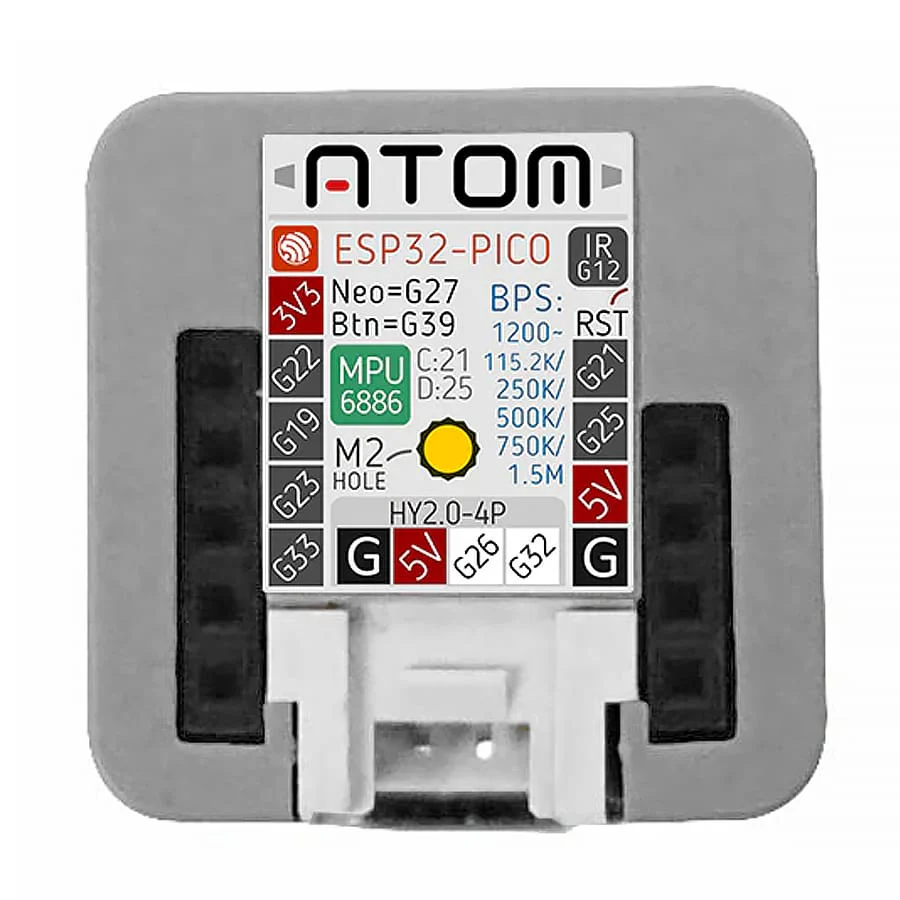

- Six GPIO connectors for attaching to external sensors
- PH2.0 interface

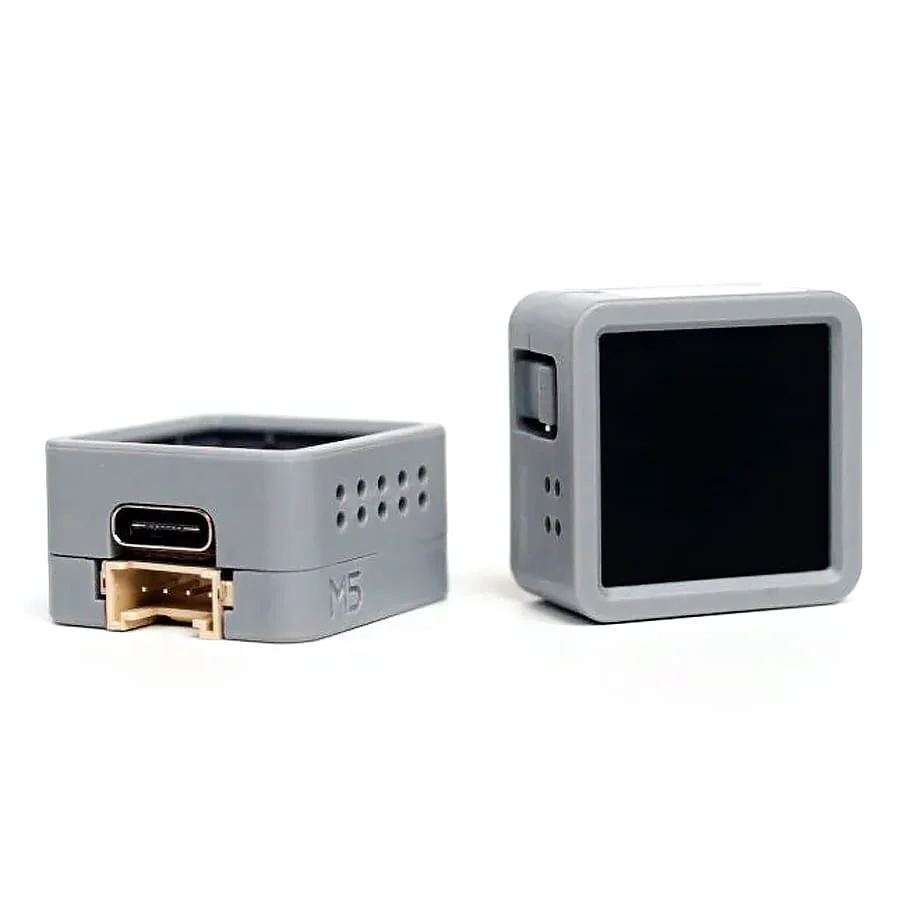

- On-board USB-C interface for programming
- Program Platform: Arduino / UIFlow
NOTE: The brightness of RGB LED is limited to 20. Setting it higher risks damaging the LED and acrylic screen.
One M2 screw hole is provided on the back for mounting the board.
Specifications
| Resource | Parameter |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash | 4MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE (I2C+I/0+UART) x1 |
| PIN Port | G19, G21，G22，G23，G25, G33 |
| RGB LED | WS2812B x 25 |
| MEMS | MPU6886 |
| IR | Infrared transmission |
| Button | Custom button x1 |
| Antenna | 2.4G 3D Antenna |
| Operating Temperature | 32°F to 104°F ( 0°C to 40°C ) |
| Size | 24 x 24 x 14 mm |
| Weight | 14g |
| Case Material | Plastic ( PC ) |
