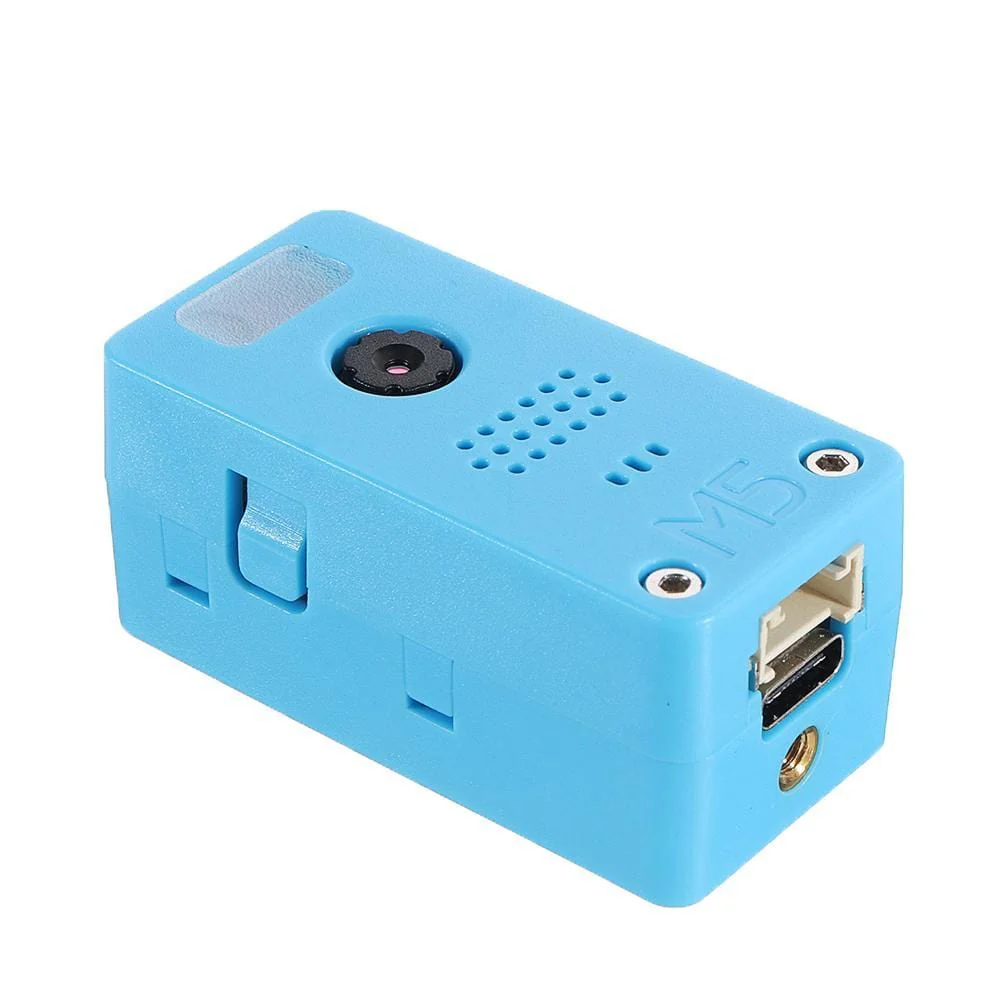

M5Stack M5StickV K210 AI Camera Development Board (Without Wifi)

A compact AI IoT camera development board with 64bit image processing capabilities.

Powered by a Kendryte K210 dual-core 64bit RISC-V CPU, advanced neural network processor and OmniVision OV7740 image sensor, M5StickV is a great option for low power embedded machine vision. It also has a speaker with built-in DAC, an IPS screen, motion sensor and inbuilt battery.

For more information and for help getting started, click here

---

Lithium Battery Shipping:Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
• Dual Independent Double Precision FPU
• Neural Network Processor(KPU) / 0.8Tops
• Field-Programmable IO Array (FPIOA)
• Dual hardware 512-point 16bit Complex FFT
• SPI, I2C, UART, I2S, RTC, PWM, Timer Support
• AES, SHA256 Accelerator
• Direct Memory Access Controller (DMAC)
• Micropython Support
• Firmware encryption support
• Case Material: PC + ABS

Includes

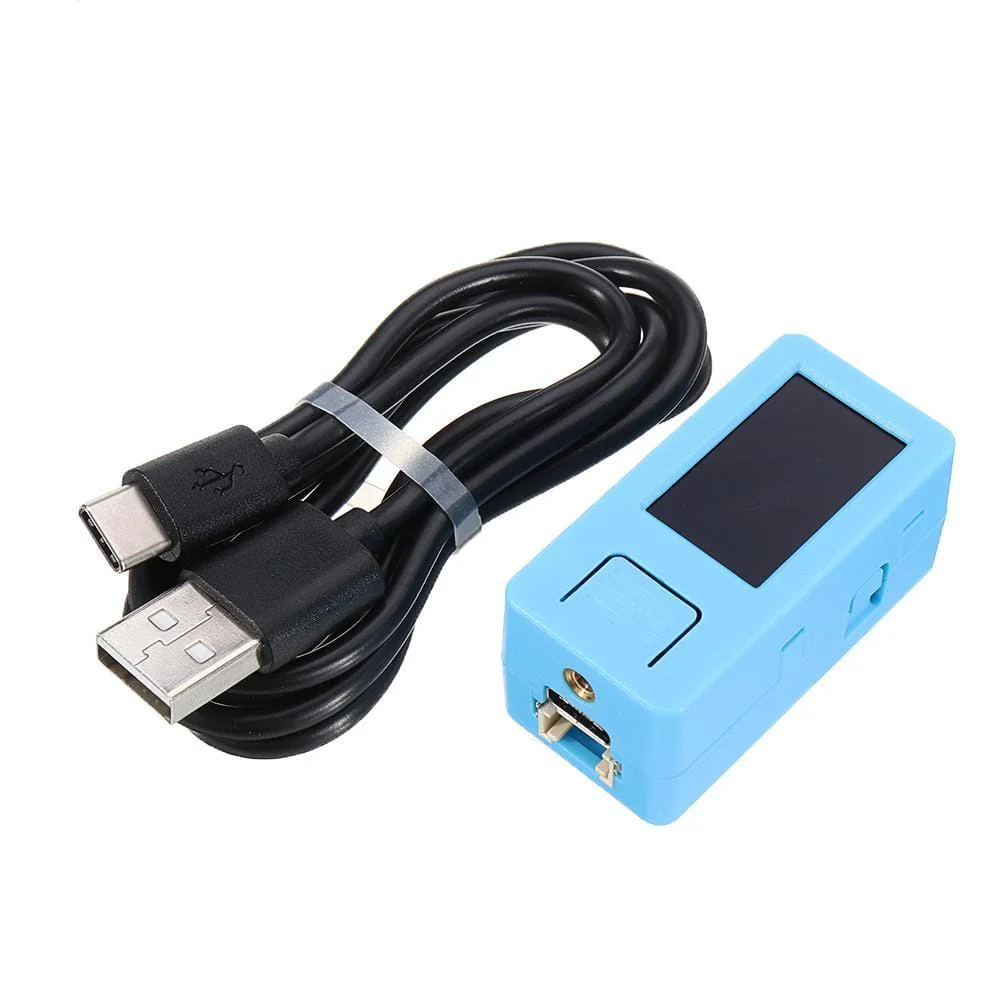

• 1x M5StickV
• 1x USB Type-C cable (100cm)

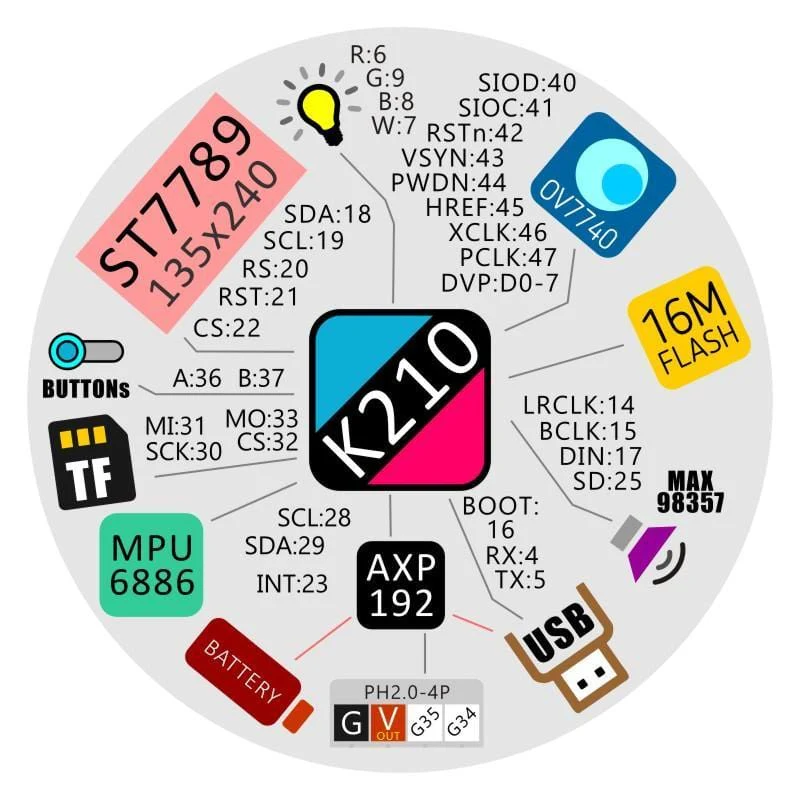

Specifications

Resources	Parameter
Kendryte K210	Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
SRAM	8Mbit
Flash	16M
Power input	5V @ 500mA
KPU Parameter size of neural network	5.5MiB - 5.9MiB
Port	TypeC x 1, GROVE(I2C+I/0+UART) x 1
RGB LED	RGBW x 1
Button	Custom button x 2
IPS screen	1.14 TFT, 135 x 240, ST7789
Camera	OV7740
PMU	AXP192
Battery	200mAh
External storage	TF Card/Micro SD
MEMS	MPU6886
Size	144 x 44 x 43mm
Weight	82g
Case Material	Plastic ( PC )
