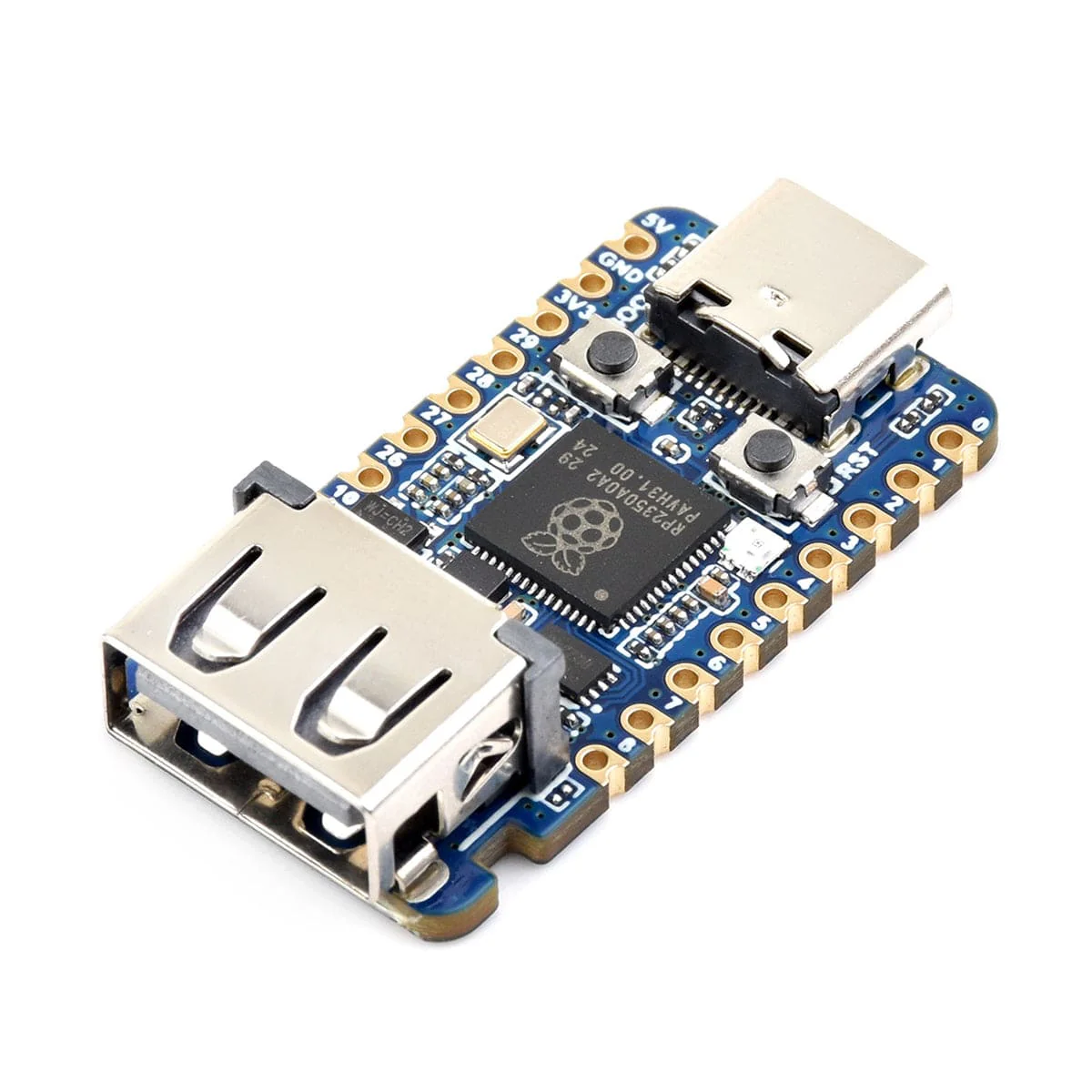

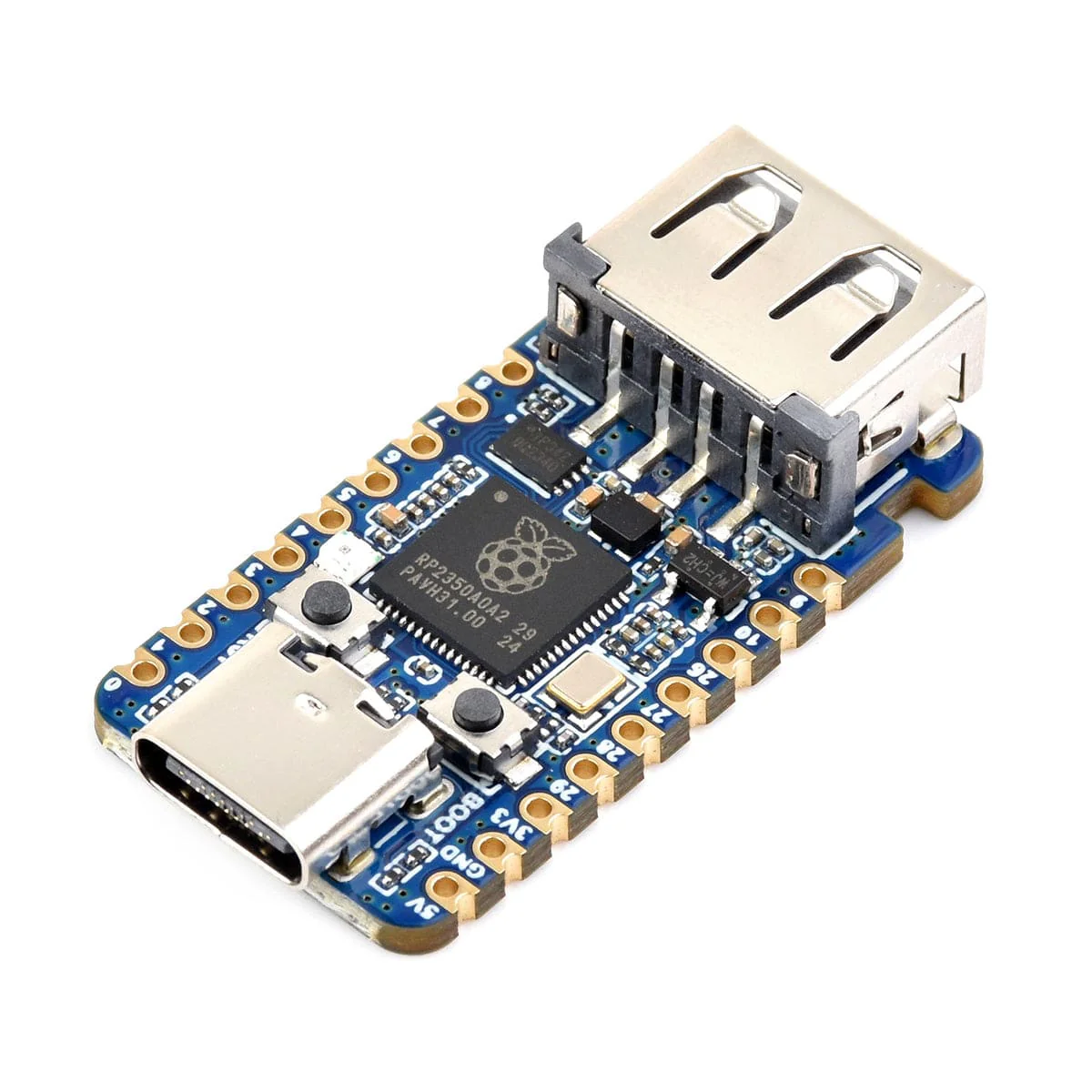

RP2350A USB Mini Development Board

This small development board uses the RP2350 chip with a dual-core Arm Cortex M33 processor and dual-core Hazard3 RISC-V processor running up to 150Mhz. There's 2MB of flash memory, a USB-C connector for programming and power and a USB Type-A 2.0 connector that supports a USB host or device via PIO.

There are 15 GPIO pins to easily connect to a Raspberry Pi Pico, and plenty of connectors including SPI, I2C, UART and 12-bit ADC. There is also support for C/C++ and Arduino IDE, with resources and tutorials to help get you started!

Features

• RP2350 microcontroller chip officially designed by Raspberry Pi
• Adopts unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V core processor, flexible clock running up to 150 MHz
• Built-in 520KB of SRAM and 2MB of on-chip Flash
• 1x USB port, compatible with USB2.0/1.1 transmission
• Castellated module allows soldering directly to carrier boards
• Drag-and-drop programming using mass storage over USB
• 15x Multi-function GPIO pins of RP2350
• Multiple hardware peripherals
  • 2x SPI
  • 2x I2C
  • 2x UART
  • 4x 12-bit ADC
  • 14x Controllable PWM channel
• Built-in temperature sensor on chip
• 12x Programmable I/O (PIO) state machines for custom peripheral support

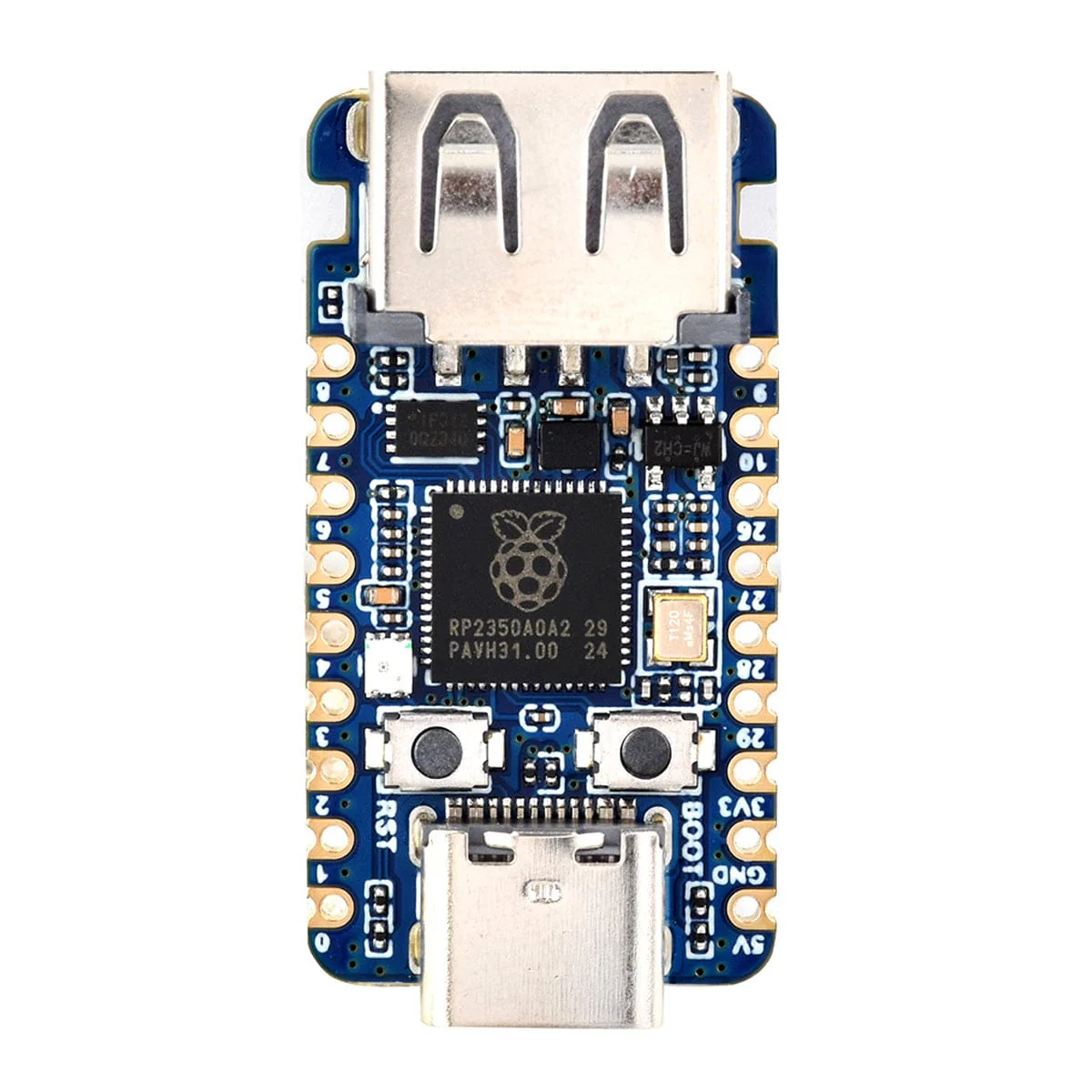

What's on Board

1. USB 2.0 Type A connector
   Supports USB host or device via PIO
2. BOOT button
   Press it when resetting to enter download mode
3. RESET button
4. RP2350A
   Dual-core and dual-architecture design, up to 150 MHz operating frequency
5. WS2812
   Cool RGB LED
6. RT9013-33GB
   500mA LDO regulator, low noise, ultra-fast response
7. W25Q16JVUXIQ
   2MB NOR-Flash
8. USB Type-C connector
   For programming, USB 1.1 with device and host support

Resources

• Product Wiki
• Schematic

Pinout

Package Contents

• 1x RP2350A USB Mini Development Board
