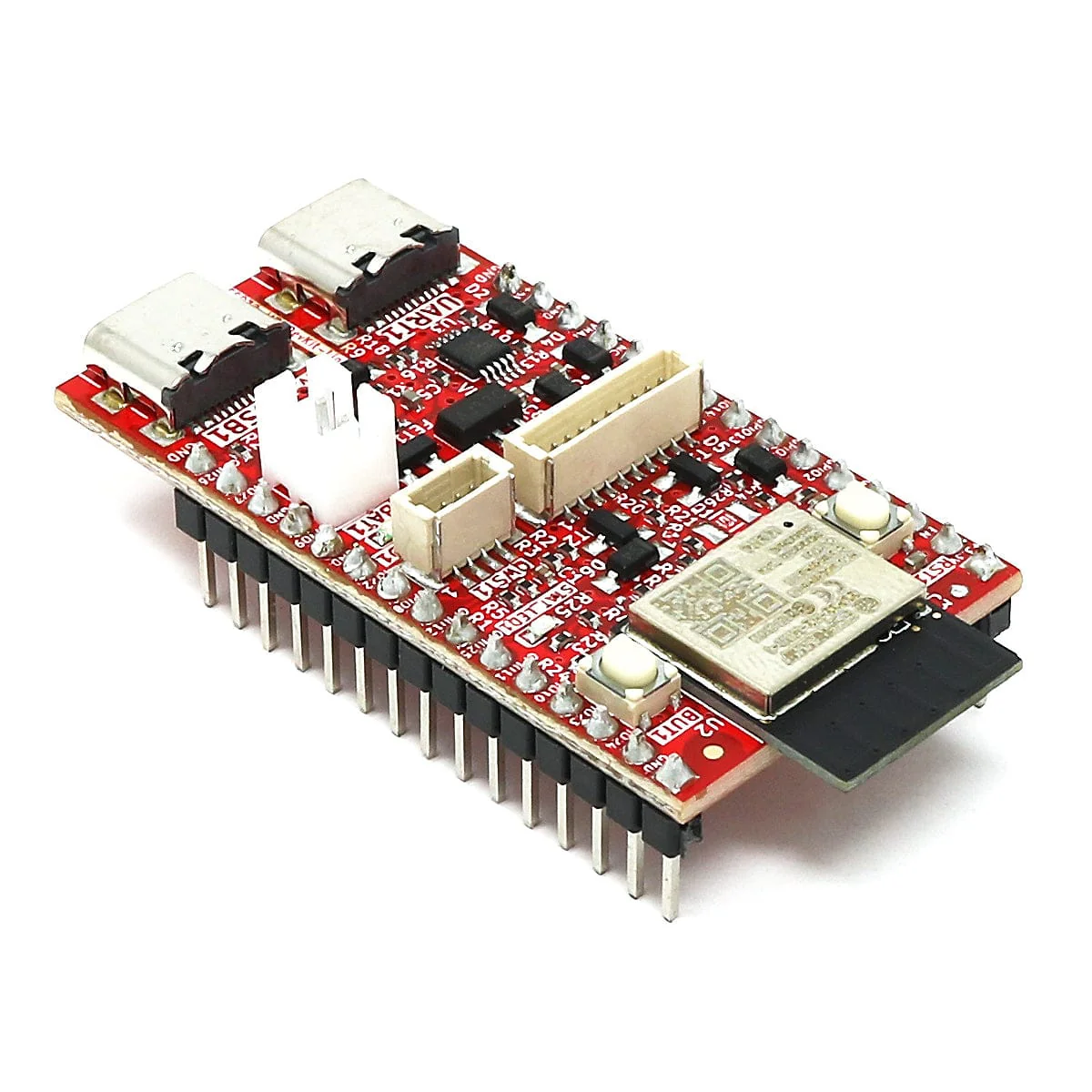

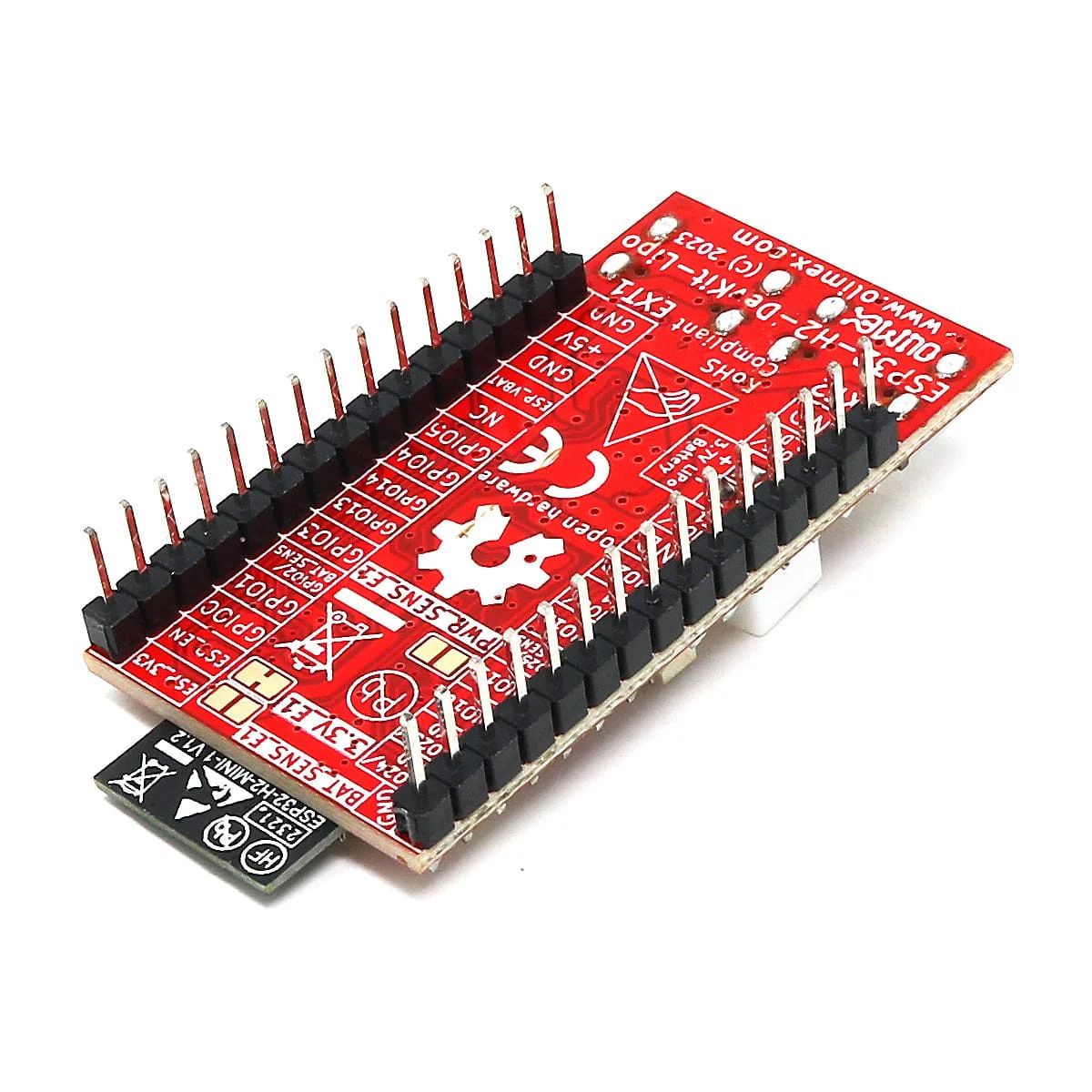

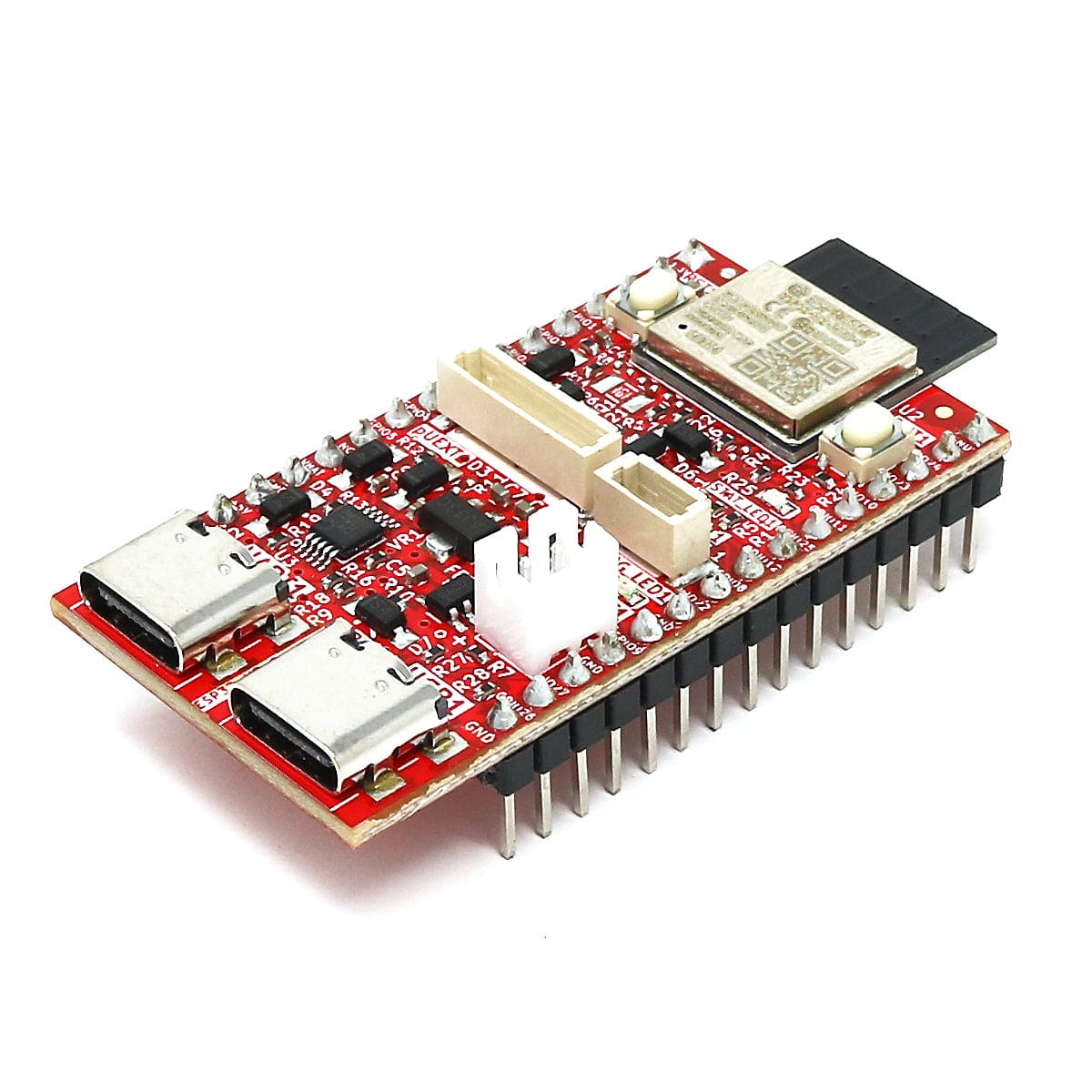

Olimex ESP32-H2-DevKit-LiPo

The Olimex ESP32-H2-DevKit-LiPo uses an ESP32-H2 module offering multiple protocol support on a single chip. It integrates a 2.4 GHz transceiver compliant with Bluetooth ® Low Energy and IEEE 802.15.4-based technologies, supporting Bluetooth 5 (LE), Bluetooth mesh, Thread, Matter, and Zigbee!

The SoC is powered by a single-core, 32-bit RISC-V microcontroller that can be clocked up to 96 MHz. The module has been designed to ensure low power consumption and security for connected devices. The ESP32-H2 has 320 KB of SRAM with 16 KB of Cache, 128 KB of ROM, 4 KB LP of memory, and a built-in 2 MB or 4 MB SiP flash. It has 19 programmable GPIOs with support for ADC, SPI, UART, I2C, I2S, RMT, GDMA and LED PWM.

Olimex have added dual USB-C to this board for both USB to Serial conversion and USB-C connected directly to the ESP32-H. You'll also find a LiPo battery connector, Qwiic/Stemma QT connector, RESET and user buttons, user LED and more!

Features

• ESP32-H2-MINI-1 module
• Power consumption 10uA in deep sleep
• USB-C with USB to Serial converter for programming / debugging
• USB-C connected directly to ESP32-H2
• LiPo battery charger and connector
• UEXT connector
• Qwiic/Stemma connector
• Reset button
• User button
• User LED
• All GPIOs available on two headers at 25.4 mm space
• Operating temperature -40+85C
• Dimensions: 48 x 25 mm

Connectivity Features

• Bluetooth supports: Bluetooth Low Energy (Bluetooth 5.3 certified), Bluetooth mesh, Bluetooth Low Energy long range (Coded PHY, 125 Kbps and 500 Kbps), Bluetooth Low Energy high speed (2 Mbps)
• IEEE Standard 802.15.4-2015 compliant
• Supports Thread 1.3
• Supports Zigbee 3.0
• Supports Matter
• Supports HomeKit, MQTT

Resources

Package Contents

• 1x ESP32-H2-DevKit-LiPo board
