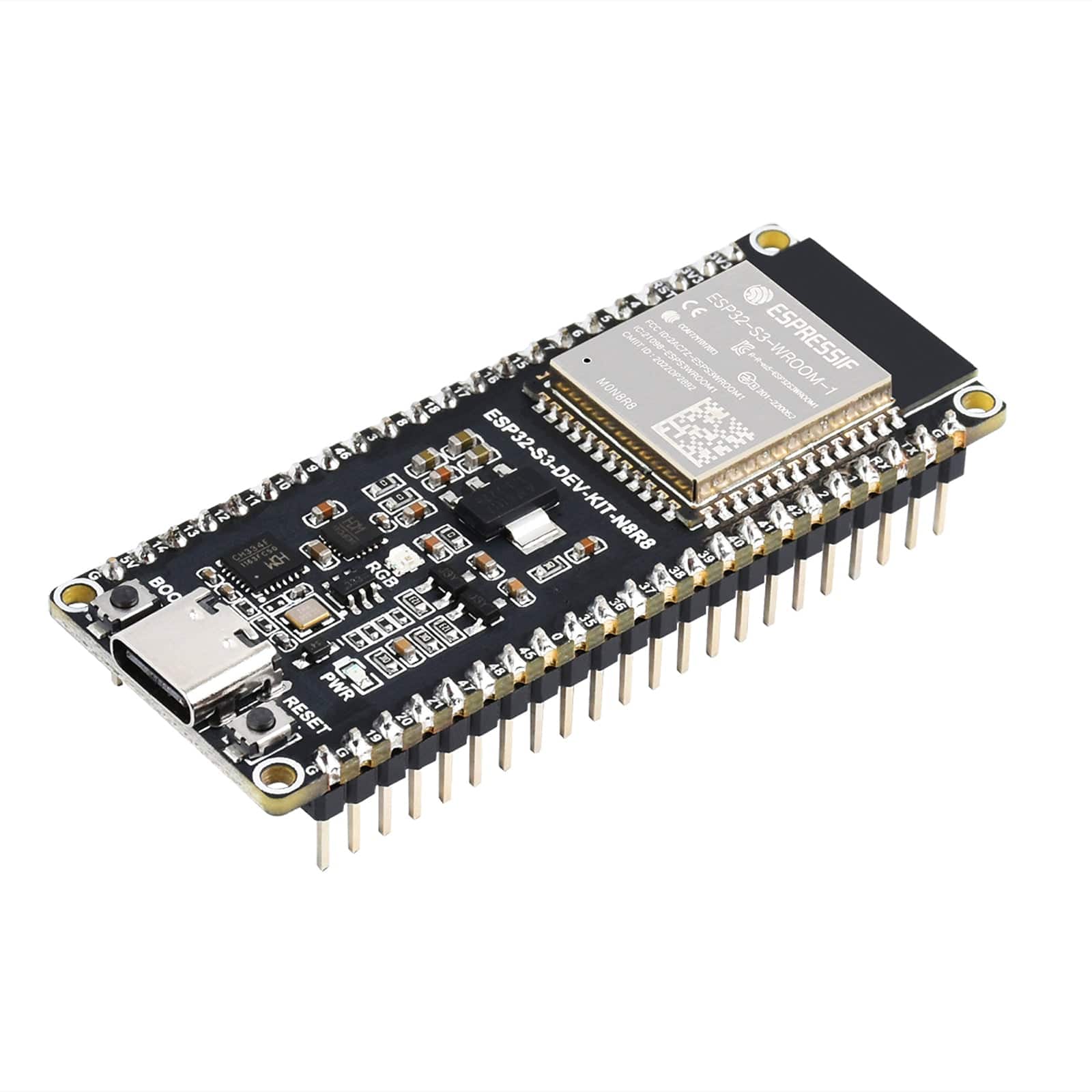

Waveshare ESP32-S3 Development Board (with Headers)
The ESP32-S3 is a powerful and versatile microcontroller designed for various Internet of Things (IoT) applications and projects. It is equipped with a range of features that make it ideal for wireless communication. It's built around a 32-bit Xtensa® LX7 CPU with a dual-core processor, running at up to 240MHz, and for communication and connectivity to the internet, there is a 2.4GHz Wi-Fi module. The microcontroller comes integrated into a development board, which simplifies the prototyping process and offers convenient access to various input/output interfaces.
The core component of the development board is the ESP32-S3-WROOM-1-N8R8 module which contains the ESP32-S3 microcontroller chip. This module provides the board with the primary processing and communication capabilities. With an array of memory features for a smooth and efficient operation of the microcontroller, a Type-C USB connector, which simplifies power supply and data transfer to the microcontroller, support, resources and tutorials for ESP-IDF, Arduino, MicroPython. This development board is a feature-rich and powerful platform for IoT projects and many others!
If you're looking for this board without soldered headers. click here.
This board comes in two versions: 8MB Flash and 16MB Flash. Please choose which version you want before adding it to the cart!
Features
- Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
- Type-C connector, easier to use
- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
- Rich peripheral interfaces, compatible with the pinout of the ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
- Castellated module allows soldering directly to carrier boards
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

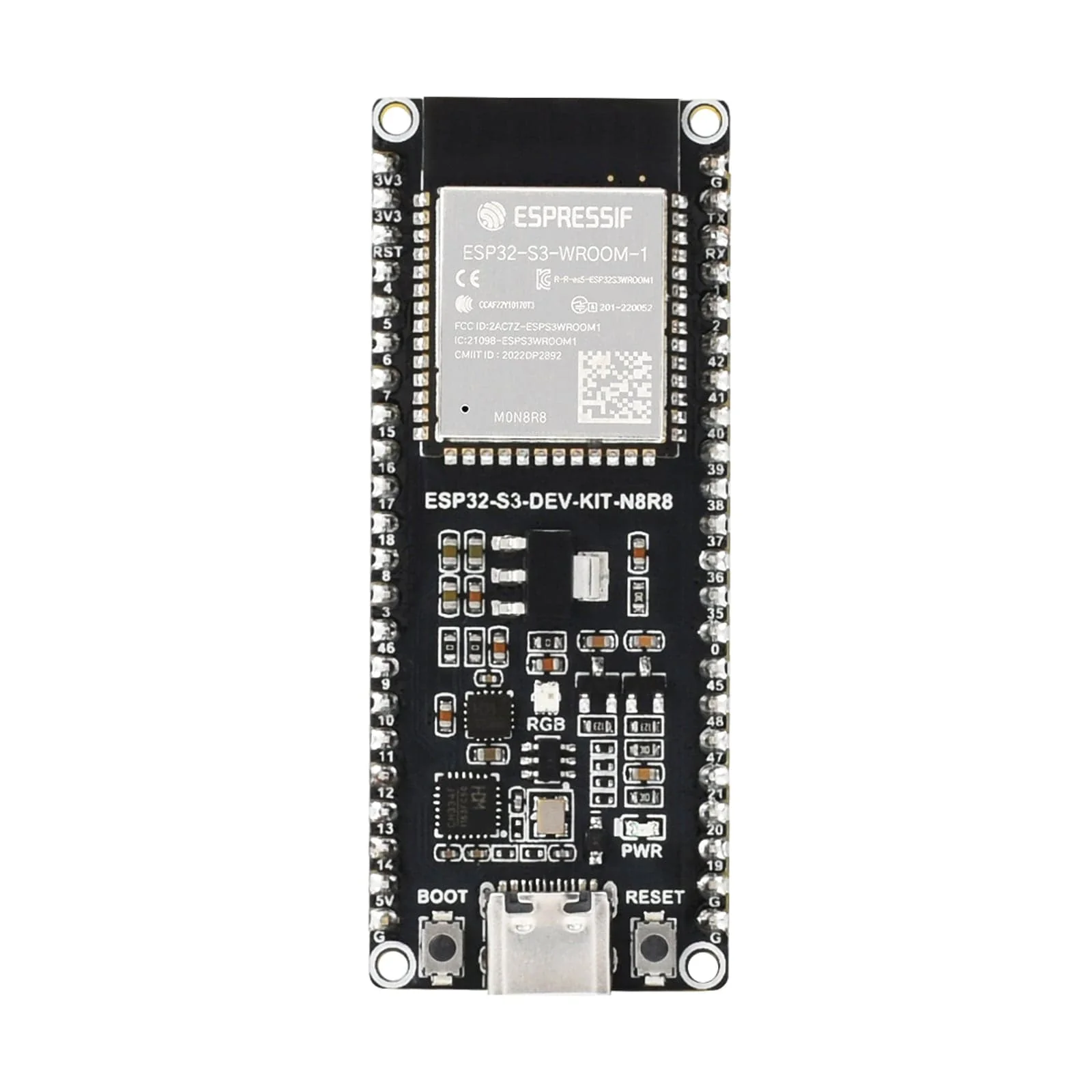

What's on Board
Resources
- Product Wiki

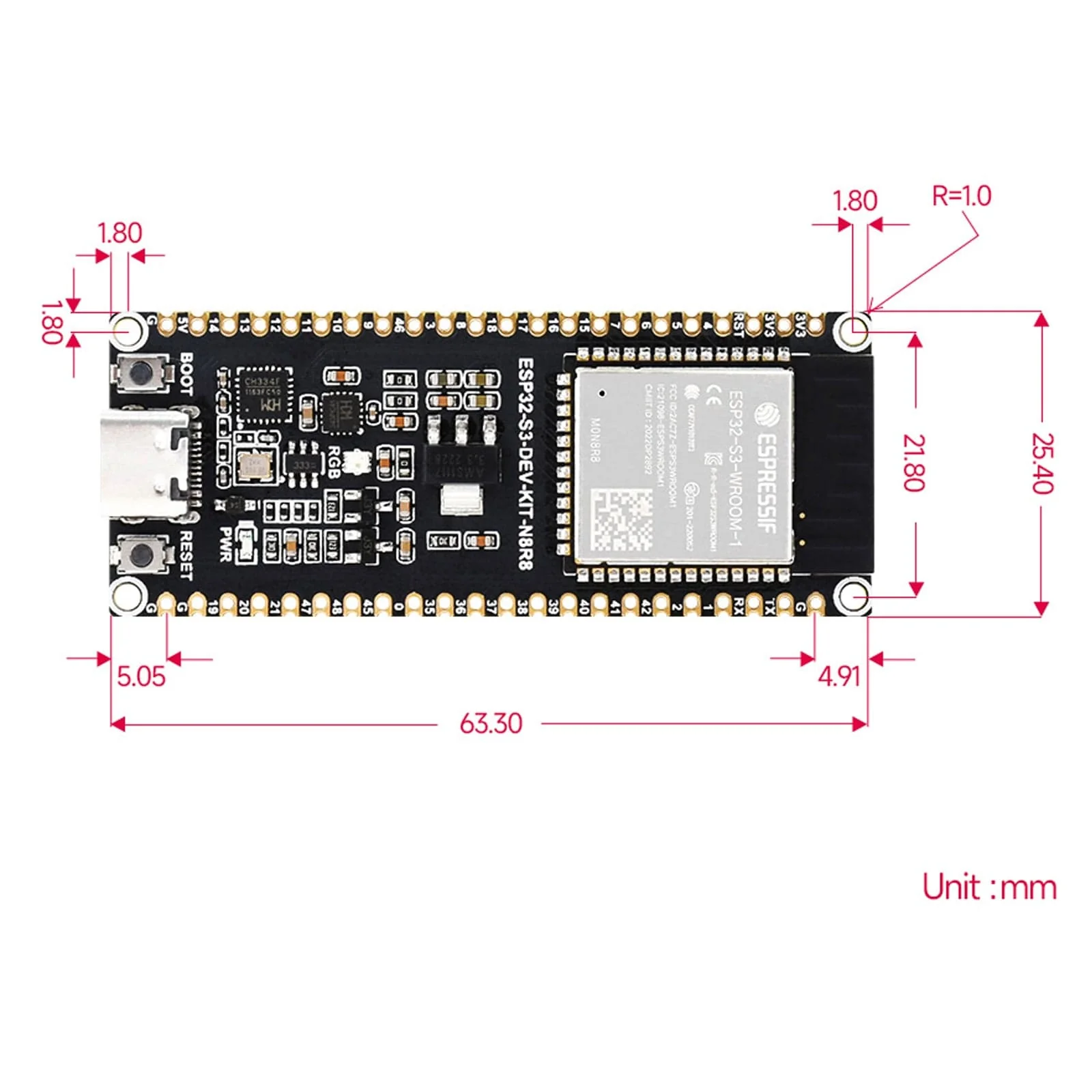

Pinout & Specifications

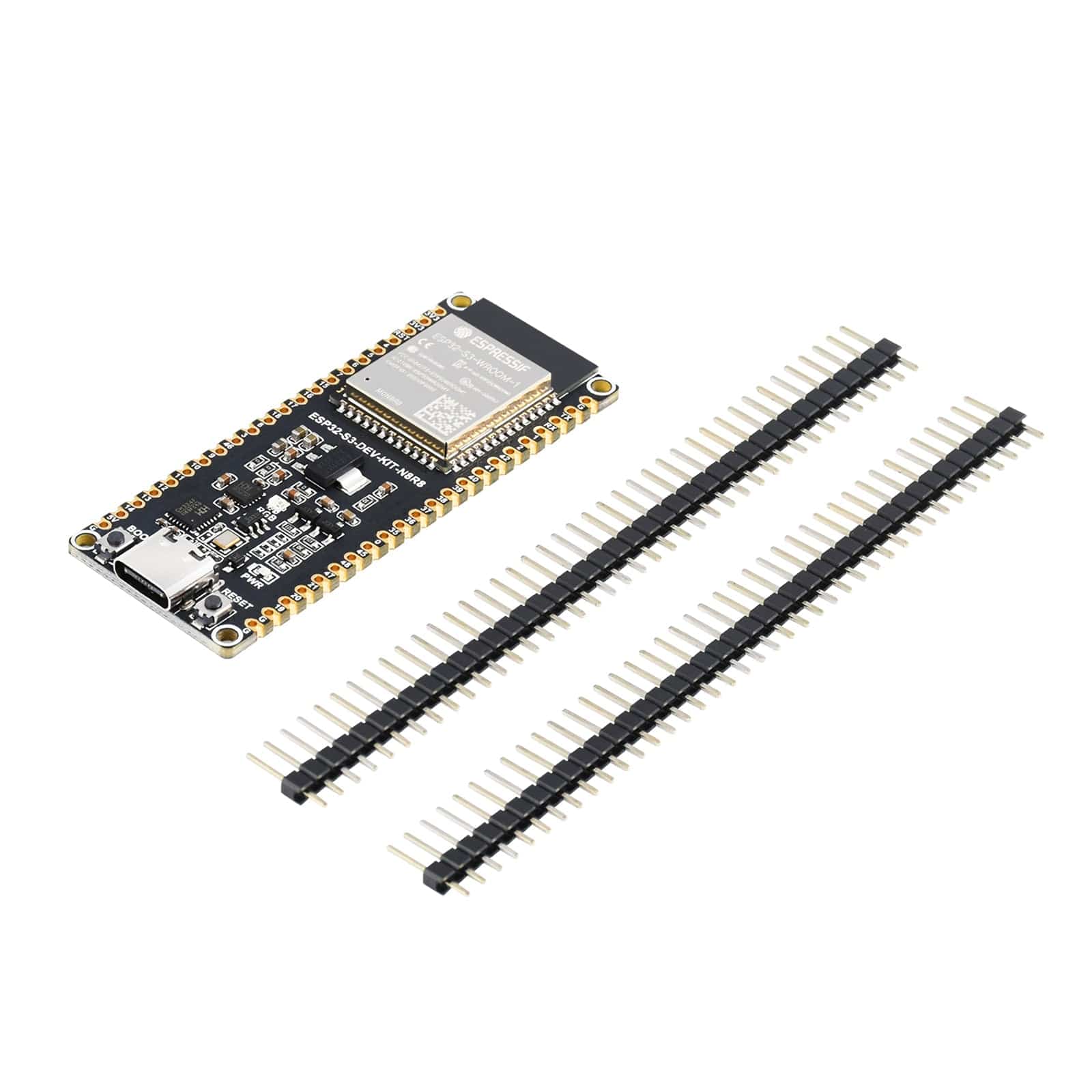

Package Contents
- 1x ESP32-S3 Microcontroller
- 1x 40-Pin male pin header (black)
Original: $14.43
-70%$14.43
$4.33
Description
The ESP32-S3 is a powerful and versatile microcontroller designed for various Internet of Things (IoT) applications and projects. It is equipped with a range of features that make it ideal for wireless communication. It's built around a 32-bit Xtensa® LX7 CPU with a dual-core processor, running at up to 240MHz, and for communication and connectivity to the internet, there is a 2.4GHz Wi-Fi module. The microcontroller comes integrated into a development board, which simplifies the prototyping process and offers convenient access to various input/output interfaces.
The core component of the development board is the ESP32-S3-WROOM-1-N8R8 module which contains the ESP32-S3 microcontroller chip. This module provides the board with the primary processing and communication capabilities. With an array of memory features for a smooth and efficient operation of the microcontroller, a Type-C USB connector, which simplifies power supply and data transfer to the microcontroller, support, resources and tutorials for ESP-IDF, Arduino, MicroPython. This development board is a feature-rich and powerful platform for IoT projects and many others!
If you're looking for this board without soldered headers. click here.
This board comes in two versions: 8MB Flash and 16MB Flash. Please choose which version you want before adding it to the cart!
Features
- Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
- Type-C connector, easier to use
- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
- Rich peripheral interfaces, compatible with the pinout of the ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
- Castellated module allows soldering directly to carrier boards
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
What's on Board
Resources
- Product Wiki
Pinout & Specifications
Package Contents
- 1x ESP32-S3 Microcontroller
- 1x 40-Pin male pin header (black)
