Voltaic Screw & Washer Set for Solar Panels

The Voltaic K-MT-BK-ETFE Panel Screw & Washer Set provides a complete screw, washer, and post nut kit for securely attaching ETFE solar panels to mounting brackets and other hardware.

---

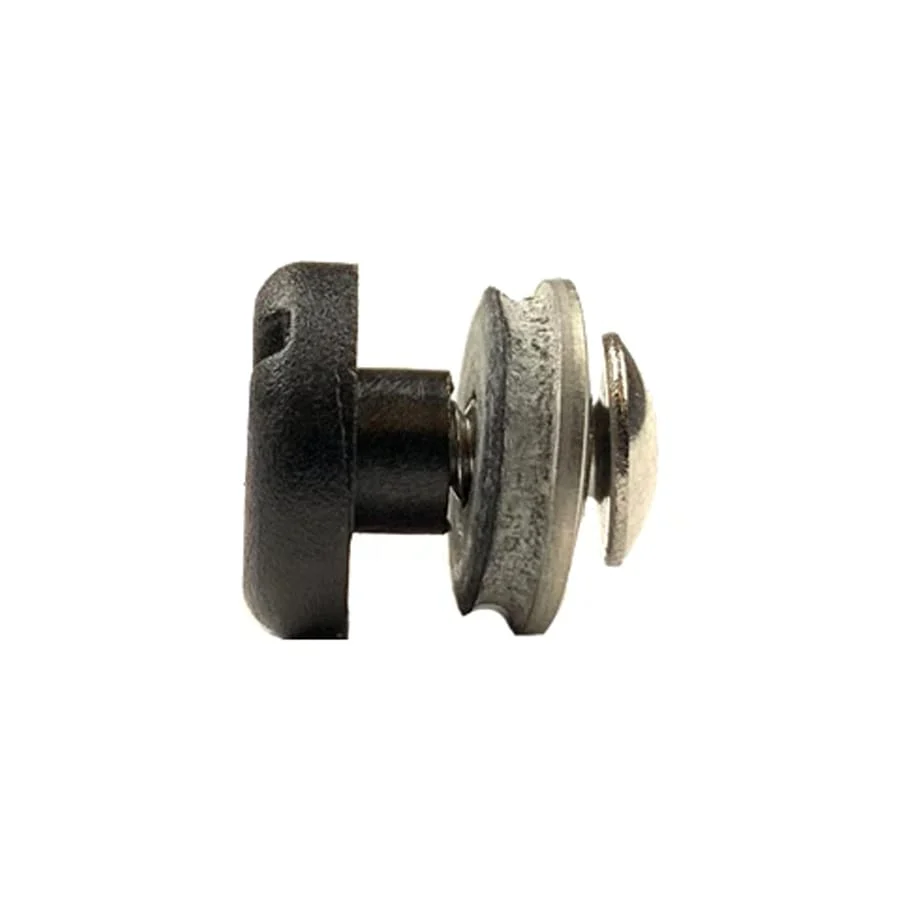

The Voltaic Panel Screw & Washer Set is a hardware kit designed to securely attach Voltaic ETFE solar panels to mounting brackets. It includes four complete sets of screws, washers, and post nuts.

Each set uses stainless steel screws with neoprene-backed washers to help maintain a secure fit. The included ABS post nuts fasten from the rear of the panel, creating a firm connection between the panel and bracket.

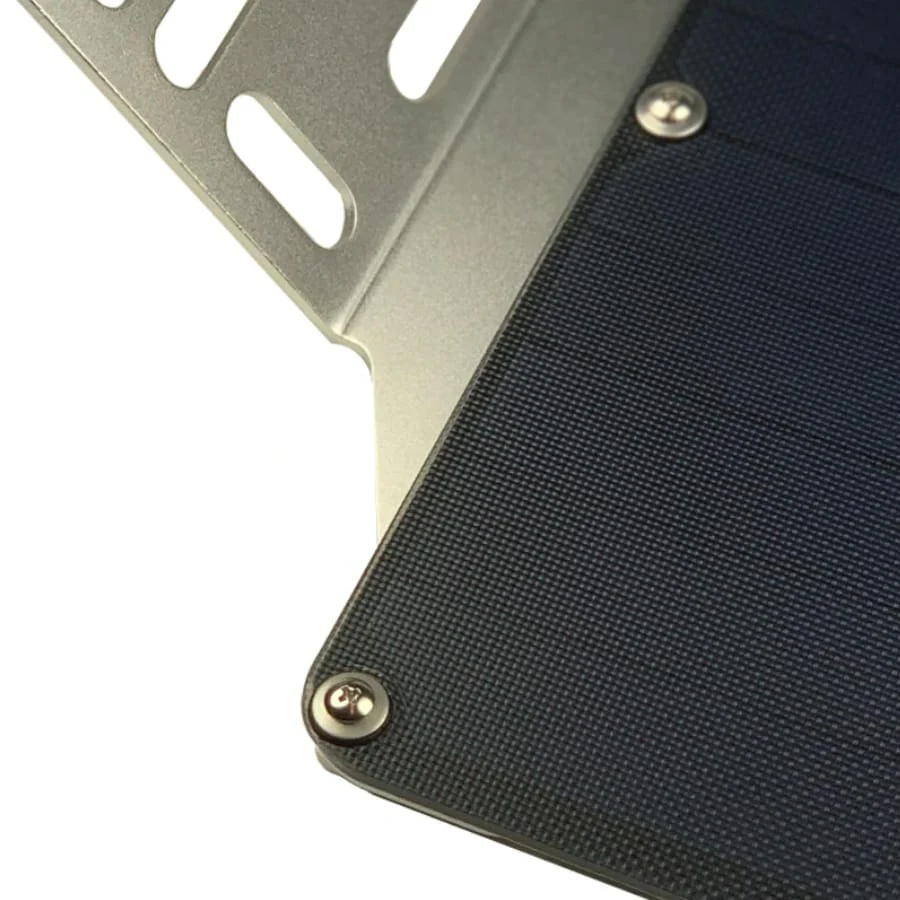

This mount set is compatible with all Voltaic ETFE brackets with corner mounting holes, and can be used with the small, medium and large Voltaic mounting brackets. Installation is straightforward, using a simple screw-through design that allows panels to be mounted quickly and securely.

Solar panel not included.

Features

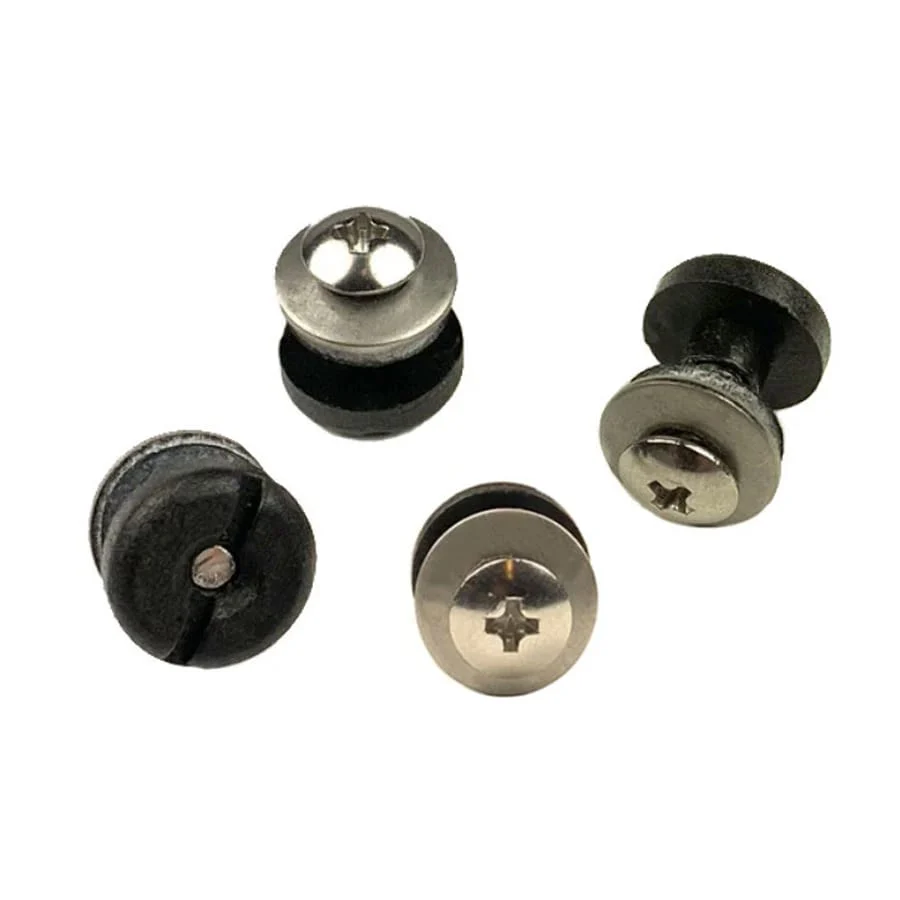

• Four complete sets of screws, washers, and post nuts included
• Stainless steel screws for corrosion resistance
• Neoprene-backed washers for secure, weatherproof fit

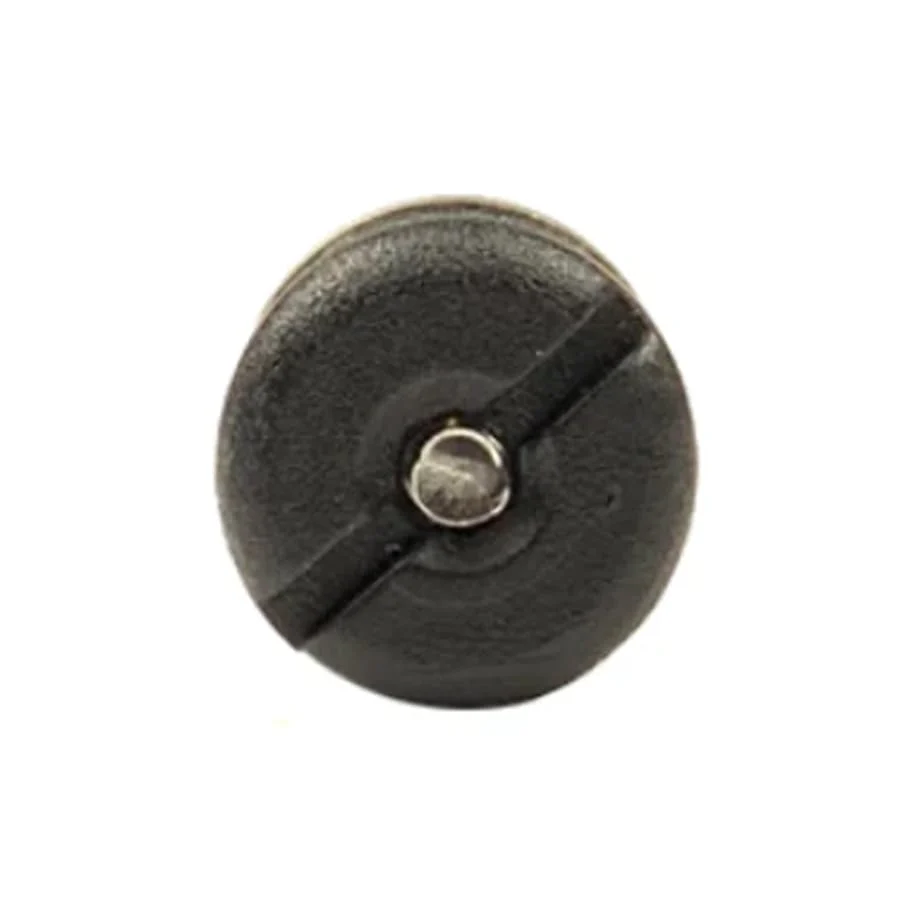

• ABS post nuts for rear-panel fastening
• Compatible with small, medium, large, and extra-large Voltaic brackets
• Simple screw-through design for quick installation


Specifications

Screw

• Extra-Wide Truss Head Phillips Screws
• Passivated 18-8 Stainless Steel
• 4/40 Thread
• 3/8" Long

Washer

• Neoprene Backed Stainless EPDM Washer
• Outer Diameter: 3/8"

Post nut

• ABS Plastic
• Internal Thread: 4/40

Compatibility

• All Voltaic ETFE Solar Panels with corner mounting holes
• Not compatible with Voltaic urethane solar panels (which include an embedded screw and ABS post nut)

Package Contents

• 1x Voltaic K-MT-BK-ETFE Panel Screw & Washer Set - ETFE (Pack of 4)

Please note: Solar panel is not included.
