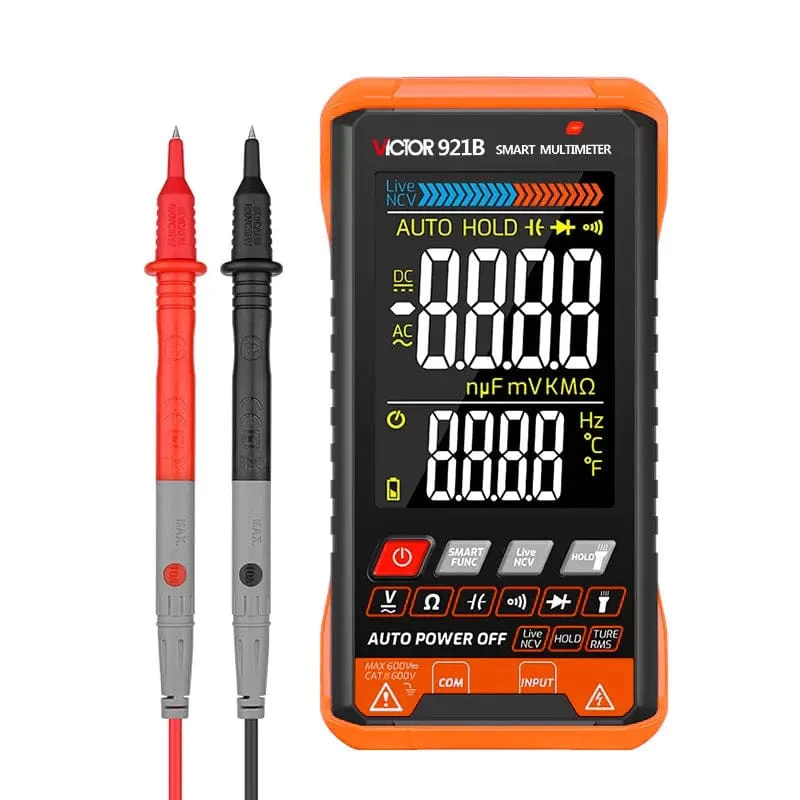

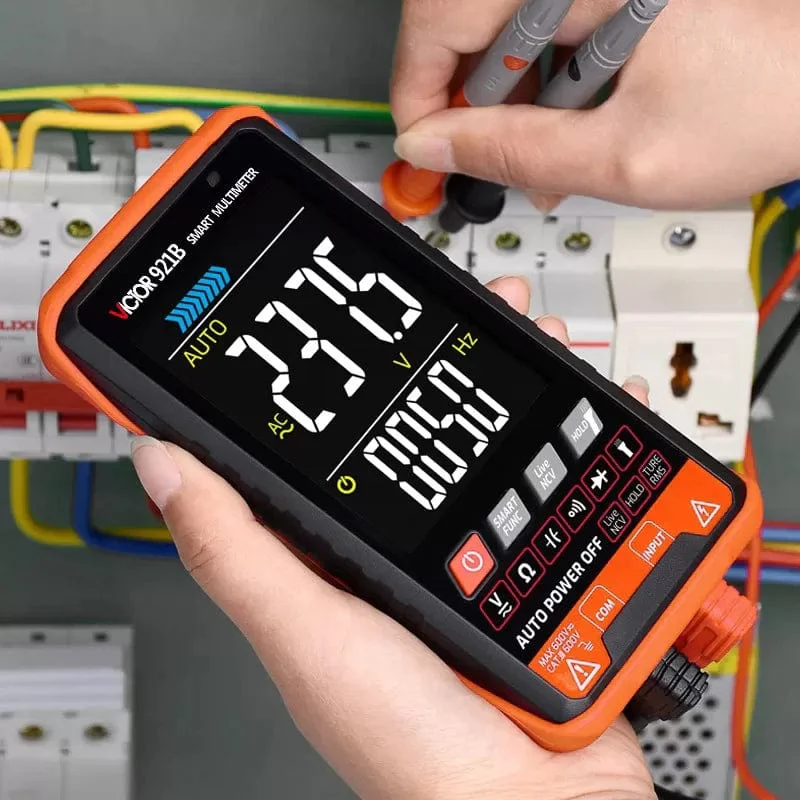

VICTOR 921B Smart Digital Multimeter
The VICTOR 921B is a modern digital multimeter featuring a large 5999-count colour LCD display with backlight, a protective soft shell case and a number of convenience features that put old-school 'twisty-dial' multimeters to shame!
The multimeter includes True RMS measurement for accurate AC readings with a 5999-count HD colour display with a 21-segment bar graph, making readings easy to see and track. NCV (non-contact voltage detection) sensing and live wire detection with visual and audible alerts help quickly identify voltage without contact.
You can switch between manual and automatic modes, and it also supports capacitance up to 60000 μF, resistance up to 60 MΩ, frequency up to 1 kHz, and AC/DC voltage from 1mV to 600V. There's also a diode test, a continuity beep, and room temperature display.
Other features include data hold, numerical lock, auto power-off (cancel if needed), polarity prompt, and warnings for low battery and over-range and a built-in flashlight! It’s powered by a single 1.5V AAA battery (not included), weighs about 175g (with a battery installed), and comes with a protective case.
Comes with test leads and printed manual in Chinese (which is pretty useless to most of our customers, so click here for an English version!)
AAA Battery not included. This product does not have a touch screen.

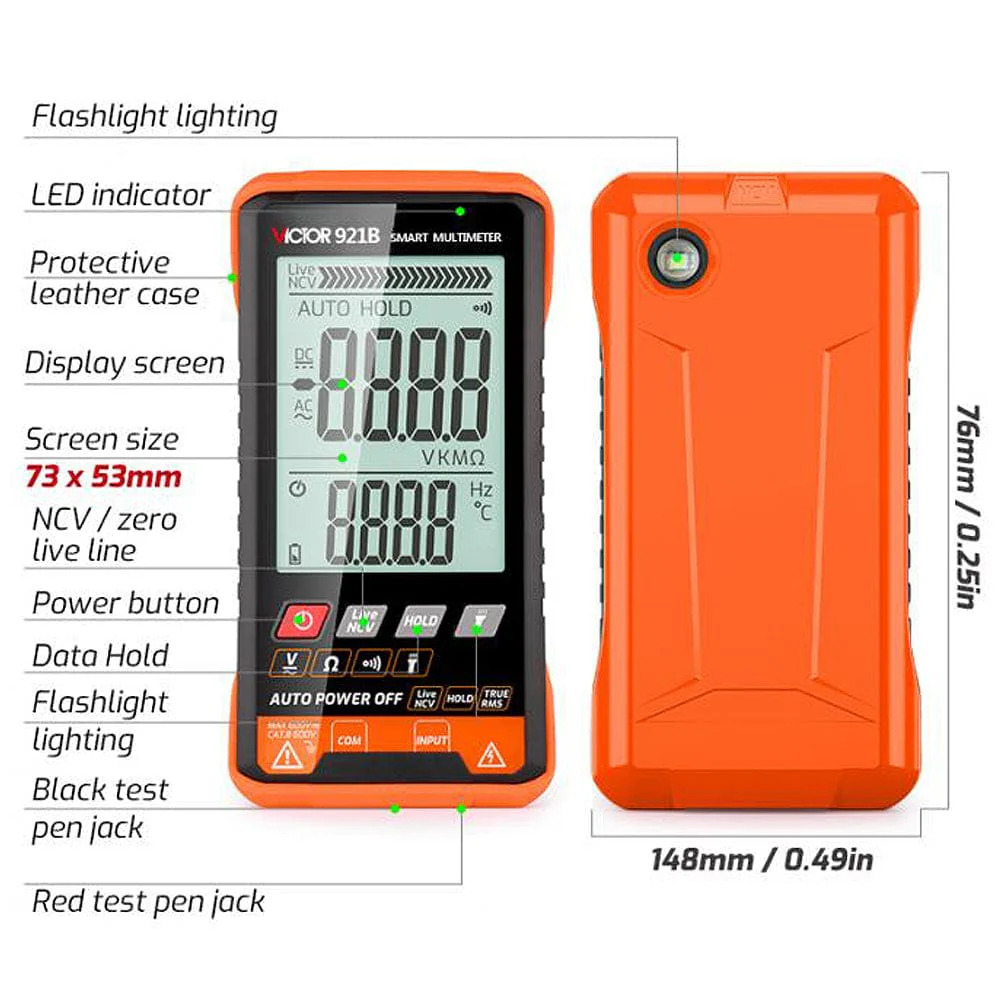

Features
- Manual/automatic mode switching
- True RMS measurement for accurate AC readings
- 5999-count backlit LCD display
- Null live wire judgement

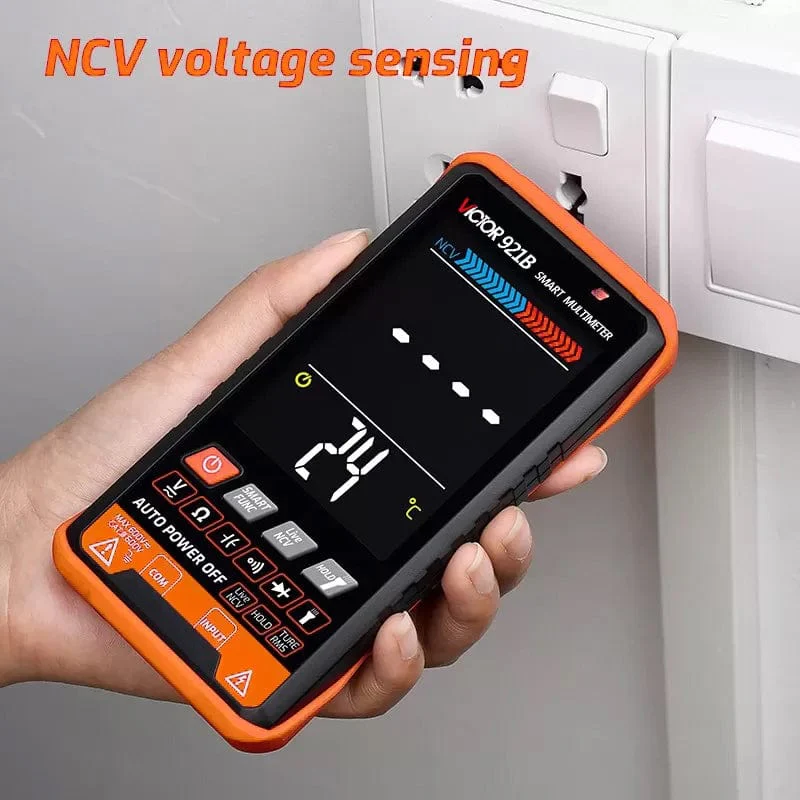

- NCV (non-contact voltage) sensing with visual and audible indicators

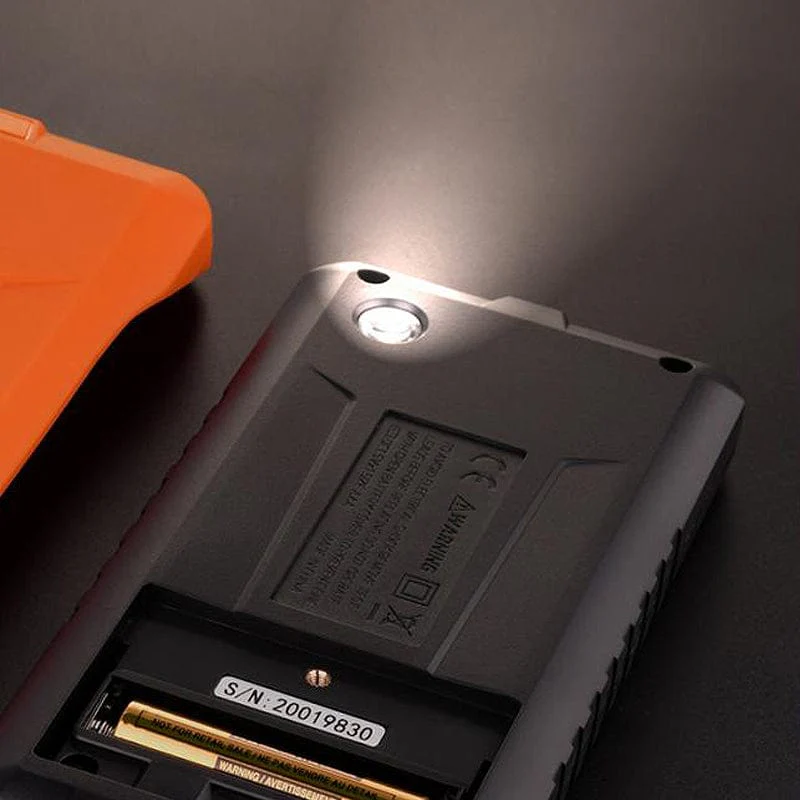

- Built-in flashlight for low-light environments
- Capacitance measurement up to 600 μF
- Resistance measurement: 0.1 Ω to 60 MΩ
- Frequency measurement up to 1 kHz
- Diode testing function
- AC/DC voltage measurement:
- 0.1 mV–600 V (DC), 1 mV–600 V (AC)
- On/off beep for continuity (below 50 Ω)

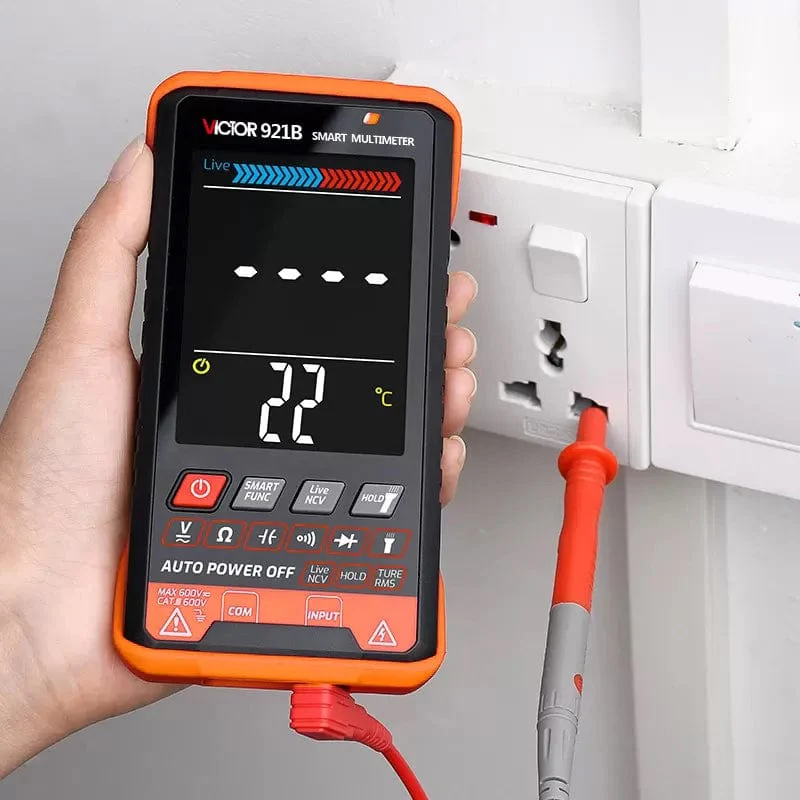

- Environmental temperature measurement (0°C to 40°C)
- Polarity prompt for DC signals
- 21-segment analogue bar graph
- Approx. 3 readings per second sampling rate
- Numerical locking function
- Low battery and over-range alerts (“OL” display)
- Auto power-off (can be disabled manually)
- Display size: 73 × 53 mm
- HD colour screen
- Protective soft case included
- Lightweight design: approx. 175g (with battery)
- Powered by 1 × AAA battery (not included)
- Size: 148x76x19 mm
Specifications
| Measurement mode | Full automatic manual operation |
| DC voltage | 0.1mV~600V (0.8%±5) |
| AC voltage | 1mV~600V (1.0%±3) |
| Resistance | 0.1Ω~60MΩ (1.5%±2) |
| Frequency | 40Hz~1KHz |
| Capacitance | 0.1uF~60000uF |
| Diode | ✓ |
| On-off beep | Sounding less than 50Ω |
| NCV voltage sensing | ✓ |
| Null live wire identification | ✓ |
| Environmental temperature measurement | 0°C~40°C |
| Flashlight lighting | ✓ |
| Numerical locking | ✓ |
| Low voltage prompt | ✓ |
| Over-range prompt | OL |
| Positive and negative polarity prompt | ✓ |
| Analog bar | 21 segments |
| Sampling rate | About three times per second |
| Display count | 5999 counting |
| Automatic shut-down | Yes (can be cancelled manually) |
| Display screen | HD colour screen 73 × 53 mm |
| Weight | About 175g (including battery) |
| Power supply | AAA battery × 1 (not included) |
| Size | 148 × 76 × 19 mm |
Resources
Package Contents
- 1x VICTOR 921B Multimeter
- 2x Test leads
Battery not included
