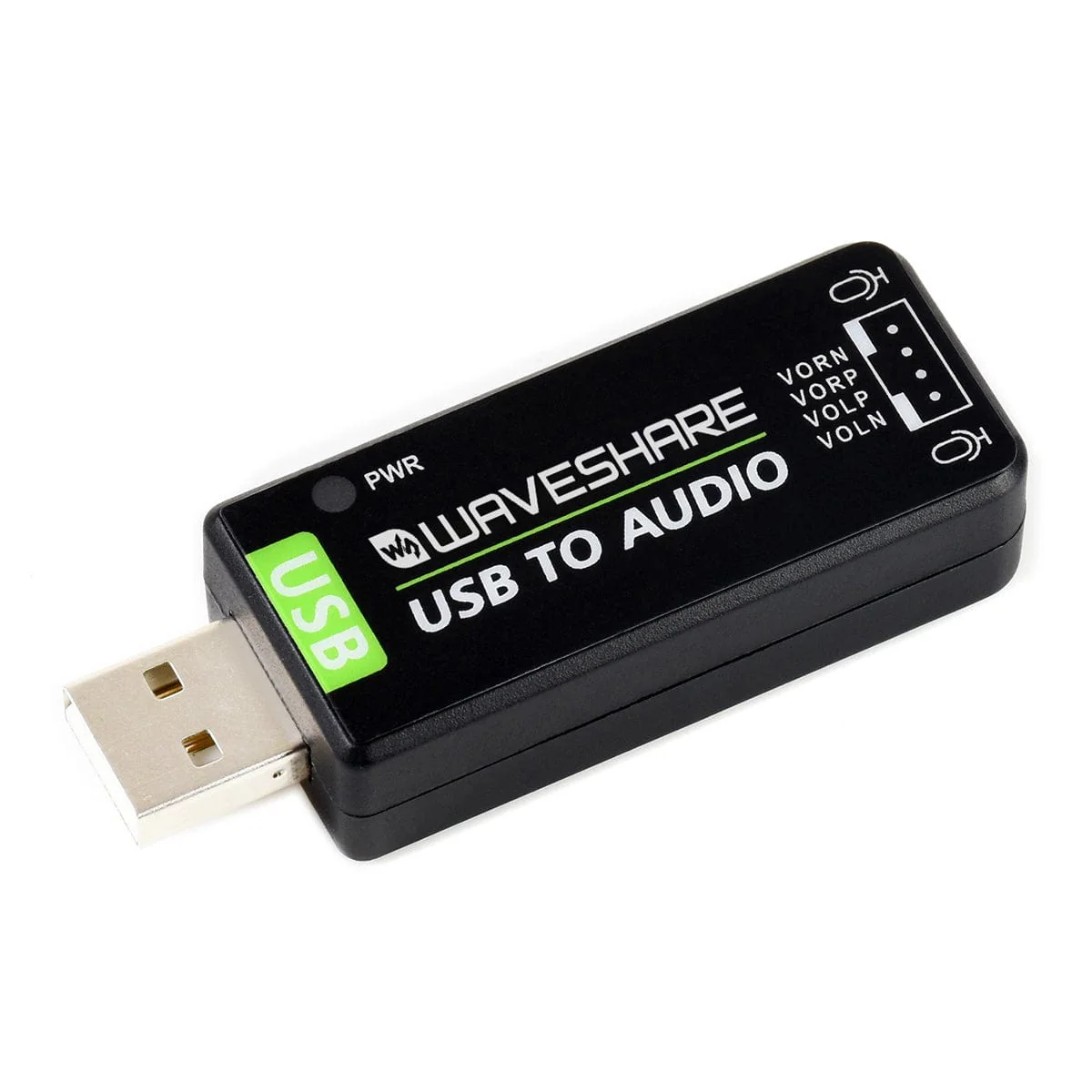

USB Sound Card for Raspberry Pi

This is a USB sound card from Waveshare with a built-in stereo codec for the Raspberry Pi and the Jetson Nano. It supports recording and playback and features a built-in microphone and PH2.0 header for compatible speakers (sold separately).

To make integration easy, this sound card is driver-free, making it plug and play!

Features

• Onboard Power indicators for checking power status
• Multiple sampling rate support
• • Supported Sampling: 8K, 11.025K, 12K, 16K, 22.05K, 24K, 32K, 44.1K and Default 48K (Hz)

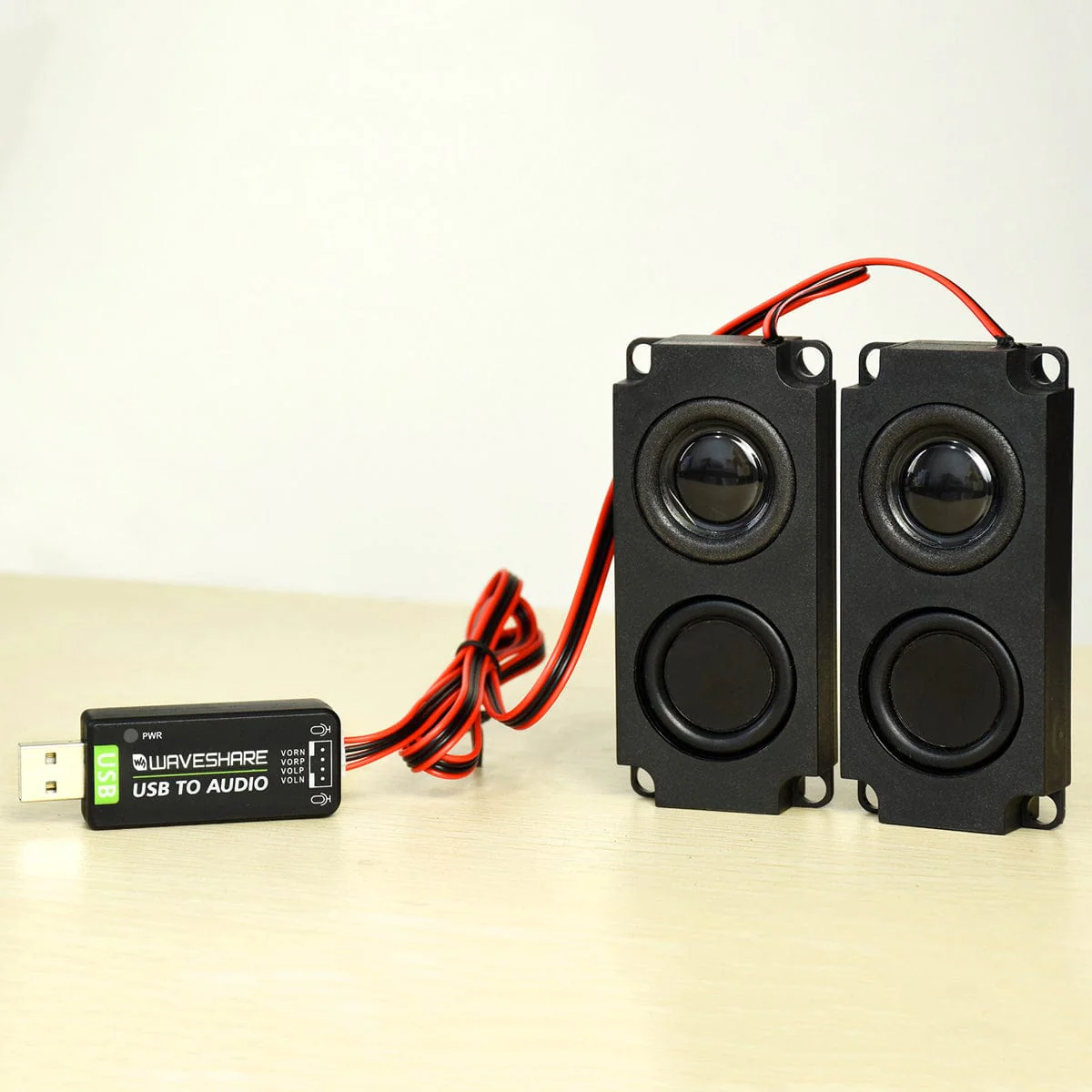

• Onboard microphone and header for a speaker provides support for audio input/output
• Driver-free, plug and play functionality for Raspberry Pi and Jetson Nano
• Compatible with Windows, Mac OS, Linux, and Android
• Standard USB 2.0 port connection

Specifications

• Power voltage: 5V
• Audo Encoder/Decoder: SSS1629A5
• Control port: USB
• Audio port: PH2.0
• Speaker driver: 2.6W per channel (4Ω BTL)

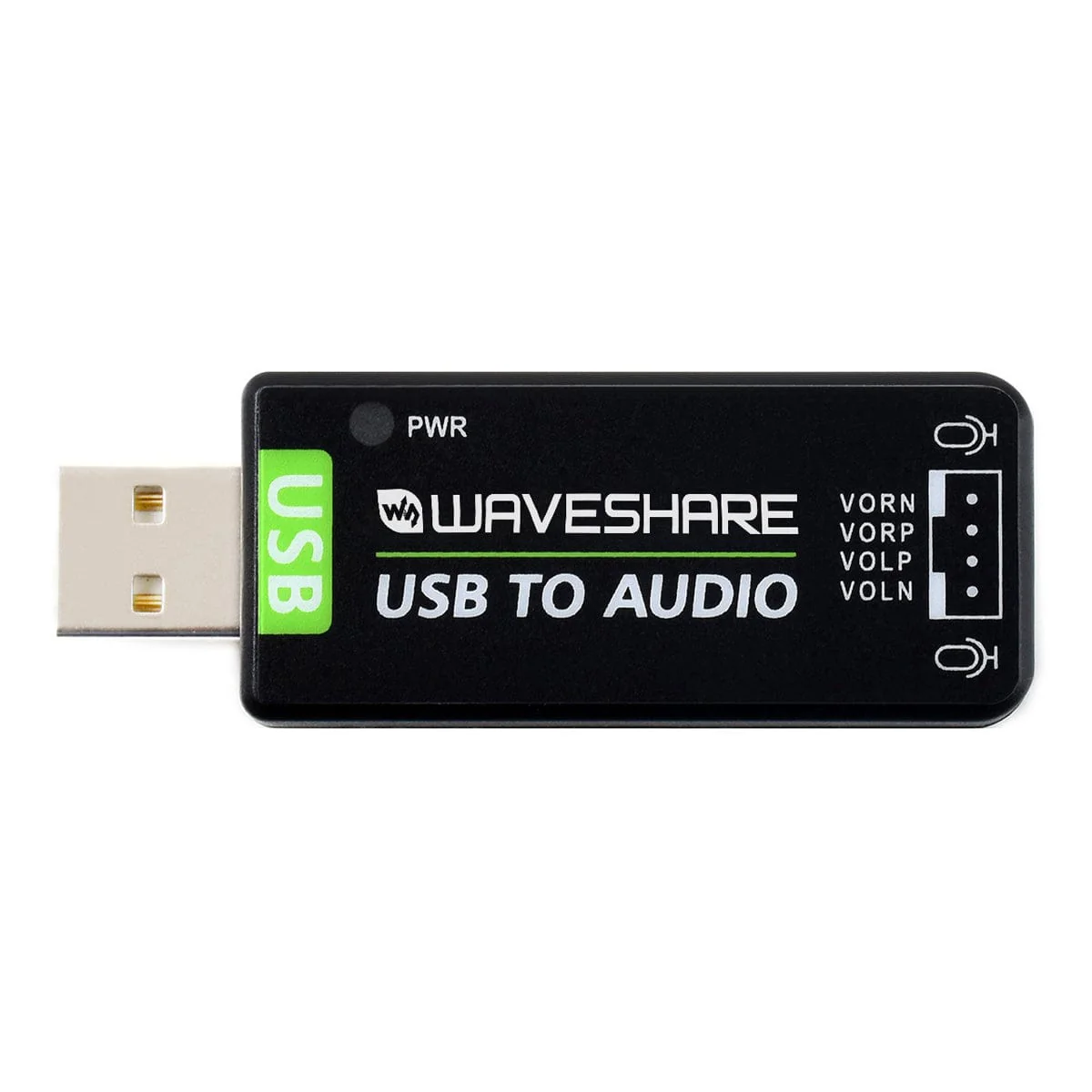

Whats on Board

Resources

• Waveshare Wiki

Package Contents

• 1x USB Sound card
• 1x USB cable
