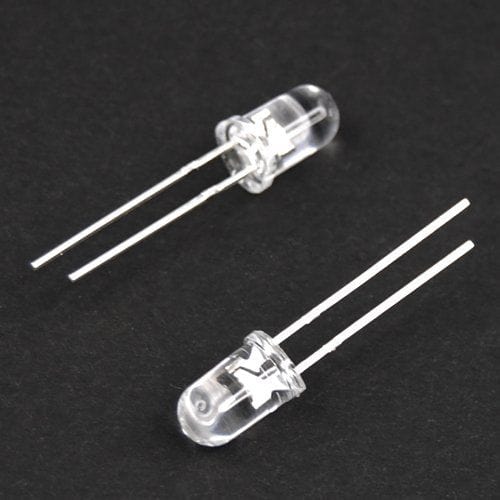

Ultra Bright LED 5mm - Warm White (10 Pack)

Available in 9 different colours, these Ultra Bright LEDs (Light-Emitting Diodes) are perfect for all your Raspberry Pi prototyping projects!

All Ultra Bright LEDs are "Grade A" class and offer a pure and consistent colour with a high-intensity light output and up to 20degree viewing angle. LEDs come in packs of 10!

Nothing is more satisfying than seeing your Pi physically interacting with stuff, and these LEDs are a fantastic place to start, as they fit perfectly into breadboards! If you need some resistors, we stock an excellent kit here!

These Ultra Bright LEDs Feature:

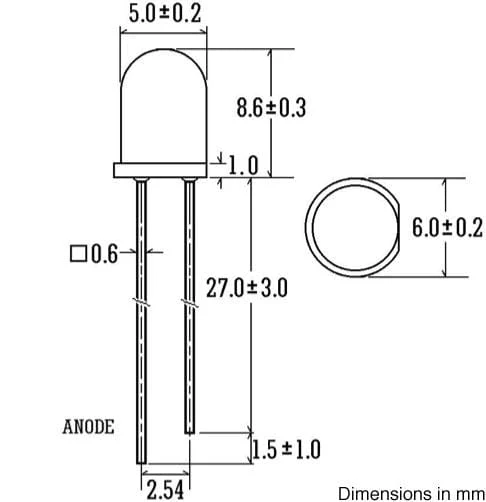

• 5mm Diameter
• Ultra Bright
• Lens Type: Crystal Clear, Round
• Typical Forward Current: 20mA
• Maximum Forward Current: 30mA
• Forward Voltage: 3.2v to 3.8v
• Up to 20degree Viewing Angle
• Each purchase is for 10 x LEDs

LED Colour	Fwd Current	Fwd Voltage	Wavelength (nm)	Brightness (mcd)
White	20mA - 30mA (Max)	3.2v – 3.8v	N/A	13000
Warm White	20mA - 30mA (Max)	3.2v – 3.8v	N/A	14000
Blue	20mA - 30mA (Max)	3.2v – 3.8v	465	9000
Red	20mA - 30mA (Max)	1.8v – 2.5v	640	2000
Green	20mA - 30mA (Max)	3.2v – 3.8v	520	15000
Yellow	20mA - 30mA (Max)	1.8v – 2.2v	590	8000
Orange	20mA - 30mA (Max)	1.8v – 2.2v	600	6000
Pink	20mA - 30mA (Max)	3.2v – 3.8v	N/A	9000
UV	20mA - 30mA (Max)	3.2v – 3.8v	395	3000

Resources

• Datasheet
• Adafruit - Learning About LEDs
• Resistor Calculator
