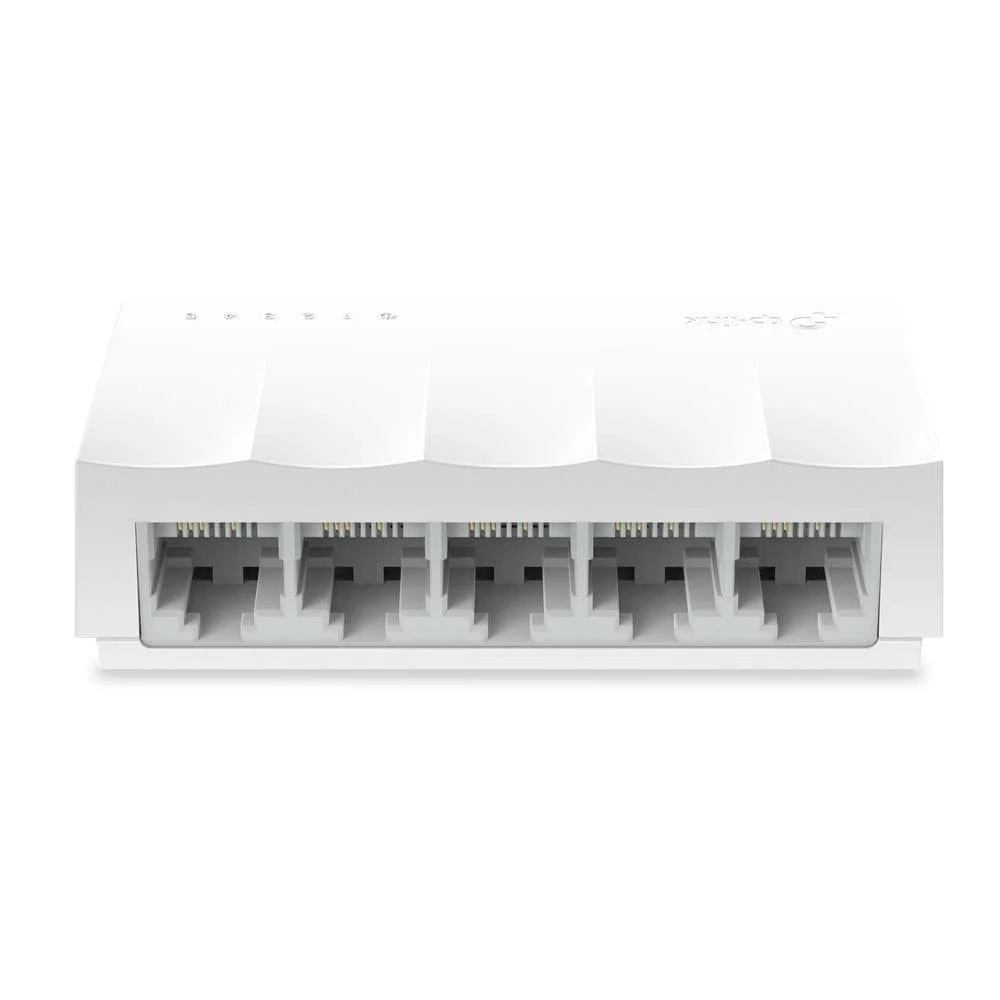

TP-Link 5-Port 10/100Mbps Network Switch [Discontinued]

This compact plug n' play desktop switch is great for increasing the number of Ethernet ports offered by your home router - something you will likely need to consider when building a Raspberry Pi Cluster!

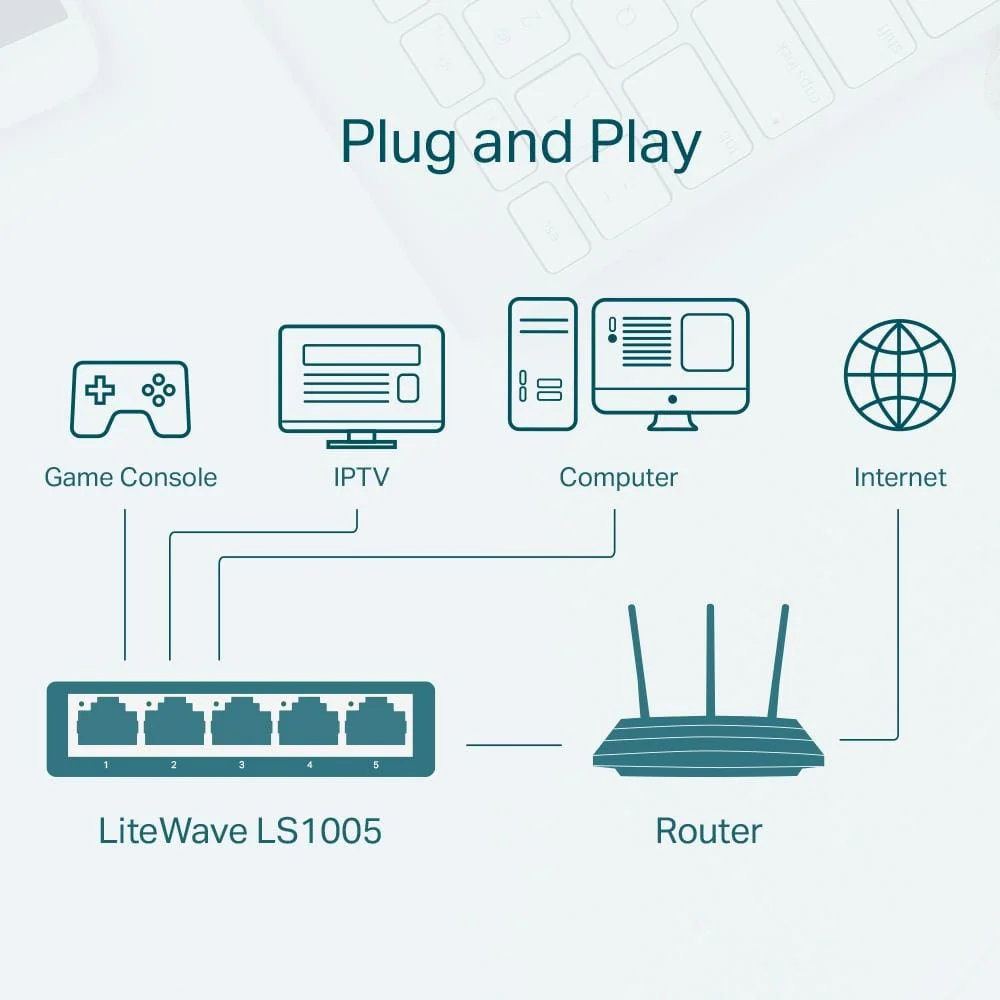

The switch is completely unmanaged - just connect one port to your network router and the other ports to your Raspberry Pi/other devices - no configuration or software required.

Note: This is a 10/00Mbps switch. It's a more affordable option to our faster Gigabit switch, for those who don't need Gigabit speeds.

Features

• 5× 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX

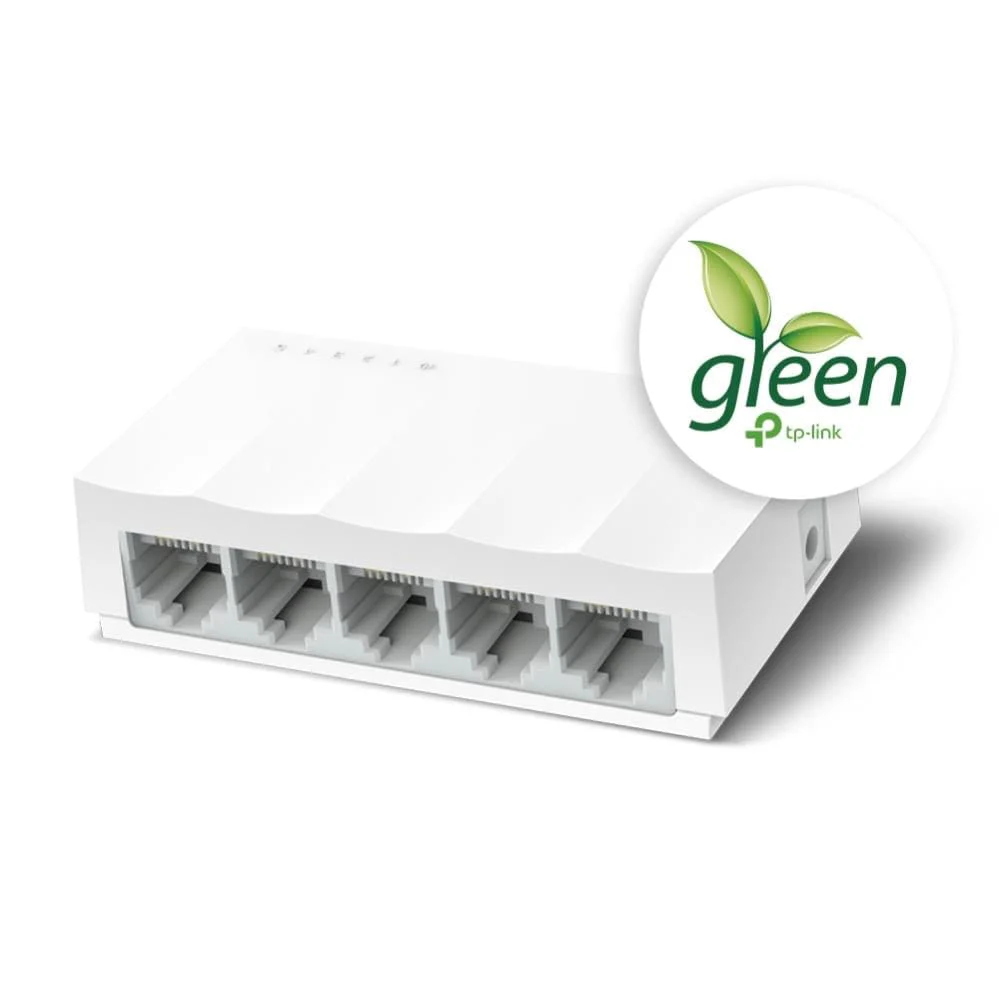

• Green Ethernet technology saves power consumption
• IEEE 802.3X flow control provides reliable data transfer
• Plastic casing and desktop design
• Plug and play, no configuration required

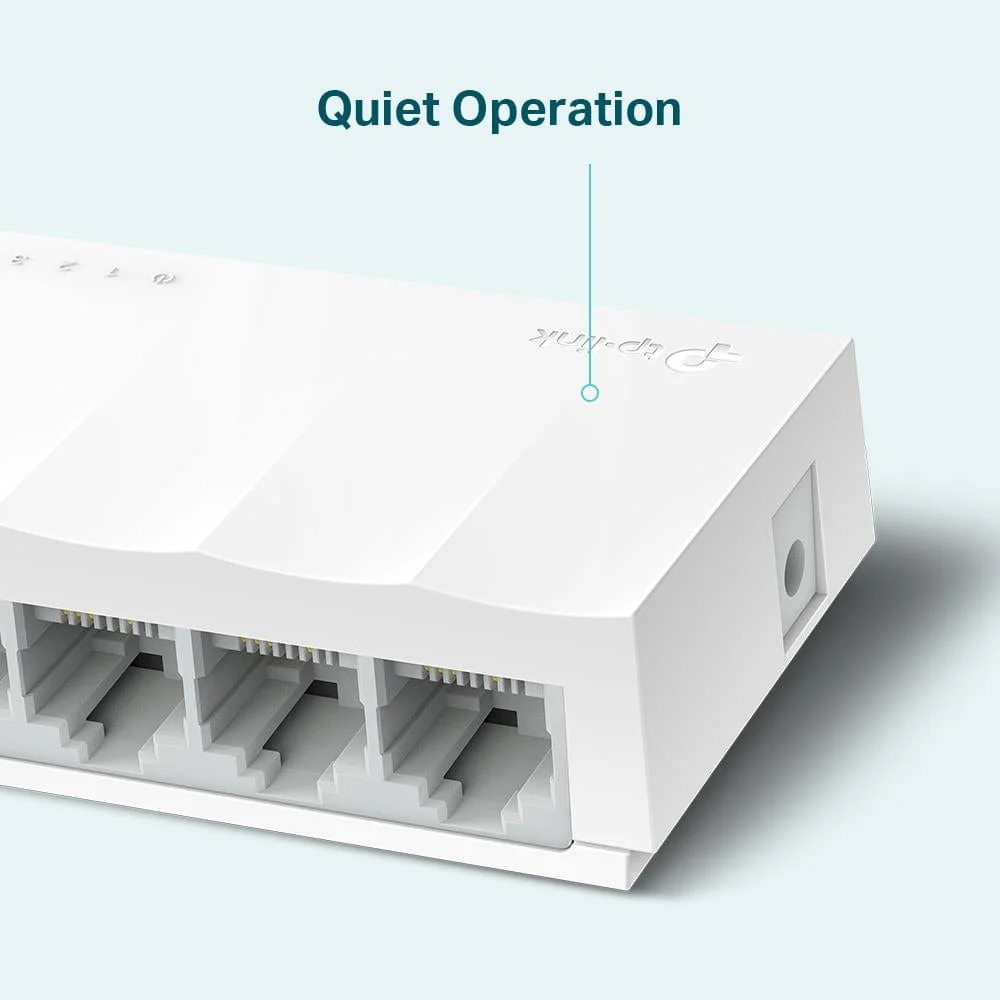

• Fanless design ensures quiet operation

Package Contents

• 5-Port 10/100Mbps Desktop Switch
• UK Power Adapter
• Installation Guide

Tech Specs

• Standards and Protocols: IEEE 802.3i/802.3u/802.3x
• Interface: 5× 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 5VDC/0.6A)
• Dimensions (W x D x H): 83.6 × 45.7 × 22.8 mm
• Max Power Consumption: 1.65W
• Max Heat Dissipation: 5.627 Btu/hr
• Advanced Features
  • Green Technology
  • 802.3X Flow Control
  • Back Pressure
• Transfer Method: Store and Forward
• Certification: CE, FCC, RoHS
• Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40°C~70°C (-40°F~158°F)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
