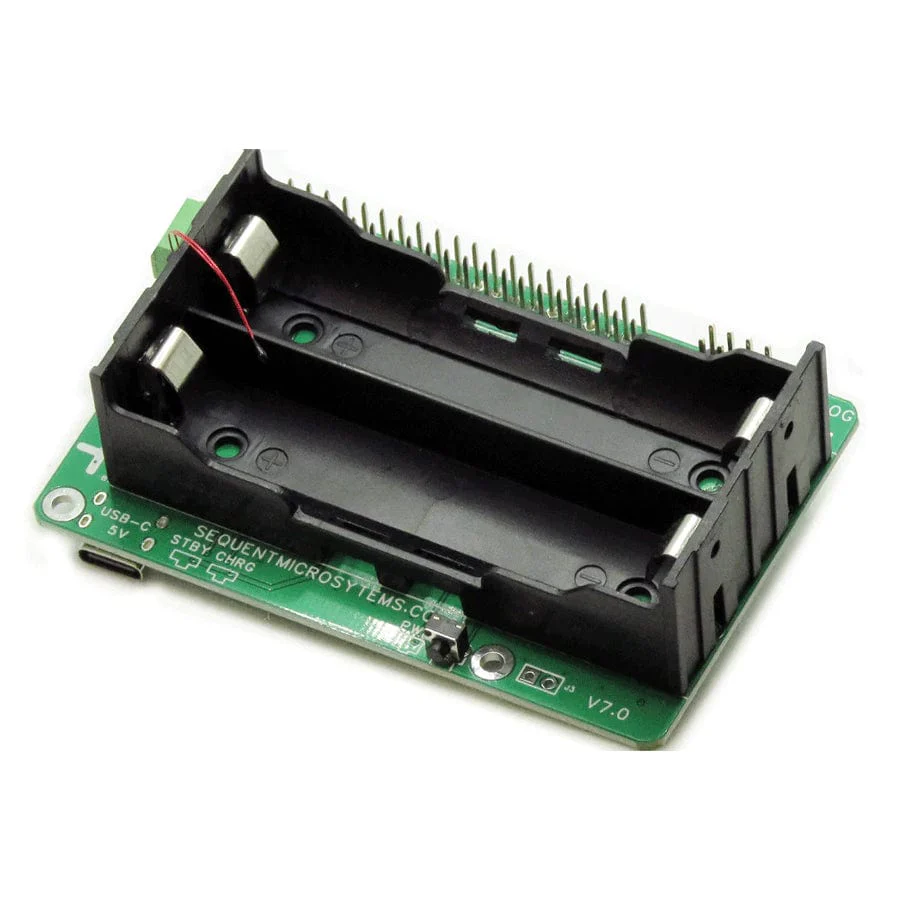

Super Watchdog V7 for Raspberry Pi
The Super Watchdog V7 is an efficient tool for safeguarding Raspberry Pi in all your projects.
It provides two key functions: power-cycling the Raspberry Pi during software lock-ups and preventing SD card failure during power loss.
The device has a default 120-second timer, cutting and restoring power if the Raspberry Pi doesn't issue a reset command. Compatible with Raspberry Pi models B+, 2, 3, 4, 5, and Zero, it uses minimal GPIO pins. The board supports various power connectors and can operate on a 18650 Li-Ion battery for continuous operation during power outages. Additionally, it features an onboard self-test for functionality assurance and a push-button for manual Raspberry Pi control.
Features
- Super Watchdog HAT with UPS Battery Backup for Raspberry Pi
- Enhanced battery charger provides up to 700mA charging current
- Charge and Standby status LEDs
- Battery overheating protection
- Socket for two Li-Ion 18650 batteries
- A must for all RPI mission critical installation
- Cycle RPI power after software lock-up
- Prevent SD Card damage during power outages
- On board battery charger, step-up converter and intelligent power monitor
- Double power supply jacks: USB-C and pluggable 3.5mm connector
- Provide up to 3A/5V power to Raspberry Pi from Li-Ion Battery
- Uses only I2C port (address 0x30) leaving all GPIO pins available
- On board resettable fuse
- On board reset pushbutton
Specifications
- Dimensions: L: 88mm x W: 28mm
Resources
- Command Line Interface
- Python Library
- User's Guide V6.0
- Open Source Hardware Schematic
- Command Line
- Python Libraries
- 2D CAD drawing
- Line Power Monitor Example
- 3D-STEP-MODEL
- RoHS and REACH Compliance Declaration
Package Contents
- 1x Super Watchdog V7
- 2x M2.5 x 18mm Male-Female Brass Standoffs
- 2x M2.5 x 5mm Brass Screws
- 2x M2.5 Brass Nuts
- 1x 2-pin plug for the power supply connector
Revision History
As of January 19th, the following has been added to the upgraded V7 versionĀ
- A dual socket to allow 2x 18650 batteries
- A battery overheating circuit which cuts charging if the battery temperature increases
- A faster charging circuit
