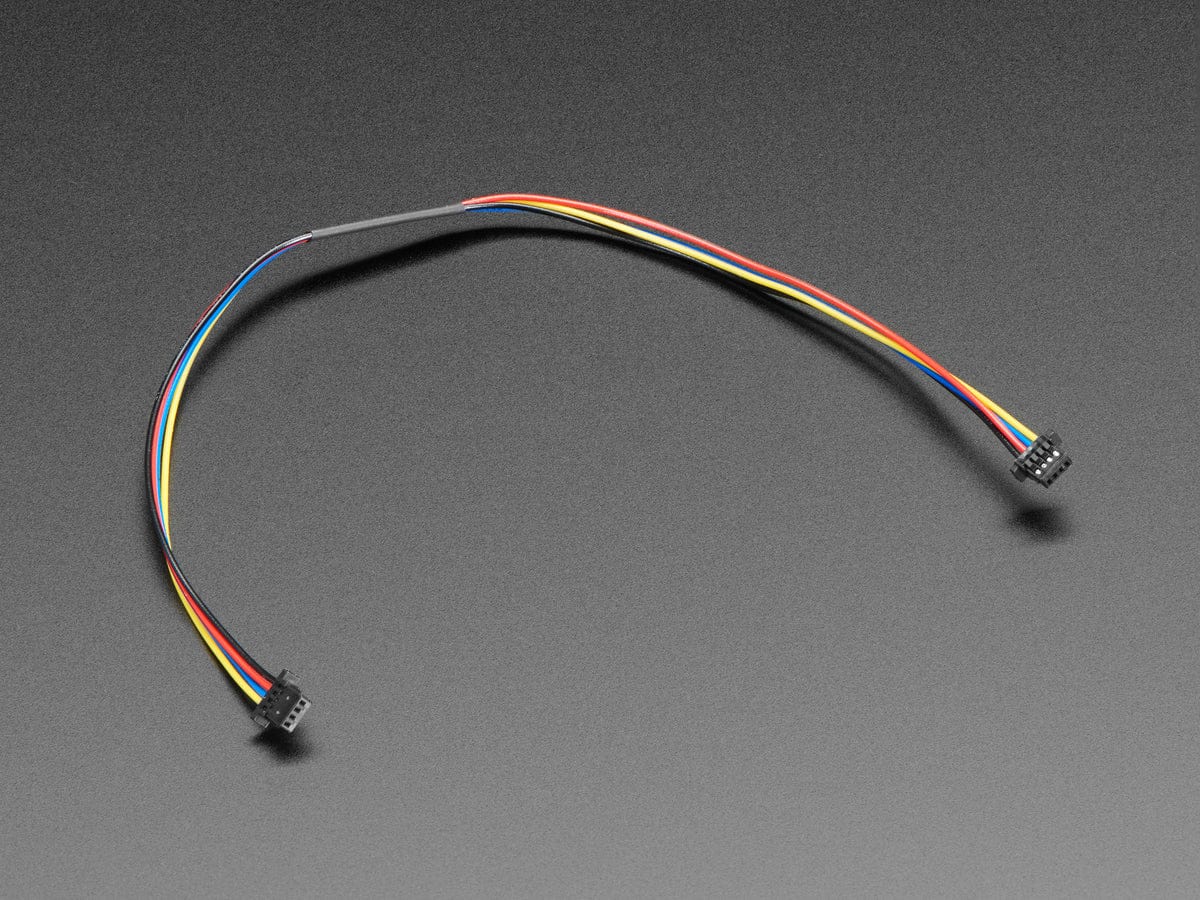

STEMMA QT/Qwiic JST-SH 4-Pin Cable (200mm)

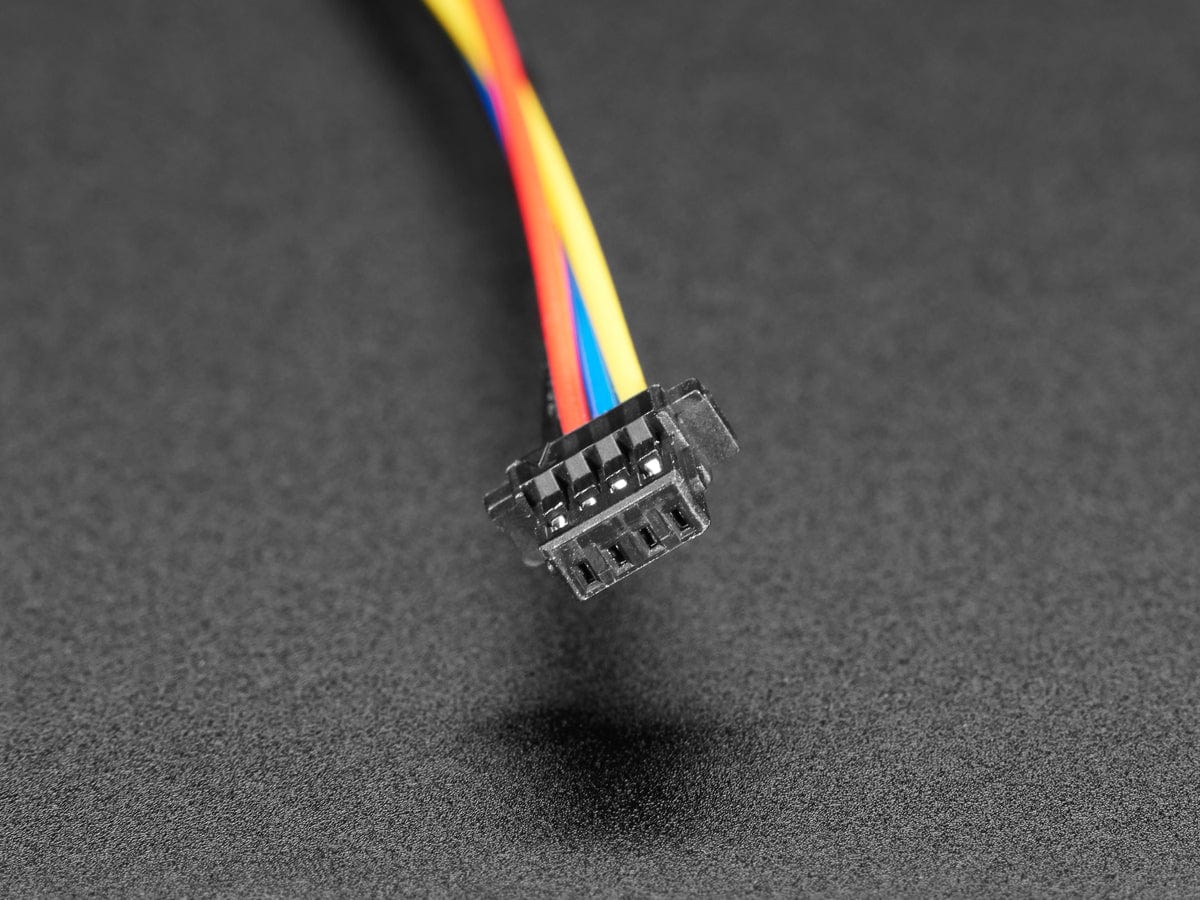

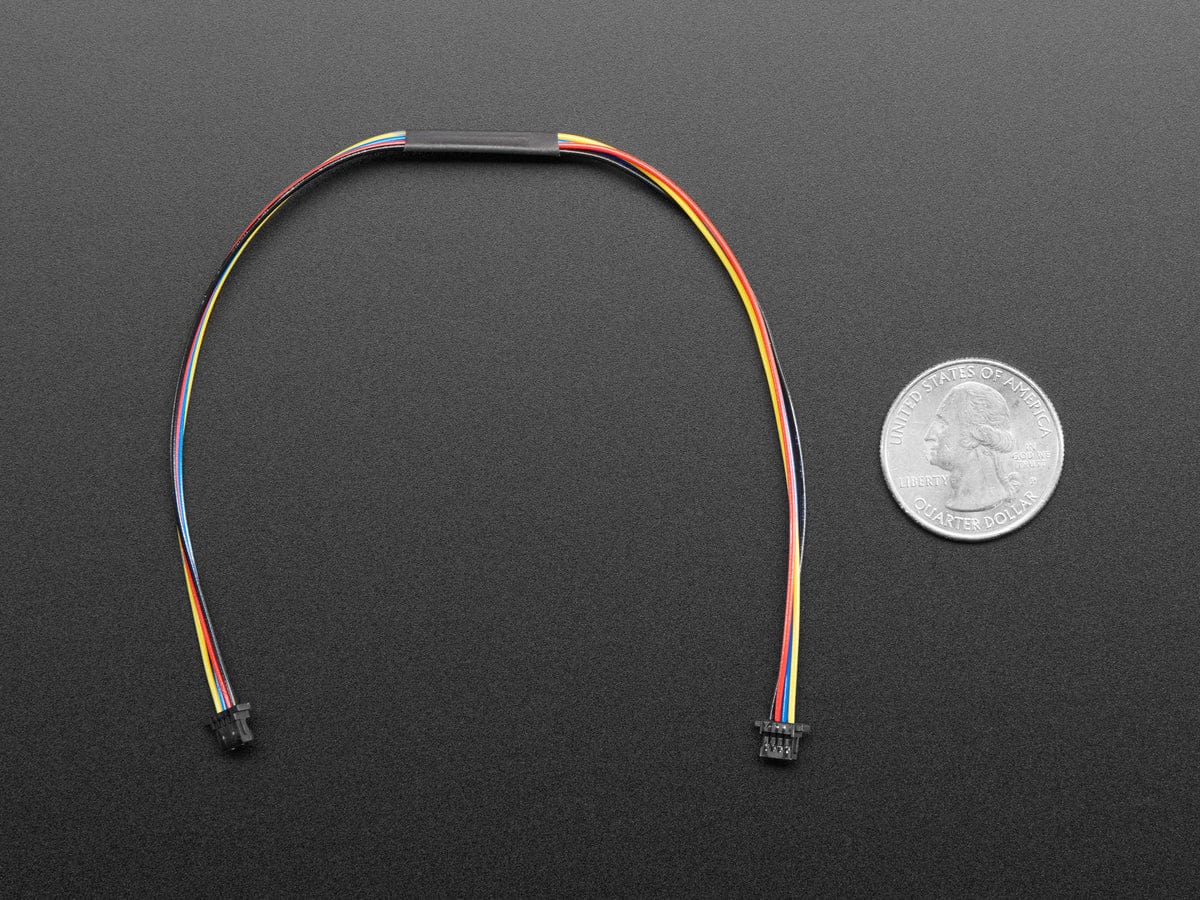

This 4-wire cable is a little over 200mm / 7.8" long and fitted with JST-SH female 4-pin connectors on both ends. Compared with the chunkier JST-PH these are 1mm pitch instead of 2mm, but still have a nice latching feel, while being easy to insert and remove.

This cable can be used with Qwiic or STEMMA QT boards, to easily connect sensors and drivers from one board to the other. The cables are made symmetrically so don't worry about which side goes where!

The colours are:

• Black for GND
• Red for V+ - For Qwiic boards, 3.3V. For STEMMA QT, 3 to 5V.
• Blue for SDA
• Yellow for SCL

For more information about JST SH connectors, visit the JST website

Check out all our Qwiic/STEMMA QT offerings here, including a wide range of lengths and connectors.
