STEMMA QT / Qwiic JST-SH 4-pin Cable (100mm)

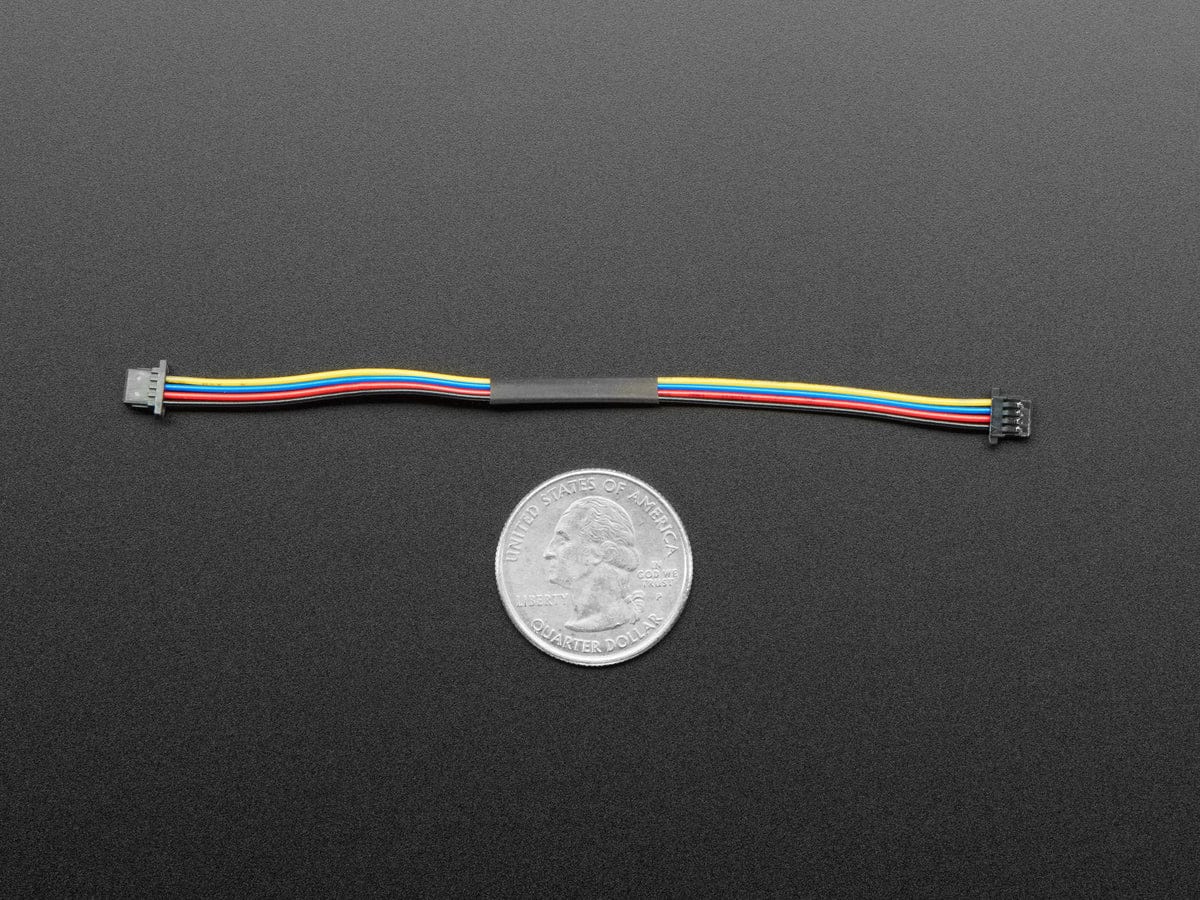

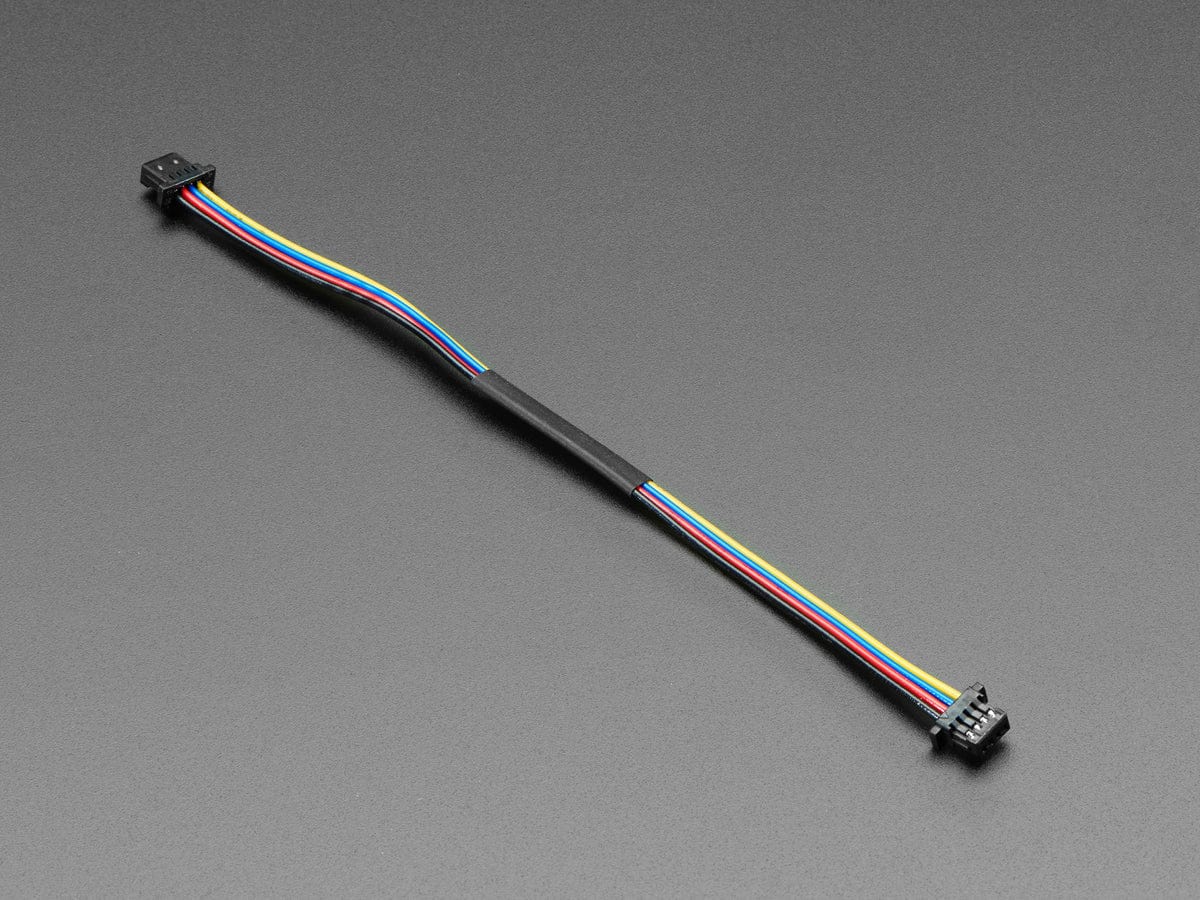

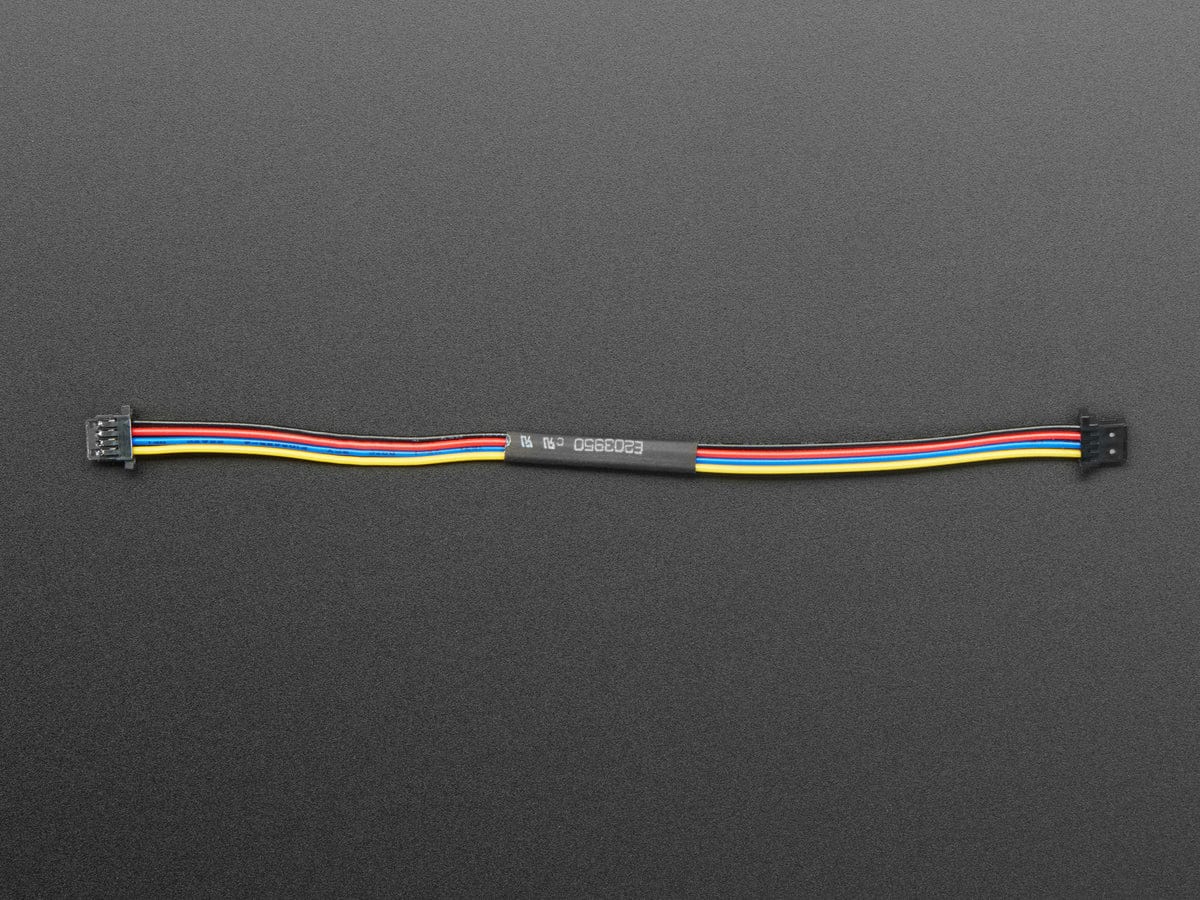

This 4-wire cable is a little over 100mm / 4" long and fitted with JST-SH female 4-pin connectors on both ends. Compared with the chunkier JST-PH these are 1mm pitch instead of 2mm, but still have a nice latching feel, while being easy to insert and remove.
This cable can be used with Qwiic boards, to easily connect sensors and drivers from one board to the other. The cables are made symmetrically, so don't worry about which side goes where! When used with Qwiic the colours are:
- Red - 3.3VDC Power
- Black - Ground
- Blue - I2C SDA Data
- Yellow - I2C SCL Clock
Technical Details
- Diagram
