Shelly 80A Current Transformer for Shelly EM Gen3

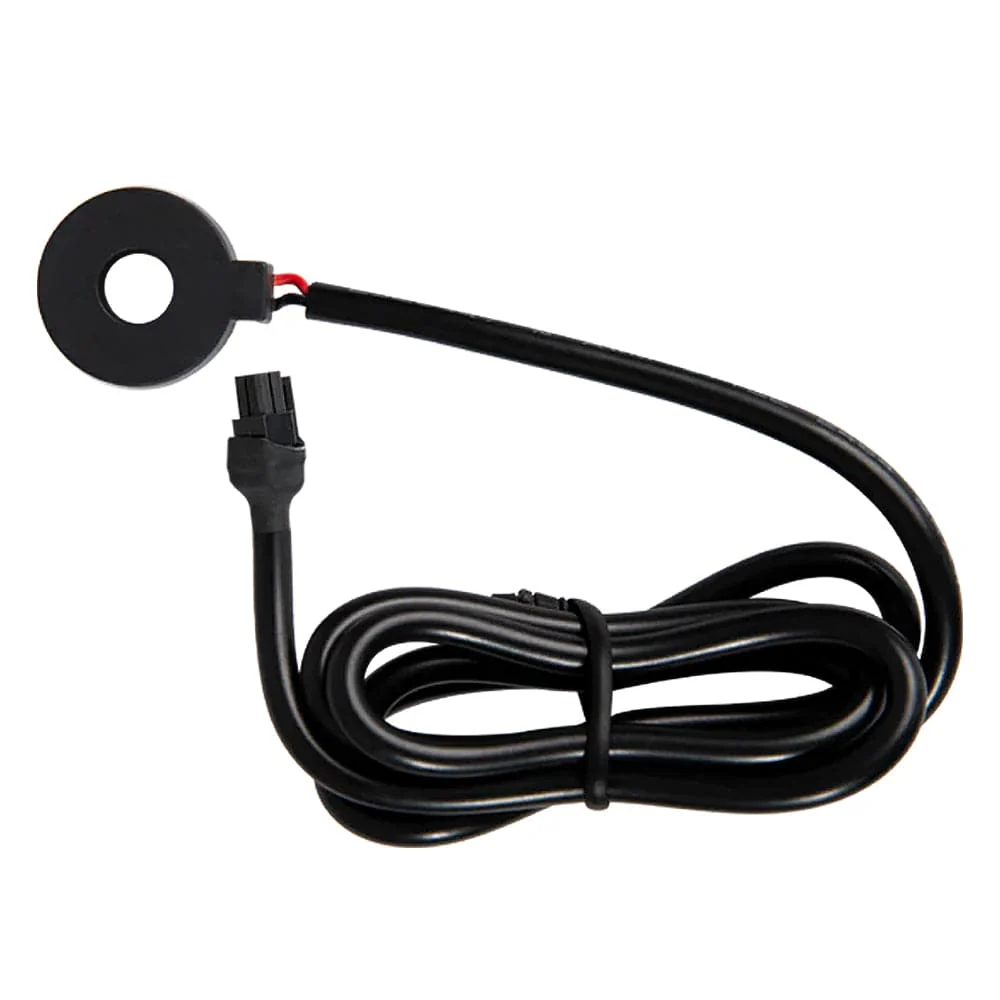

The Shelly 80A Current Transformer is a solid core contactless current transformer ring with Molex connector, designed for use with the Shelly EM Gen3.

It fits around a conductor to enable current monitoring up to 80A, converting higher current into a small standardised signal for measurement.

It features a 60cm cable and a Molex-style connector that fits to the Shelly EM Gen3. The maximum wire size that this can be used with is 4mm (although there are theories online that this could be a typo from Shelly!).

Shelly EM Gen3 not included

Features

• Designed for Shelly EM Gen3: Solid core contactless current transformer for use with the Shelly EM Gen3
• Current monitoring up to 80A: Fits around a conductor to measure current up to 80A
• Standardised output signal: Converts higher current into a small standardised signal for measurement
• 60cm cable: Supplied with a 60cm cable for connection to the meter
• Molex-style connector: Designed to fit the Shelly EM Gen3
• Maximum wire size: Stated maximum supported wire size is 4mm (although the community doubt this!)

Resources

• EAN: 3800235266625

Package Contents

• 1x Shelly 80A Current Transformer

Shelly EM Gen3 not included
