Sanwa Round 20mm Snap-in Arcade Button (SDM-20)

If you're into arcade gaming, there's no doubt that you've heard of Sanwa. Used widely in top end arcade machines and manufactured in Japan by Sanwa Denshi Co., Sanwa arcade products are up there at the top of the quality chain in arcade gaming. You really can feel the difference in the quality and snappiness of the microswitches!

The Sanwa SDM-20 range are round 20mm "snap-in" style arcade buttons with built-in microswitches and 2.8mm terminals. These buttons feature two plastic clips which are designed to lock into panels with a thickness of between 0.5mm and 2mm. Your mounting hole should be ~20.4mm.

These are normally used as selection, service and test buttons - but hey, it's a switch and it's your project, use it however you want!

Sanwa SDM-20 Features

• Round arcade button
• 20mm
• Sanwa High-Quality Microswitch
• Smooth Clicking Action
• 2.8mm Terminal Contacts
• Official Sanwa Product direct from Japan

Colours Available

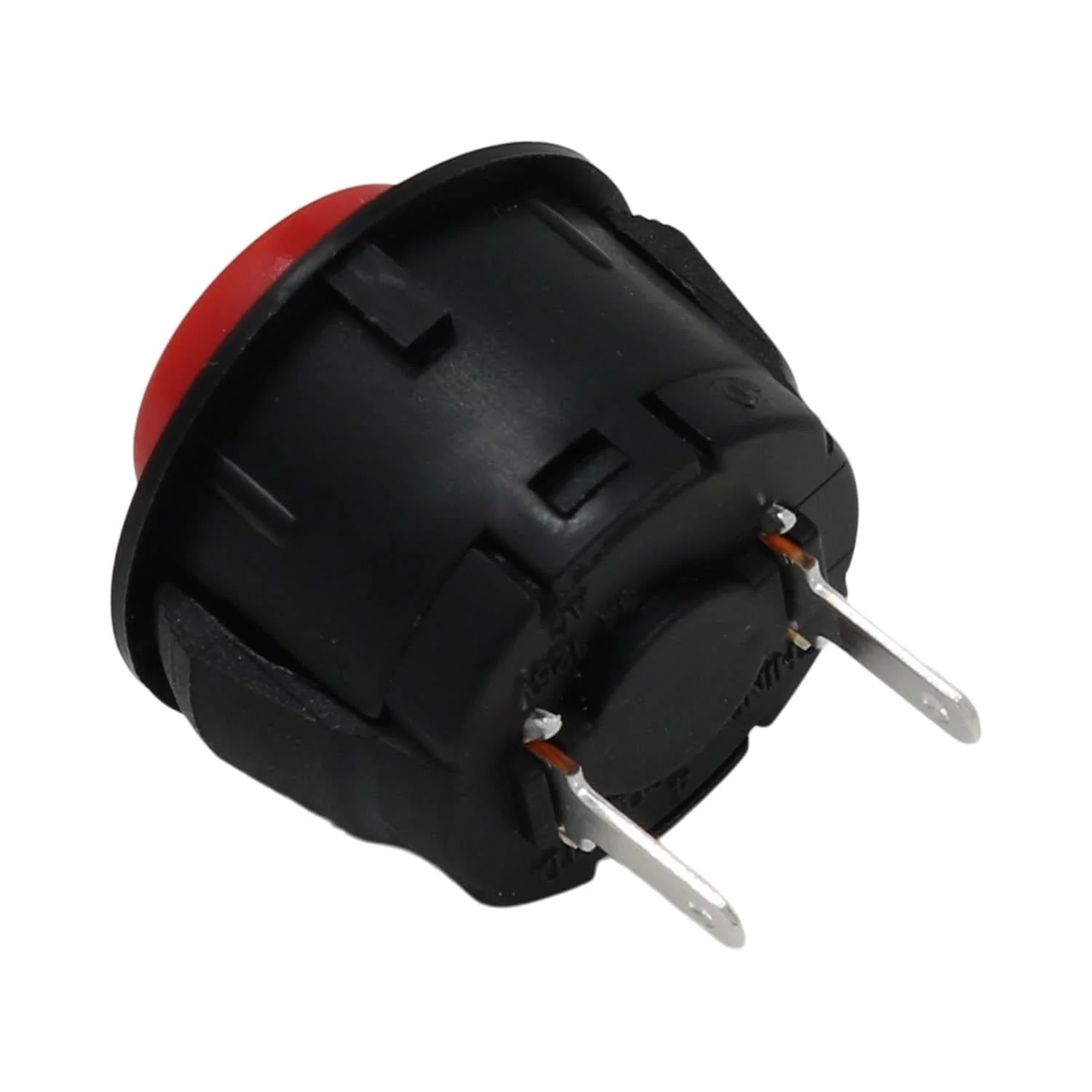

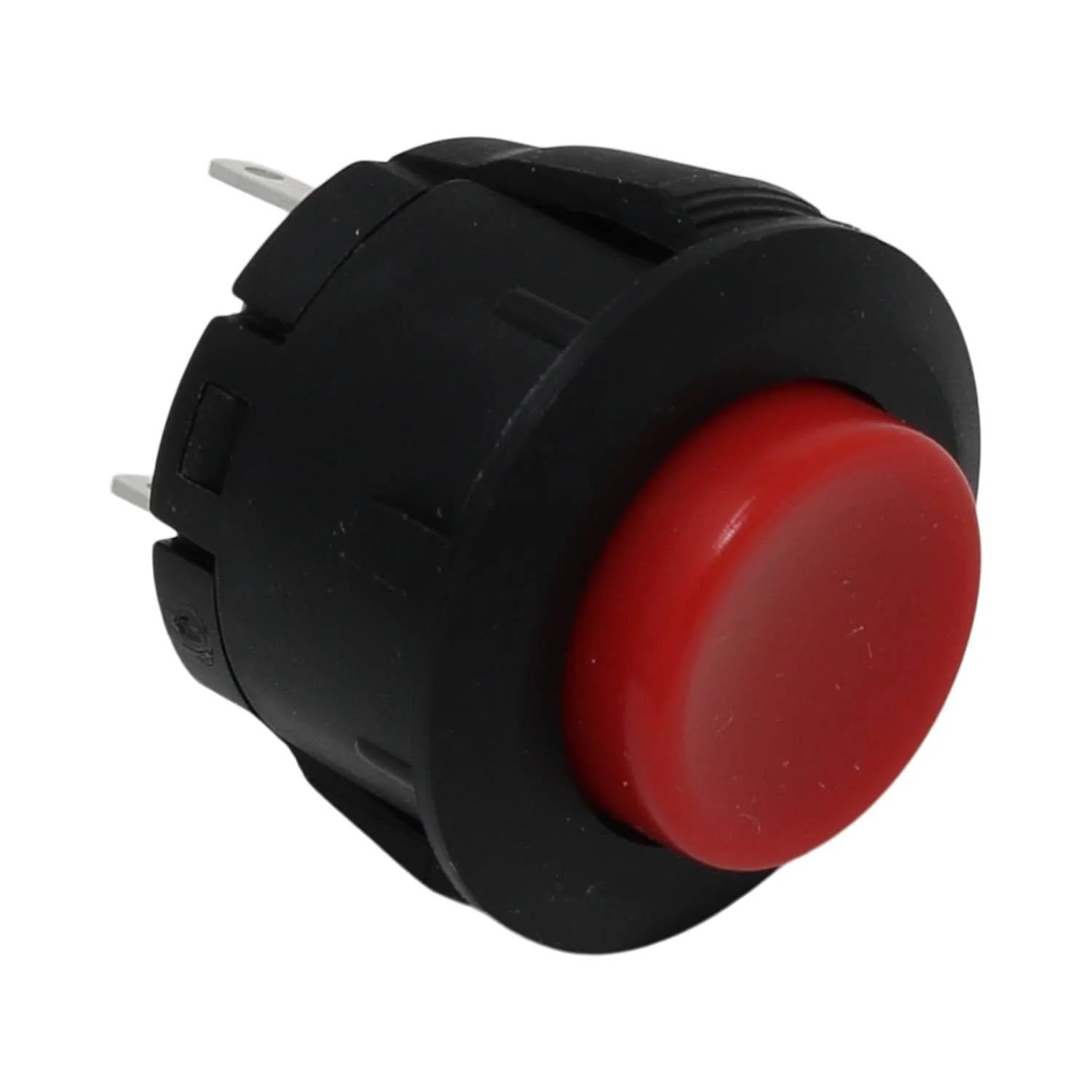

• Red (Sanwa SDM-20-R)

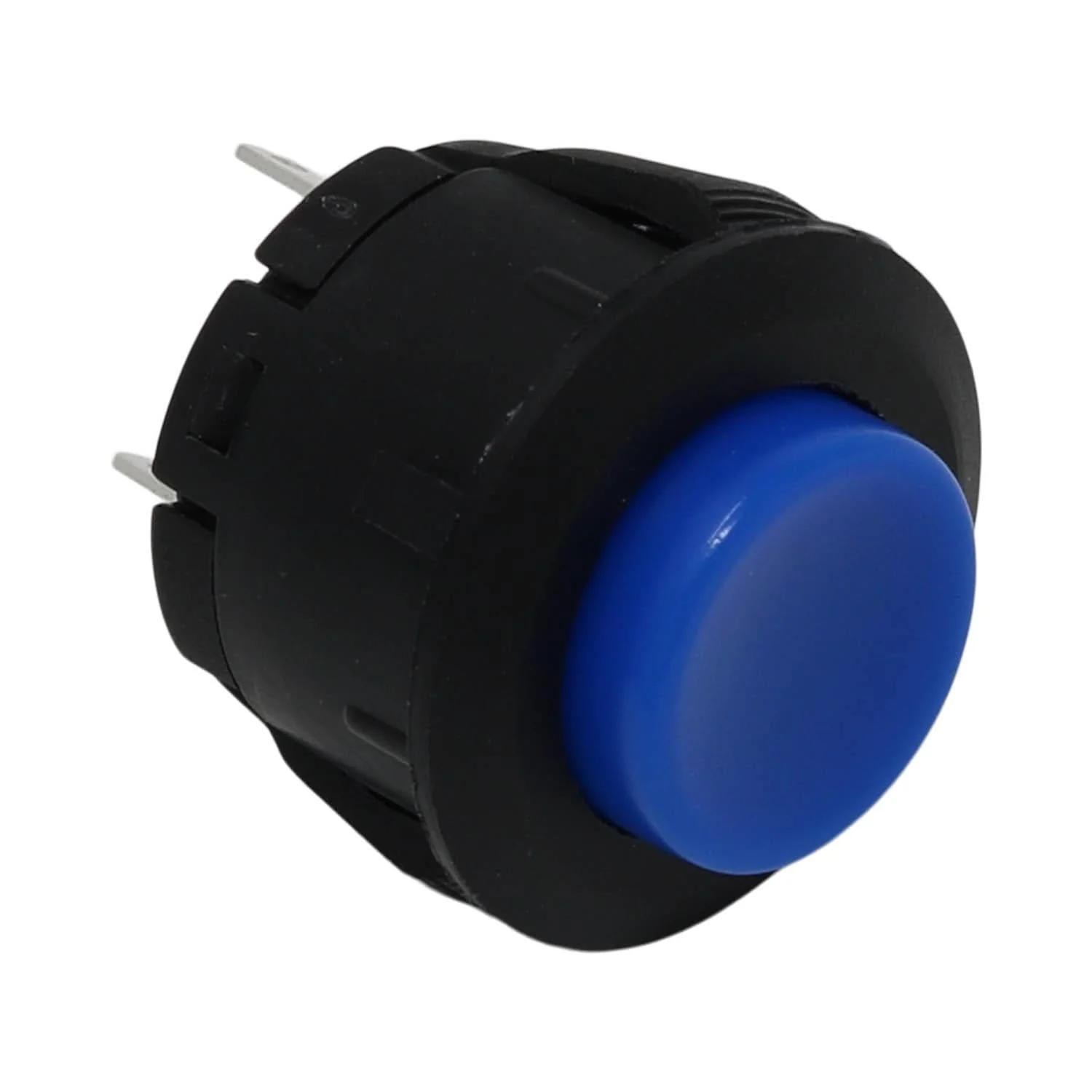

• Blue (Sanwa SDM-20-B)

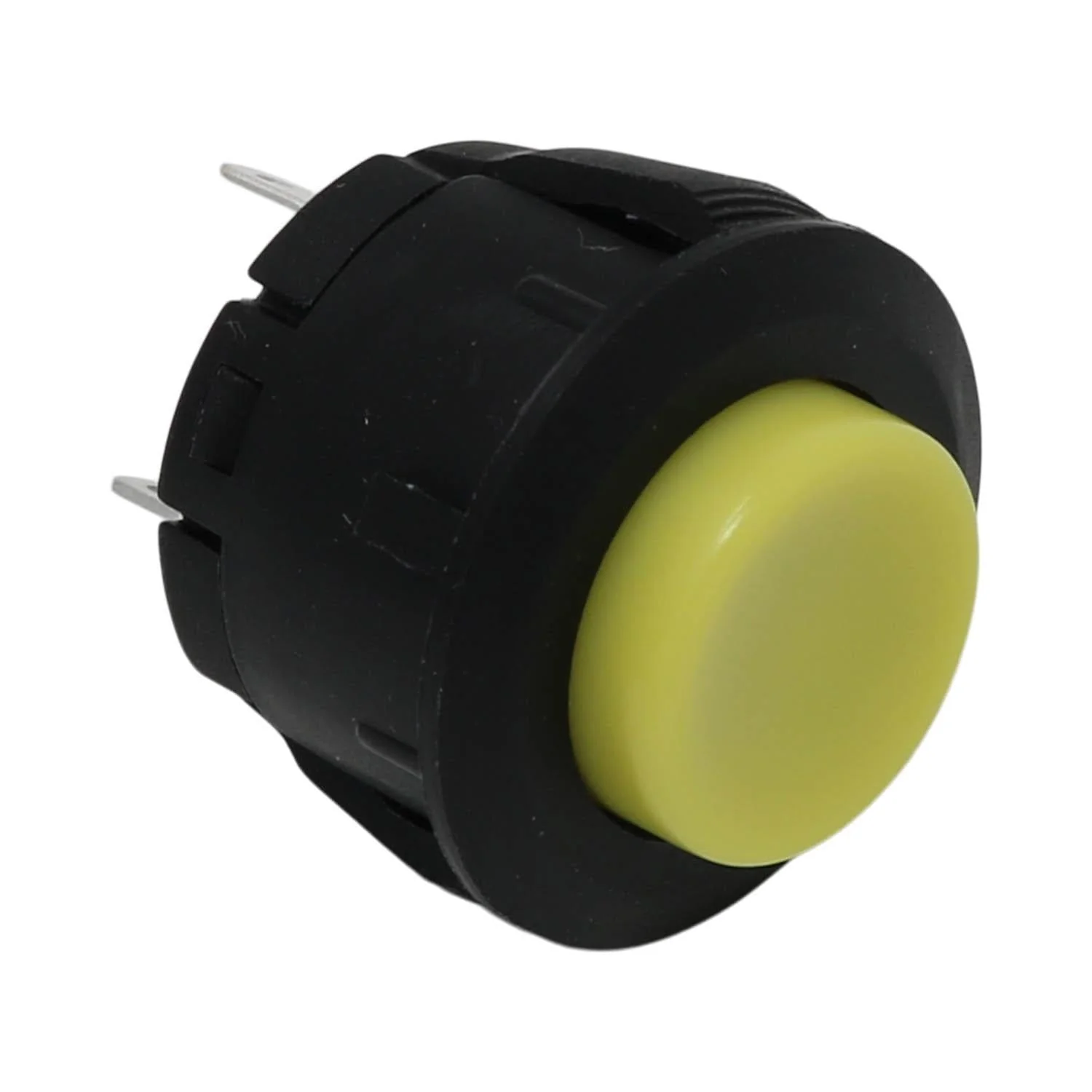

• Yellow (Sanwa SDM-20-Y)

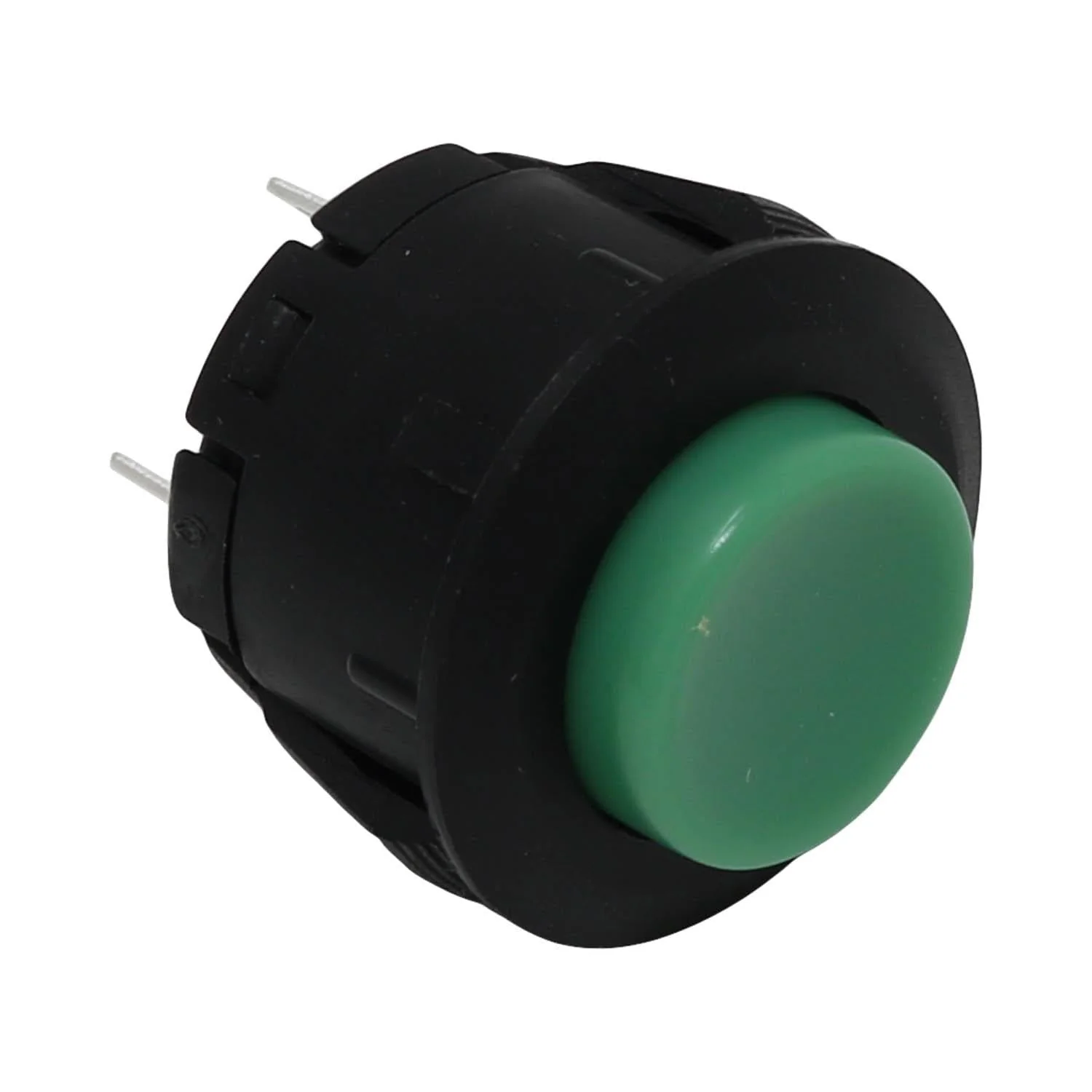

• Green (Sanwa SDM-20-G)
