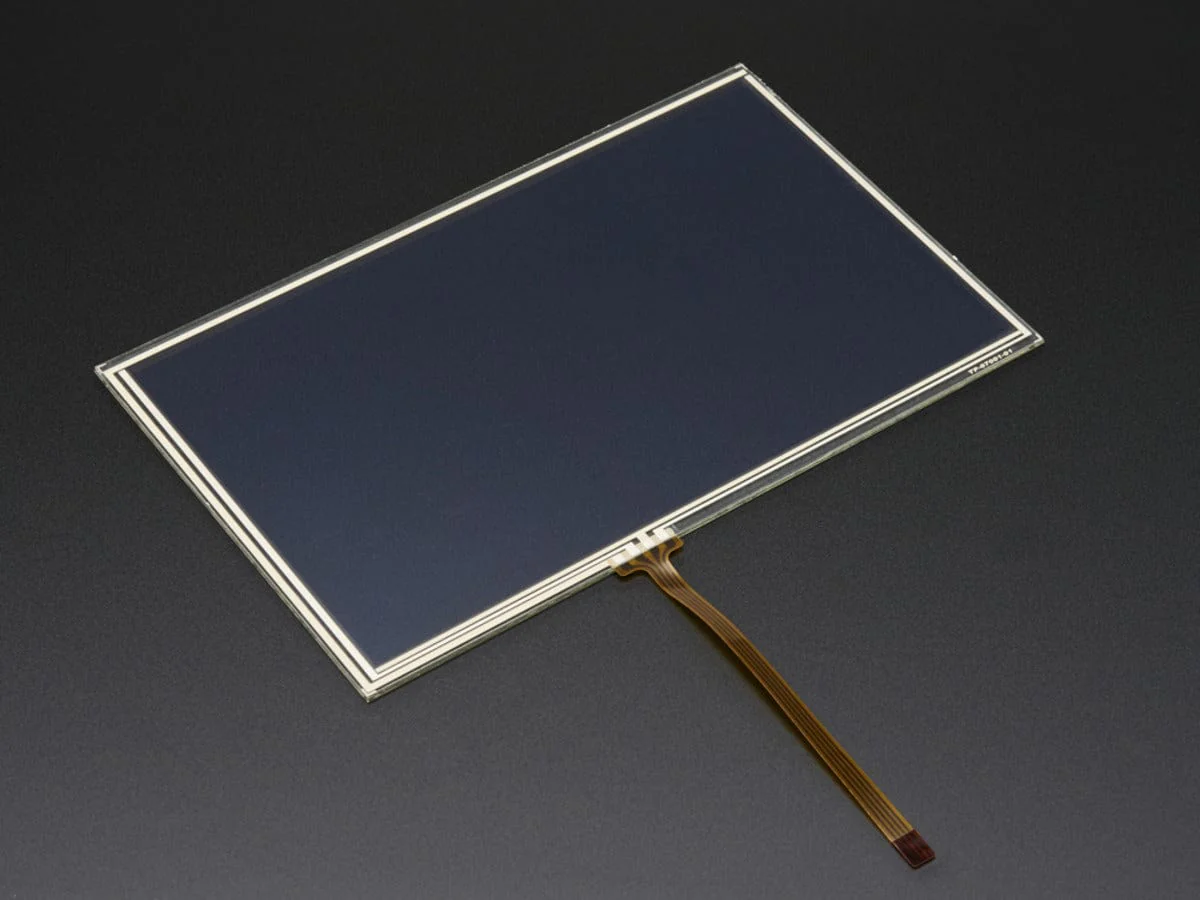

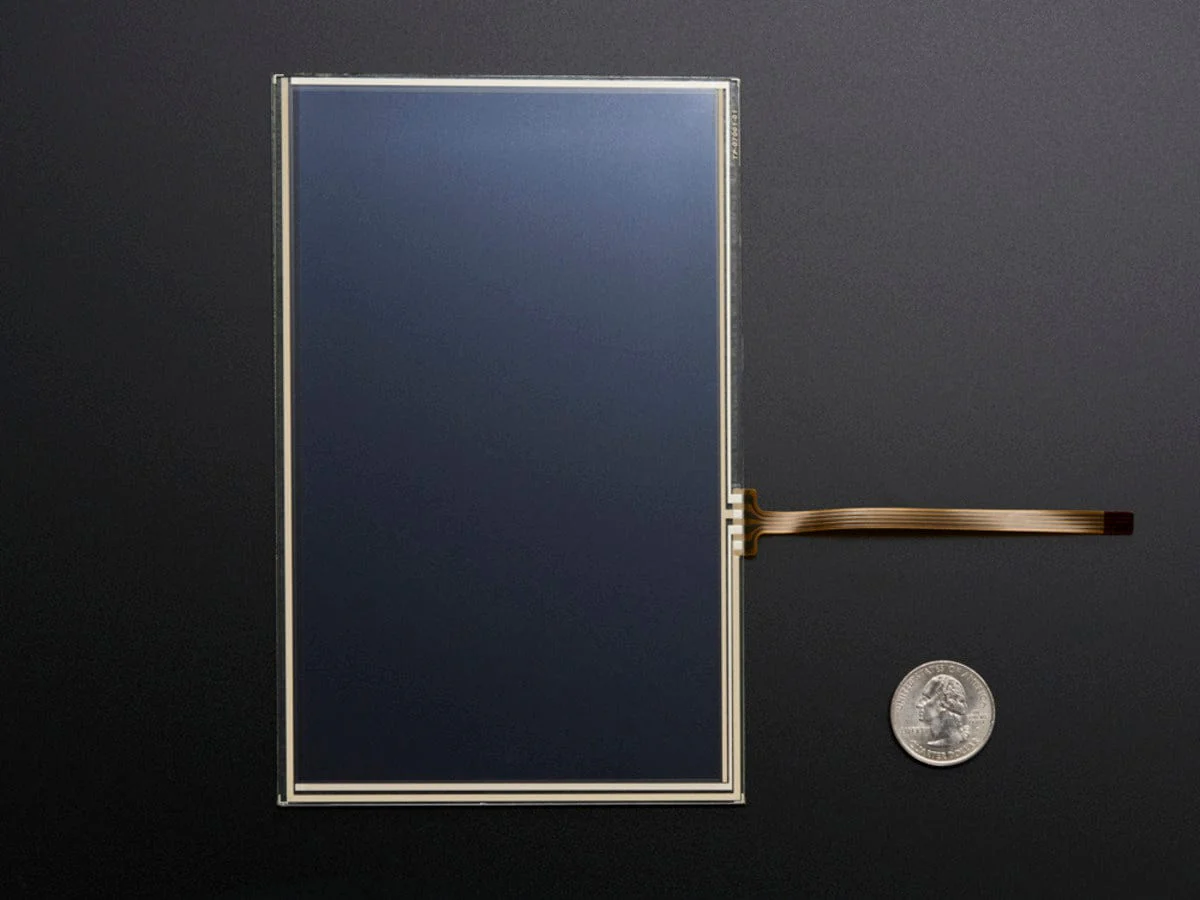

Resistive Touchscreen Overlay - 7" diag. 165mm x 105mm - 4 Wire
If you already have a 7" TFT that is about 165mm x 105mm in size (with a visible area equal to or smaller than ~152mm x 91mm), you can put this glass resistive overlay over it to add a resistive touch screen.
Note the 7" is the 'nominal' size - which fits many TFT's called 7" displays. Check the inner/outer dimensions in the technical specs to compare against your display.
To use, first remove the protective plastic wrap from both sides. Attach to your touchscreen controller (we suggest our 12:08)
Technical Details
- Outer Dimensions: 165mm x 105mm / 6.5" x 4"
- Inner Dimensions: 151mm x 91mm - make sure your screen visible area is equal or smaller than this number!
- Weight: 55 g
