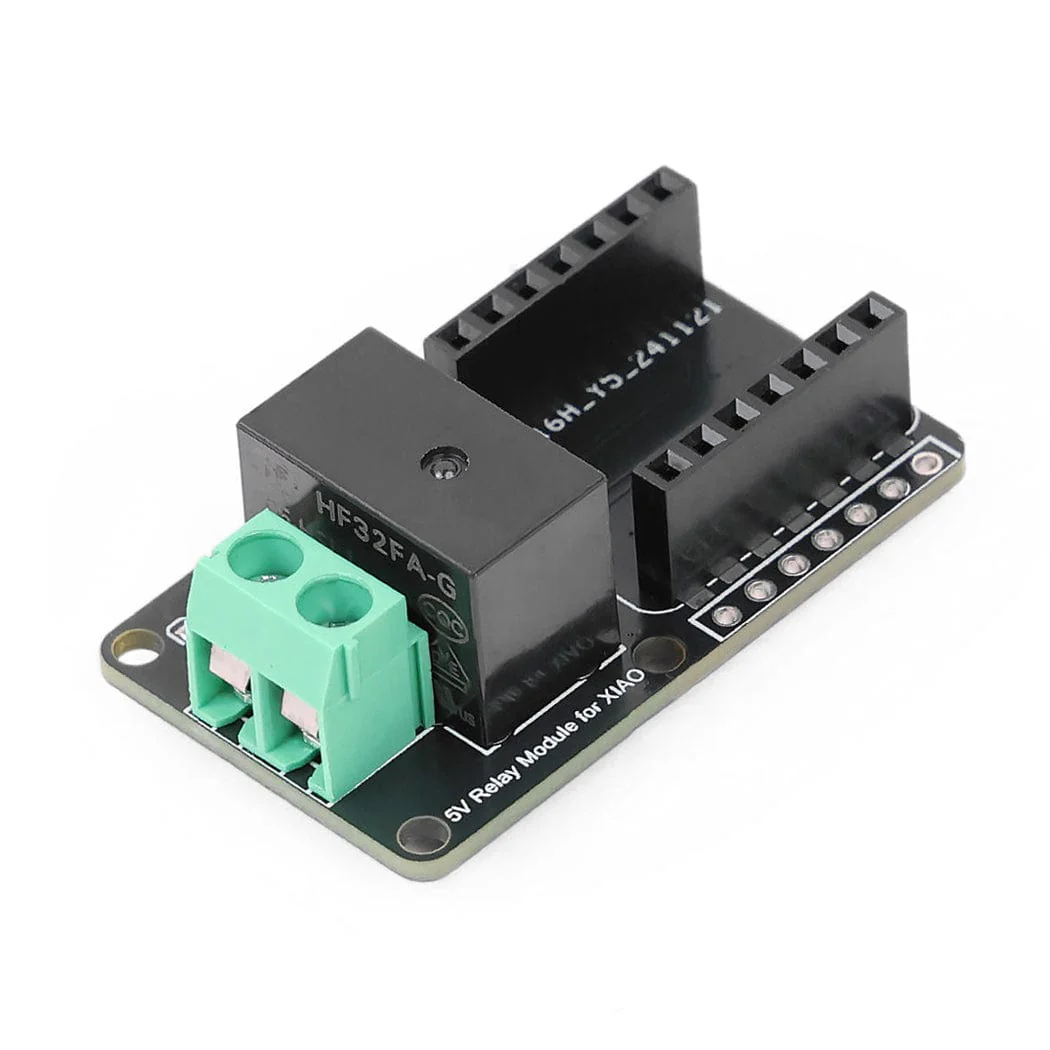

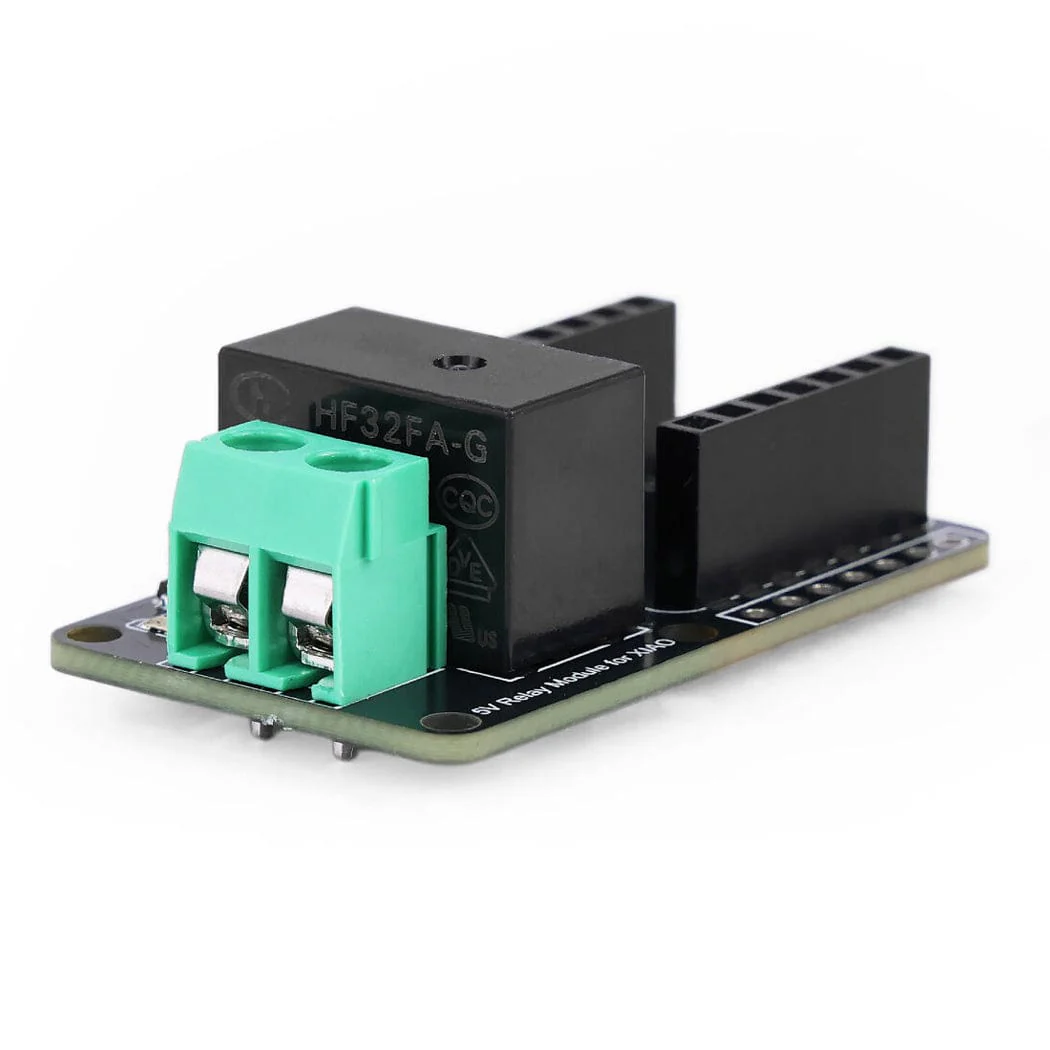

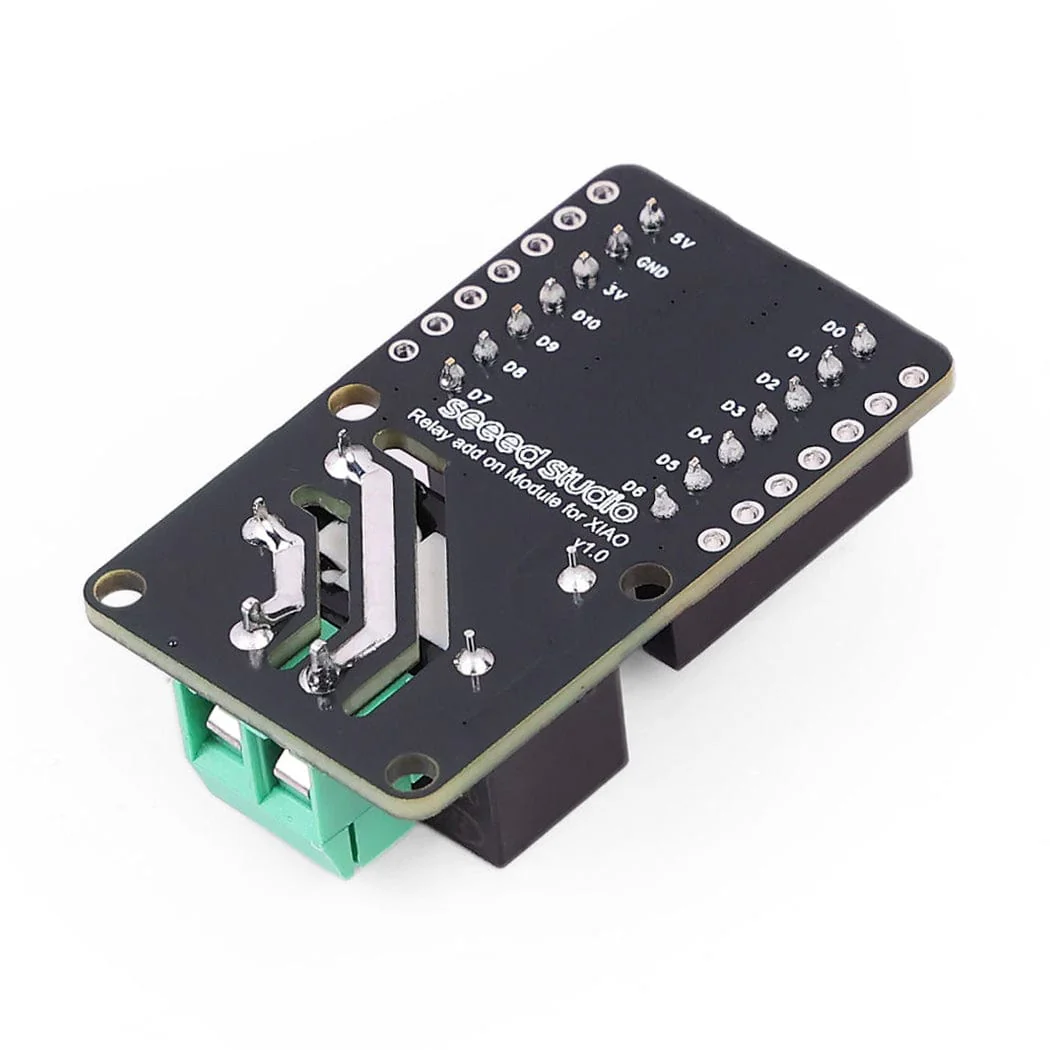

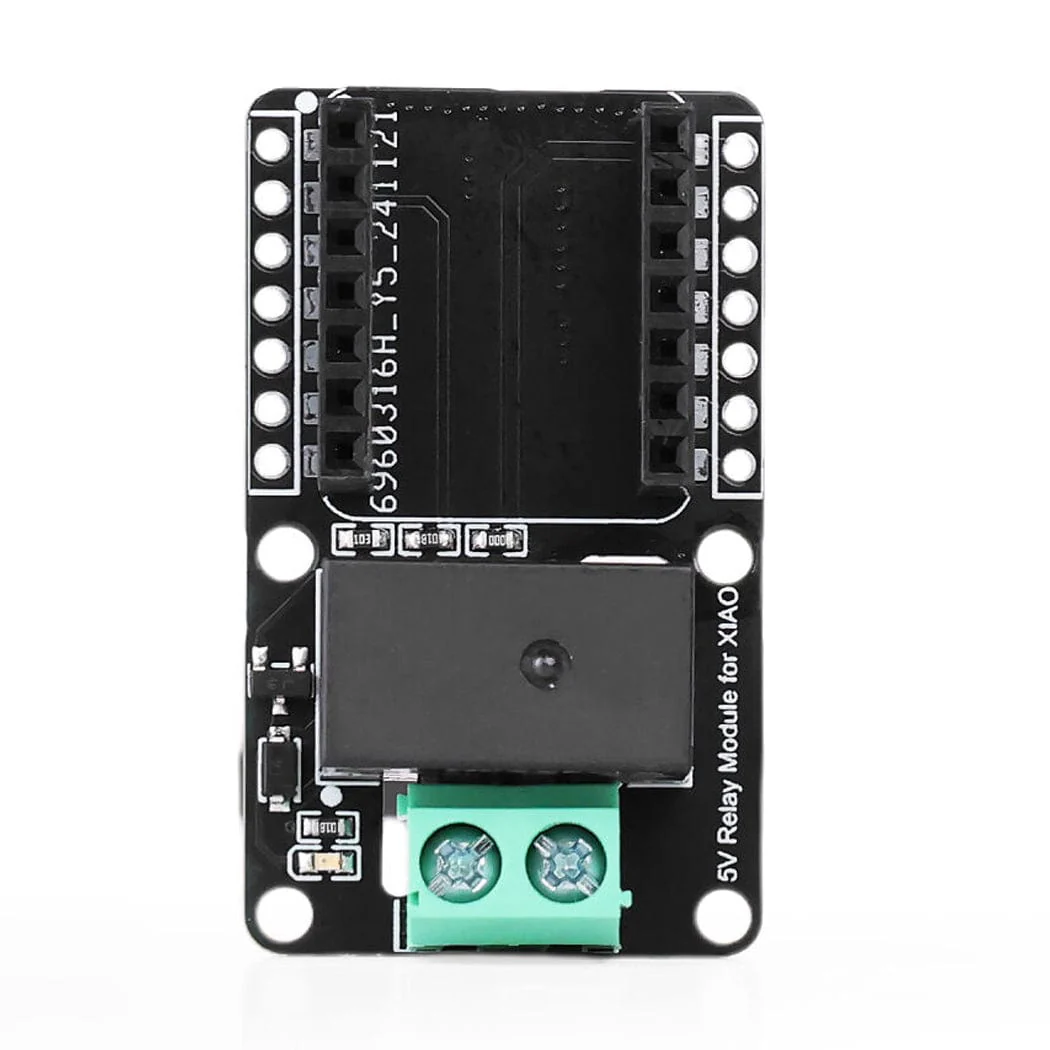

Relay Module for XIAO and QT Py

This Relay add-on module connects to XIAO and QT Py boards, providing them with switching ability for loads of up to 10A/250VAC.

It lets your XIAO control other devices by acting as a switch for devices connected to the terminal blocks. You can also connect and install this with ESPHome in Home Assistant for smart control.

Due to the small terminal blocks and open nature of the module, we don't recommend this for mains-powered applications, and suggest you stay well within the max ratings, use ferrules with stranded core wires, and enclose the module in a suitable and safe enclosure.

If you have a 3D printer and would like to make a case for your module, click here for the resources you need to print one out.

Features

• Relay add-on board for XIAO
• Designed for Seeed XIAO and Adafruit QT Py
• Supports switching loads up to 10A/250VAC max
• Use your XIAO/QT Py with Home Assistant to connect to your smart home devices
• Product Number: Seeed 114993555

Specifications

Operating Voltage	5V
Operating Current	1A
Relay Life	100,000 Cycle
Max Switching Voltage	250VAC
Max Switching Current	10A
Electrical endurance	1.5 x 10^4 OPS (10A 250VAC, Resistive load, at 85°C, 1s on 9s off)
Dimension	21 x 42mm

Resources

• Product Wiki
• Home Assistant Tutorial
• HF32FA-G Datasheet.pdf

Package Contents

• 1x Relay Add-on Module
