Raspberry Pi M.2 HAT+ Compact

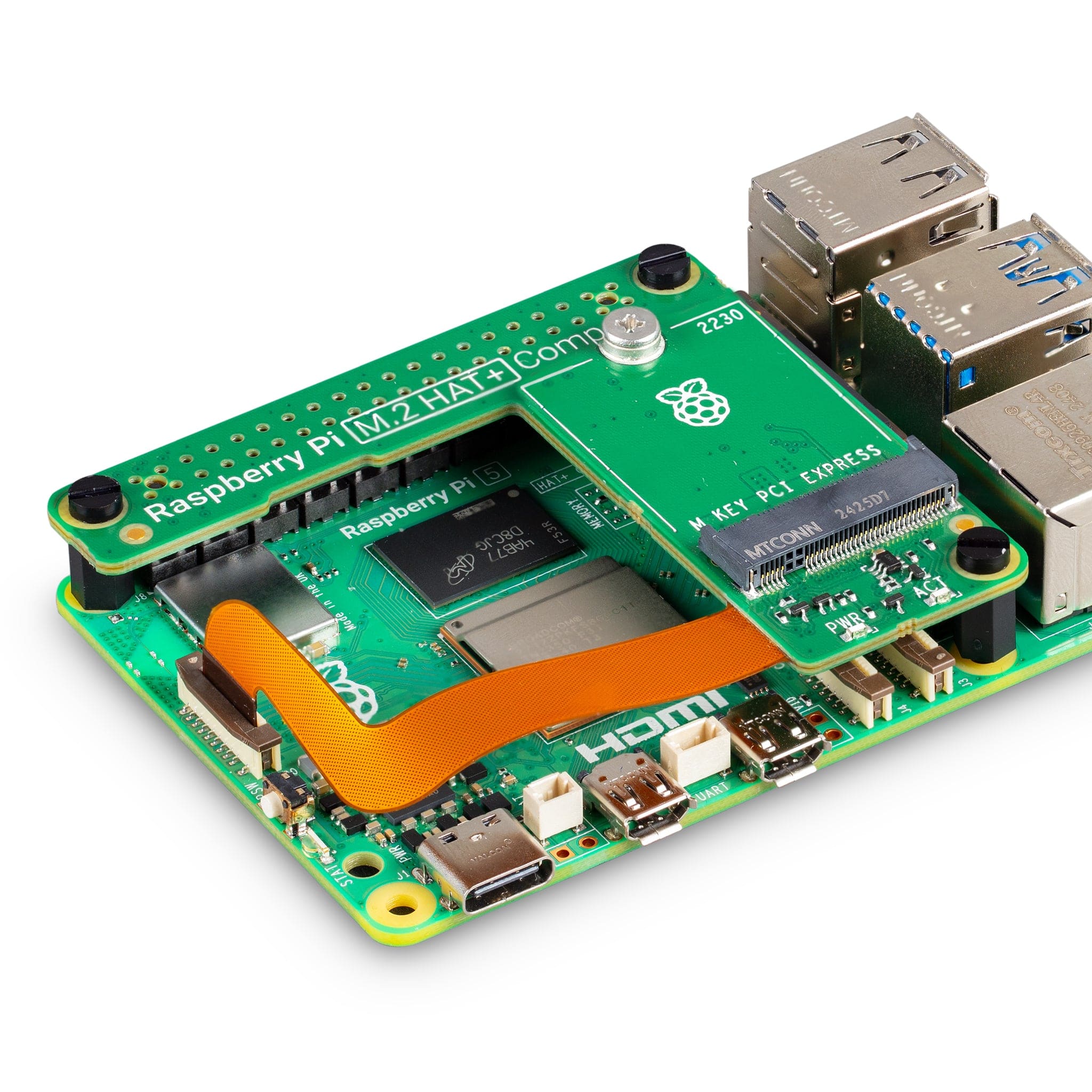

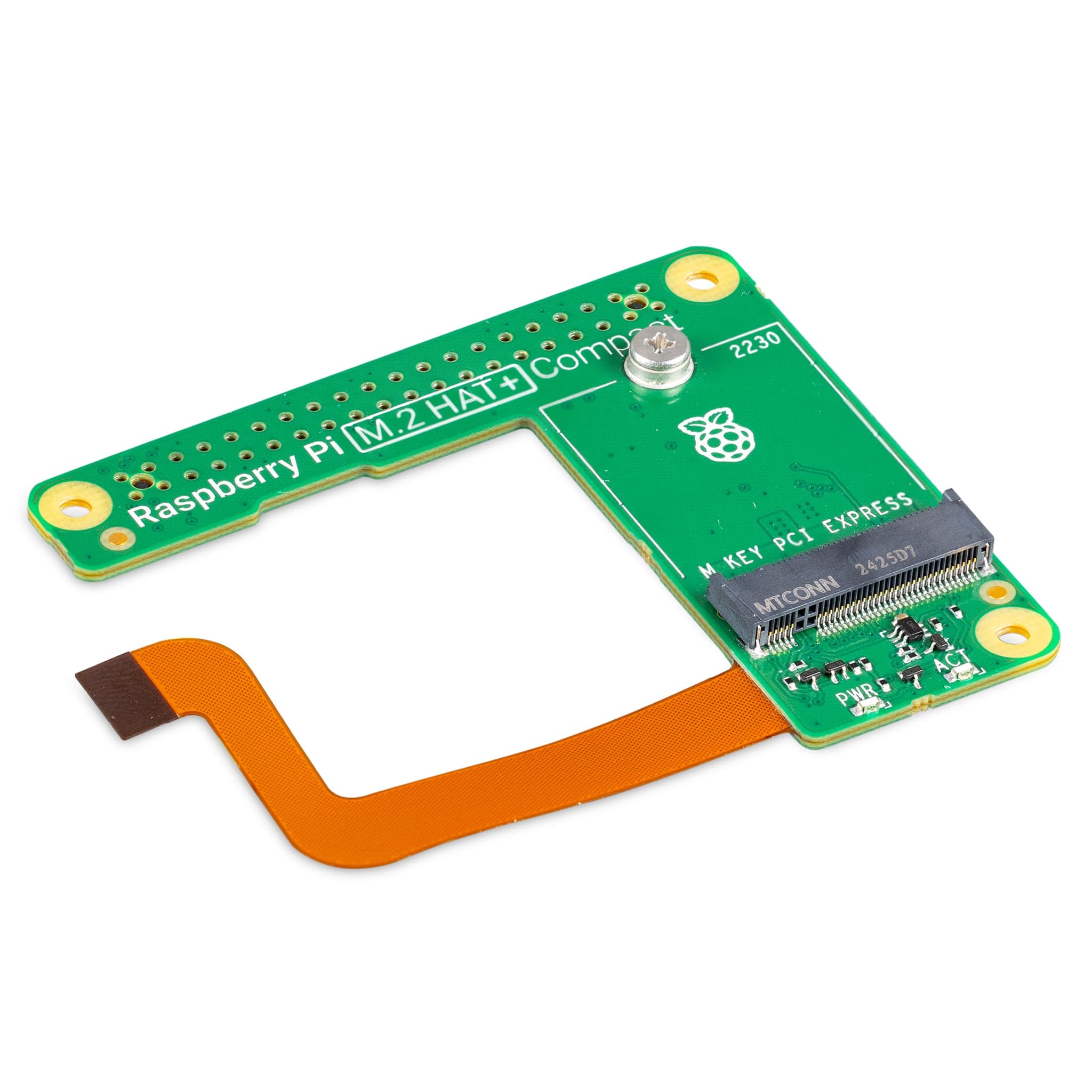

The Raspberry Pi M.2 HAT+ Compact is a new version of the original Raspberry Pi M.2 HAT+ designed to fit inside the Raspberry Pi 5 Case, enabling you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5’s PCIe 2.0 interface, supporting fast (up to 500 MB/s) data transfer.

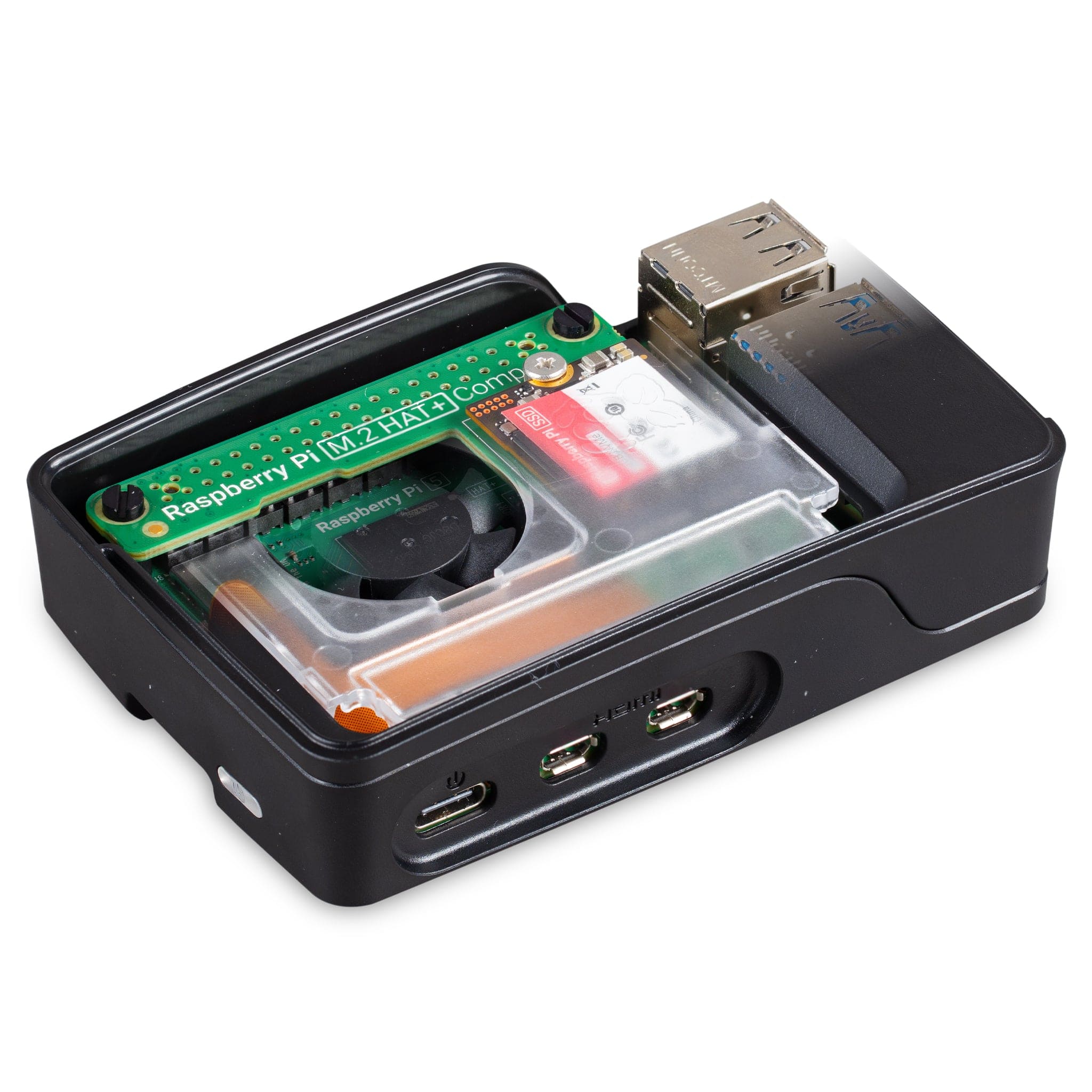

Thanks to the L-shaped design and low-profile header fitting, the Raspberry Pi M.2 HAT+ Compact can be used with Raspberry Pi's official Pi 5 case, without getting in the way of the integrated cooling fan and heatsinks (with the lid on too!). Not compatible with the Active cooler.
The HAT connects to your Raspberry Pi 5 using the built-in (non-replaceable) PCIe ribbon cable and GPIO pins. No additional cable is required.
This compact form-factor can only support 2230-size NVMe SSDs. If you need something to support 2242, 2260 or even 2280 SSDs, check out our SSD HAT section for a great range of options.
Raspberry Pi, SSD, and case not included.
Features
- Designed for use with Raspberry Pi 5 and official Raspberry Pi 5 Case
- Compact design avoids interference with the official case fan and heatsink
- Not compatible with the Active cooler
- Supports 2230-size NVMe SSDs
- Connects via fixed PCIe ribbon cable and GPIO header (no extra cables required)
- Supports M.2 M key edge connector devices
- Single-lane PCIe 2.0 interface (up to 500 MB/s transfer rate)
- Supplies up to 3A to a connected M.2 device
- Includes power and activity LEDs
- Conforms to the Raspberry Pi HAT+ specification
- Operating temperature: 0° to 50° (ambient)
Resources
- Raspberry Pi M.2 HAT+ Compact assembly instructions
- Raspberry Pi M.2 HAT+ Compact product announcement blog post
- Raspberry Pi M.2 HAT+ Compact Product Brief
- Raspberry Pi M.2 HAT+ Compact schematics
- Production lifetime: The Raspberry Pi M.2 HAT+ Compact will remain in production until at least January 2032
- Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
- Product number: Raspberry Pi SC1771
- EAN: 5056561805863
Package Contents
- 1x Raspberry Pi M.2 HAT+ Compact
- Non-replaceable PCIe cable built into the PCB
- 1x Pack of threaded spacers and screws
- 1x Knurled double-flanged screw to secure and support the M.2 peripheral
- May be pre-fitted to the board
Raspberry Pi, SSD, and case not included.
Original: $19.61
-70%$19.61
$5.88
