SparkFun Qwiic Cable - Breadboard Jumper (4-pin) [Discontinued]

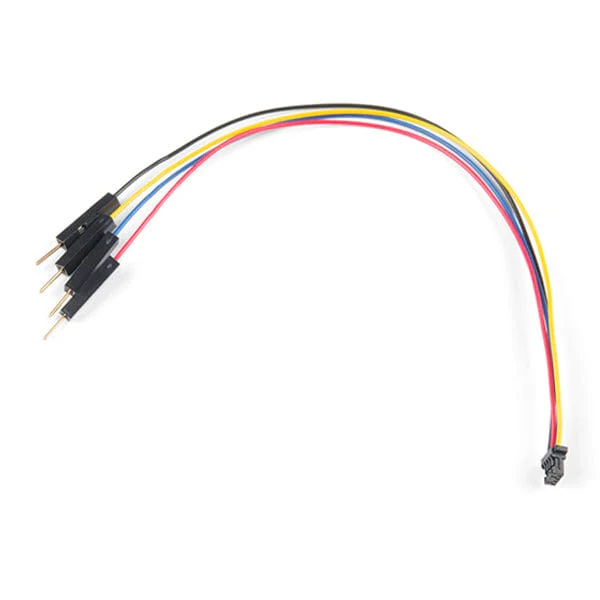

This is a jumper adapter cable that comes pre-terminated with a male Qwiic JST connector on one end and a breadboard hookup pigtail on the other. This cable makes it easy to connect components with a Qwiic connector to a breadboard or an Arduino-based device’s pins.

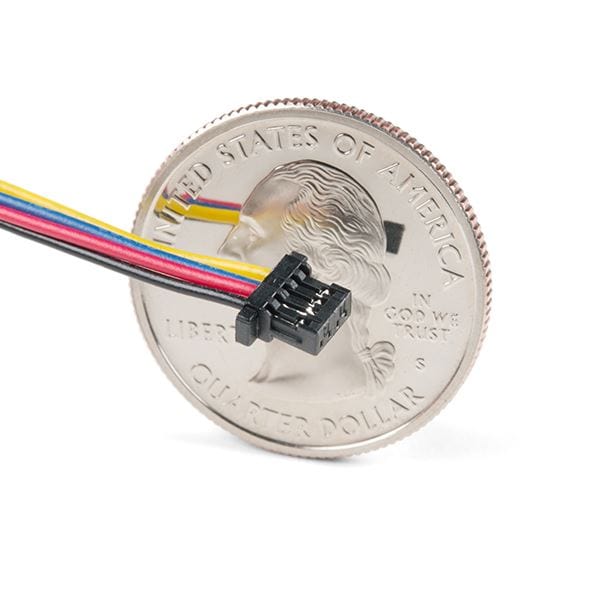

The 28AWG wire's length is 150mm (about 5.9 inches). The adapter’s wires have been colour-coded to red, black, blue and yellow. Additionally, the female Qwiic connector features a basic 1mm pitch, while the male hookup pins can easily insert into a standard 0.1" connector.
All Qwiic cables have the following colour scheme and arrangement:
- Black = GND
- Red = 3.3V
- Blue = SDA
- Yellow = SCL
Features
- Dimensions: 150mm (5.9") Length
Resources
- Dimensional Drawing
- Fritzing Part
