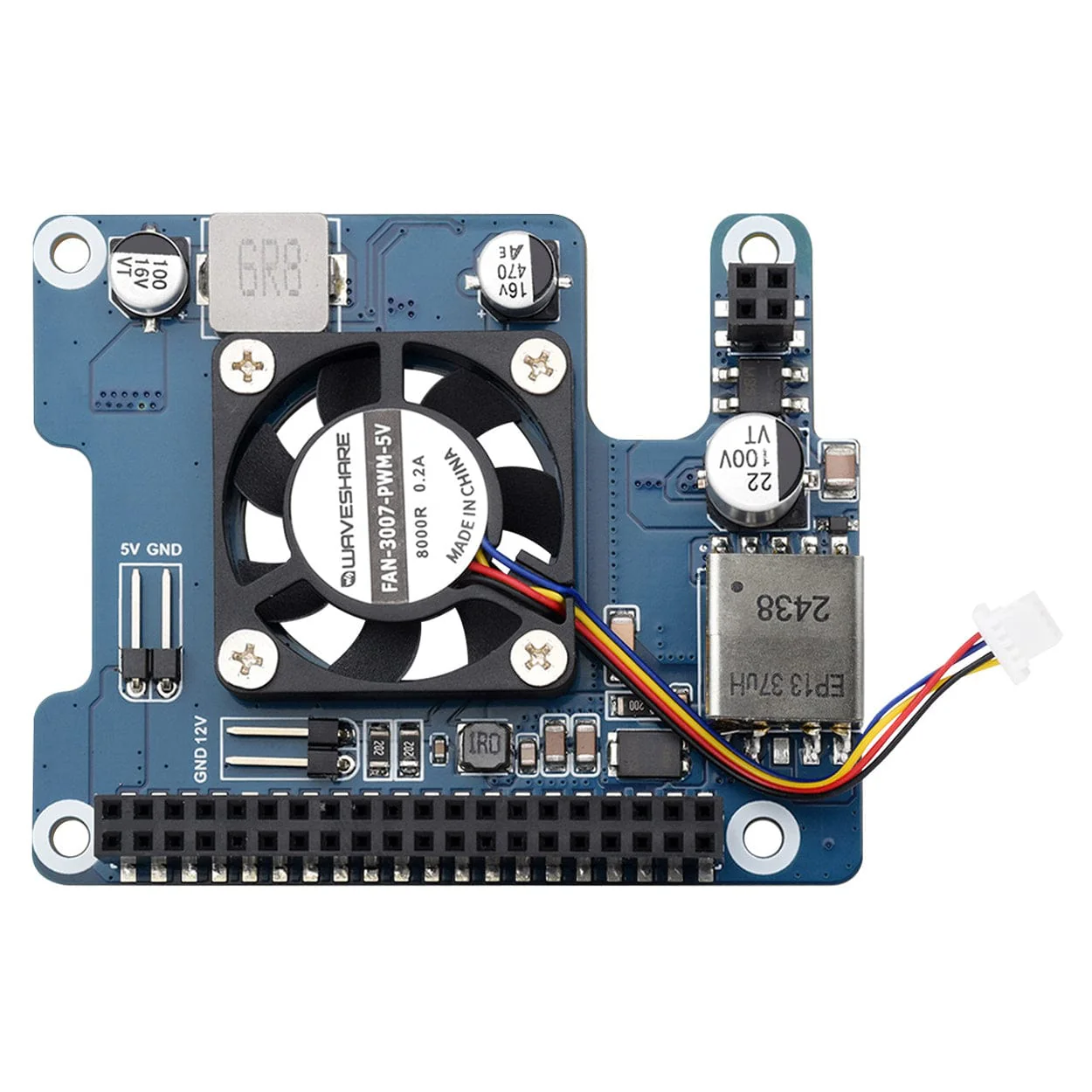

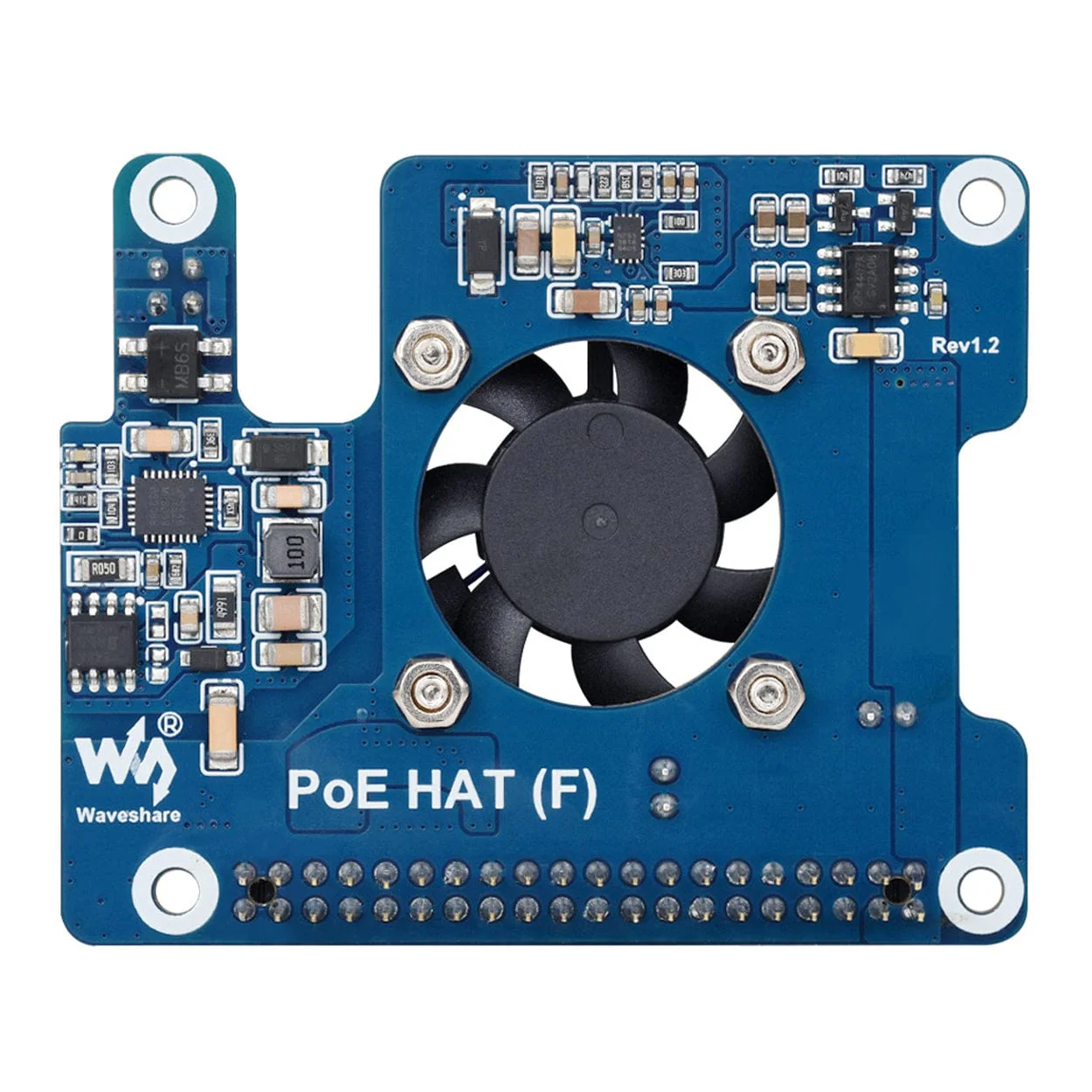

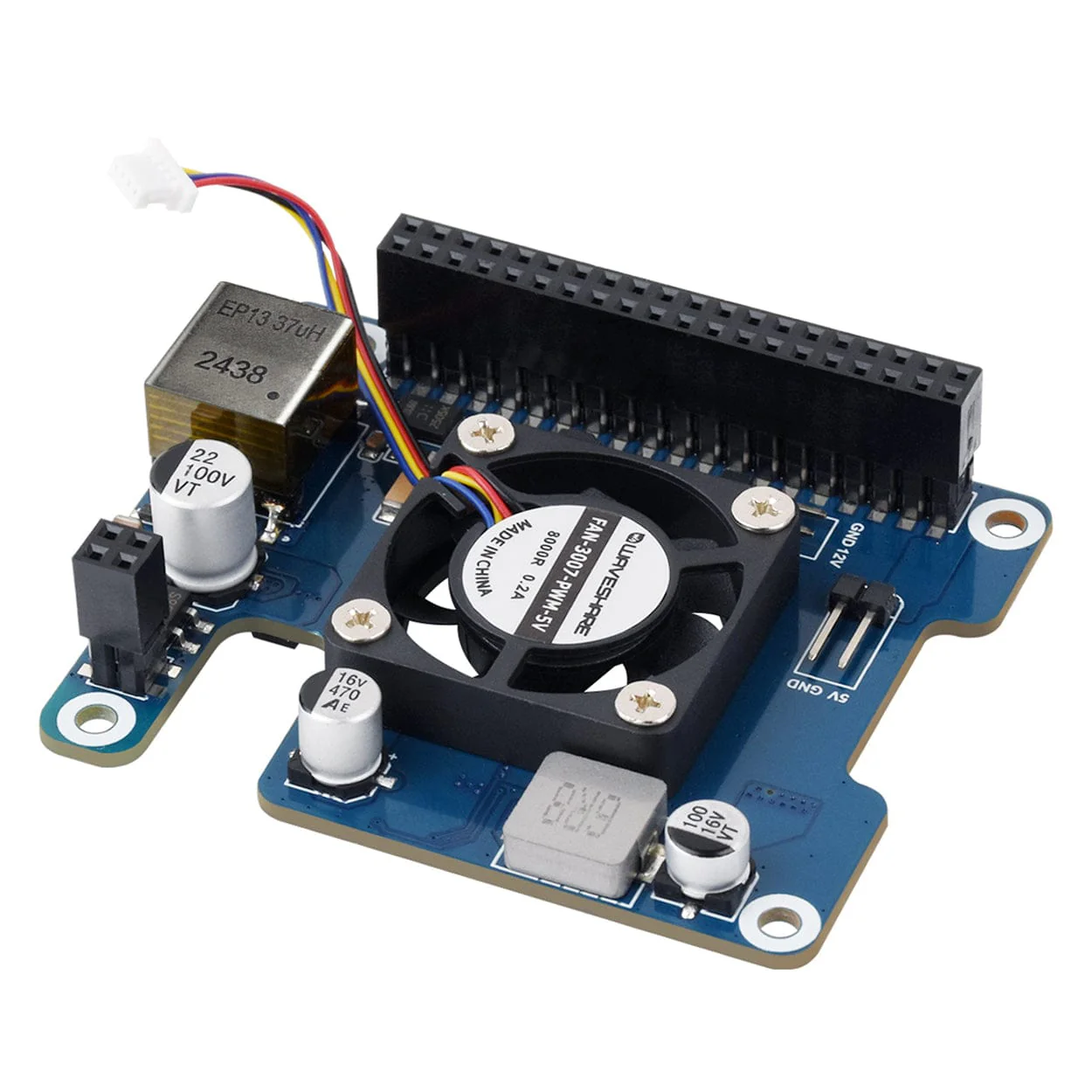

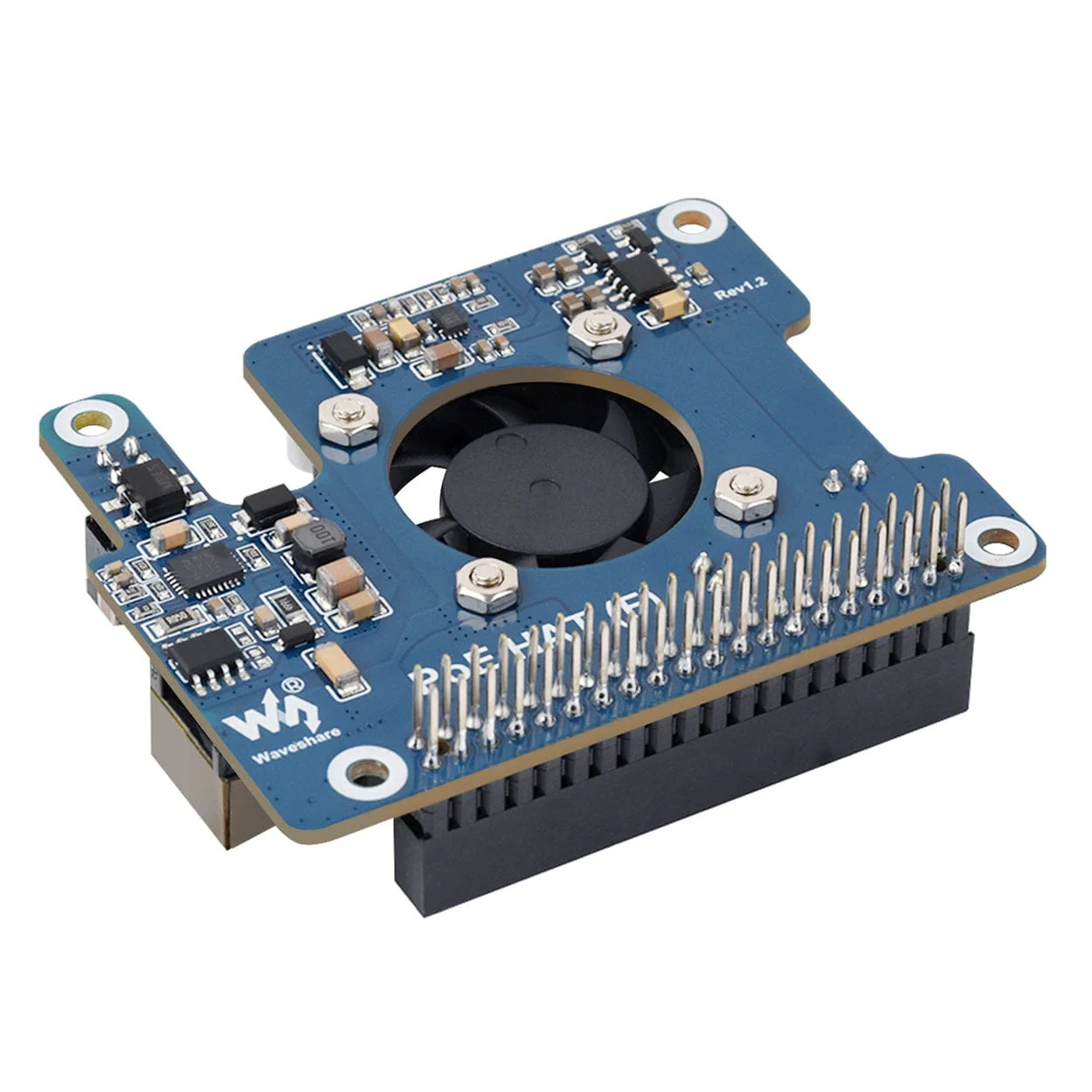

PoE HAT (F) for Raspberry Pi 5 (5V/12V Outputs)

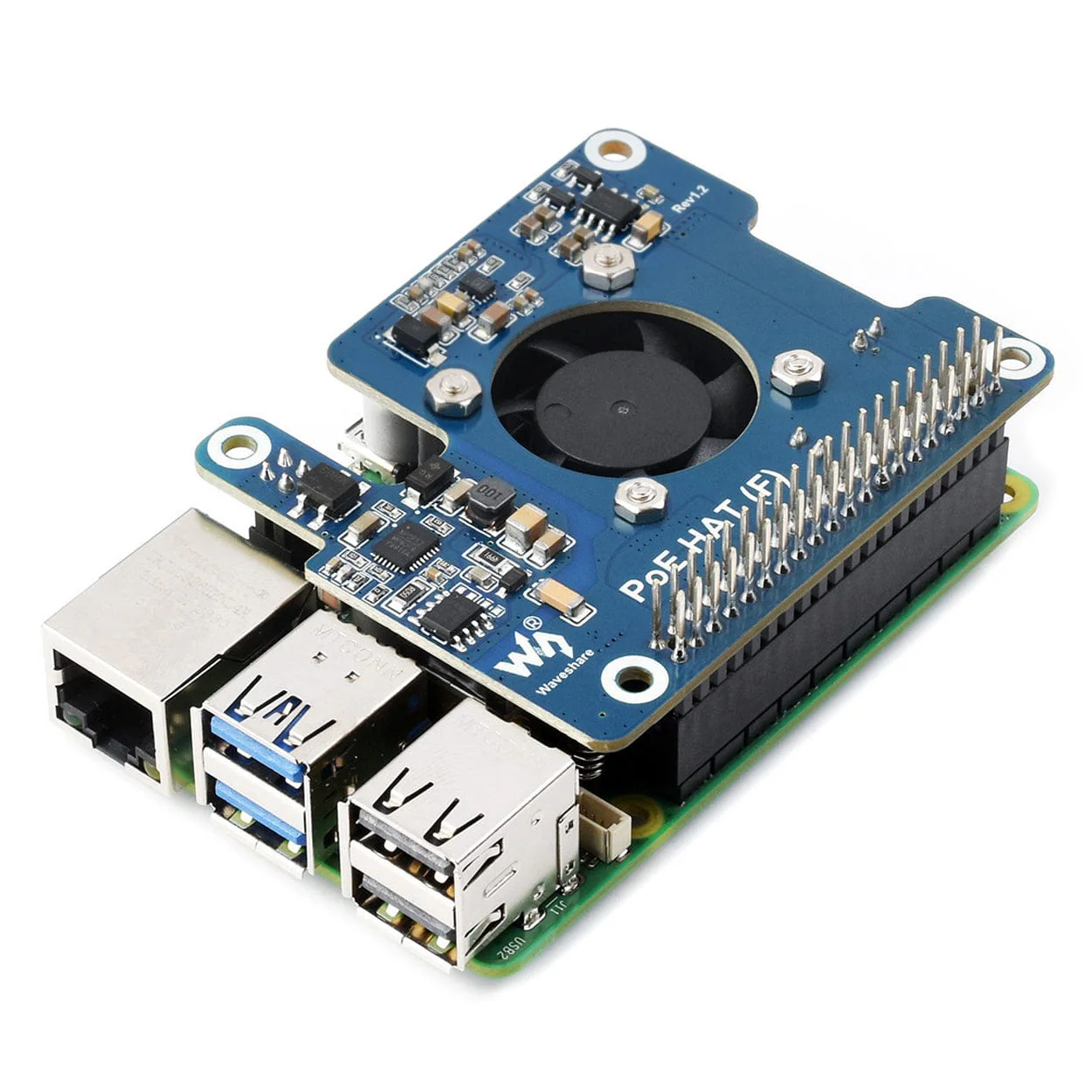

This Power over Ethernet HAT has been designed specifically for Raspberry Pi 5 (the new PoE pin position) and is compliant with IEEE 802.3af/at standards, enabling you to power your Raspberry Pi 5 directly through a power-injected ethernet cable.

The HAT can provide up to 5V 4.5A for the Raspberry Pi, covering most projects and use cases. There is also a separate header offering 12V 2A to power other devices as part of your project.

The HAT has a fully isolated Switched-Mode Power Supply (SMPS), protecting your Raspberry Pi 5 from electrical noise and surges. It also includes an onboard active cooling fan coupled with a metal heat sink to keep your board cool. The onboard fan connects to the Pi 5 fan header.

We also stock the 'G' variant, which is more compact (fits inside the official Pi 5 case) but does not offer the 12V output or built-in fan.

Note: Raspberry Pi 5 not included

Review Video

Check out Jeff Geerling's video reviewing this HAT (be sure to subscribe to his YouTube channel!):

Features

• Designed for Raspberry Pi 5 PoE pins
• 5V output for Raspberry Pi (4.5A max)

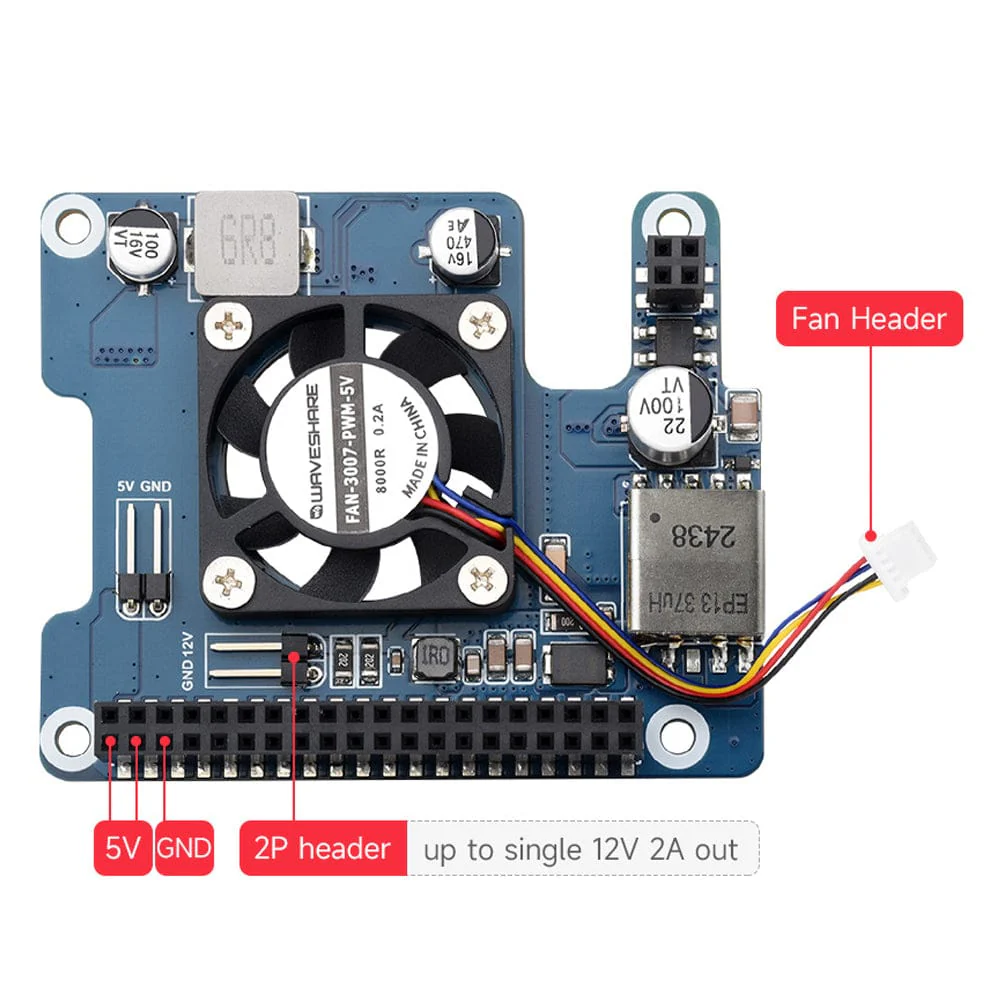

• Separate 12V header (2A max) for other devices
• PoE (Power Over Ethernet) IEEE 802.3af/at-compliant
  • Compatible with Raspberry Pi PoE+ Injector
• Fully isolated switched-mode power supply (SMPS)
• Onboard active cooling fan, with metal heatsink
  • Uses Pi 5 fan header

Specifications

POE Power Input	37V ~ 57V DC in
Power Output	GPIO header: 5V 4.5A (MAX)
	2P header: 12V 2A (MAX)

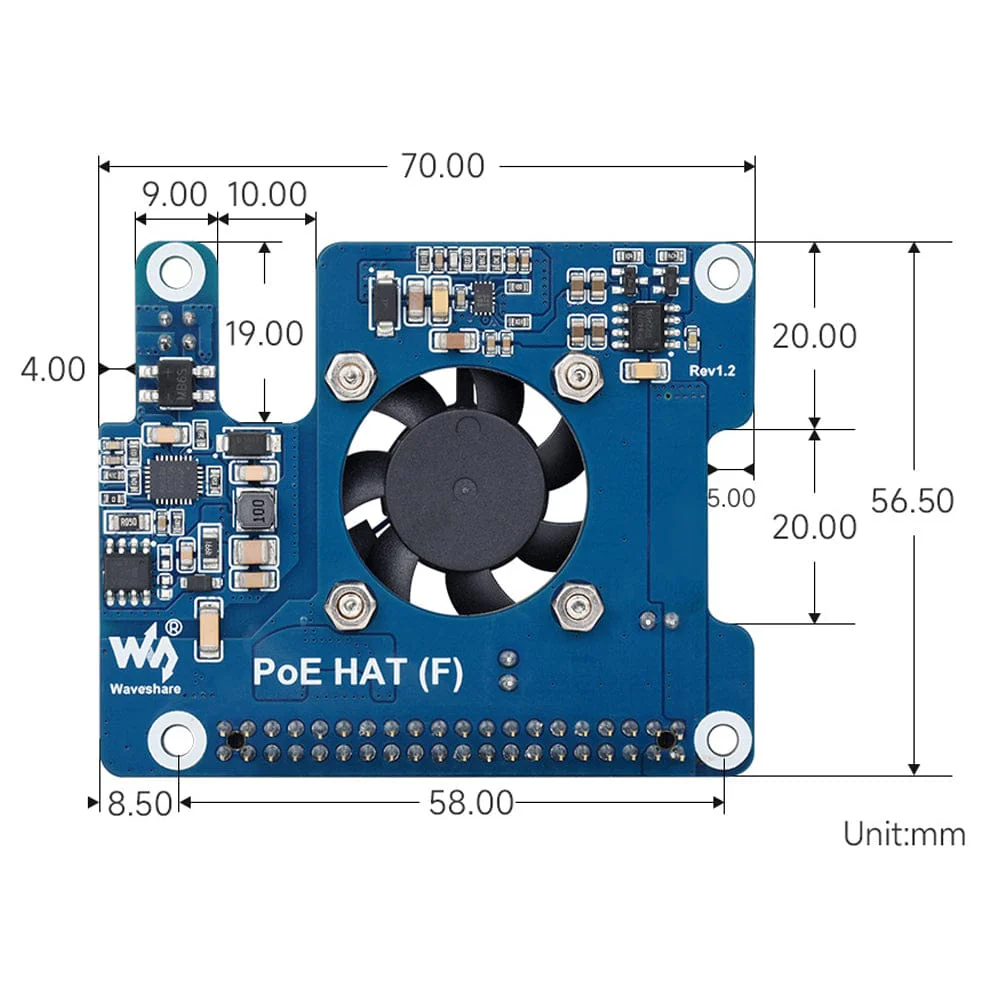

Dimensions	56.5 x 70.0mm
Network Standard	IEEE 802.3af/at PoE

Resources

• Product Wiki

Package Contents

• 1x PoE HAT (F)
• 1x Metal heat sink
• 3x Thermal tape

Revision History

• As of 28/10/2025 - we are stocking the updated version with a fan header for the Pi 5
