PC4-01 (Blue) Pneumatic Connectors (5-pack)

Pneumatic connectors are commonly used with 3D printers to connect Bowden tubes to extruders and hot ends, providing a reliable, strong fitting with little to no movement of the tube once fitted.

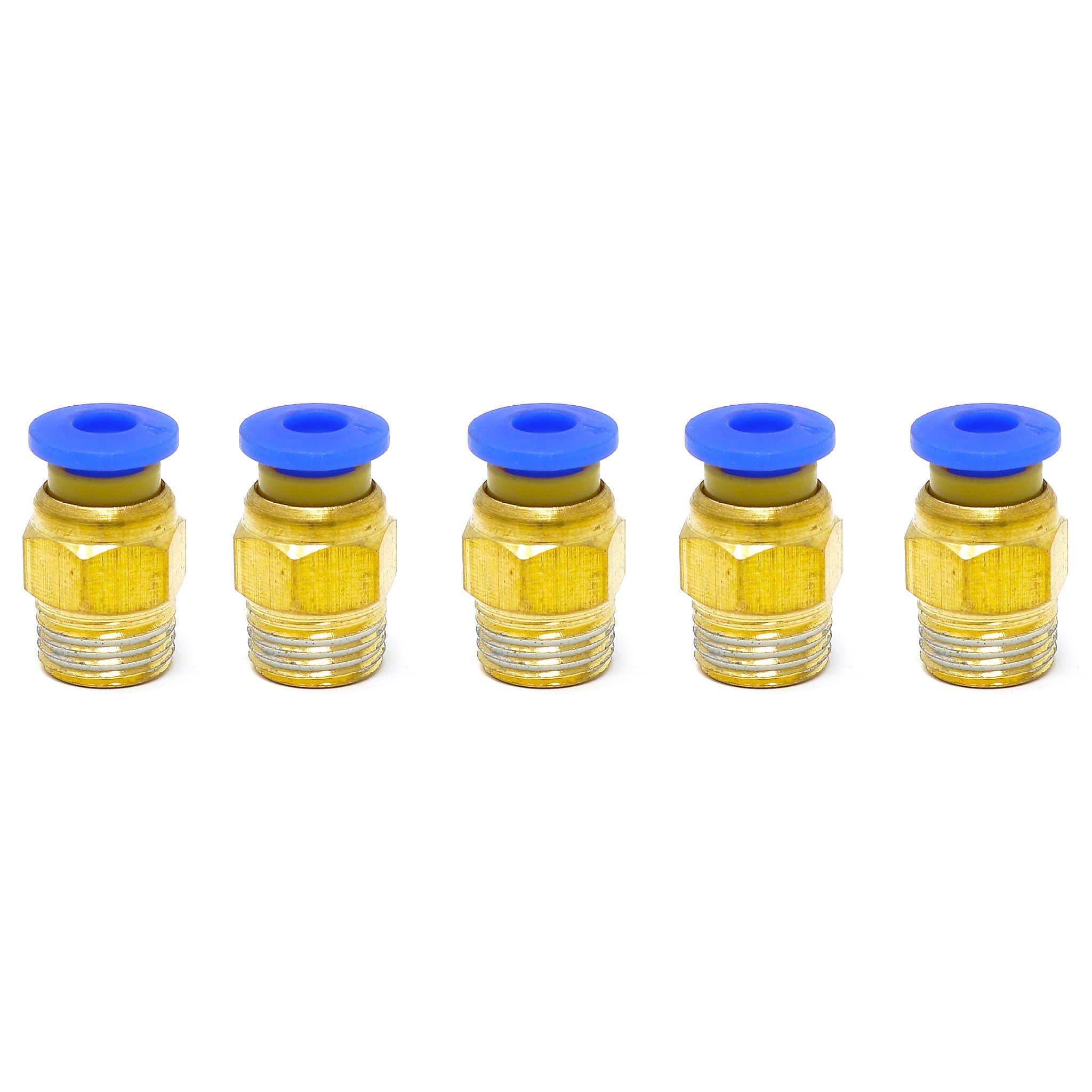

This is a pack of five PC4-01 Blue pneumatic connectors which accept Bowden tubes with a 4mm outer dimension (4mm OD) and 2mm inner dimension (2mm ID), such as the tubes we sell in the store.

We sell a number of other styles of pneumatic connectors - take a look in our 3D printing section for more!

Specifications

• Type: PC4-01 Blue
• Thread OD: 9.7mm
• Height: 18mm
• Nut OD: 10
• Thread length: ~10mm
• Input diameter (thread end): 7.3mm
• Compatible PTFE: 4mm OD / 2mm ID
• Weight (per connector): 3.1g

Package Contents

• 5x PC4-01 Blue pneumatic connectors
