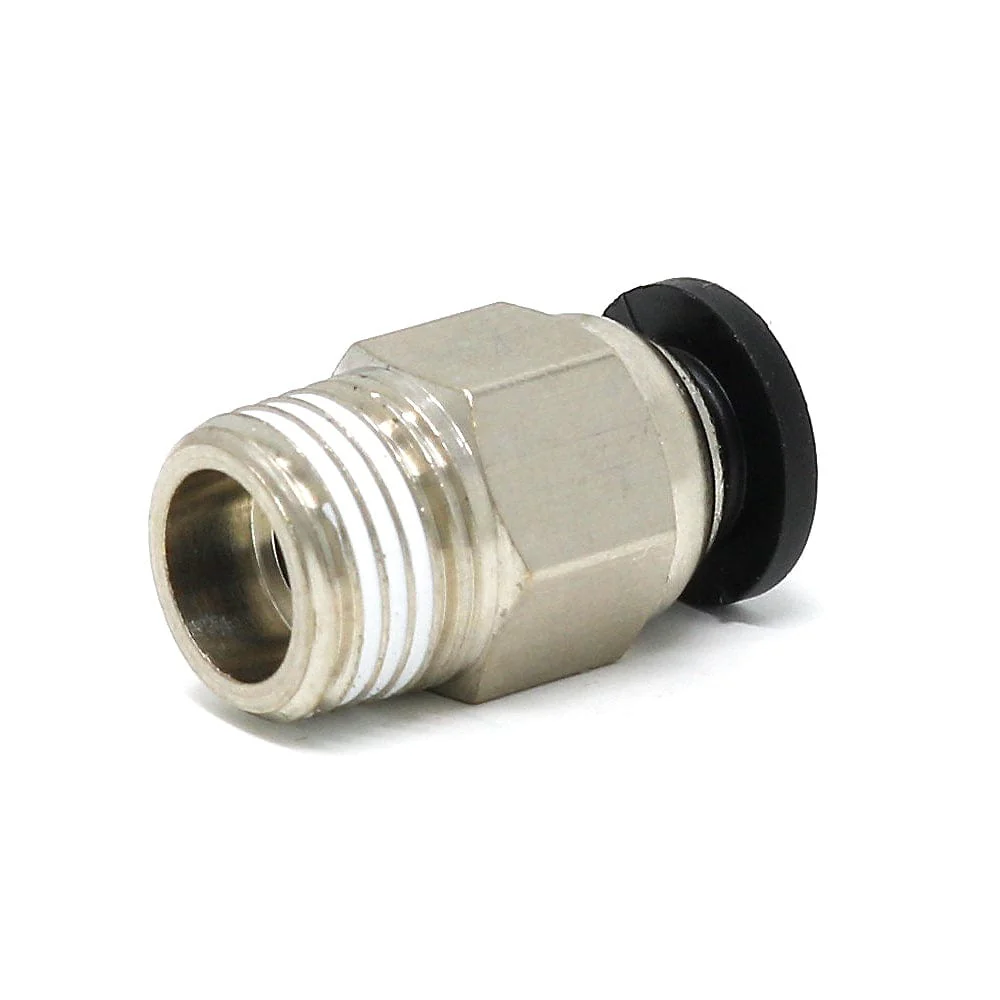

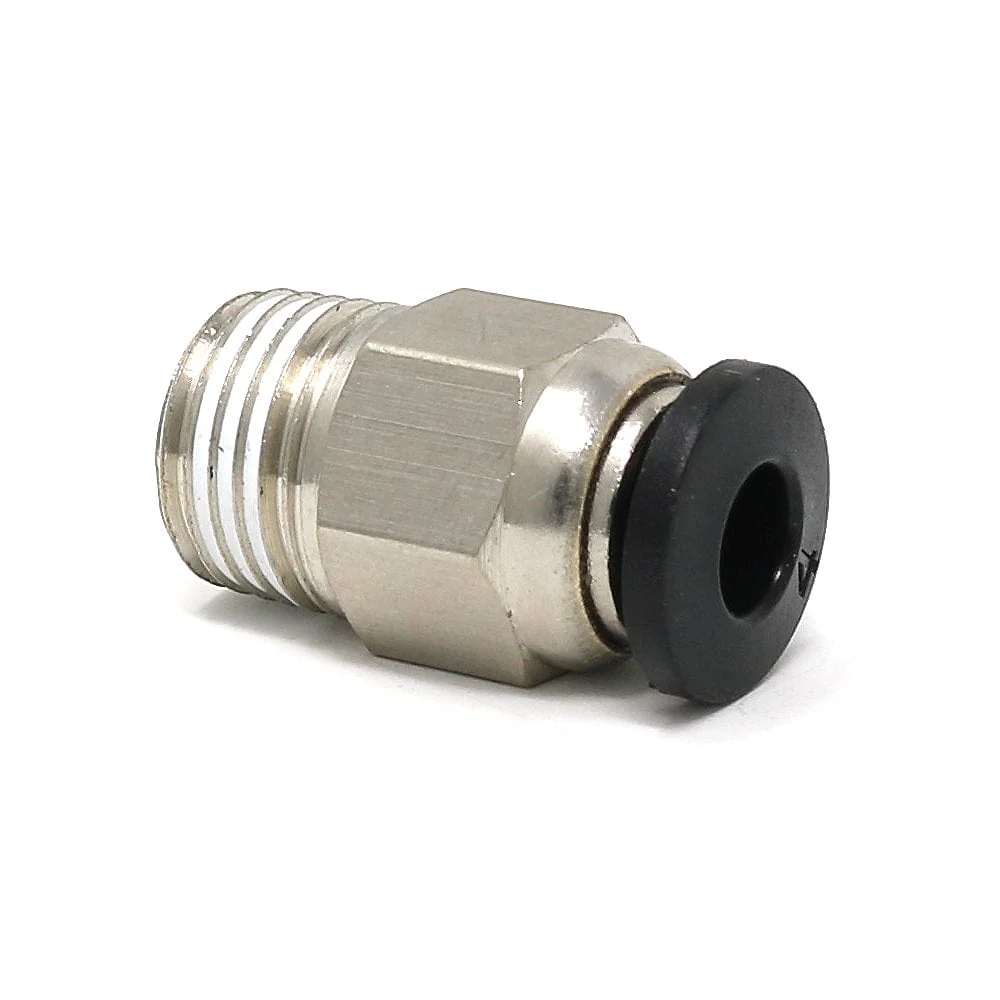

PC4-01 (Black) Pneumatic Connectors (5-pack)

Pneumatic connectors are commonly used with 3D printers to connect Bowden tubes to extruders and hot ends, providing a reliable, strong fitting with little to no movement of the tube once fitted.

This is a pack of five PC4-01 Black pneumatic connectors which accept Bowden tubes with a 4mm outer dimension (4mm OD) and 2mm inner dimension (2mm ID), such as the tubes we sell in the store.

We sell a number of other styles of pneumatic connectors - take a look in our 3D printing section for more!

Specifications

• Type: PC4-01 Black
• Thread OD: 9.7mm
• Height: 18.9mm
• Nut OD: 10
• Thread length: ~6.2mm
• Input diameter (thread end): 6.8mm
• Compatible PTFE: 4mm OD / 2mm ID
• Weight (per connector): 5.5g

Package Contents

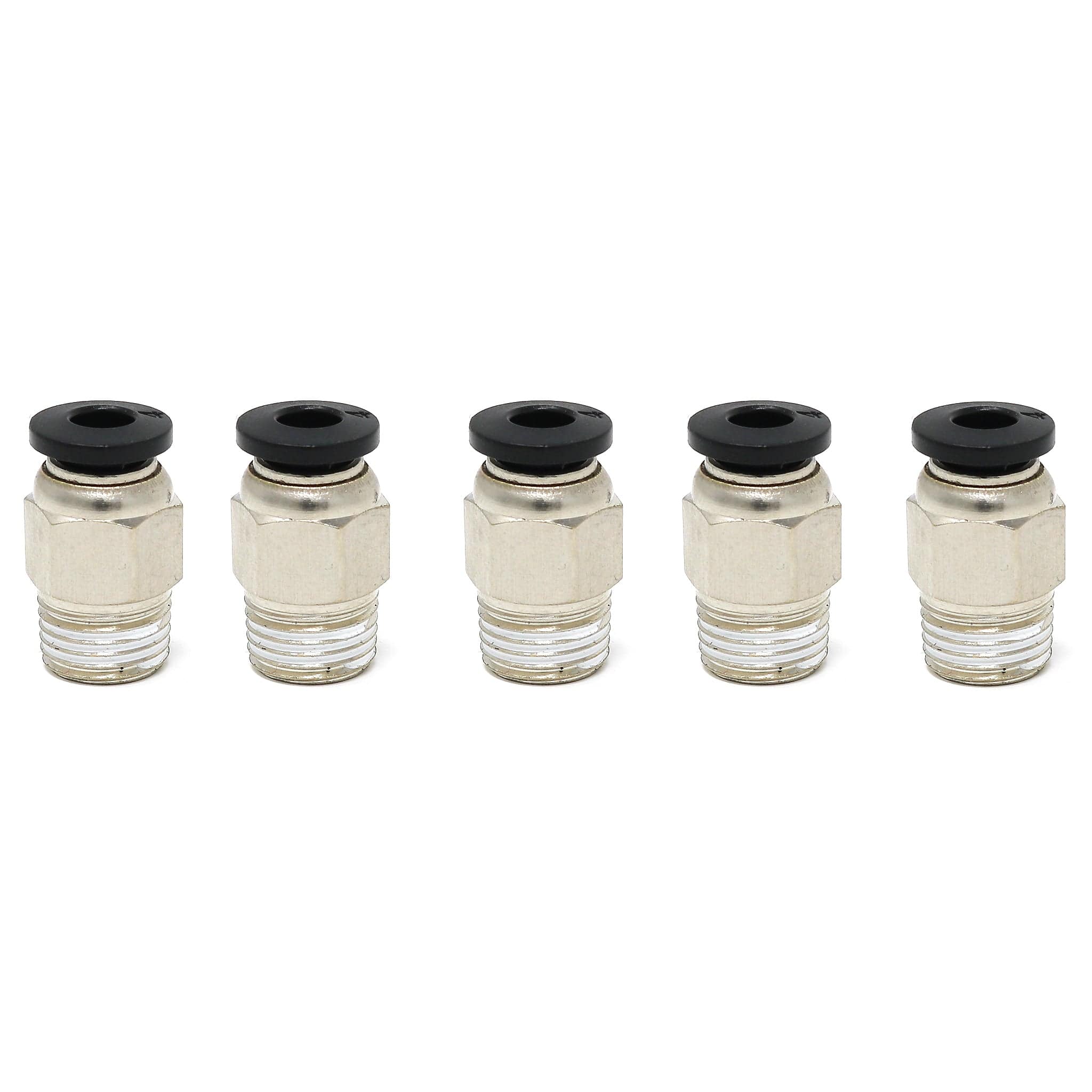

• 5x PC4-01 Black pneumatic connectors
