Particulate Matter Sensor Breakout (for PMS5003)

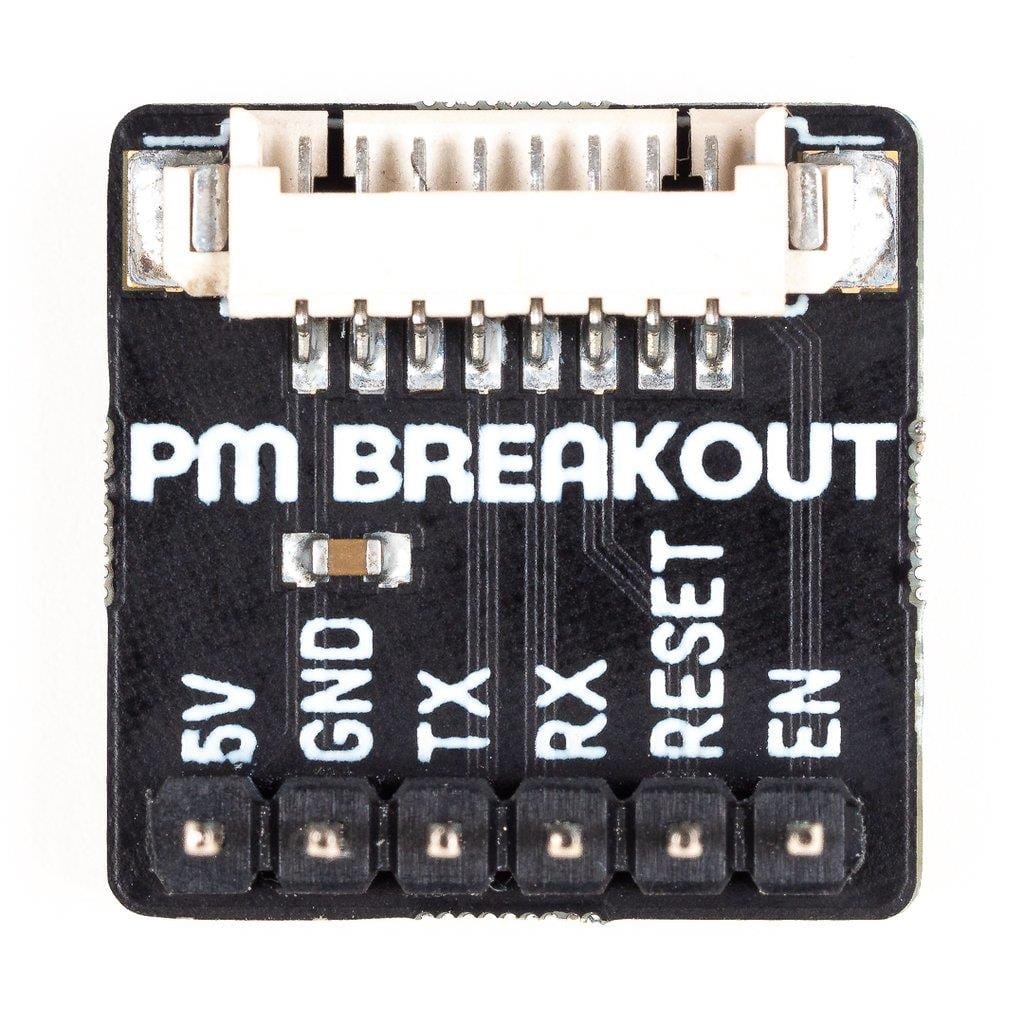

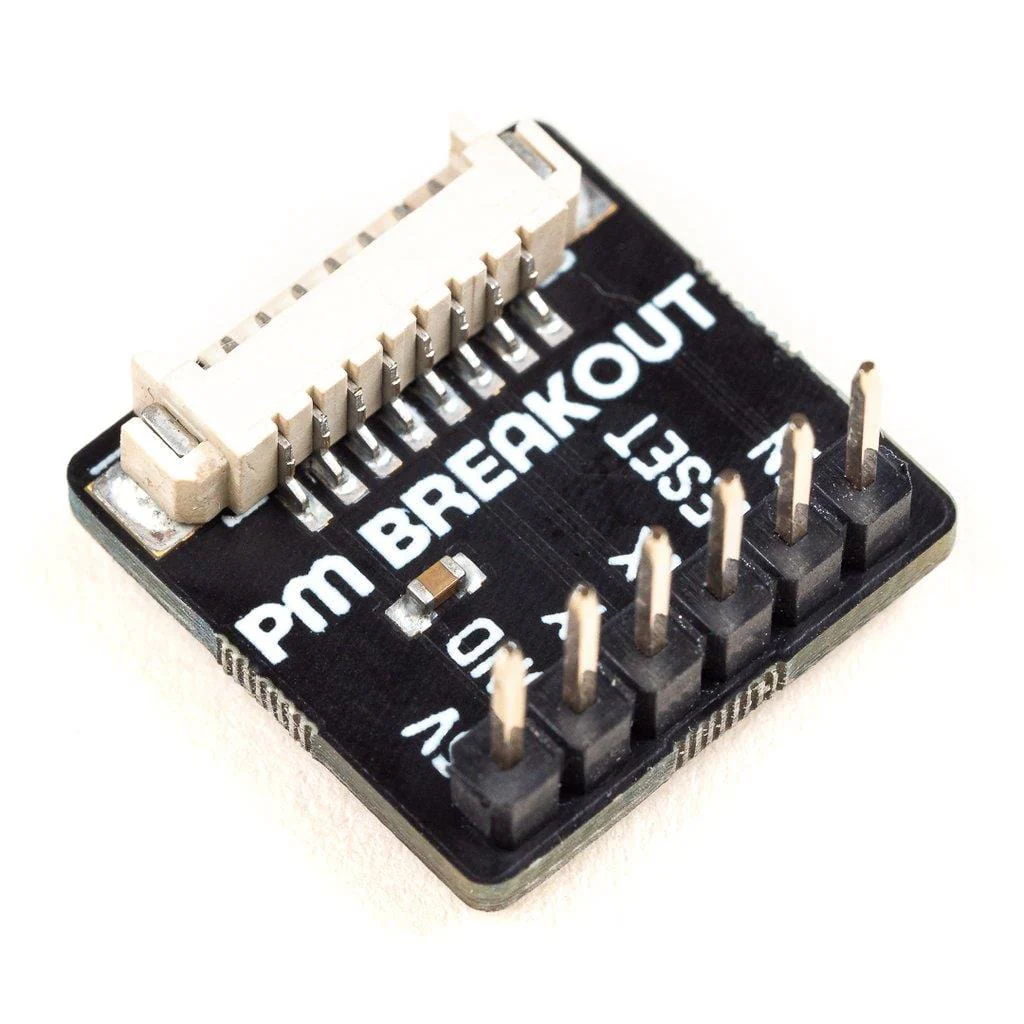

A handy-dandy breakout that converts between the picoblade connector cable on the PMS5003 particulate matter sensor and a standard male 2.54mm pitch header.

Use this breakout to connect a PMS5003 particulate matter sensor straight to your Raspberry Pi (or other microcontroller) with some female-to-female jumper wires using our PMS5003 Python library to read data from the sensor.

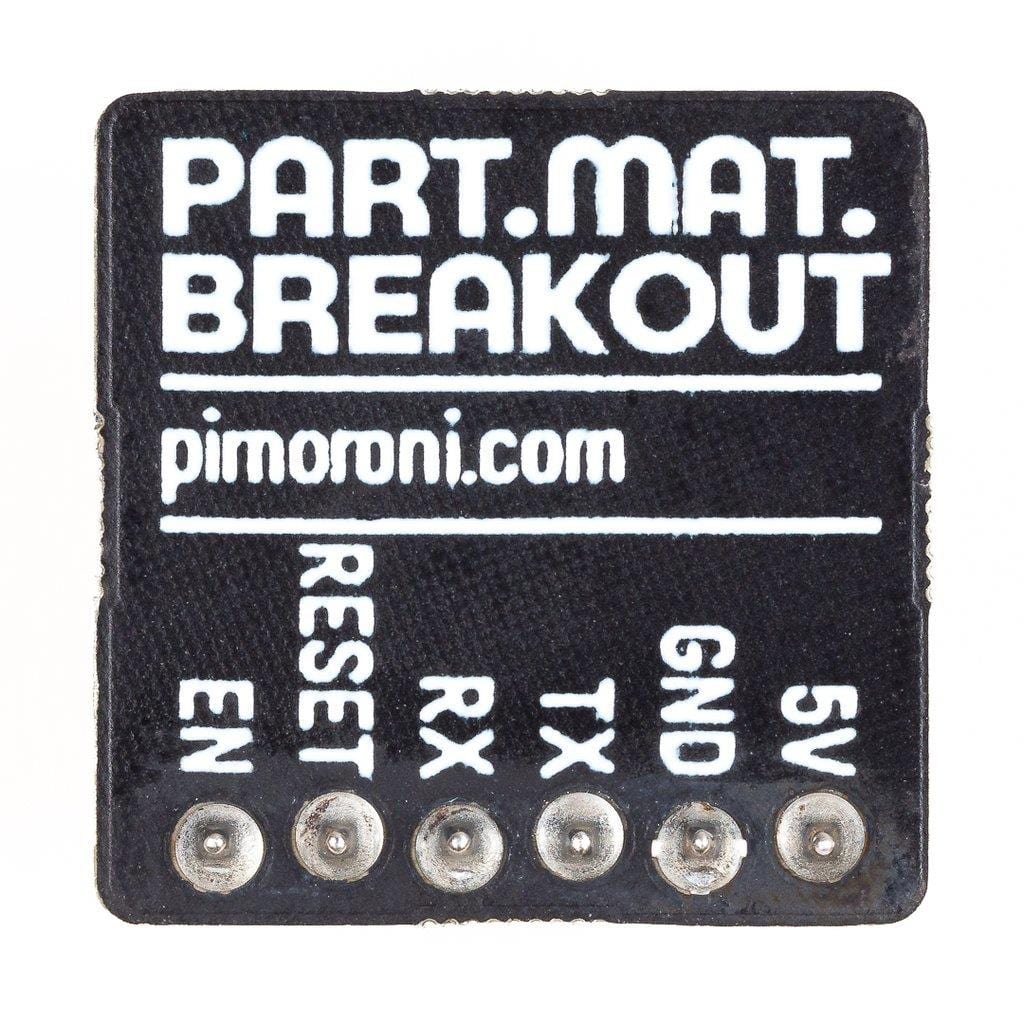

Connect the pins on the breakout to the following pins on your Raspberry Pi:

• 5V to 5V
• GND to ground
• TX to BCM 14
• RX to BCM 15
• RESET to BCM 27
• EN to BCM 22

Dimensions: 17.7x17.75mm
