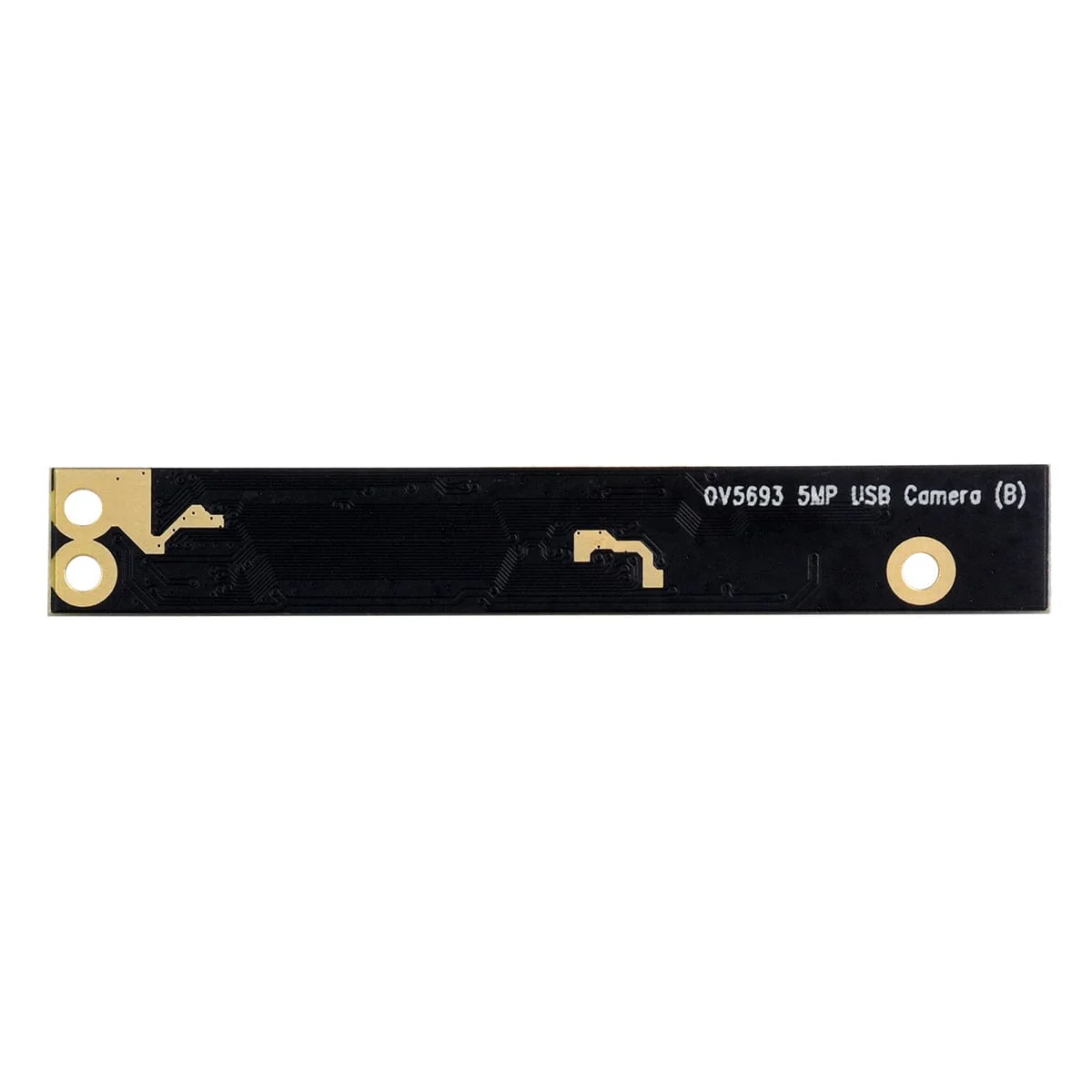

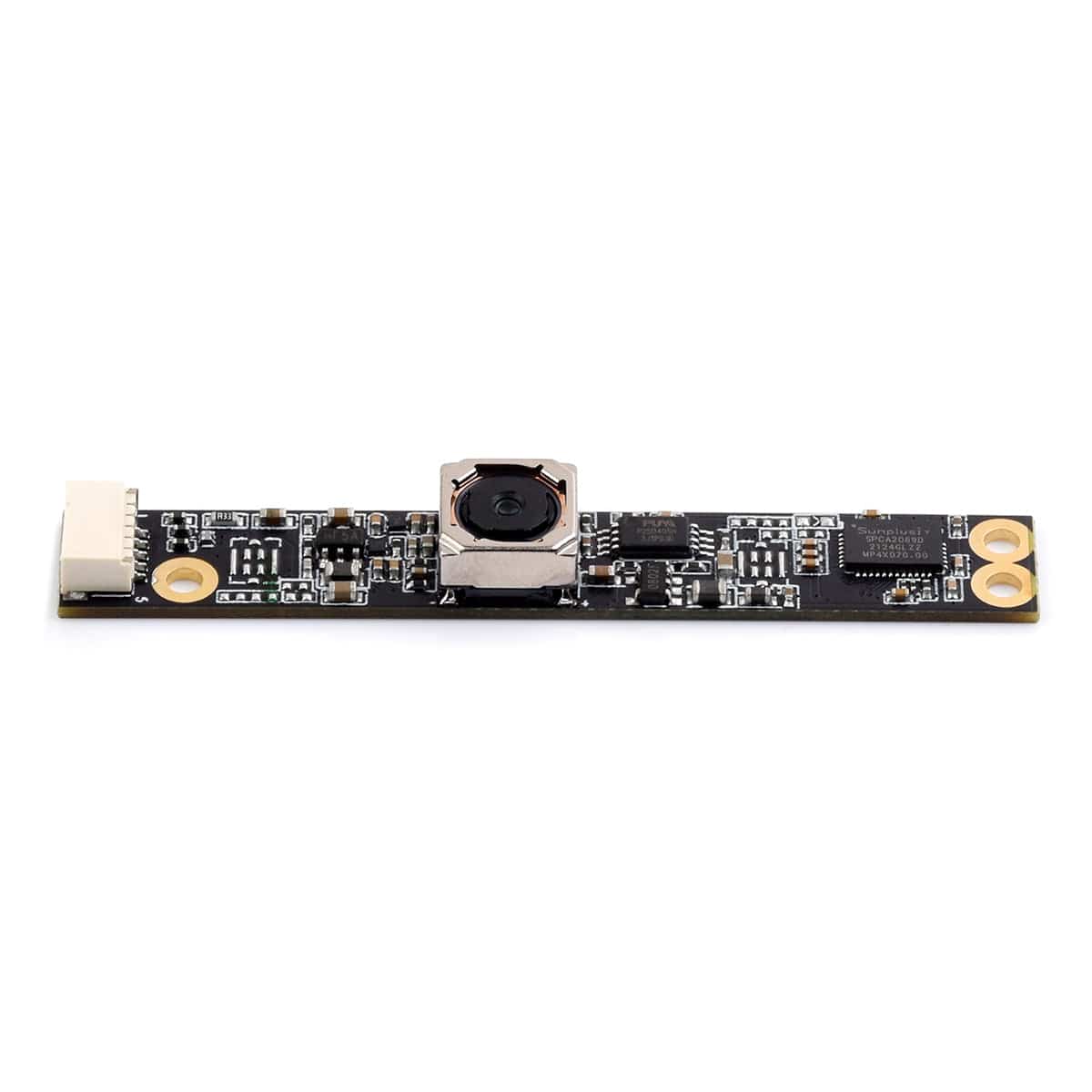

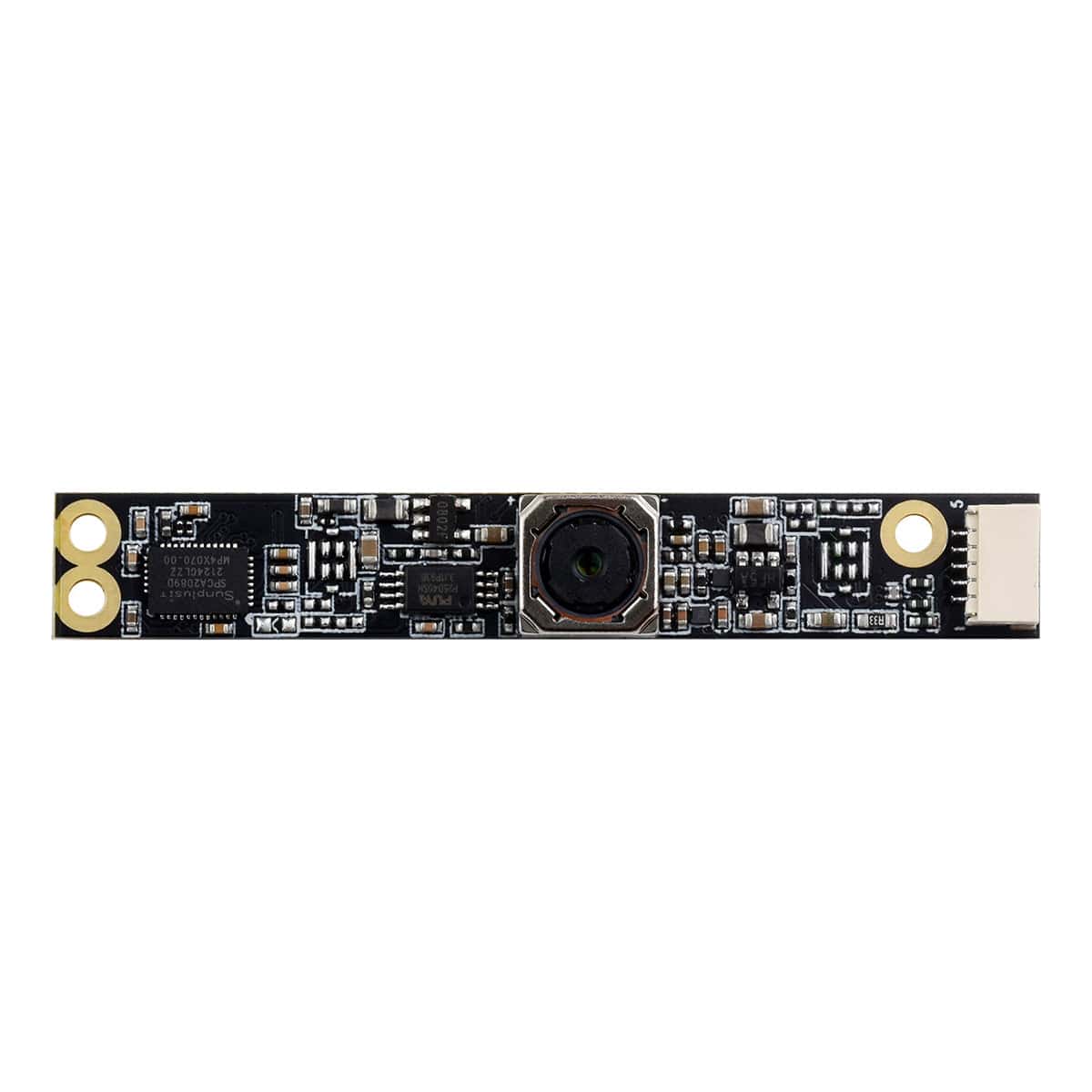

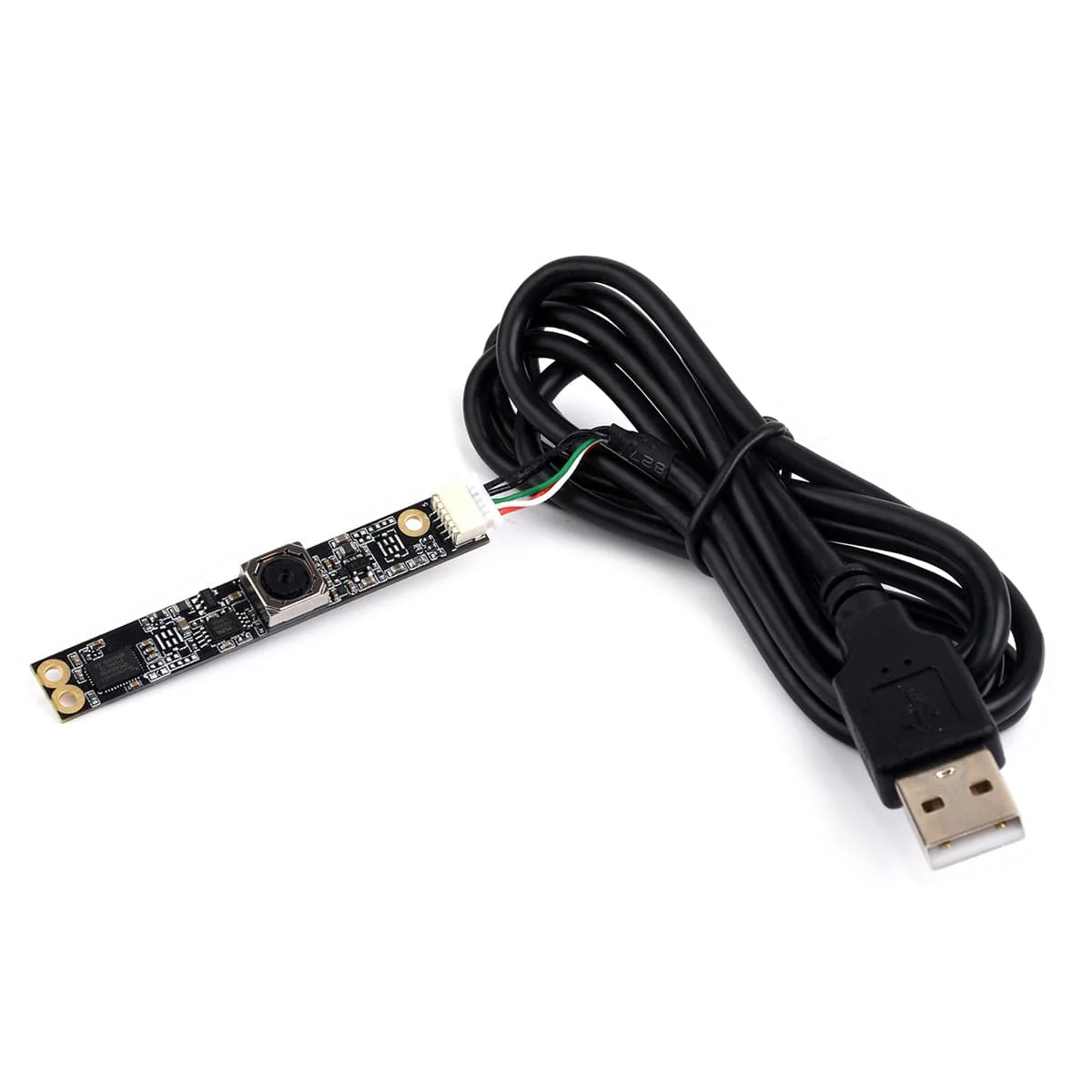

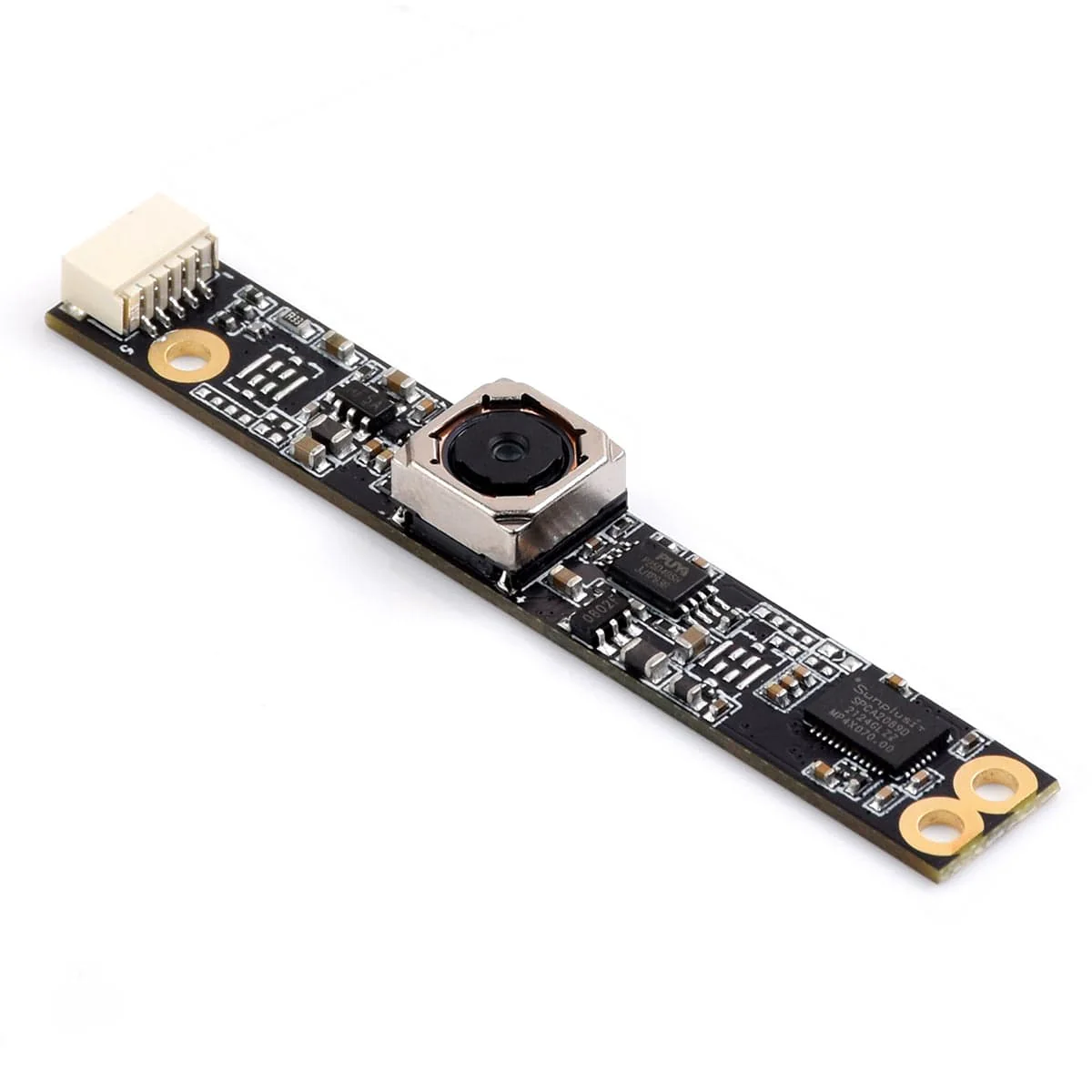

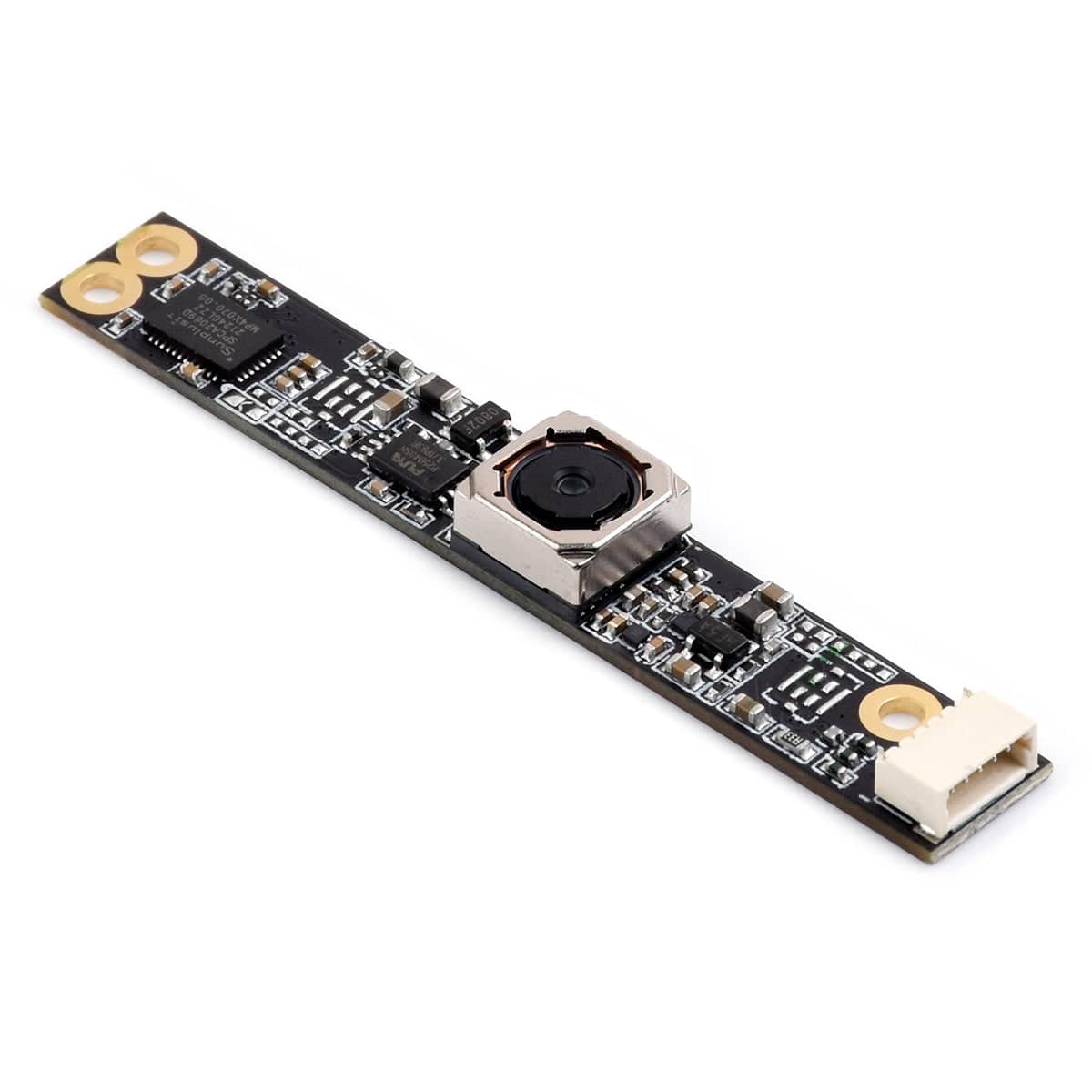

OV5693 5MP USB Camera

This USB camera has a 5MP OV5693 sensor, supports USB 2.0, and has autofocus with an onboard micromotor for flexible and precise focusing. The camera supports 1080p HD video recording at 30 FPS and has a fixed focus for consistent imaging. Its compact size and 75° field of view make it ideal for projects requiring high-quality image capture in confined spaces.

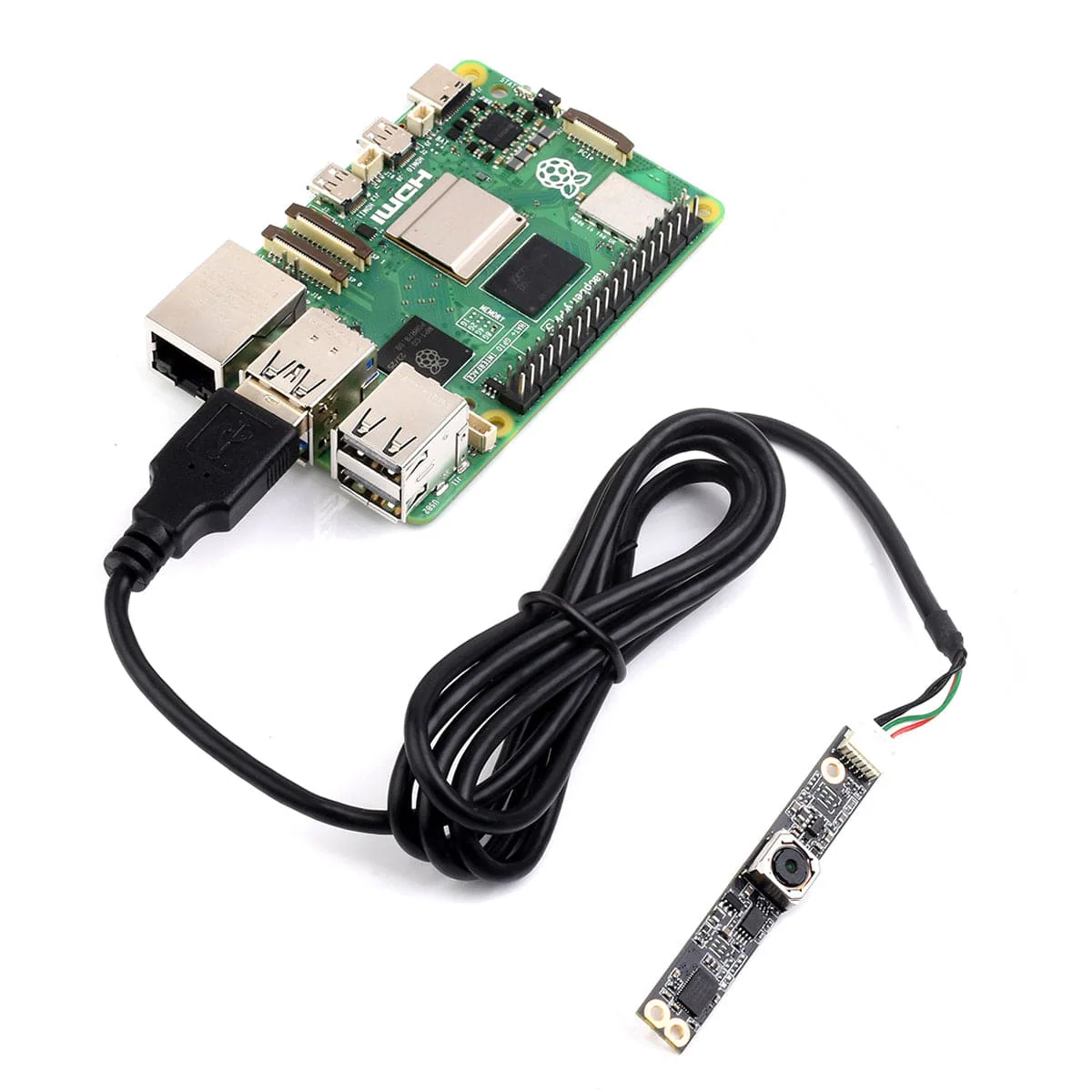

It's "officially" compatible with Windows, Raspberry Pi and Jetson Nano, however, it'll most likely work on any system that accommodates UVC cameras.

Note:

• Raspberry Pi is NOT included
• This camera module can get hot during use - this is normal and expected.
• The USB 2.0 has a maximum cable length of 5 meters for data transfer without the use of hubs or signal boosters

Specifications

Pixels	5MP
Sensor	OV5693
Interface	USB 2.0
Camera	Sensor size	1/4"
	Aperture (F)	2
	Focal length (EFL)	3.2mm
	Field of view (FOV)	75°
	Distortion	<1%
	Focusing	Autofocusing
Construction	4P + IR Filter
Image	Format support	MJPG, YVY2
	Static image resolution	2592 x 1944
	Video recording	15 FPS 2592 x 1944
		30 FPS 1920 x 1080
		30 FPS 1280 x 720
Operating Voltage	5V ± 5%

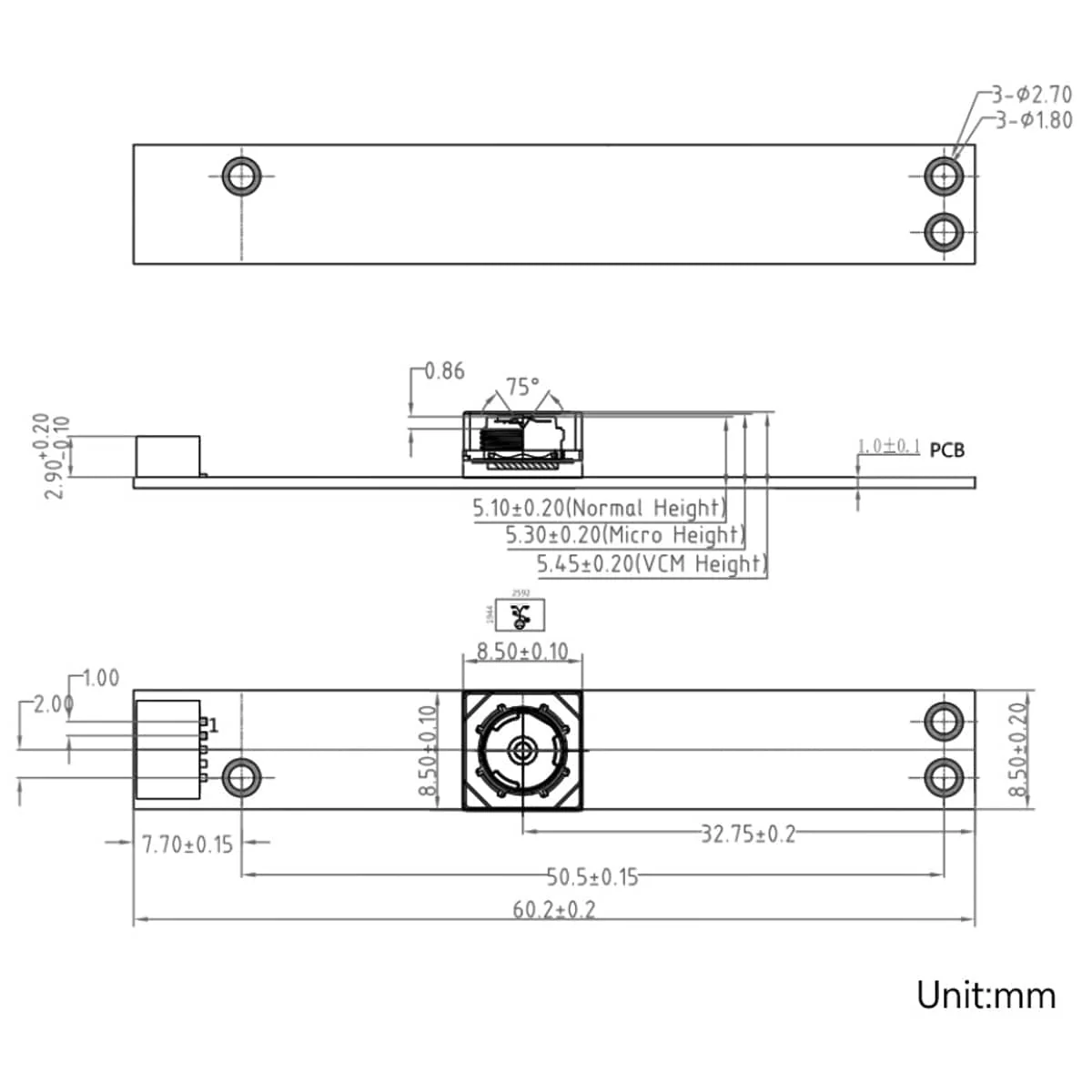

Camera Size	8.5 x 8.5 mm
Module Size	8.5 x 60.2mm

Resources

• Product Wiki

Package Contents

• 1x OV5693 5MP USB Camera
