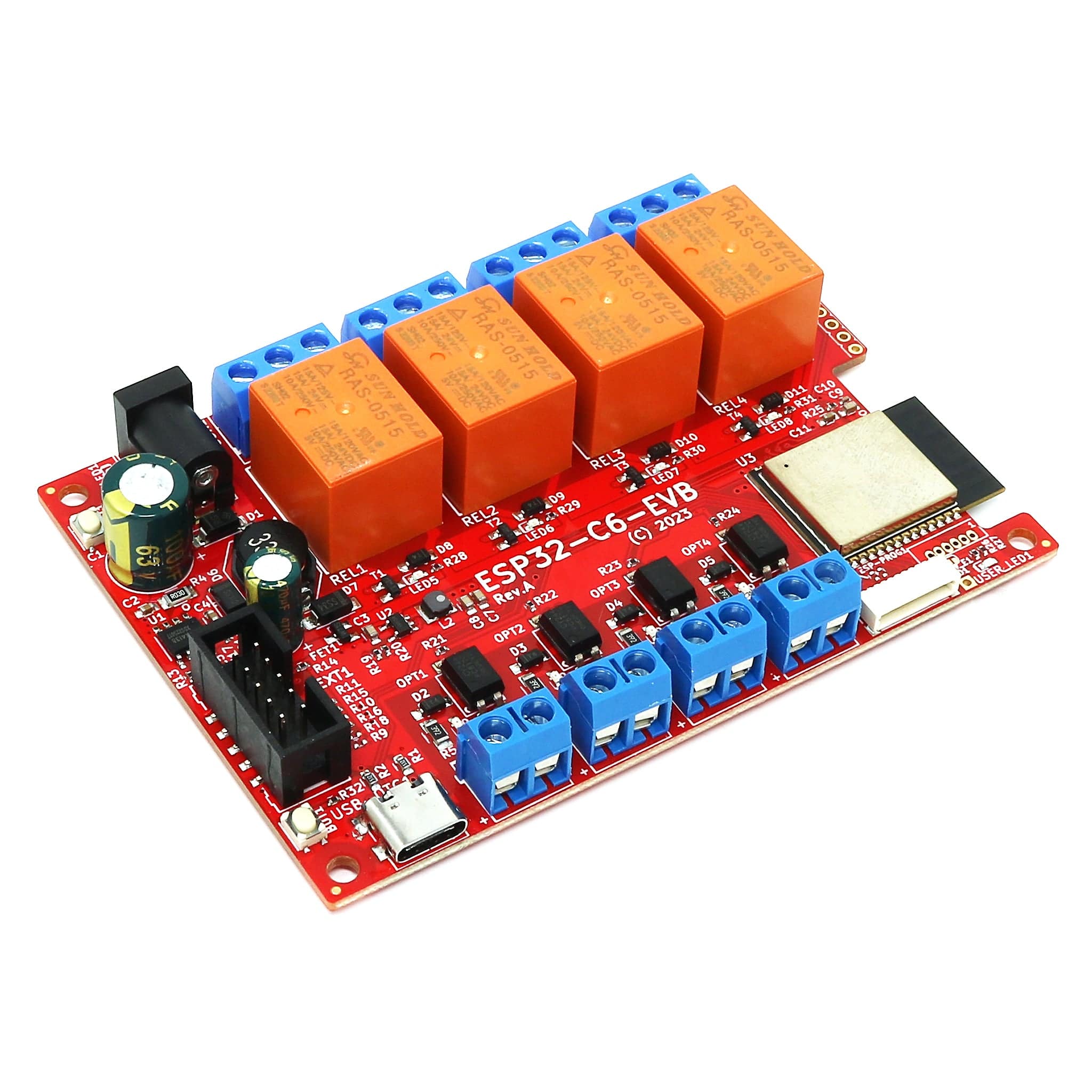

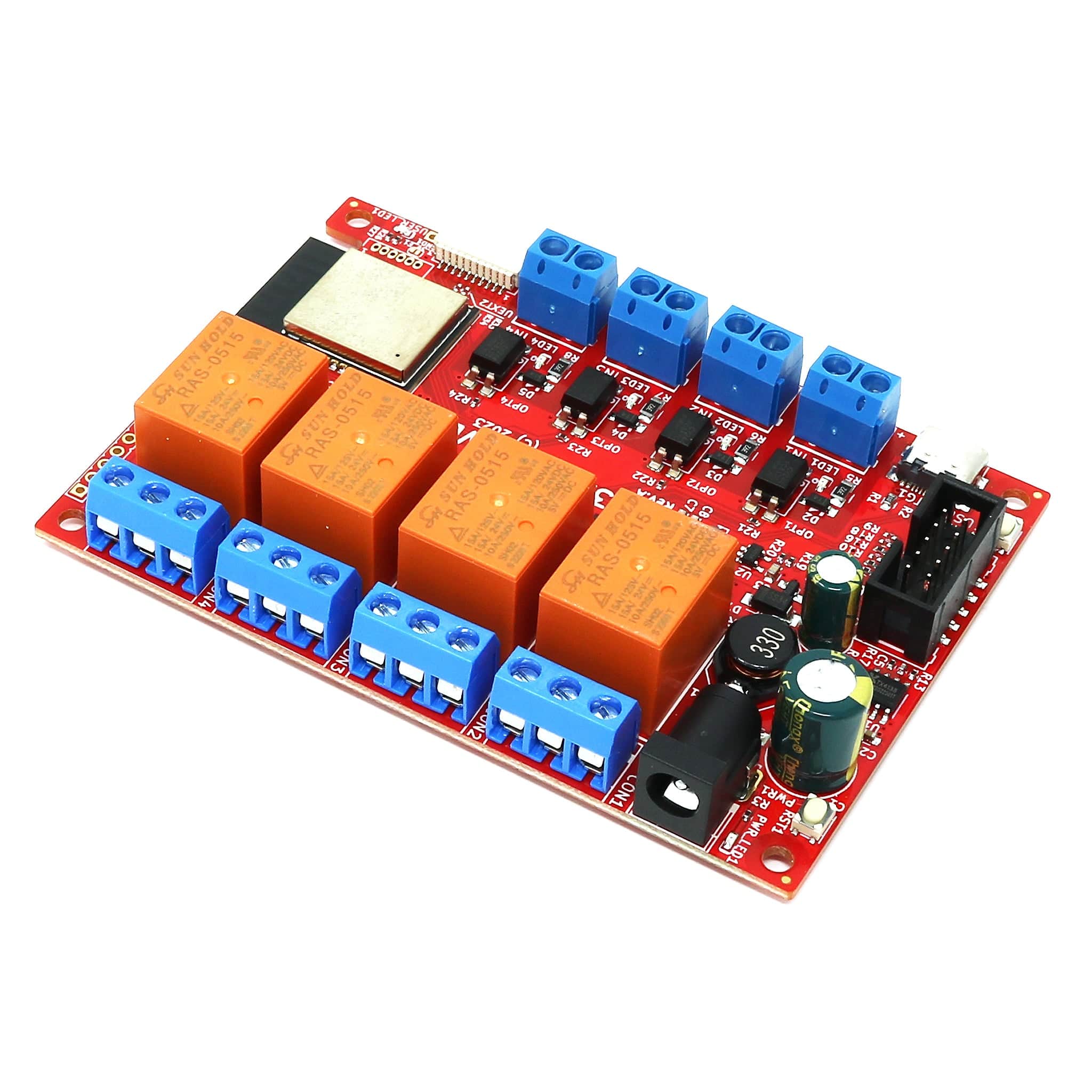

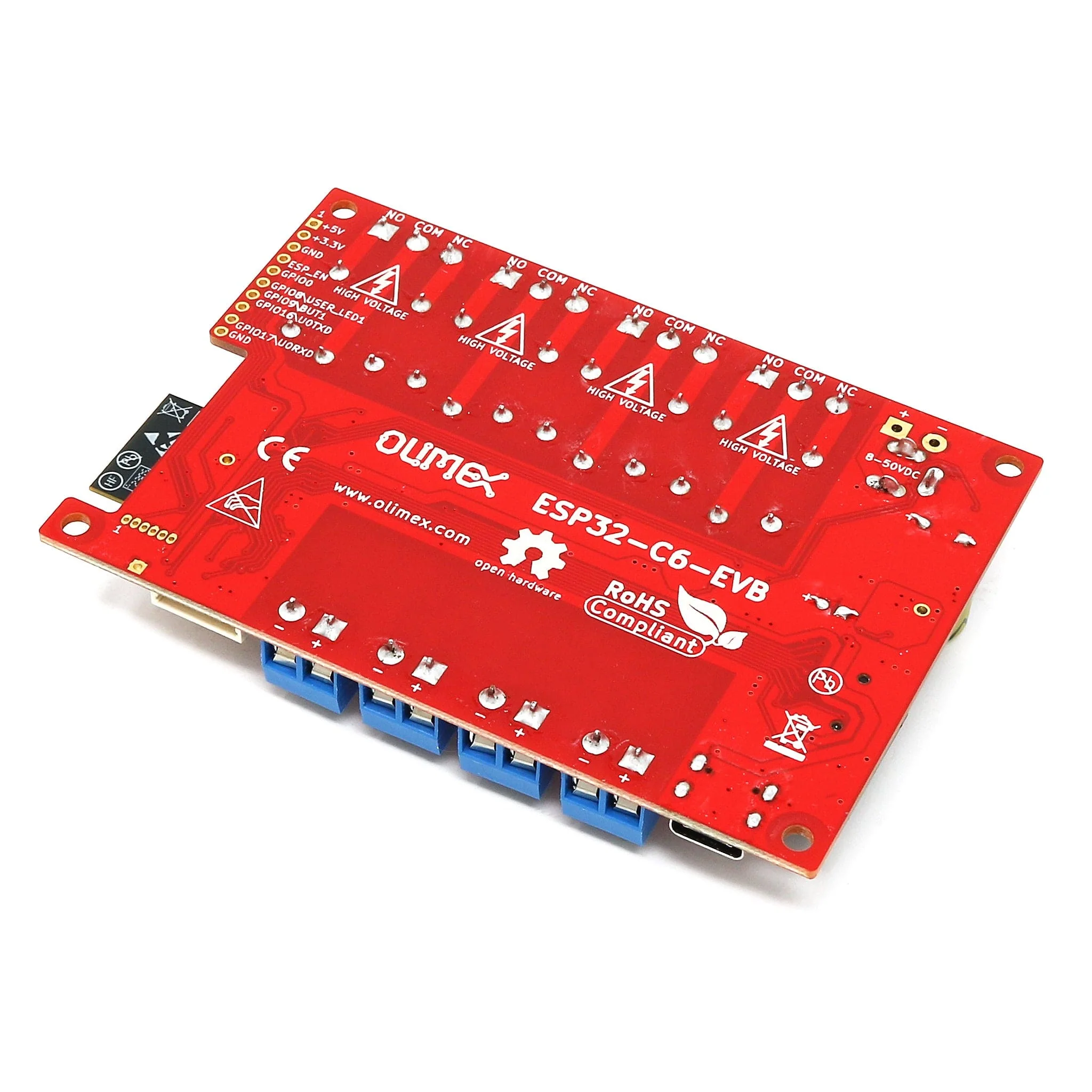

Olimex ESP32-C6-EVB

The Olimex ESP32-C6-EVB is a WiFi 6 (IEEE 802.11ax) and Bluetooth-enabled development board using the Espressif ESP32-C6, which integrates 2.4 GHz, Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 low-rate wireless personal area network (LR-WPAN).

The board includes four 10A/240VAC relays, four opto-isolated inputs for DC voltage (up to 30VDC) and a USB-C connector for power/programming. It also offers a wide power input range via the barrel jack connector, accepting 8-50V input.

This board is perfect for stand-alone usage but can also be attached to any existing hardware project to augment it with 2.4GHz Wi-Fi 6 and Bluetooth LE 5.3 capabilities.

Please note: the relays may change between batches (colour/brand) however they are rated the same. The LEG-5F relays on recent batches may only show 120 VAC 15A, however this is just because the small relay surface does not allow all ratings to be shown.

Features

• ESP32-C6-WROOM-1-N4 module
  • 32-bit RISC-V single-core microprocessor
  • Up to 160 MHz
  • Flash: 4MB
  • ROM: 320 KB
  • HP SRAM: 512 KB
  • LP SRAM: 16 KB
• USB-C connector for powering, programming and JTAG debugging
• Power jack for optional external power 8-50V DC
• Four Relays: 10A/240VAC
• Four optoisolated inputs for DC voltage up to 30VDC
• Two UEXT connectors (0.1" step one and JST one)
• Extension GPIO connector
• Reset button
• User button
• Wide range of power supply: 8-50VDC
• Programming connector suitable for ESP-PROG
• Four mount holes
• Four rubber pads are included

Resources

• User manual
• Schematic
• KiCAD source files
• Demo project, refer to the instructions
• CE Declaration of Conformity
• UKCA Declaration of Conformity

Package Contents

• 1x ESP32-C6-EVB board
