Miniature 0.8" 8x8 Pure Green LED Matrix (KWM-20882CPGB) [Discontinued]

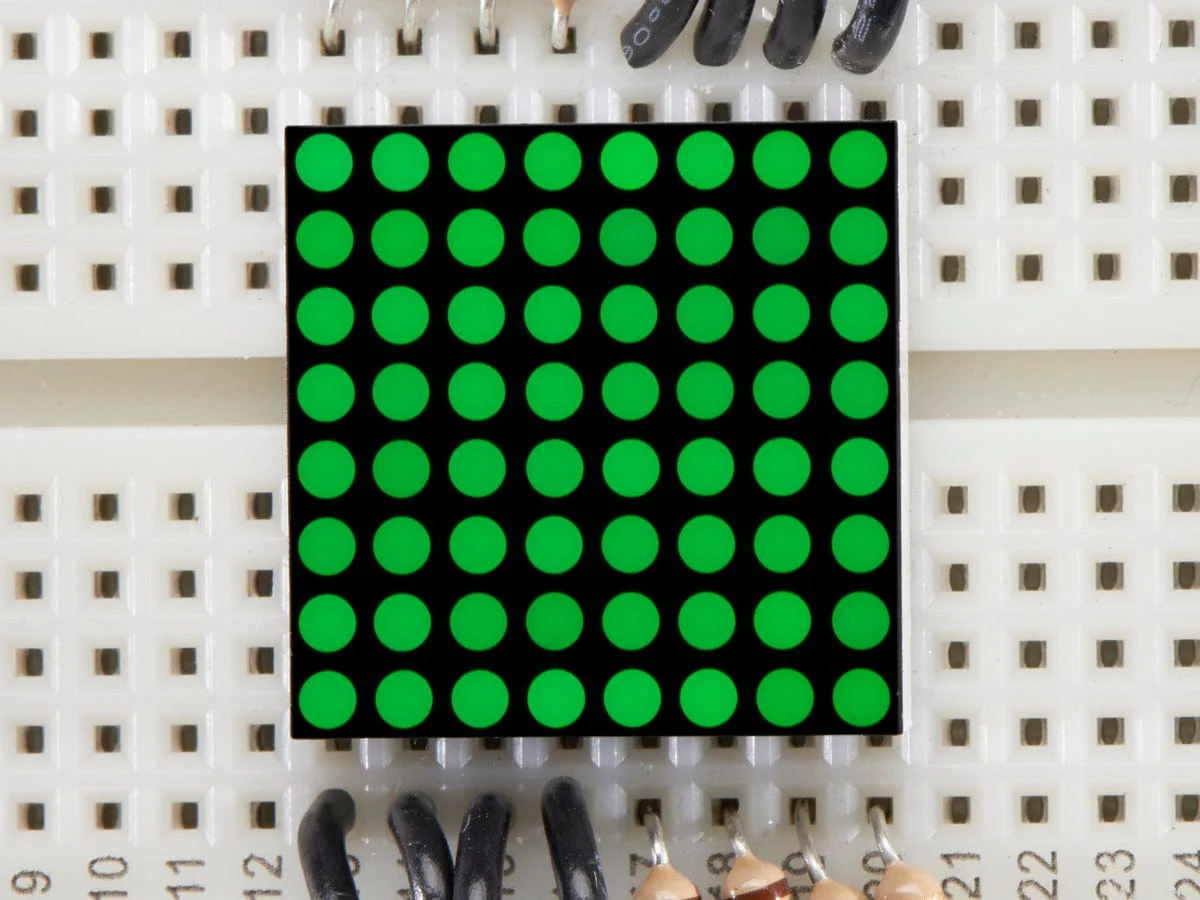

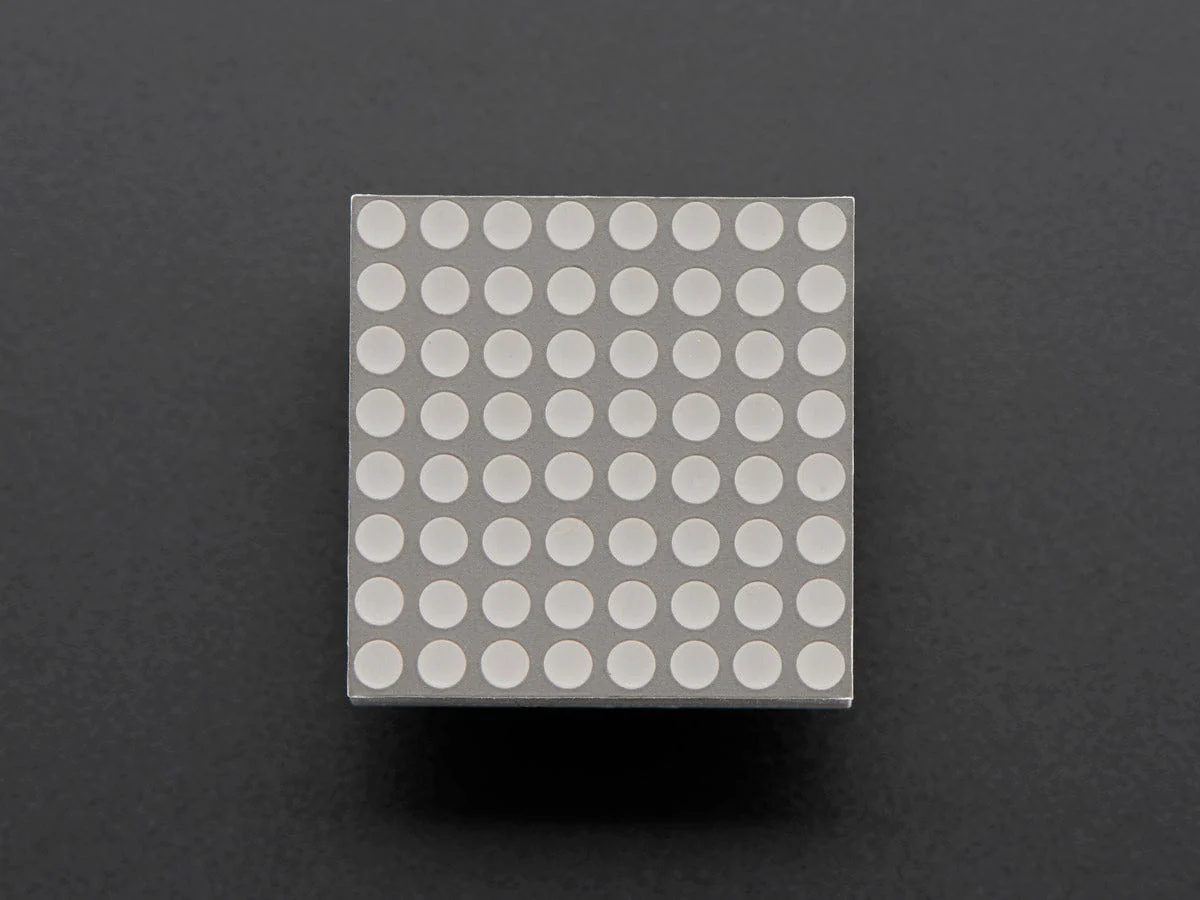

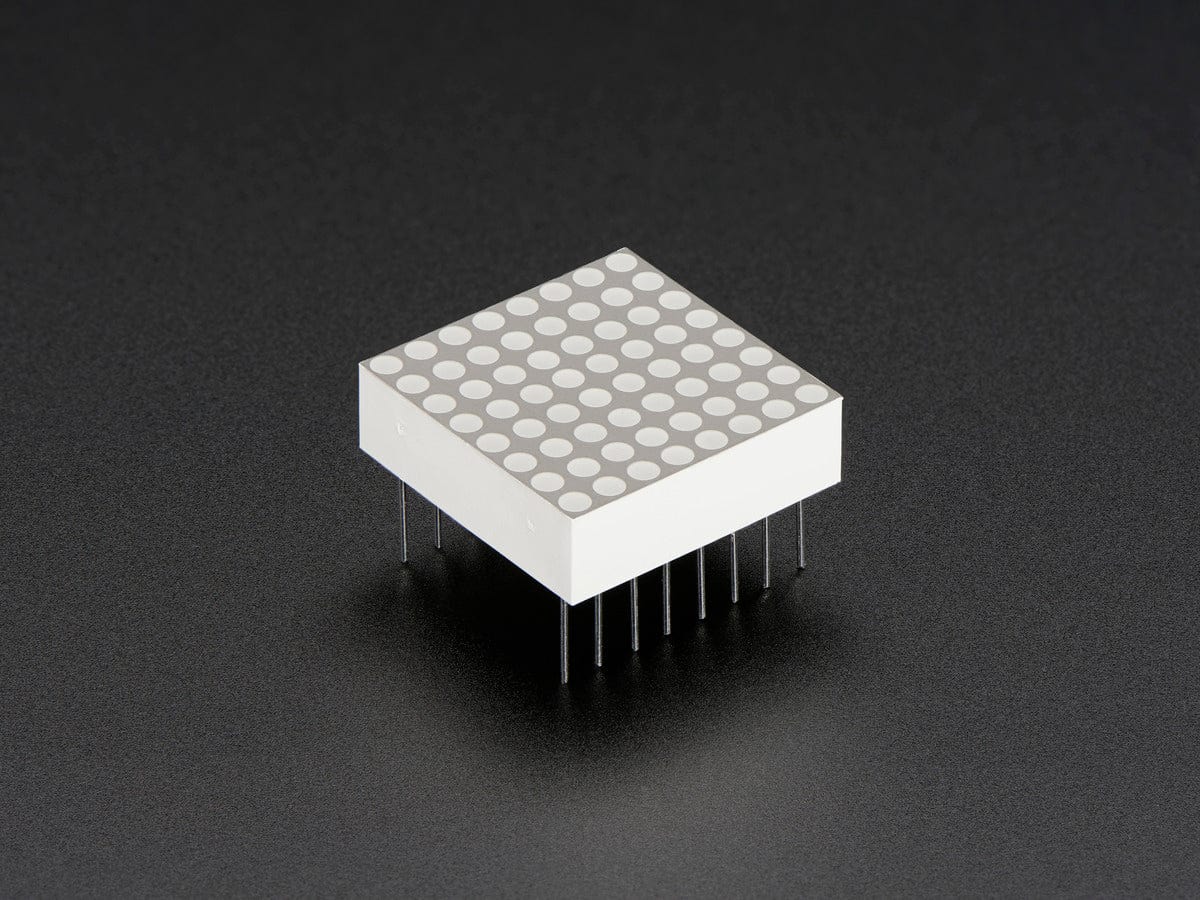

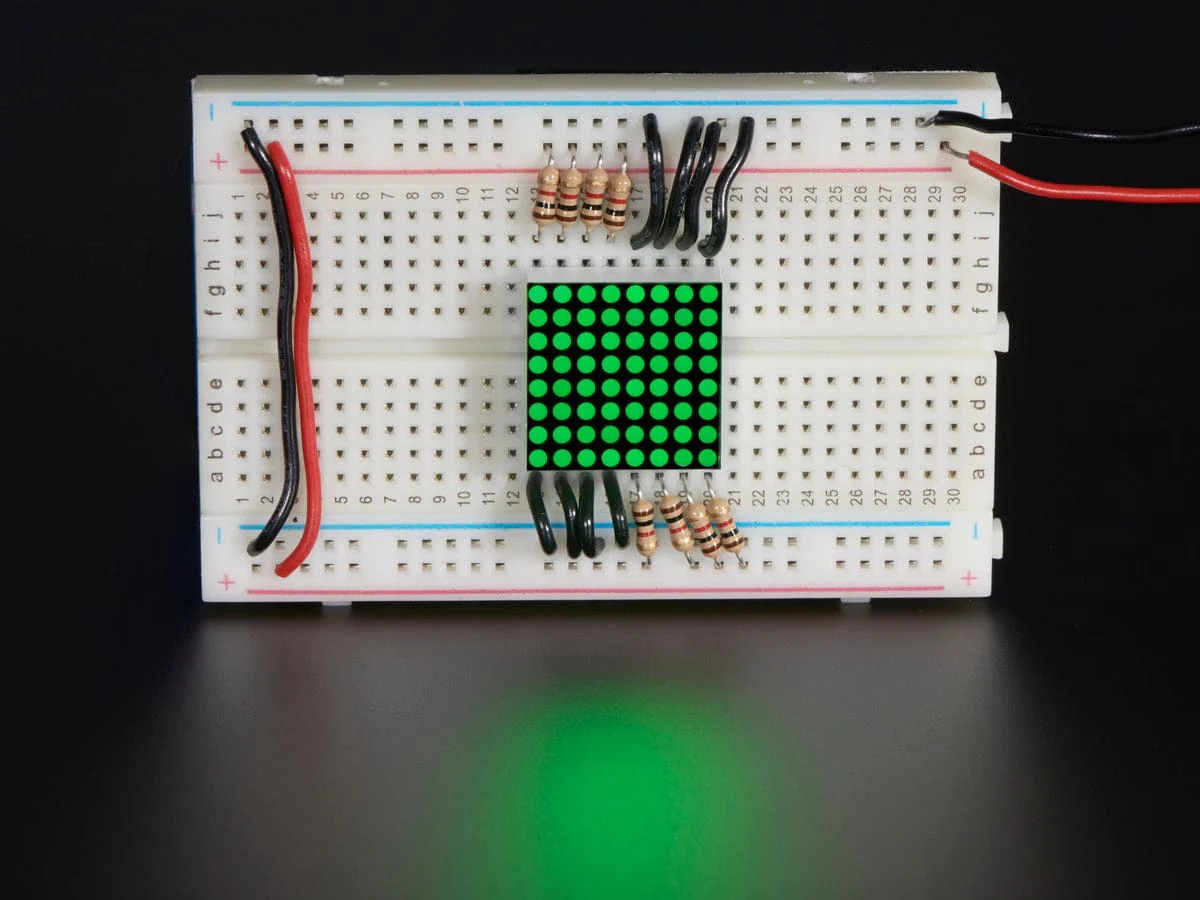

You will squeak with delight when you hold this adorable miniature LED matrix. 0.8" square, its got everything a big LED matrix has, but bite sized! 64 pure green LEDs are contained inside the plastic body, in an 8x8 matrix. There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space to wire it up
These LEDs have a deeper green coloring, its a beautiful shade but the process is different than 0:57)
Technical Details

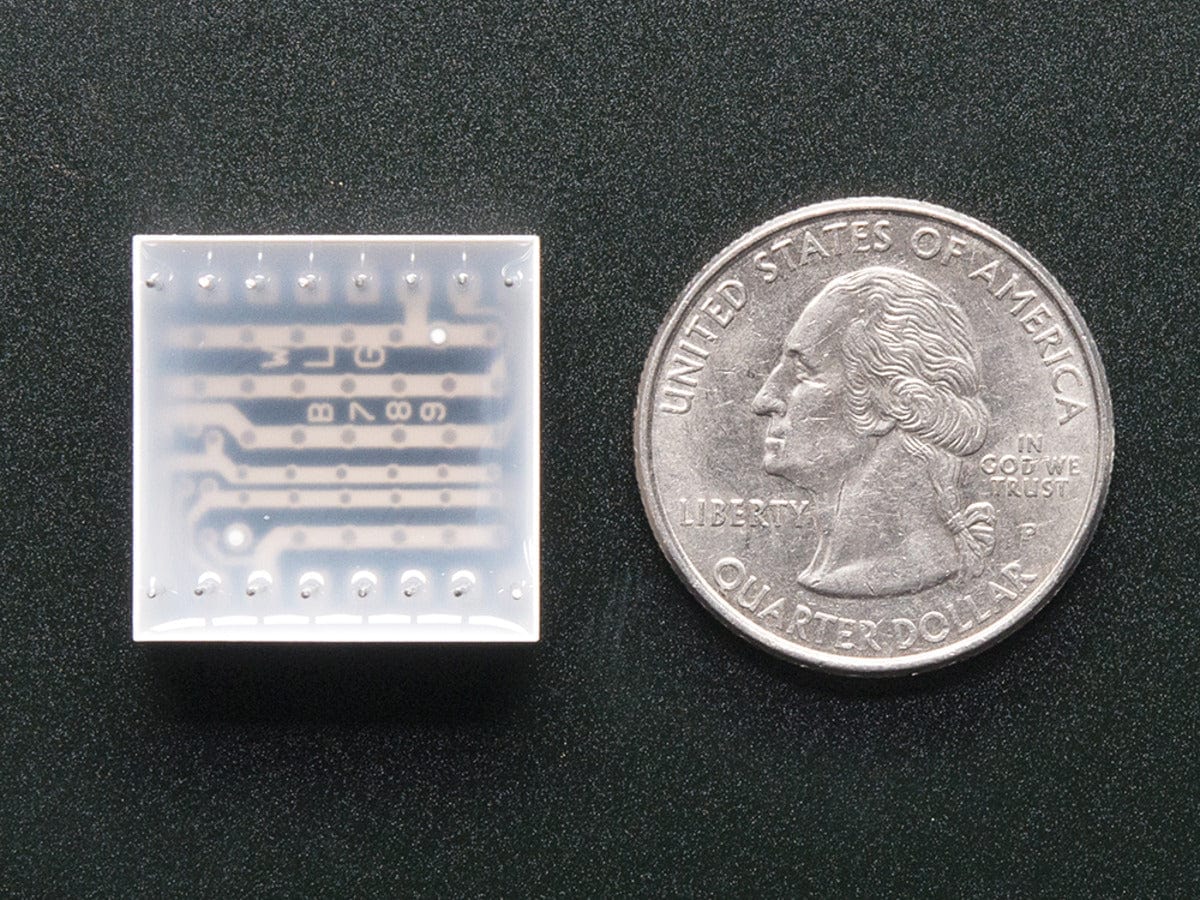

- Dimensions: 20mm / 0.8" x 20mm / 0.8" x 6mm / 0.23"
- Pin Length: 13.35mm / 0.5"
- Weight: 3g
This is a Common Cathode LED Matrix
Datasheet - We currently have LuckyLight as the supplier for this matrix. Previously we carried BetLux.
The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices
Using a high power shift register to drive 8x8 matrices with a NETduino
