Microscope Lens for Raspberry Pi High Quality Camera [Discontinued]

Use your Raspberry Pi High Quality Camera for microscope projects!

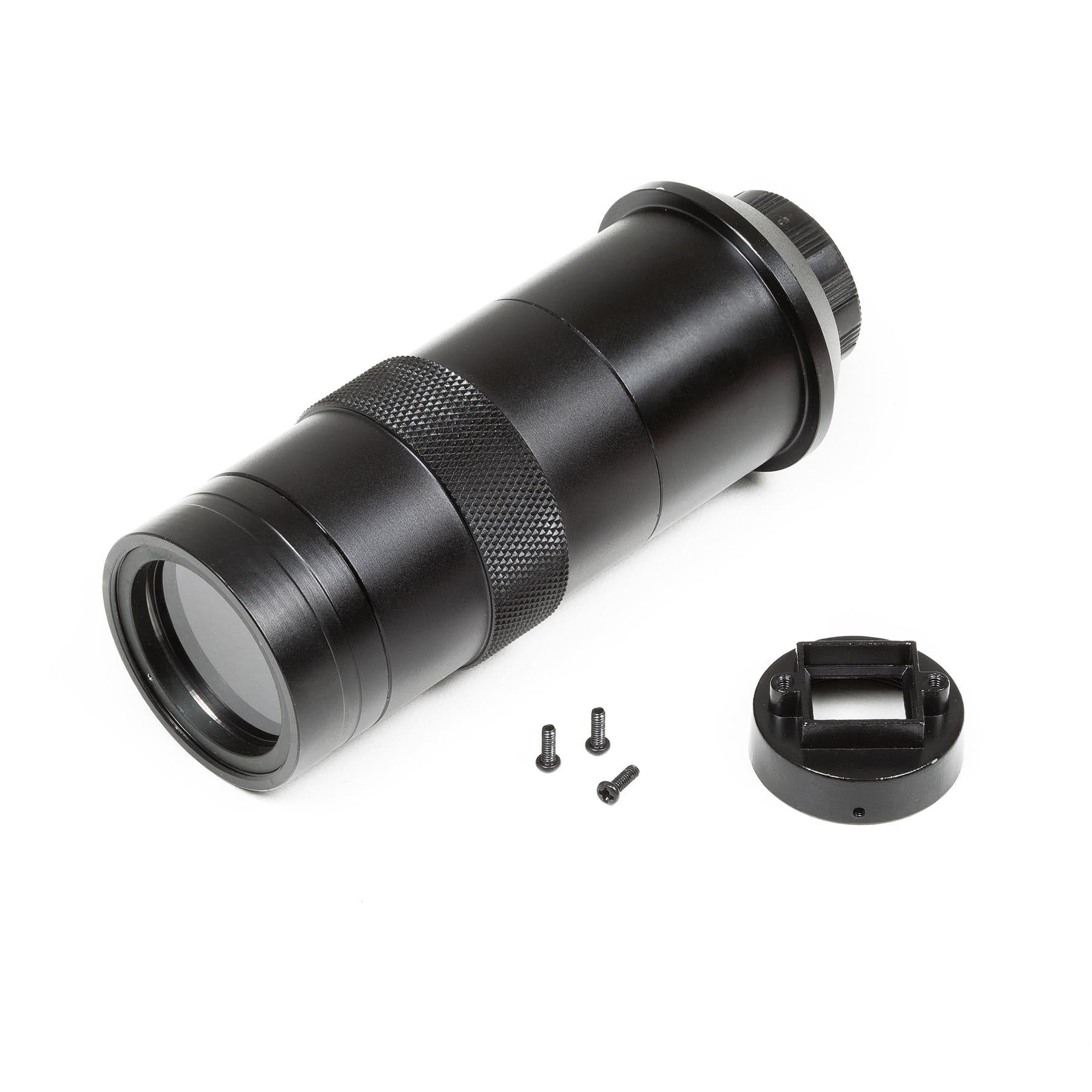

This microscope lens allows you to turn your HQ camera into a cool microscope with your Raspberry Pi.

This microscope lens offers a magnification ratio of 15:1 and an optical magnification of 0.12X - 1.8X. The lens is CS mount and has a working range of 45mm - 135mm.

Note: Lens only. No stand included.

Package Contents

• 1x Microscope lens

Note: High-Quality Camera not included

Specifications

• Focal Length: 55
• Optical magnification: 0.12 - 1.8
• Magnification Ratio: 15:1
• Mount Size: CS
• Lens Construction: 4 Glasses
• Body construction: metal
• FOV
  • Diagonal: 9.6-11.4 degrees
  • Horizontal: 8-9.5 degrees
  • Vertical: 5.5-6.3 degrees
• Working range: 45mm-135mm
• Dimensions: 39x112mm
• Weight: 210g
• Operating temperature range: -20°C - 60°C
