Smart Cutebot for micro:bit

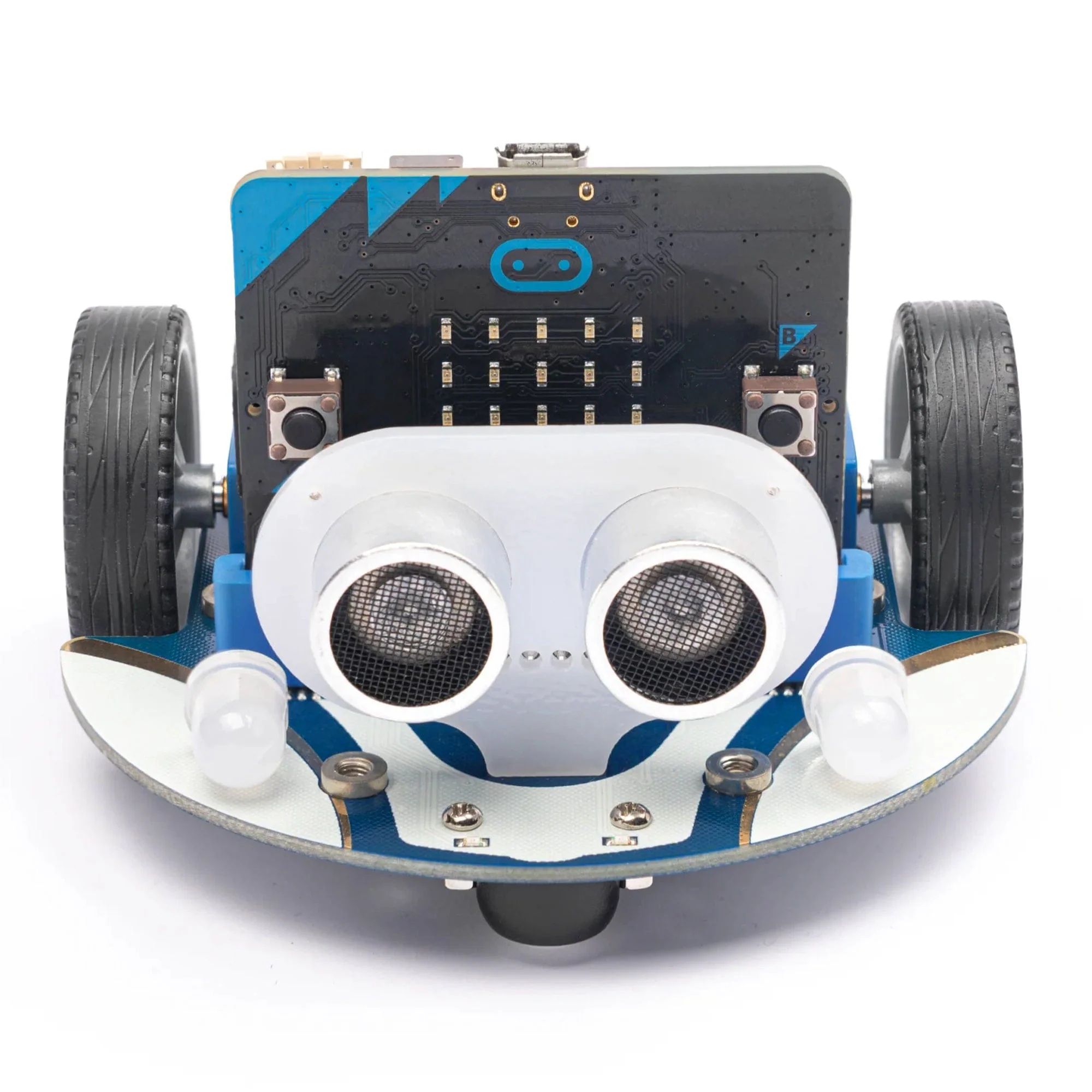

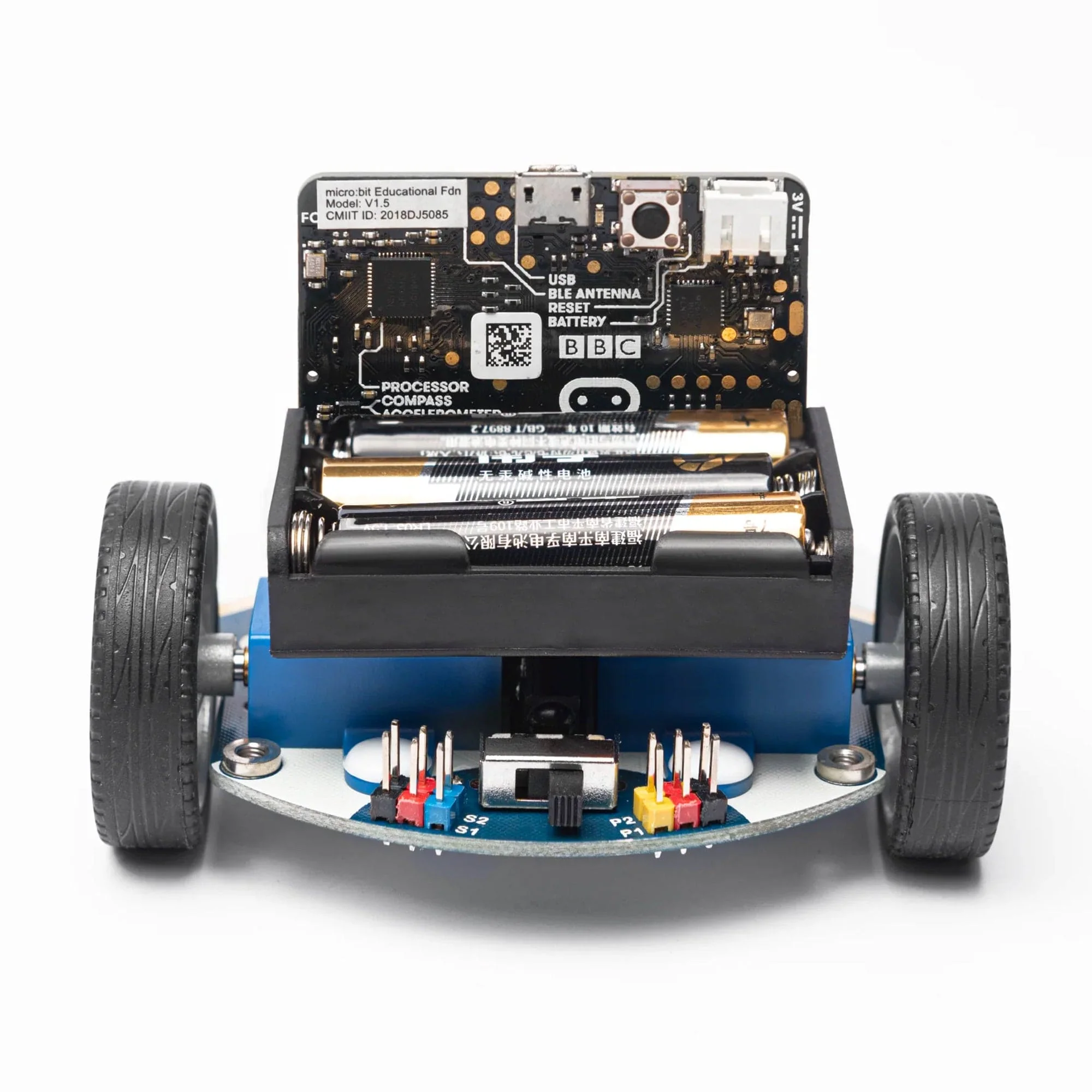

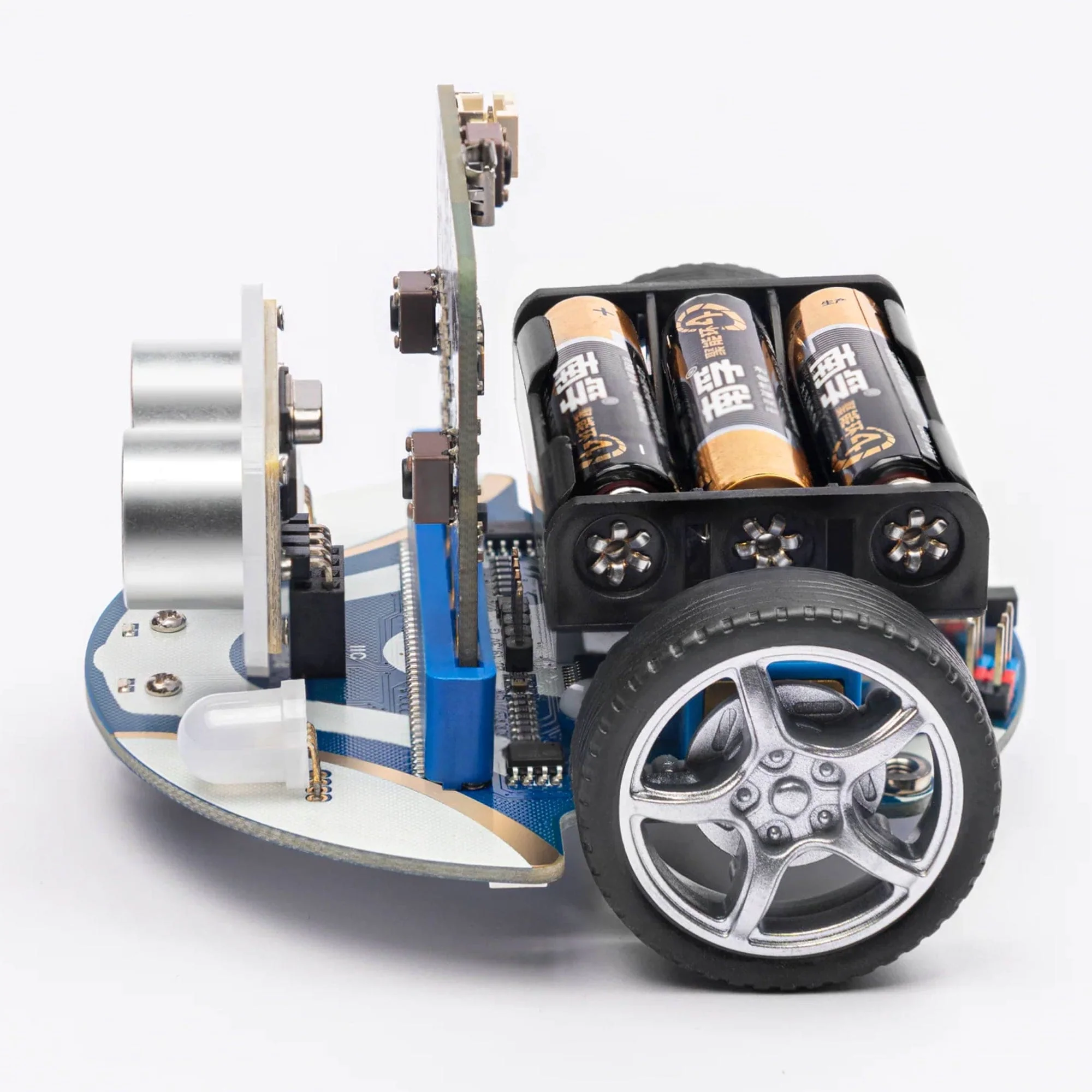

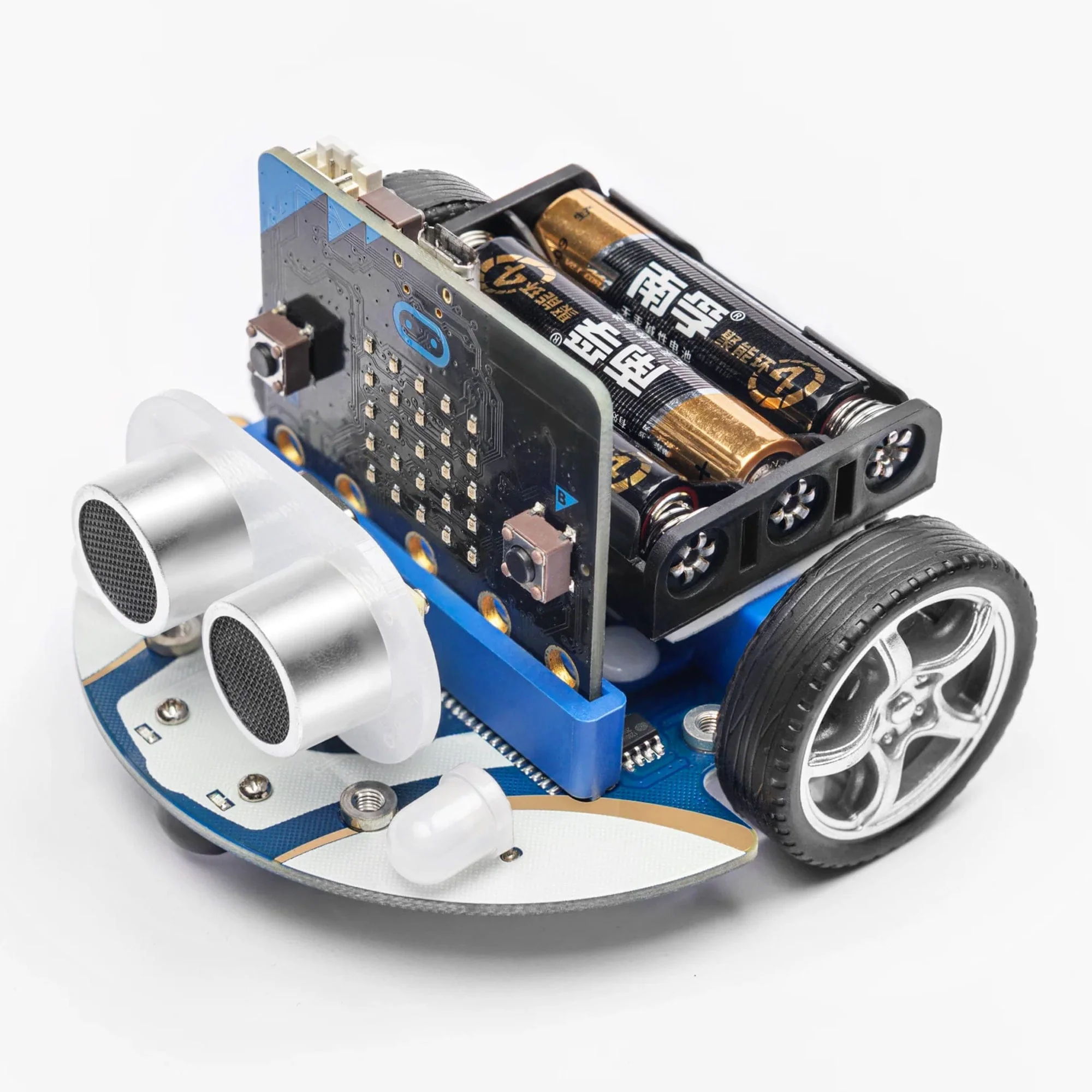

The Elecfreaks Cutebot is a super-cute rear-drive smart car for the micro:bit, driven by dual high-speed motors and a micro:bit (not included but available here).

There are many on-board features on the Cutebot including an ultrasonic sensor, distance sensor, two RGB LED headlights, clearance lamps on the bottom, two line-tracking probes and an active buzzer as a horn! Let’s drive your first smart car!

The kit includes the Cutebot robot, distance sensor, large line-following map and user guide - all in a well-presented box!

Features

• Rear-drive high-speed motors
• Tiny structure with an arc shape
• Only 3x AAA batteries and ultrasonic sensor need to be assembled

Resources

• Product Wiki

Tech Specs

Working Voltage	3.5V — 5V
Dimension	85.68mm X 85.34mm X 38.10mm
Buzzer	Active buzzer connects to P0
Infrared Control	Connect to P16
RGB Headlights	2 x RGB
Rainbow LED	2 x Neopixel (P15)
Connection	IIC Port (P19,P20) Ultrasonic Port P1 P2(GVS lead-out)
Motor Type	GA12-N20 DC micro gear deceleration motor (300 RPM)
Ultrasonic Sensor Type	HC-SR04 (2cm-400cm distance detection, precision ±1.5mm)
