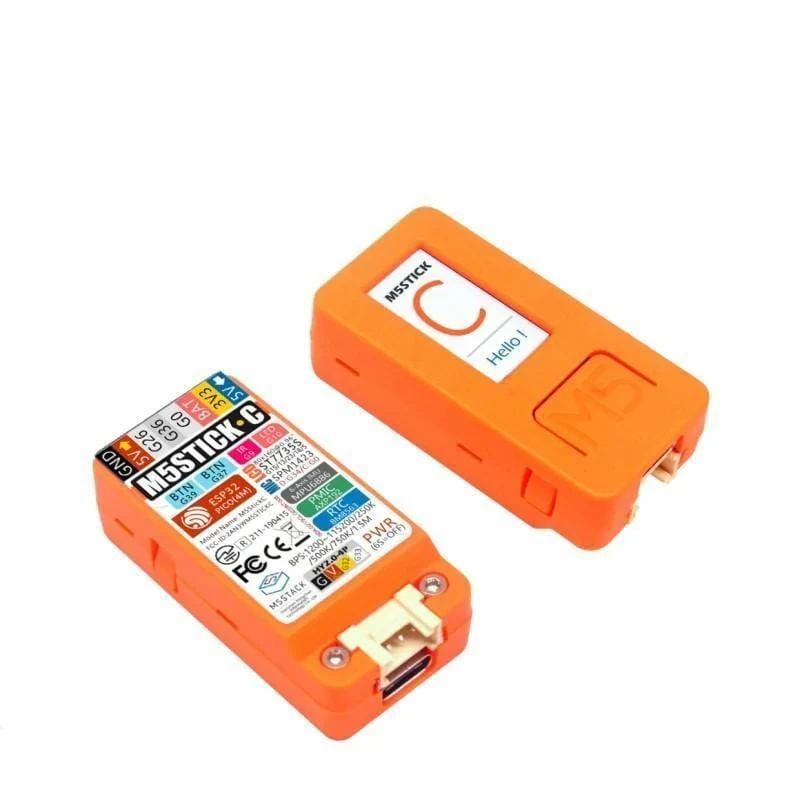

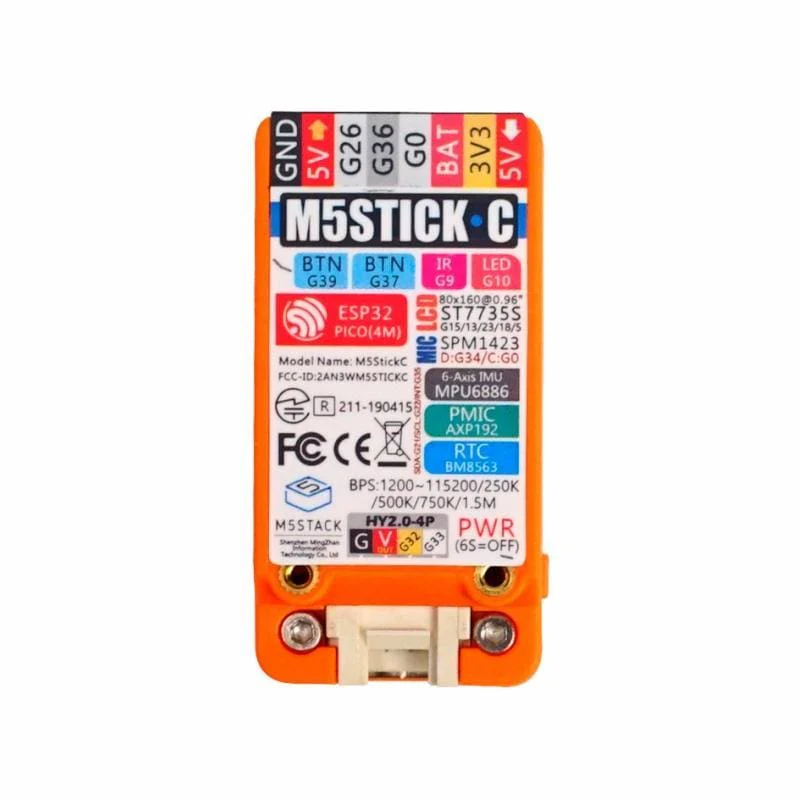

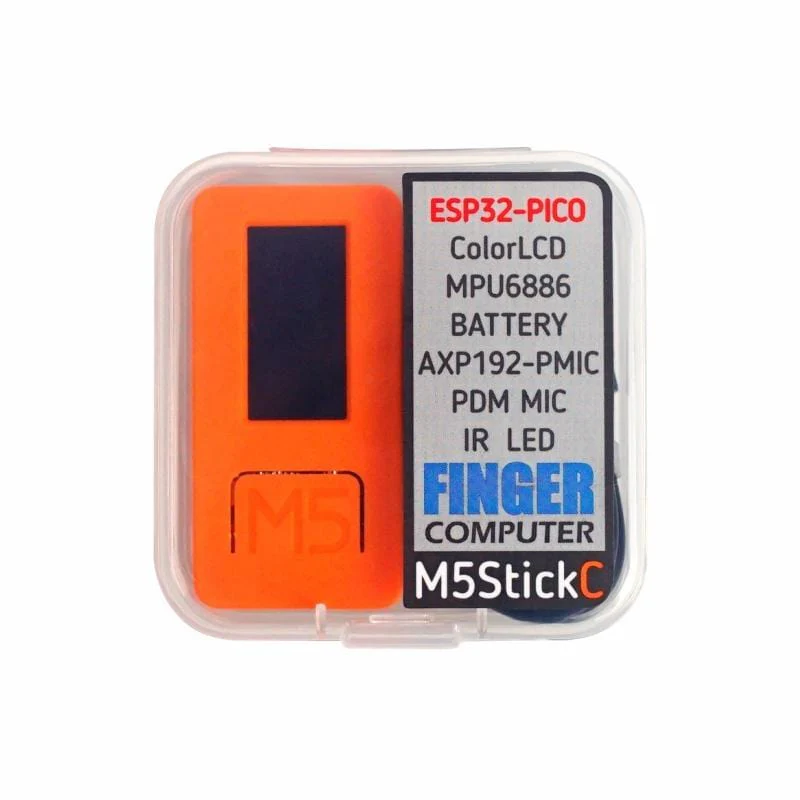

M5Stack M5StickC ESP32-PICO Mini IoT Development Kit [Discontinued]

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

An easy to use, open source mini IoT development kit, with onboard motion sensor.

Powered by an ESP32 based processor with inbuilt bluetooth and wifi, M5StickC also includes an IR transmitter, a microphone and a built in lipo battery.

For more information and for help getting started, click here

Product Features

• ESP32-based
• Built-in 6-Axis IMU
• Red LED
• IR transmitter
• Microphone
• Buttons, LCD(0.96 inch)
• Built-in Lipo Battery
• Extendable Socket
• Wearable & Wall mounted
• Development Platform UIFlow, MicroPython, Arduino

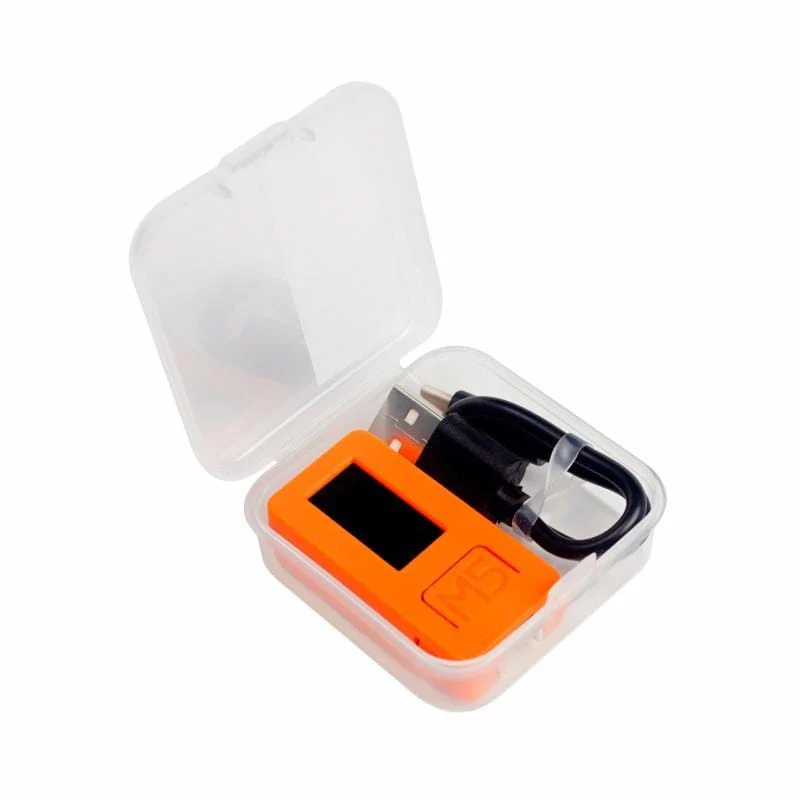

Includes

• 1x M5StickC
• 1x USB Type-C cable (20cm)

Applications

• Internet of things terminal controller
• Wearable devices
• Stem education product
• DIY creation

Specification

Resources	Parameter
ESP32	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash Memory	4MB
Power Input	5V @ 500mA
Port	TypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen	0.96 inch, 80*160 Colorful TFT LCD, ST7735S
Button	Custom button x 2
LED	RED LED
MEMS	MPU6886
IR	Infrared transmission
MIC	SPM1423
RTC	BM8563
PMU	AXP192
Battery	95 mAh @ 3.7V
Antenna	2.4G 3D Antenna
PIN port	G0, G26, G36
Operating Temperature	32°F to 104°F ( 0°C to 40°C )
Size	48.2 x 25.5 x 13.7mm
Weight	14g
Case Material	Plastic ( PC )
