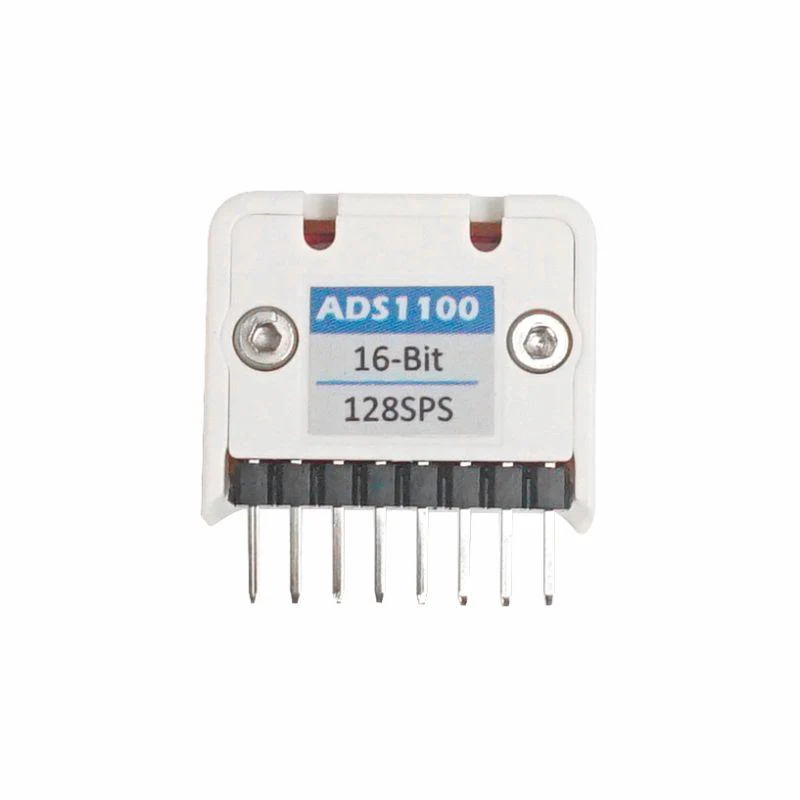

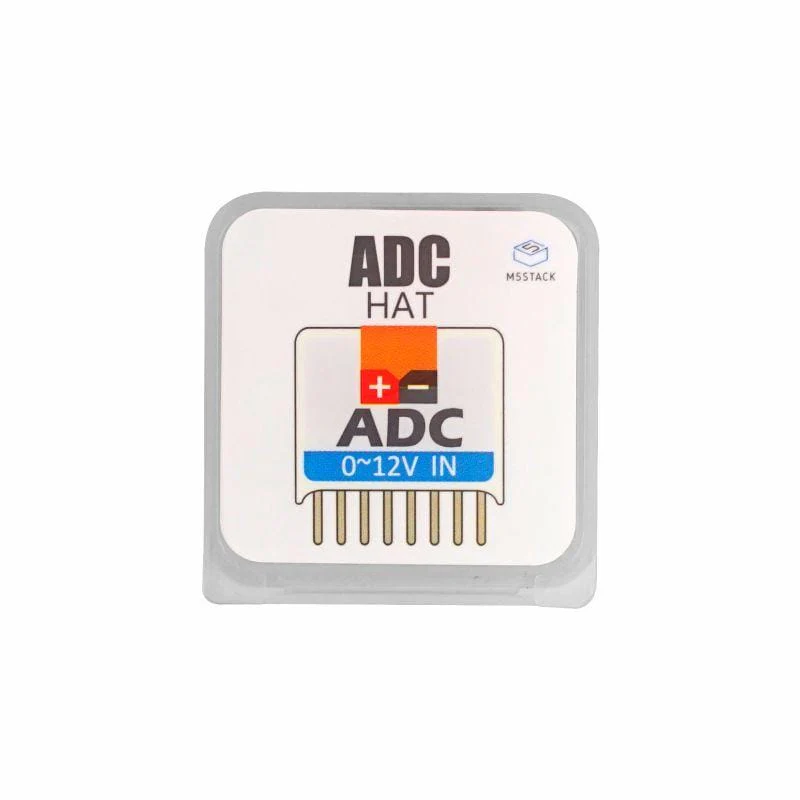

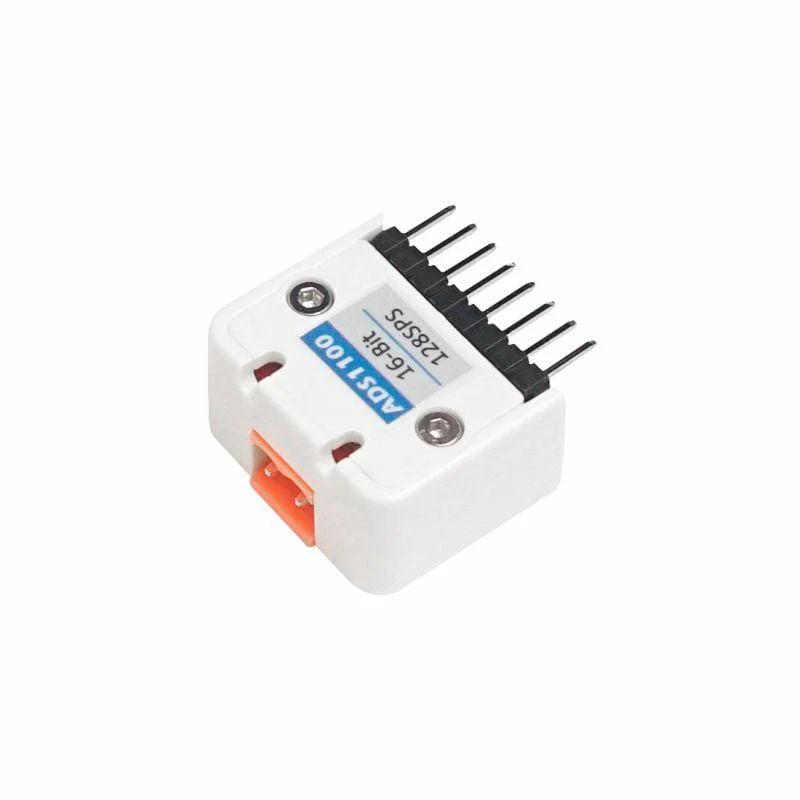

M5Stack M5StickC ADC HAT ADS1100 [Discontinued]

The ADC HAT is another type of C-HAT specifically designed for the M5StickC controller. Same as the ADC unit, this is an ADC converter component for the stickc. Packed with an ADC converter chip ADS1100, which is a fully differential, 16-bit, self-calibrating, delta-sigma A/D converter. Easy to design and configure, the ADS1100 allows you to obtain precise measurements with a minimum of effort. The ADS1100 consists of a delta-sigma A/D converter core with adjustable gain, a clock generator, and an I2C interface. The ADS1100 itself is able to accept a differential input from -5/+5 V, but we have limited the input to 0~12V by adding on the peripheral circuit design of this IC.

Features

• Input: 0-12V
• Software Development Platform: Arduino, UIFlow(Blockly, Python)
• ADS1100
  • 16-bits Resolution
  • Continuous Self-Calibration
  • Single-Cycle Conversion
  • Programmable Gain Amplifier Gain = 1, 2, 4, or 8
  • Low Noise: 4μVp-p
  • Programmable Data Rate: 8SPS to 128SPS
  • Internal System Clock
  • I2C Interface: address 0x48

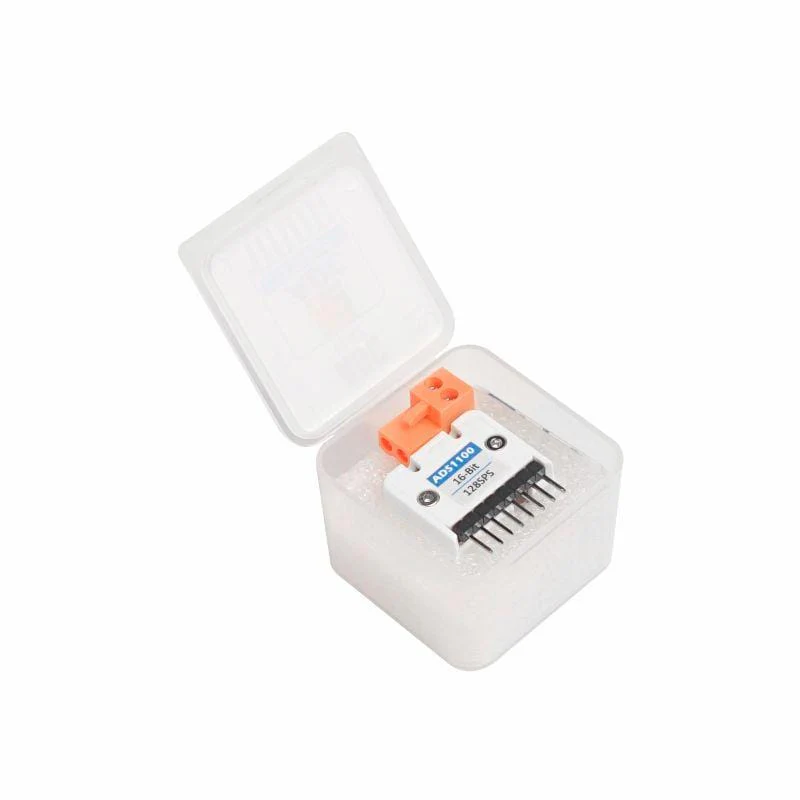

Package Contents

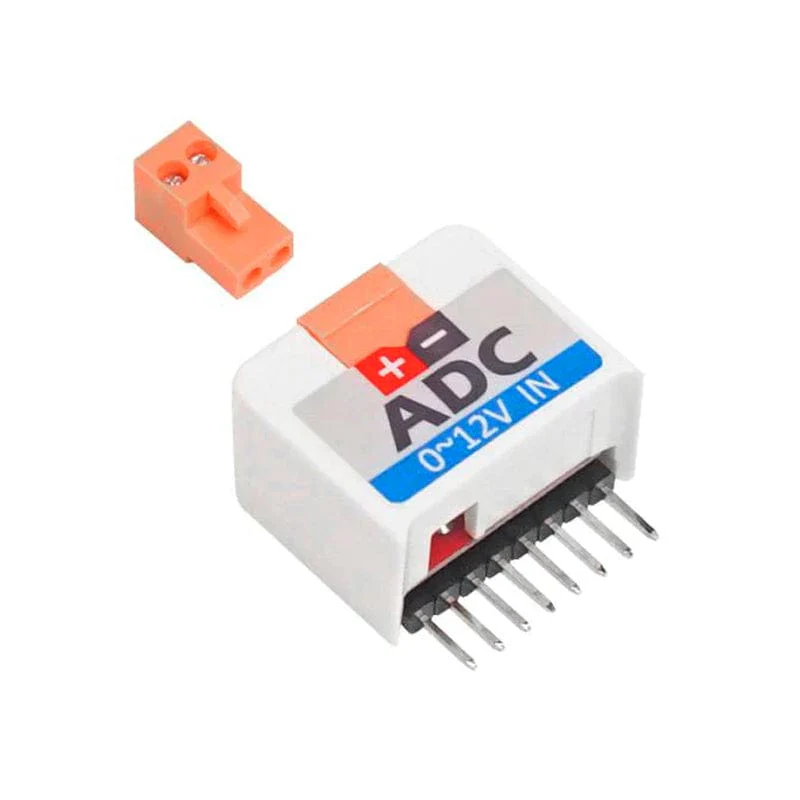

• 1x ADC HAT
• 1x 2-Pin 3.96 Pitch Terminal

Specifications

Resources	Parameter
Net weight	6g
Gross weight	14g

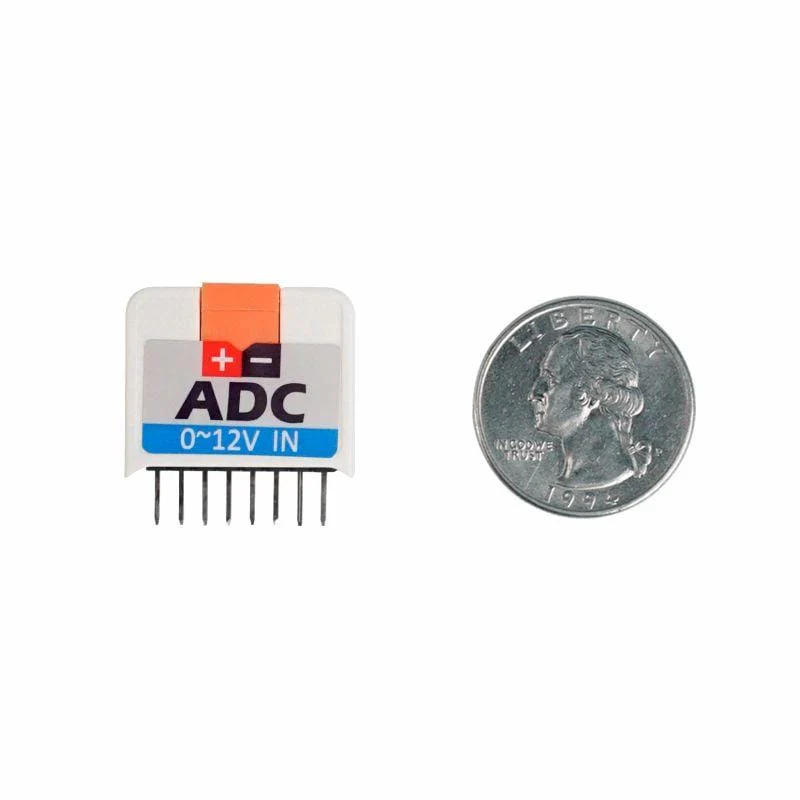

Product Size	24 x 25 x 13mm
Package Size	40 x 42 x 30mm

Resources

• Documents
