M5Stack Thermal Camera 2 Unit (MLX90640) -110 Degree FoV

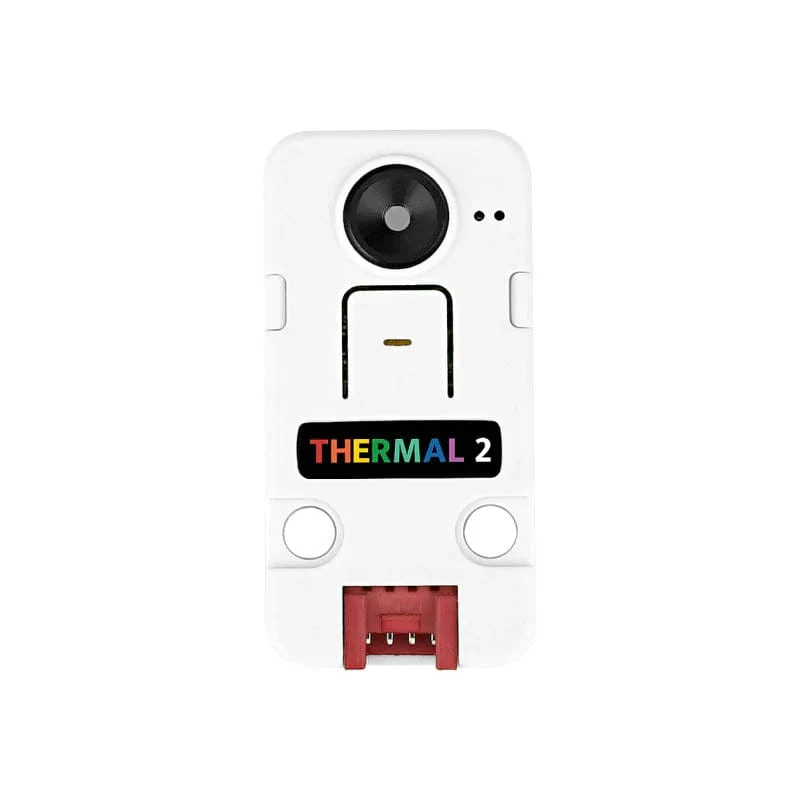

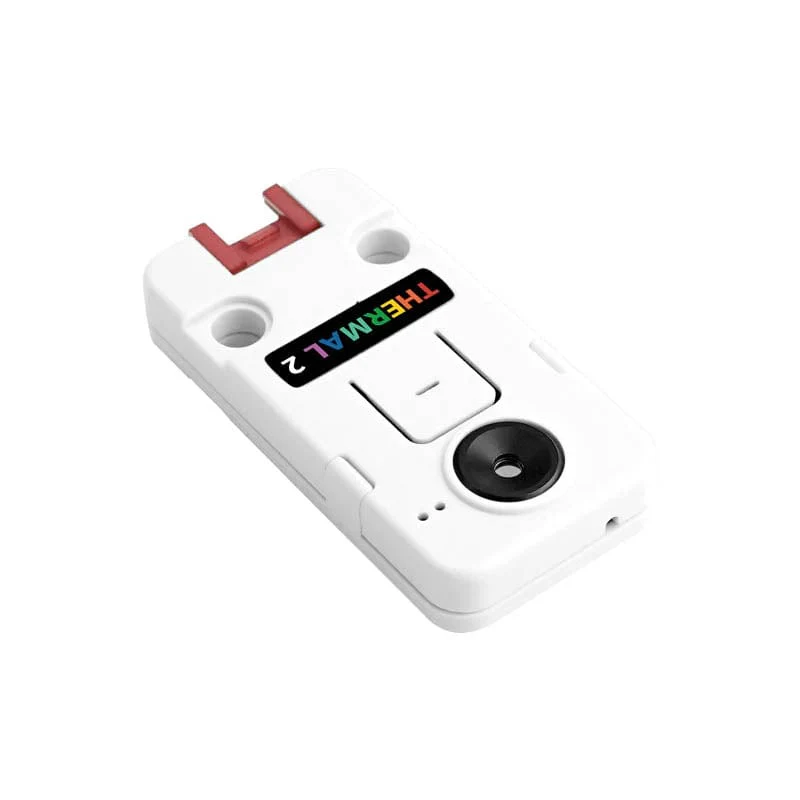

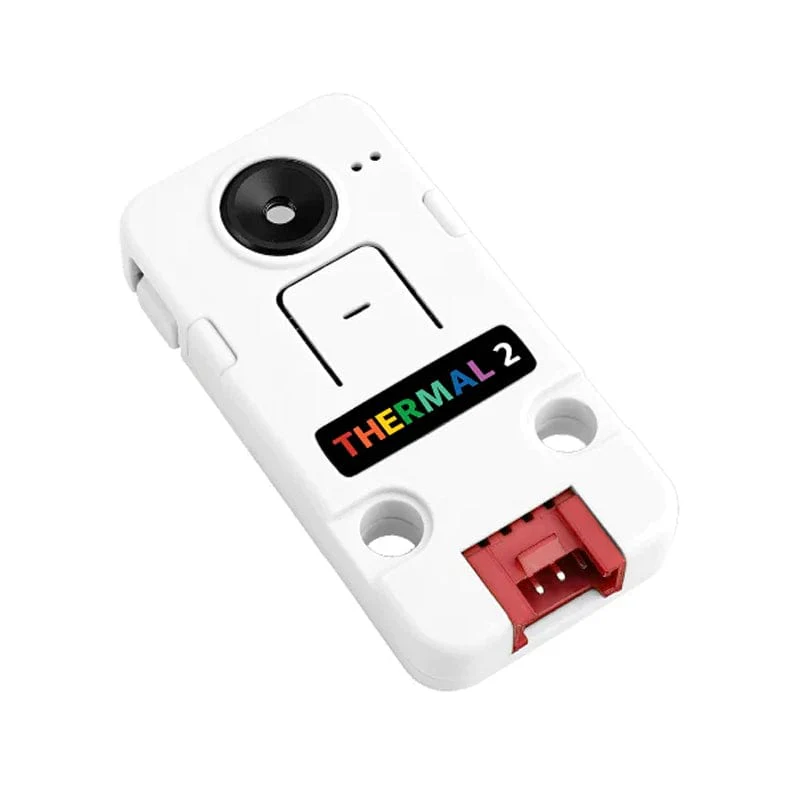

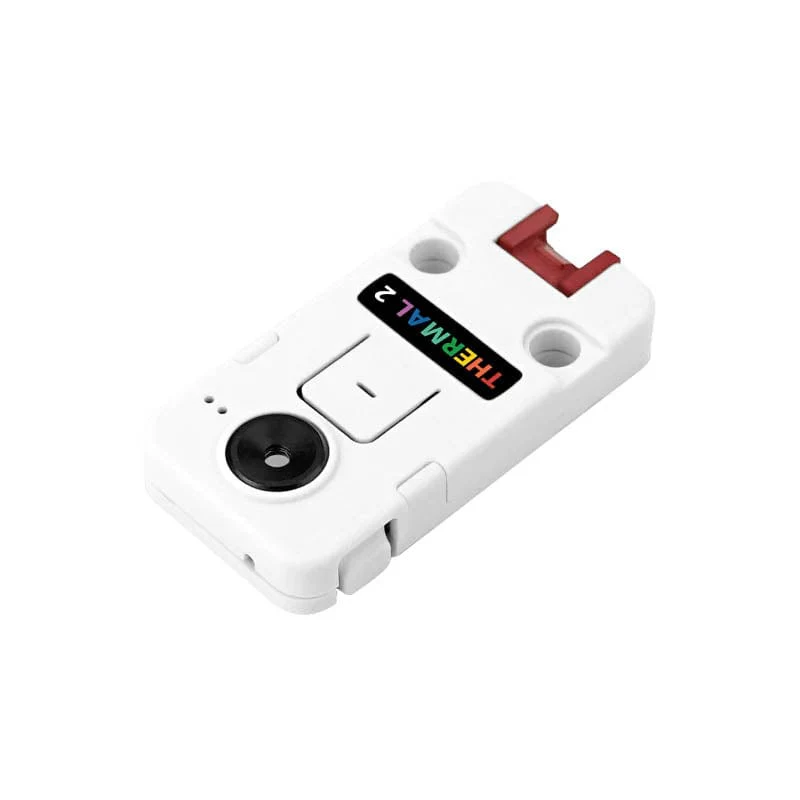

The UNIT Thermal2 from M5Stack is a data processing MCU-equipped MLX90640 thermal imaging acquisition unit. It has 32x24 imaging pixels, a field of view of 110°x75° and a temperature measurement range of -40°C to 300°C.

The MCU uses ESP32, which is capable of high and low temperature alarms, average, maximum and minimum values reading, and data caching via data processing.

The board integrates with a buzzer, RGB indicator, function and reset buttons, and communicates with the host computer through I2C. This product can be used together with the host computer or separately, and is applicable for temperature measurement and abnormal alarms.

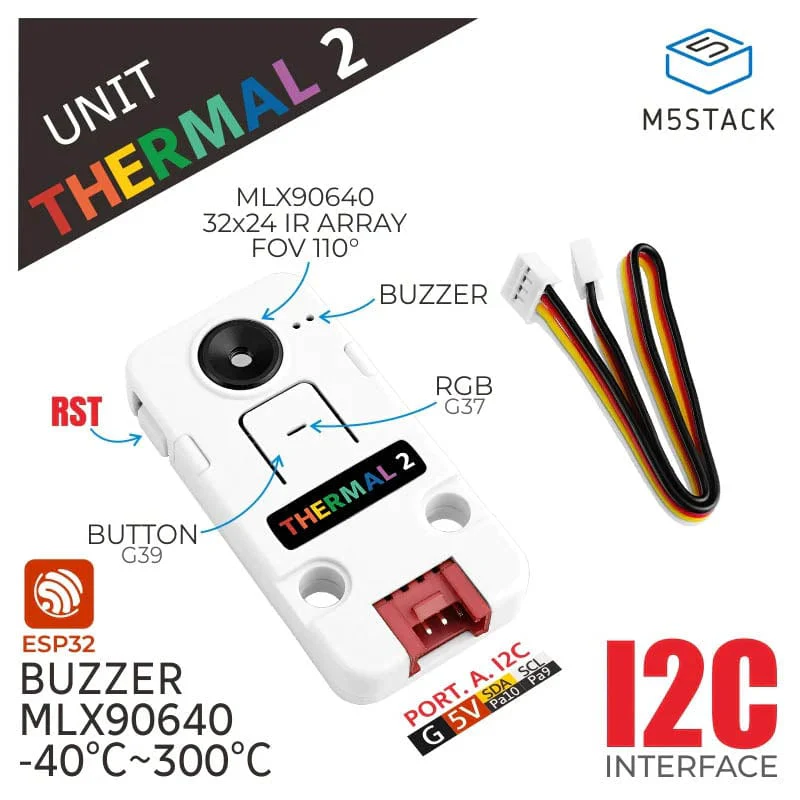

Features

• MCU: ESP32-PICO-D4
• MLX90640 Infrared (IR) Sensor
• Reset button
• Passive buzzer
• Integrated programmable RGB LED

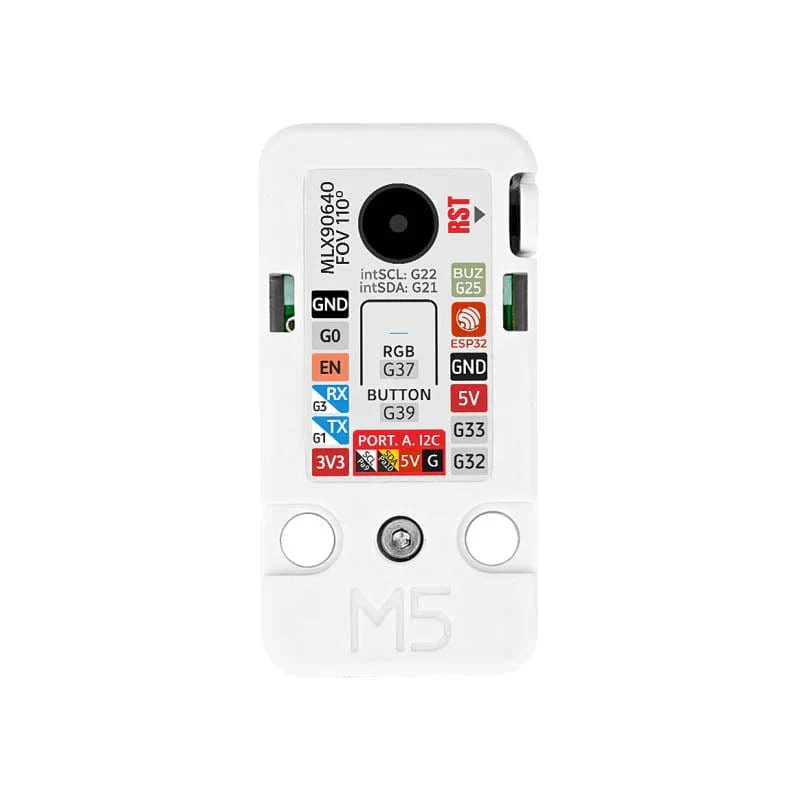

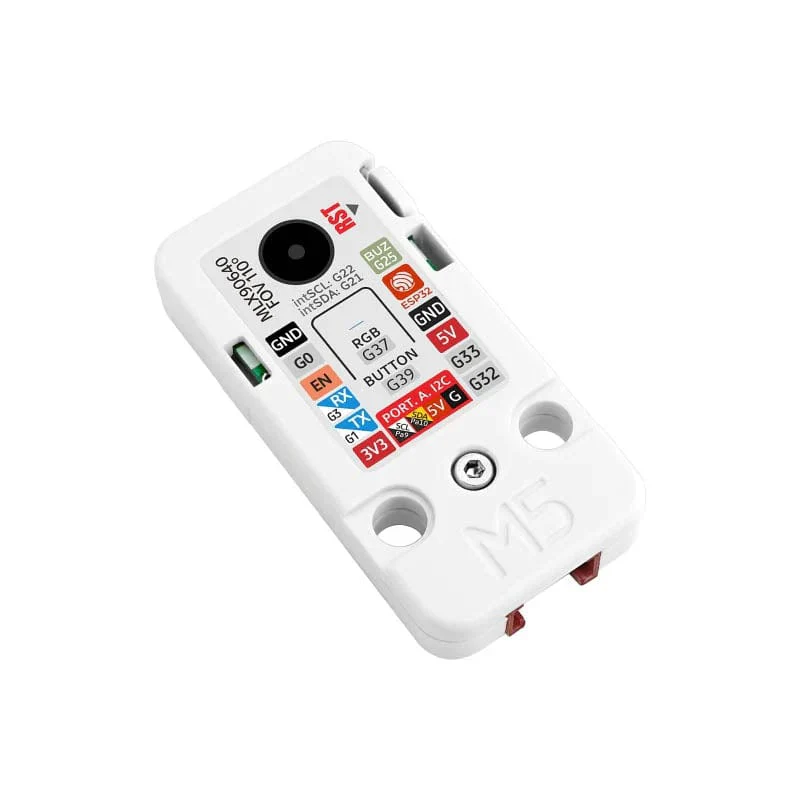

• GROVE I2C/HY2.0-4Pinterface
• Programming platform: Arduino/UIFlow

Package Contents

• 1x THERMAL2 Unit
• 1x HY2.0 4-pin cable

Specifications

Resources	Parameters
MCU	ESP32-PICO-D4
SENSOR	MLX90640
POWER	5V @ 0.5A
Field of View	110°×75°
Measurement Range	-40°C ~ 300°C
Resolution	32 x 24
Refresh Rate	0.5Hz-64Hz
Operating temperature	-10°C ~ 60°C
Housing material	Plastic ( PC )

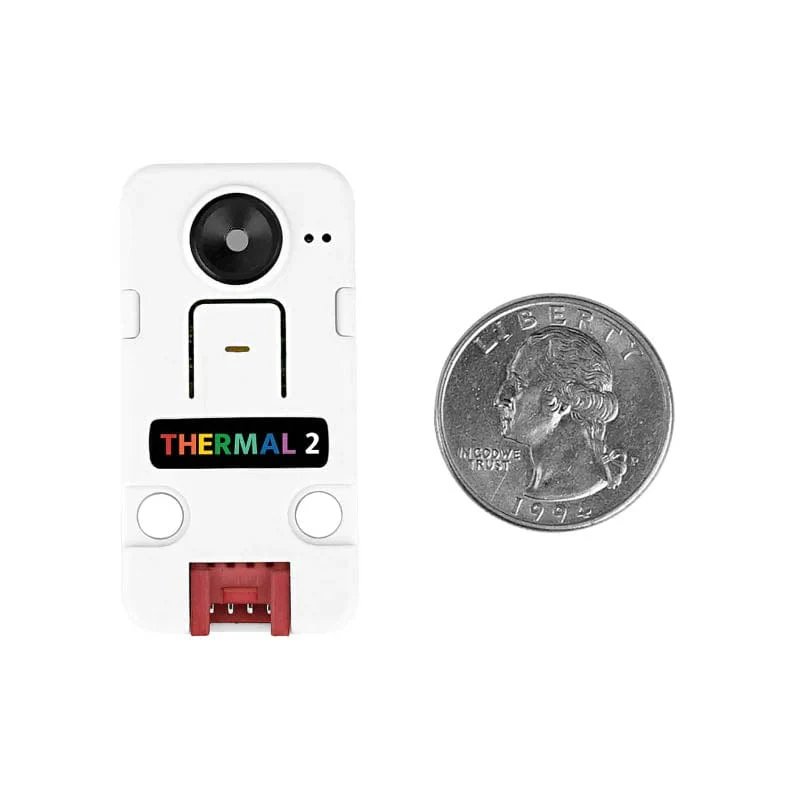

Product Size	48mm x 24mm x 8mm
Package Size	136mm x 92mm x 13mm
Product Weight	4.9g
Package Weight	10.7g

Resources

• Product documentation
• MLX90640 datasheet
• ESP32-PICO-D4 datasheet
• Schematic
• Dimension drawing
