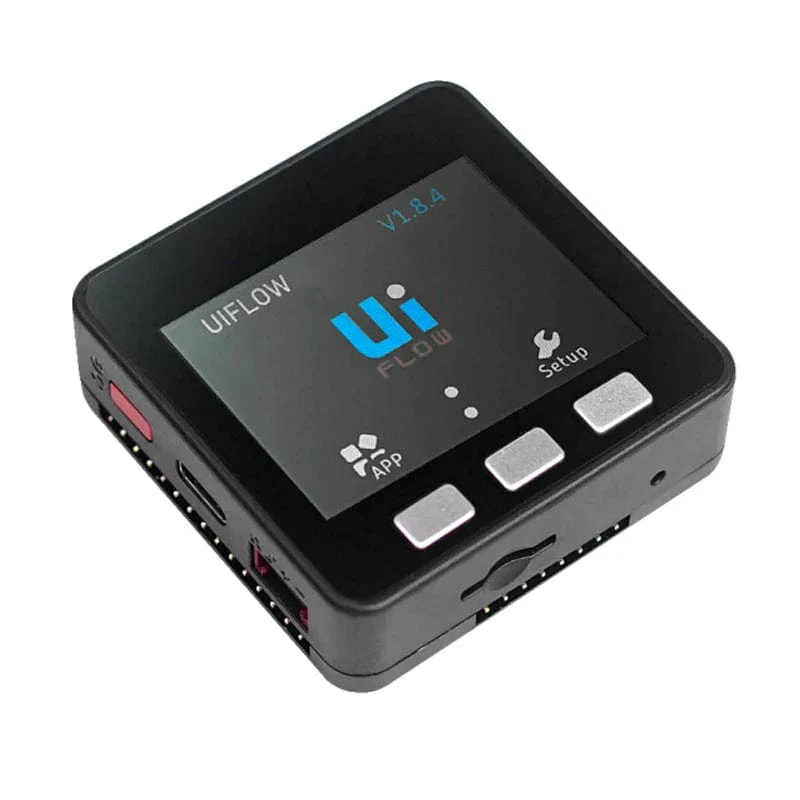

M5Stack ESP32 Basic Core IoT Development Kit V2.6 [discontinued]

The ESP32 BASIC is a cost-effective entry-level IoT main controller. It adopts an Espressif ESP32 chipset, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors with a main frequency of up to 240MHz.

The module includes built-in 16M flash memory, integrated 2" full-colour HD IPS display panel, a speaker, MicroSD slot and other peripherals.

The full-coverage housing ensures circuit stability even in complex industrial applications. Internally you'll find a variety of interface resources (ADC/DAC/I2C/UART/SPI) and 15x IO pins at the bottom.

Ideal for a variety of product prototyping, industrial control, intelligent building applications.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

Key Features

• Based on ESP32 development
• 16M FLASH
• Integrated full-colour high-definition IPS display panel and a variety of hardware peripherals
• Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.

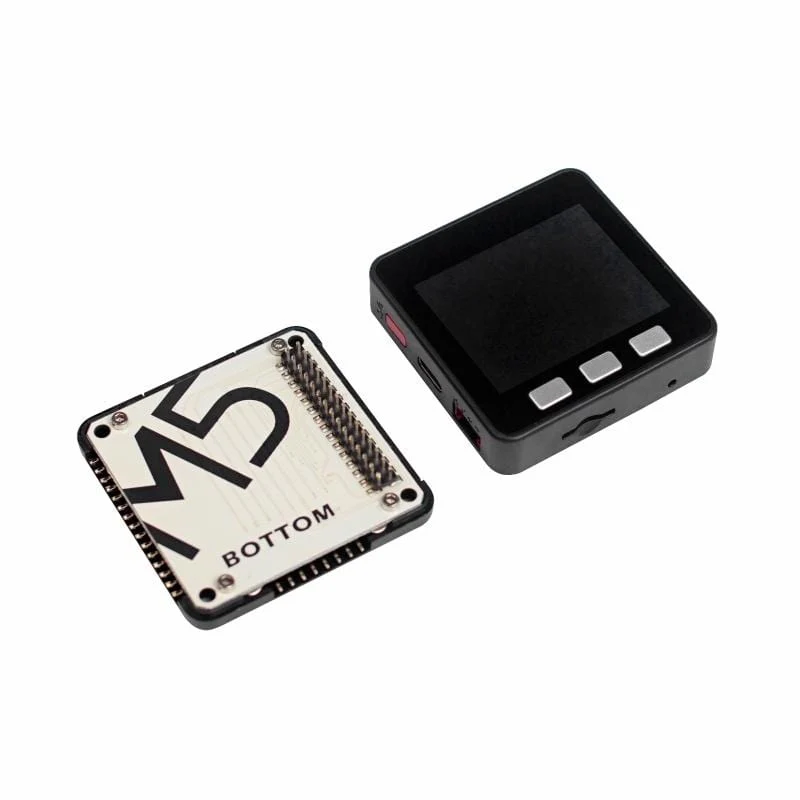

• Uses M5CORE bottom base built-in lithium battery
• 15x IO leads
• Compatible with multi-platform development:
  • UIFlow
  • MicroPython
  • Arduino

High productisation

• Exquisite designs, Prototyping right into products
• Product-grade full-coverage cover for more stable circuit operation

Low Code Development

• Support UIFlow graphical programming platform, scripting-free, cloud push
• Fully compatible with mainstream development platforms such as Arduino and ESP32-IDF
• Support FreeRTOS, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.

High Integration

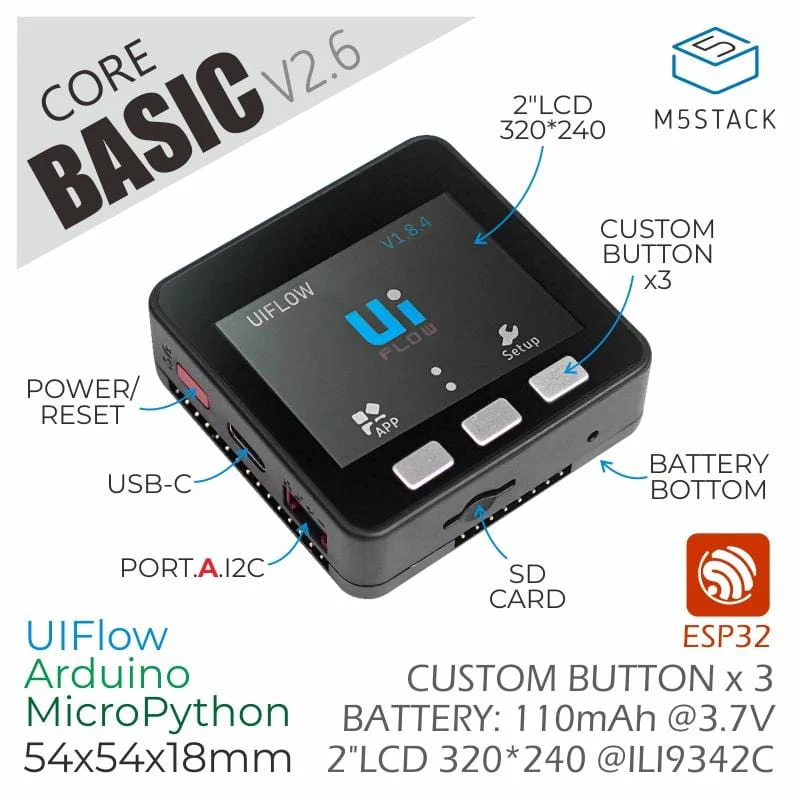

• 2.0 inch IPS display panel, speakers, custom buttons x3
• Built-in lithium battery power, integrated power management chip, support TypeC interface
• Finely tuned RF circuit for stable and reliable wireless communication

Strong Expandability

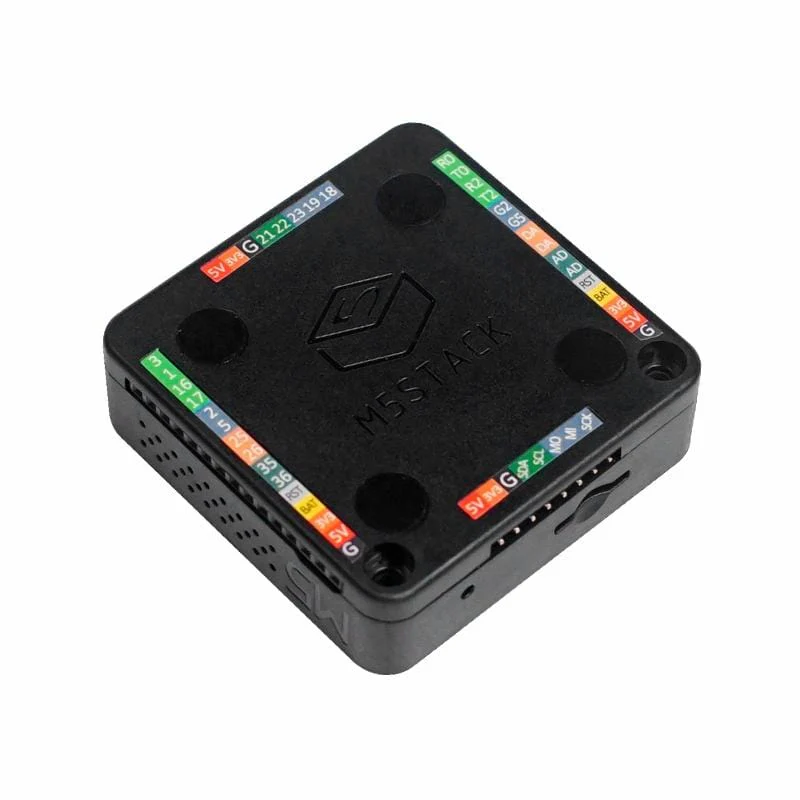

• 15x IO leads
• Easy access to M5Stack's hardware and software ecology system, stackable module design, plug-and-play rich sensors expansion

Power on/off operation

• Power on: Click the red power button on the left
• Shutdown: Quickly double-click the red power button on the left
• *USB power supply *: By default, when USB is powered, it cannot be shut down

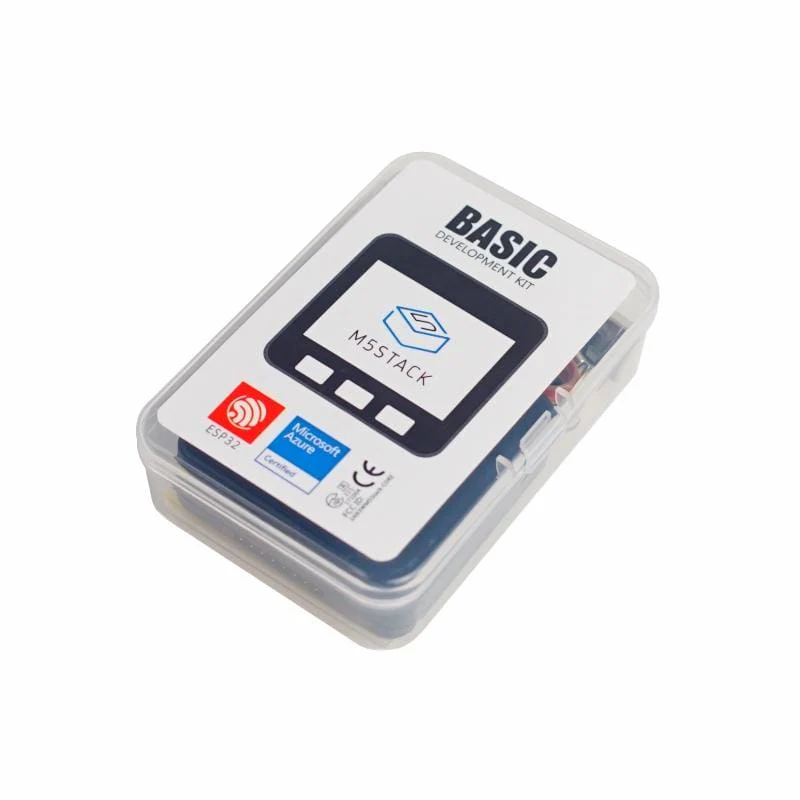

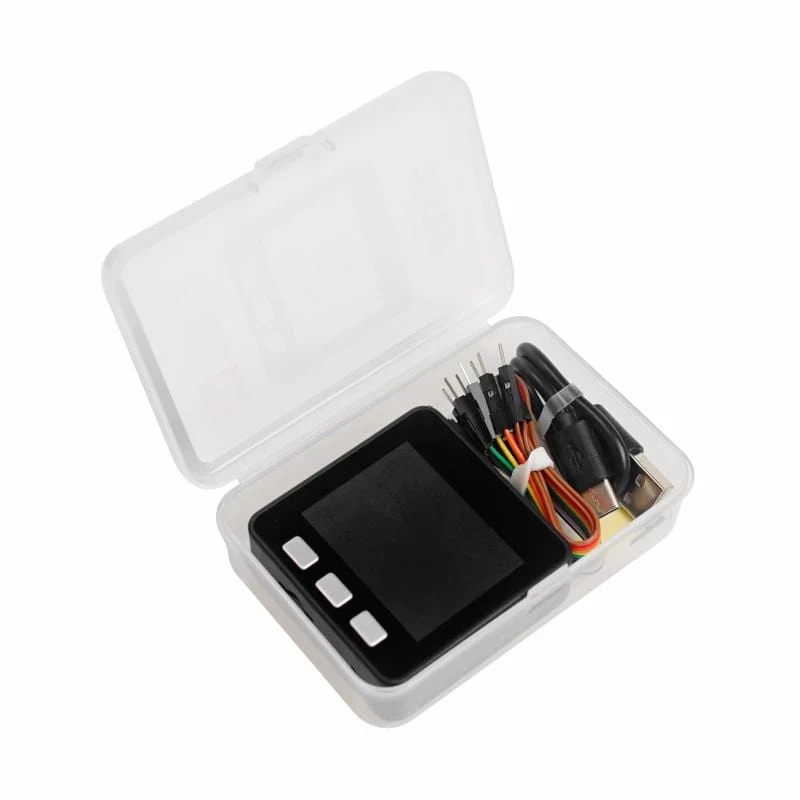

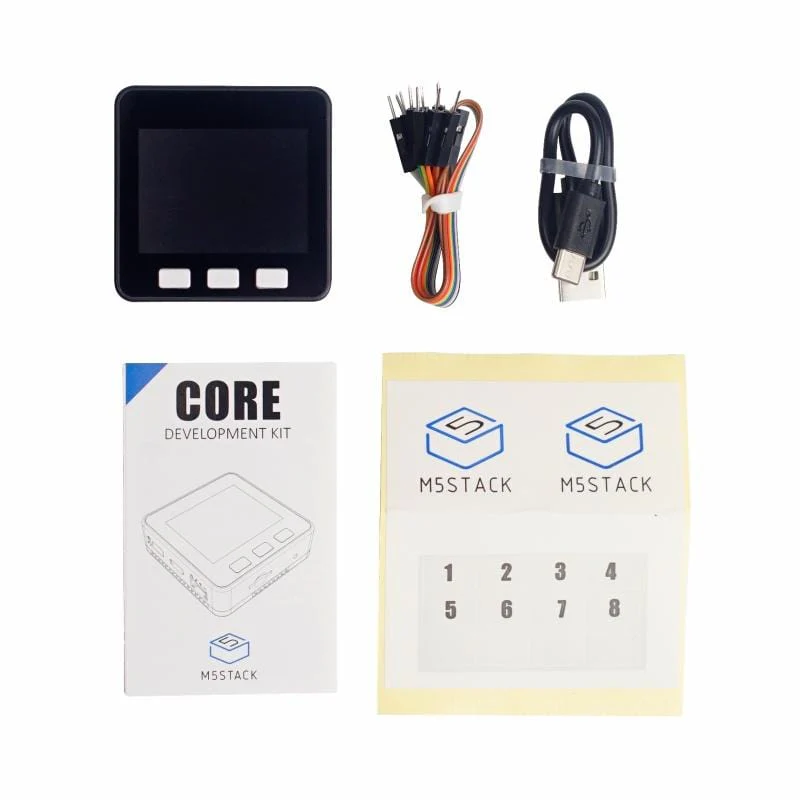

Includes

• 1x M5Stack ESP32 BASIC
• 10x Dupont line
• 1x Type-C USB cable (20cm)
• 1x manual
• 1x sticker

Specification

Specifications	Parameters
ESP32-D0WDQ6-V3	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash	16MB
Input power	5V @ 500mA
Interface	TypeC x1, I2C x1

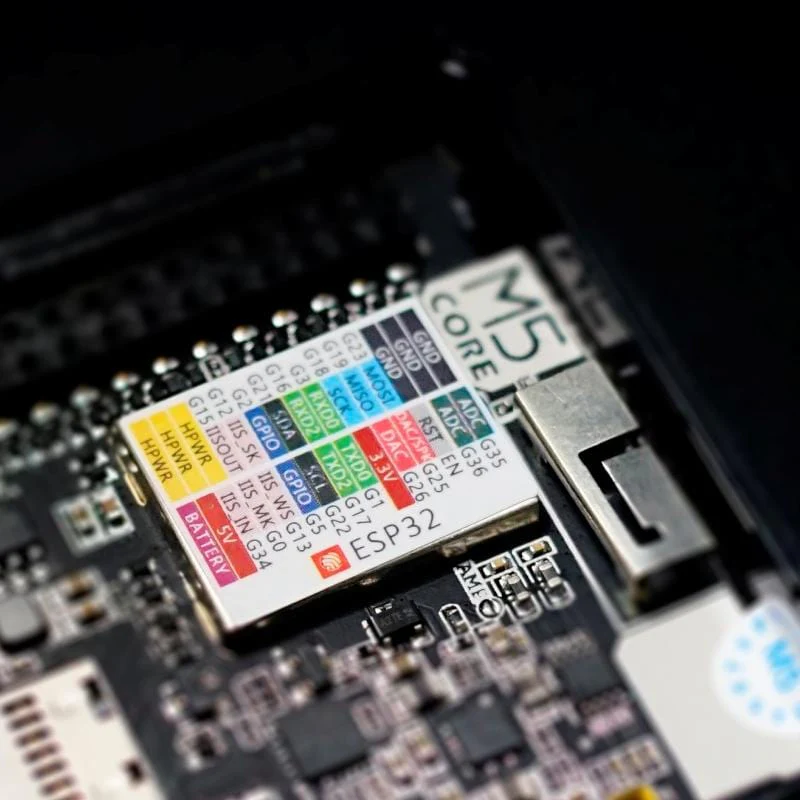

IO	G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36
Button	Physical button x 3
LCD screen	2.0"@320*240 ILI9342C IPS panel, maximum brightness 853nit
Speaker	1W-0928
USB chip	CH9102F
Antenna	2.4G 3D Antenna
Battery	110mAh @ 3.7V
Net weight	47.2g
Gross weight	93g
Product size	54mm x 54mm x 18mm
Packing size	95 x 65 x 25mm
Cover Material	Plastic ( PC )

Resources

• ESP32 BASIC Documentation
• ESP32 IP5306 Datasheet
• Arduino API
• Schematic

Version History

As of 22/11/2021: We are now shipping the latest V2.6 (K001-V26)
