M5Stack AC Power Base

The M5Stack AC POWER BASE is a high-performance AC->DC Buck Converter Module that supports AC 100 ~ 230V input.

Through the internal buck module, the base offers a reliable DC 5V and DC 12V output, dual-channel DC power supply. With a built-in EMC and pulse attenuator, it provides excellent anti-interference and high stability.

In addition, the base increases flexibility for any M5 main controller's power supply, and it is ideally suited for a wide variety of fields including general electrical engineering applications.

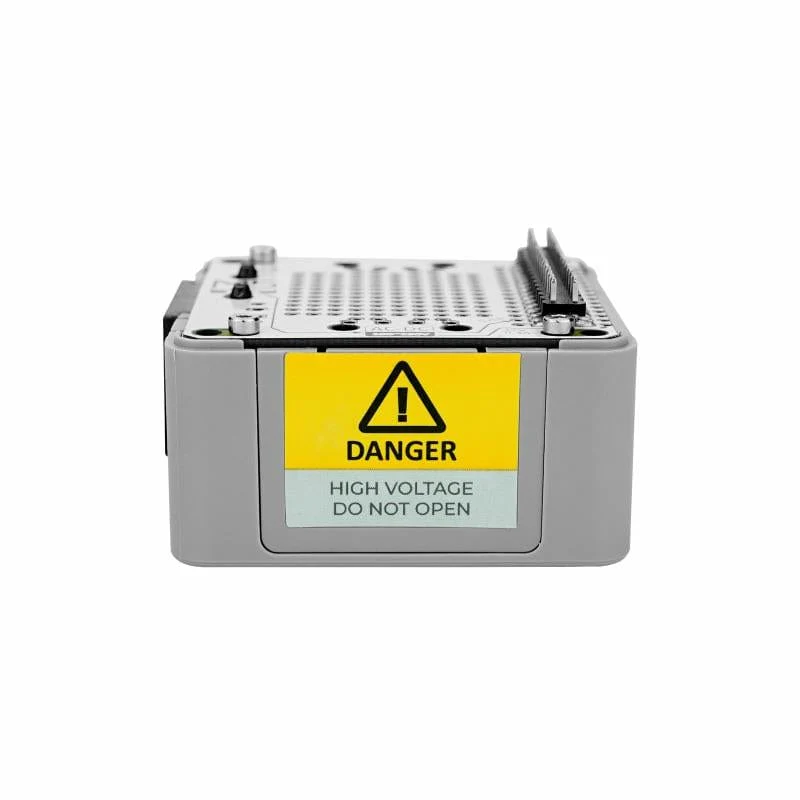

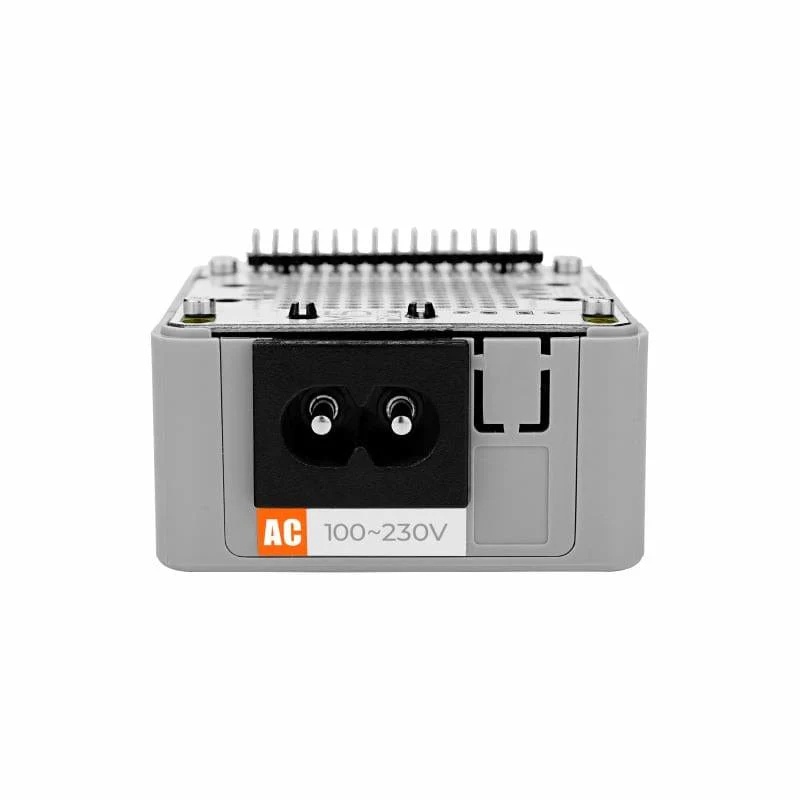

Note: Do not open up or disassemble the product for any reason! This product requires a 100 ~ 230V AC input via a figure-8 cable (not included).

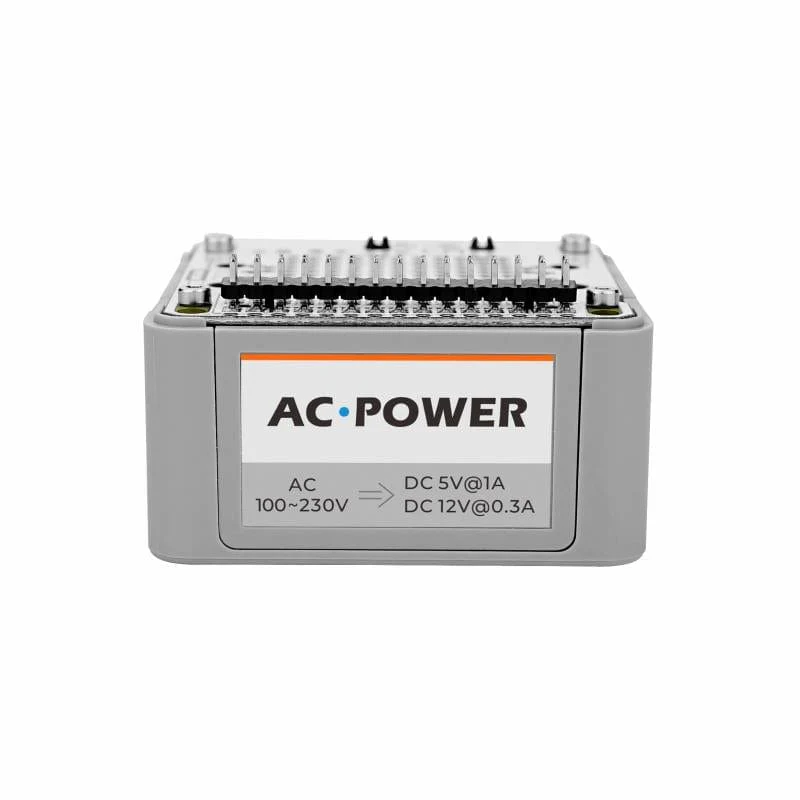

Features

• Input Voltage
  • AC 100 ~ 230V INPUT
• Output Voltage
  • DC 5V@1A OUTPUT
• DC [email protected] OUTPUT
• Built-in fuse protection 250V/1A

Specifications

Resources	Parameter
Input voltage	AC 100 ~ 230V
Output voltage	5V@1A， [email protected]
Voltage accuracy	±1%
Efficiency (Typ)	0.82
AC interface specifications	AC-018E
Built-in fuse specifications	250V/1A
Power indicator	Red
Net weight	81g
Gross weight	107g
Product size	56 * 54 * 33mm
Packing size	85 * 67 * 47 mm

Package Contents

• 1x AC POWER BASE

Resources

• M5Stack Resources Page

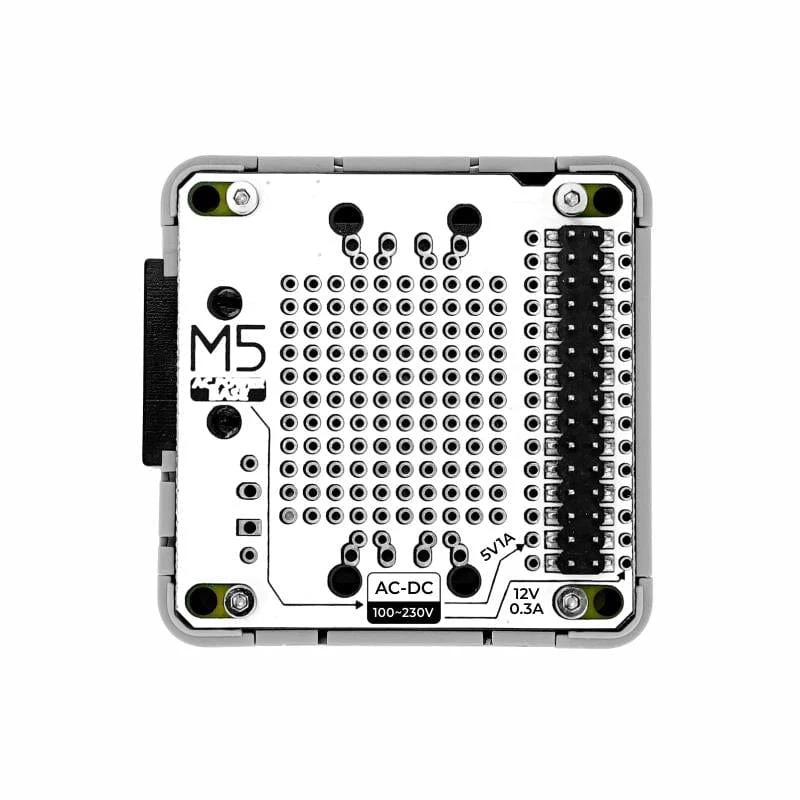

Pin Mapping

M5BUS	HPWR	5V
AC POWER BASE	12V	5V
