Low-profile ICE Tower Plus Cooler for Raspberry Pi 5

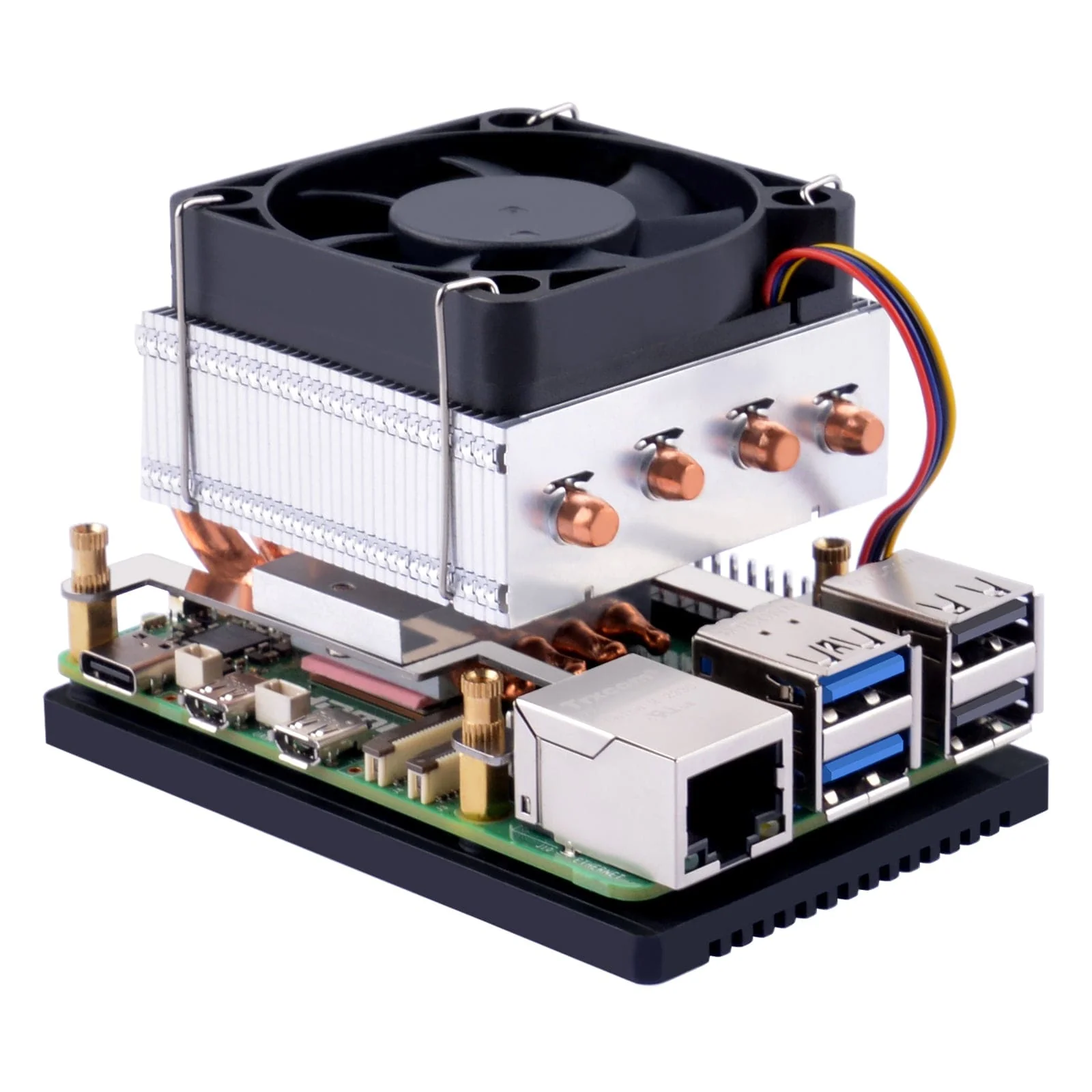

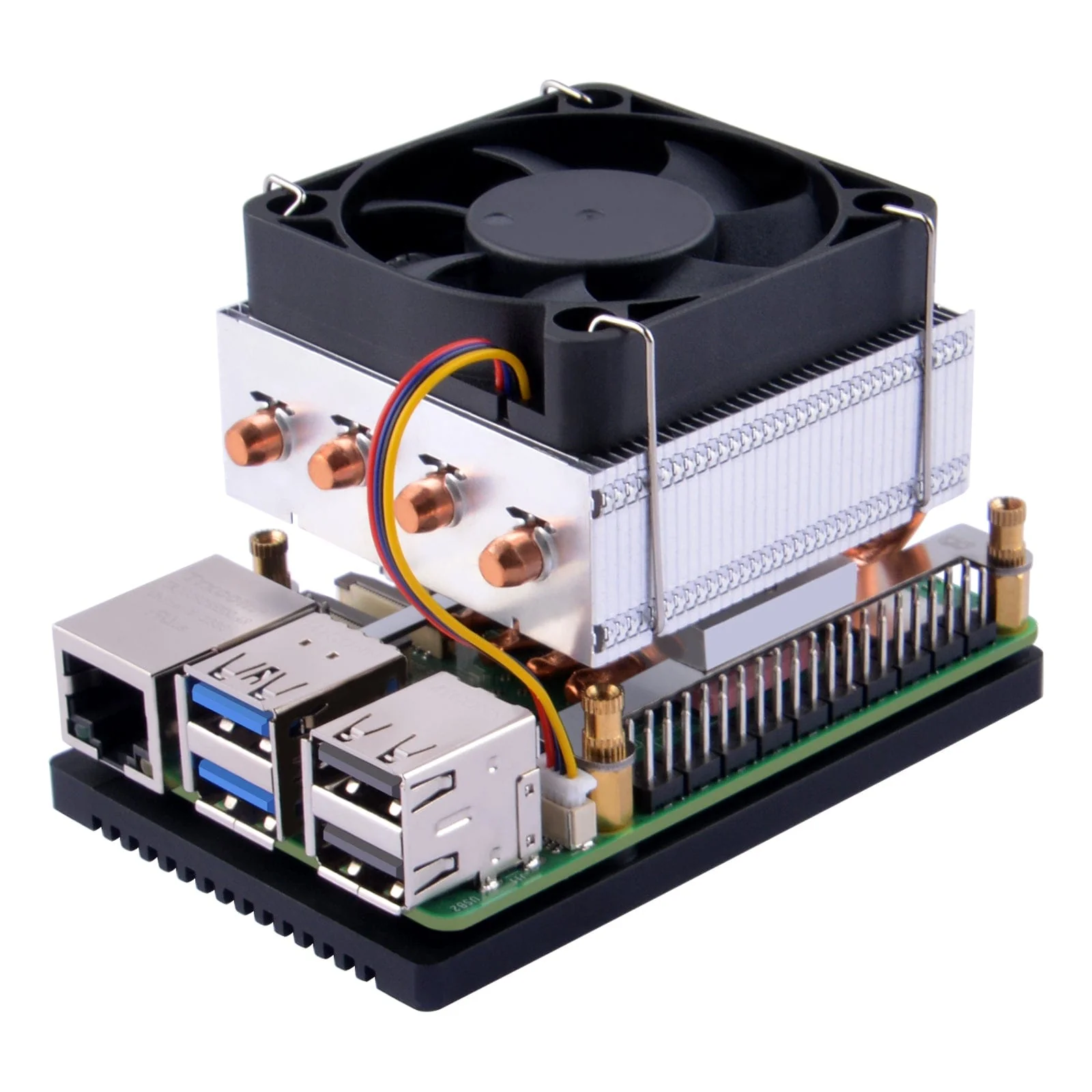

This is the low-profile version of 52Pi's ICE Tower Plus Cooler for Raspberry Pi 5, offering the same mammoth heatsink style and unbeatable cooling performance, however using a top-mounted fan and angled heatsink section for a more compact approach.

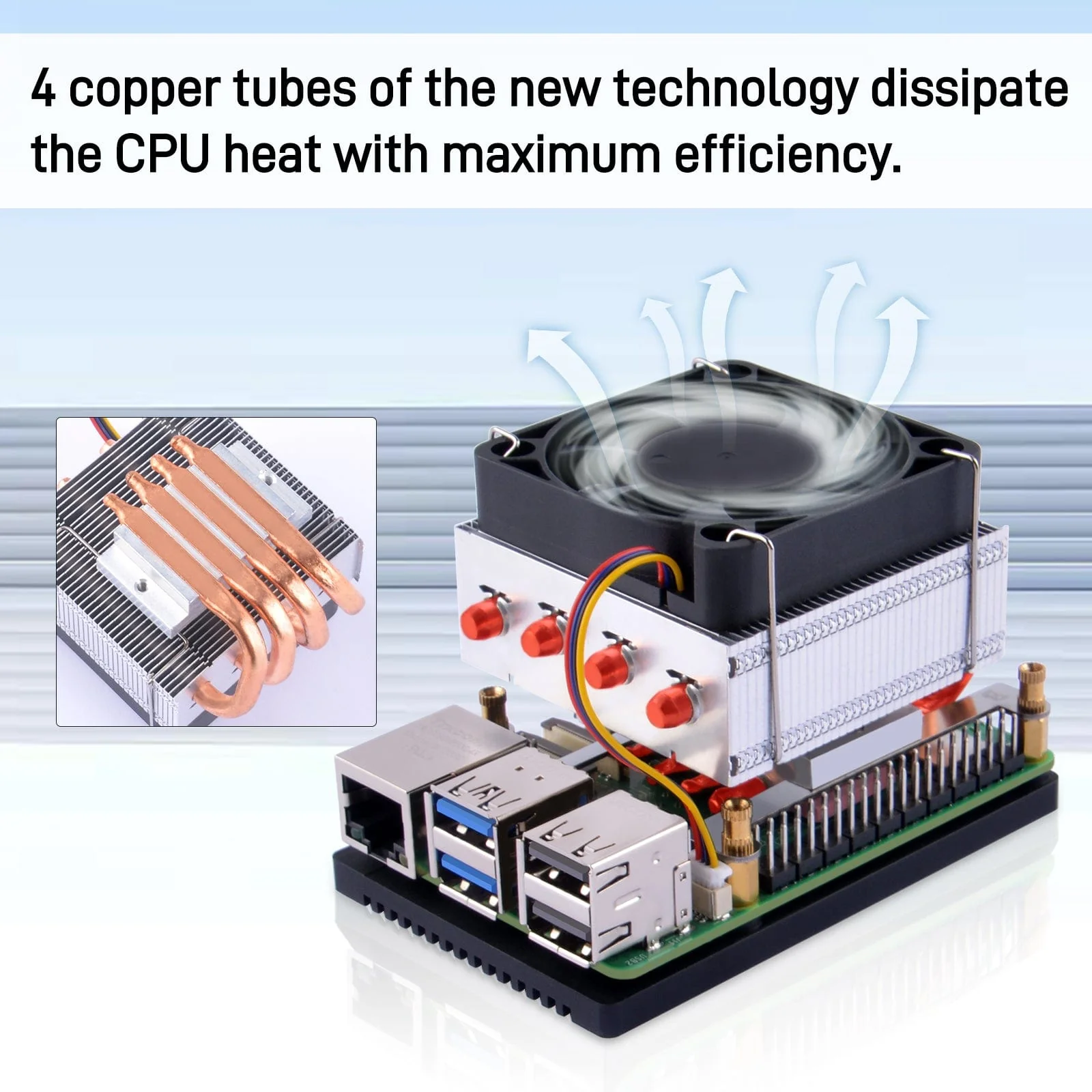

Four 5mm copper heat pipes connect the aluminium block attached to the Raspberry Pi 5 (we think it looks like an exhaust manifold!) to transfer heat to the finned heatsink section where the PWM fan (with Pi 5 fan connector) can efficiently draw heat away.

The cooler includes a solid metal base plate that removes heat from the underside of your Raspberry Pi 5, assisted with a huge thermal pad.

Above all - it really does look awesome! Your little computer now has big computer looks, and the cooling performance to match.

Raspberry Pi 5 not included

Features

• Efficient Cooling: The quad-copper pipe design ensures effective heat dissipation, keeping your Raspberry Pi 5 operating at optimal temperatures even under heavy loads.
• Stylish Design: The metal fins enhance cooling performance and add 'big computer' looks to your Raspberry Pi setup.
• Durable Construction: Constructed from high-quality materials, built to last

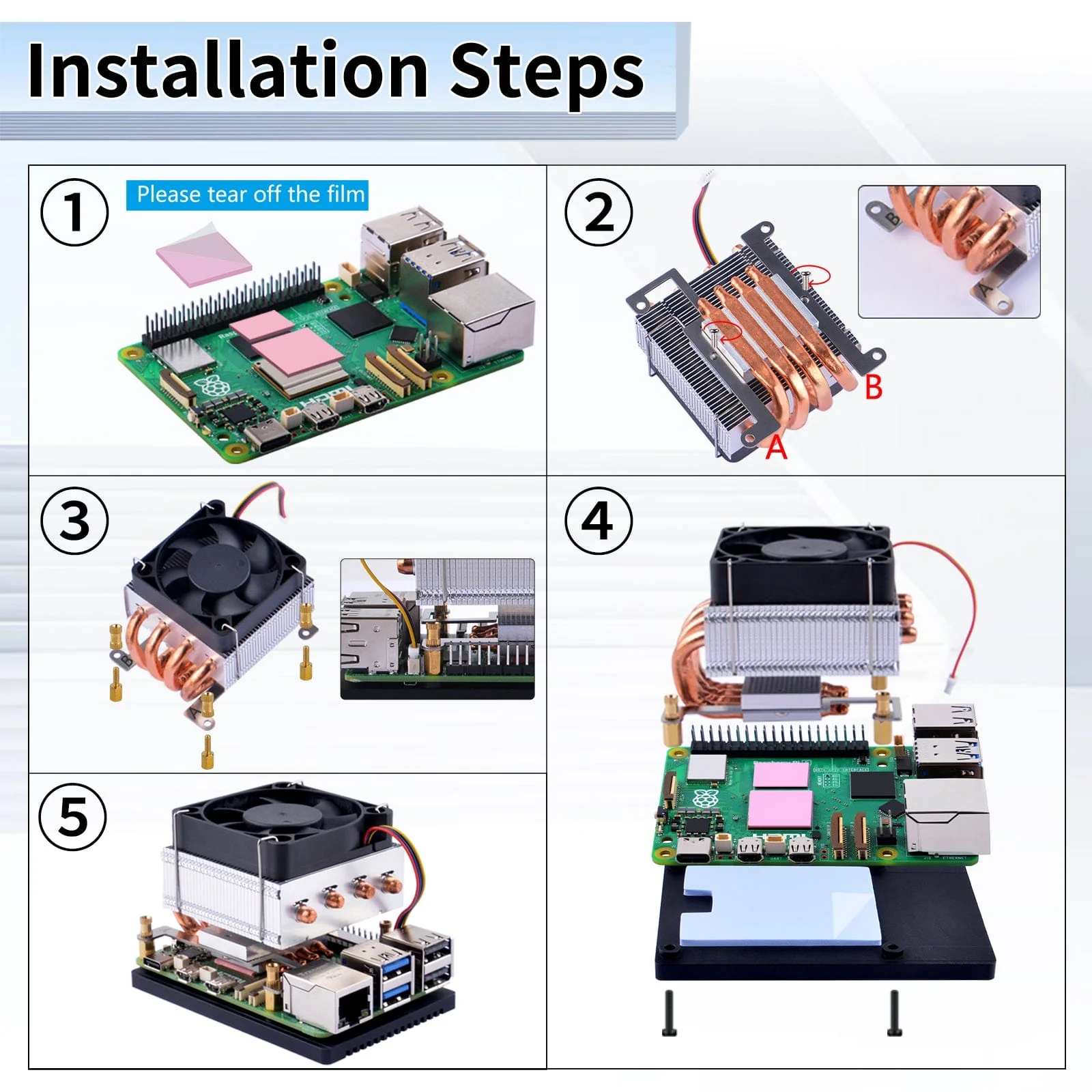

• Easy Installation: With a standard 4-pin JST Pi 5 fan connector, installation is quick and hassle-free
• Compatibility: Designed specifically for Raspberry Pi 5

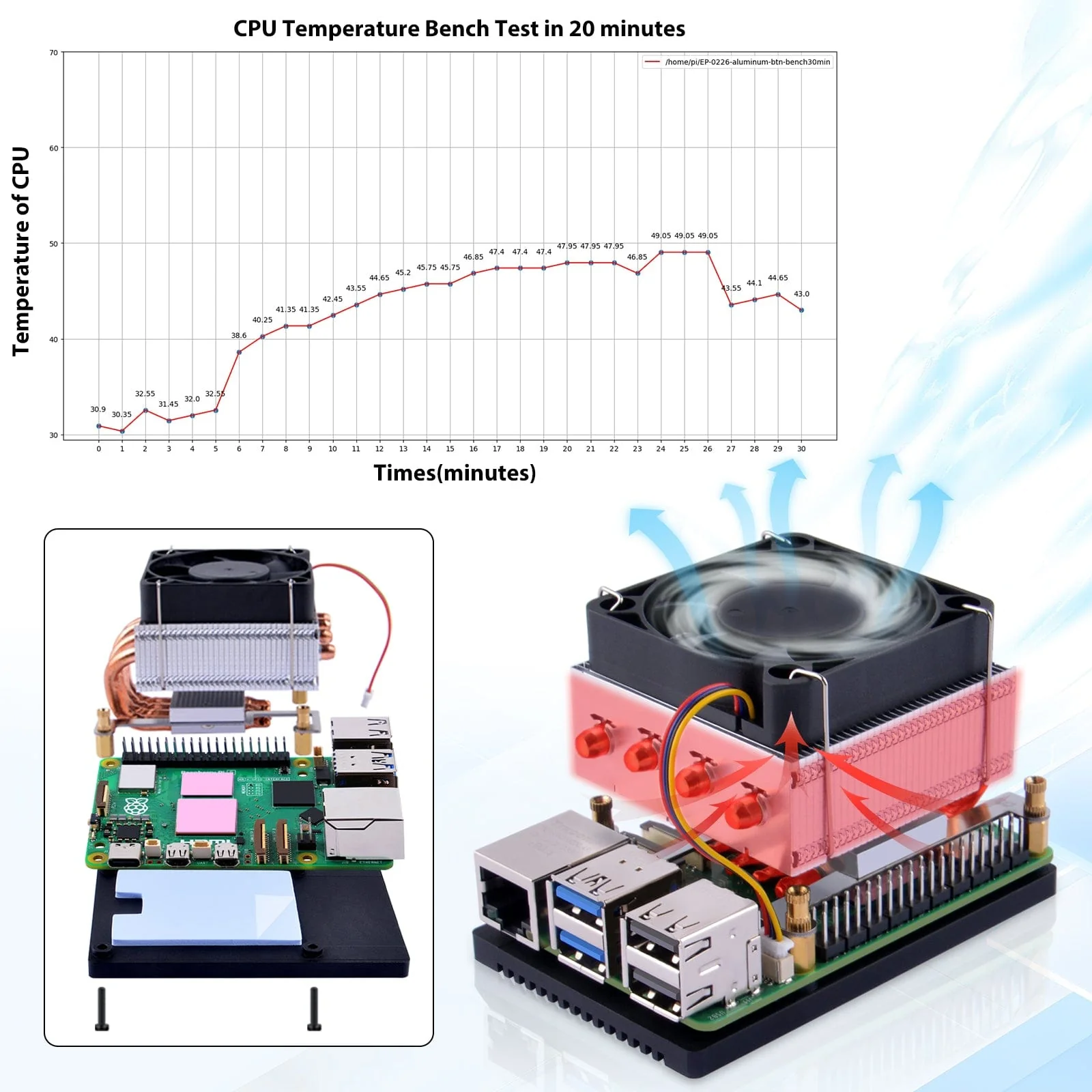

• Enhanced Performance: By effectively dissipating heat, the Low-profile ICE Tower Plus helps prevent thermal throttling, ensuring consistent performance

Resources

• Product Wiki

Note: The fan will not spin until your Raspberry Pi 5 hits 60°C, and will then gradually increase speed with the temperature. This is controlled by the Raspberry Pi OS kernel.

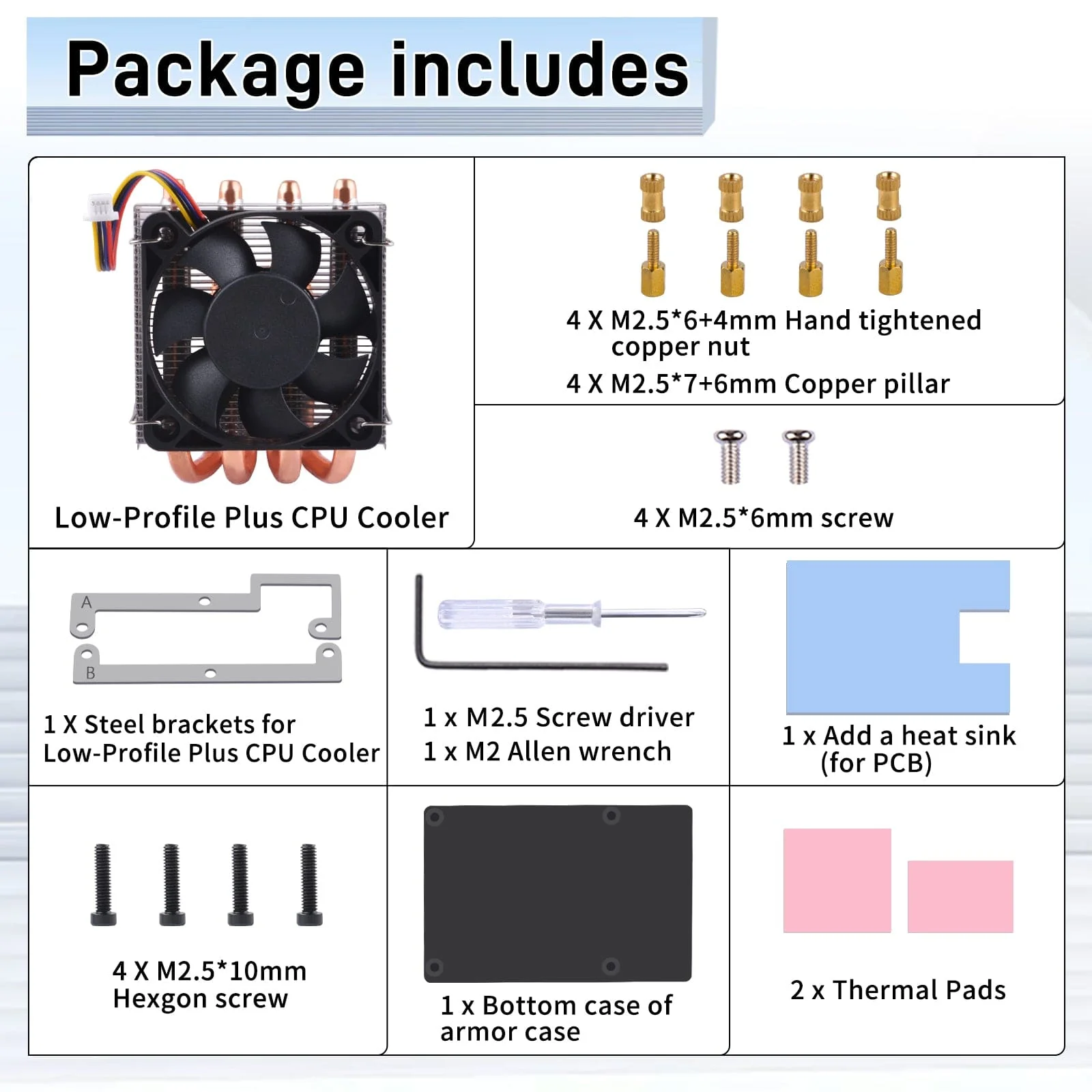

Package Contents

• 1x Low-profile ICE Tower Plus Cooler
• 1x Metal bottom base

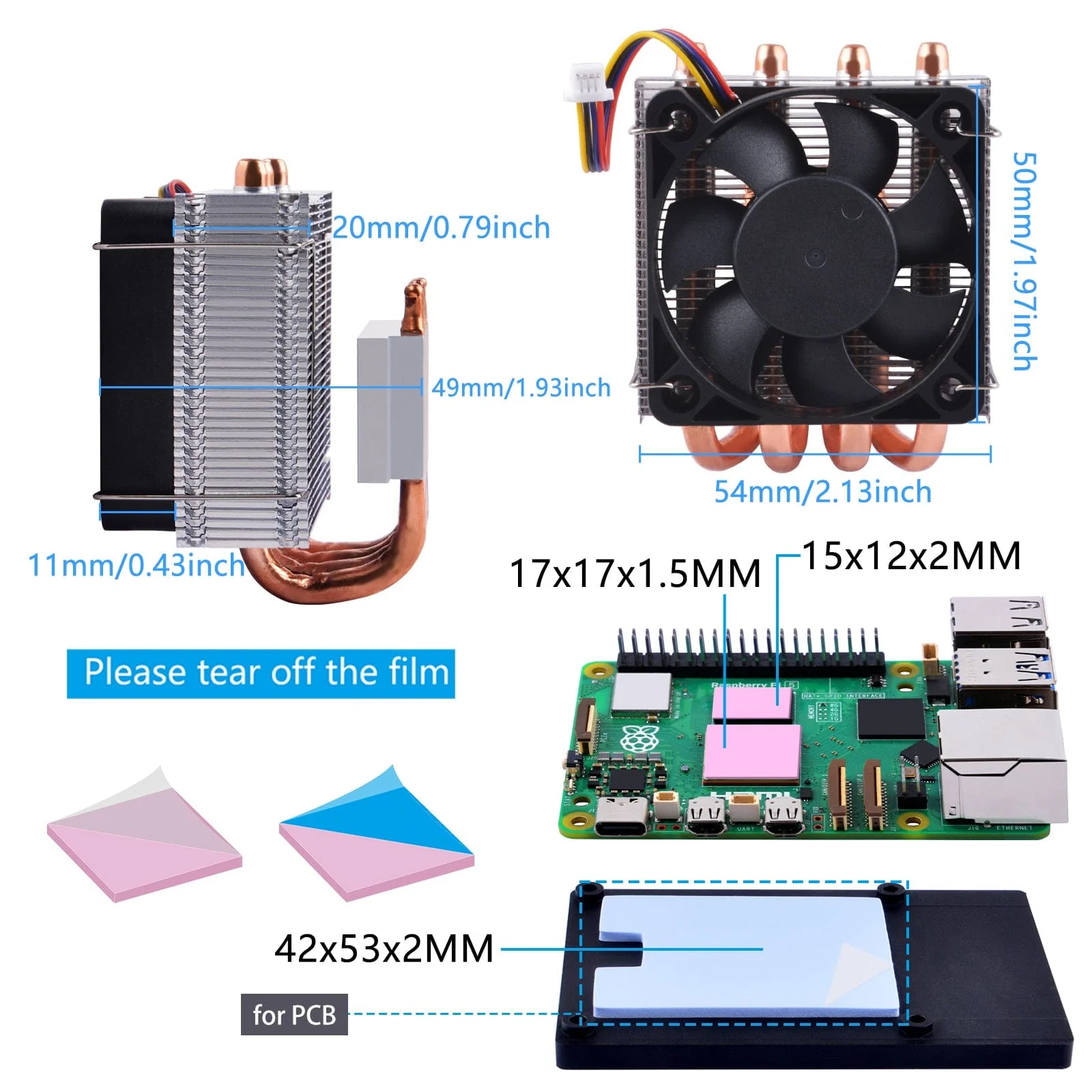

• 1x Thermal pad set (CPU, RAM and base pads)
• 1x Fixings and standoffs set
• 1x Mini screwdriver
• 1x Hex key

Raspberry Pi 5 not included
