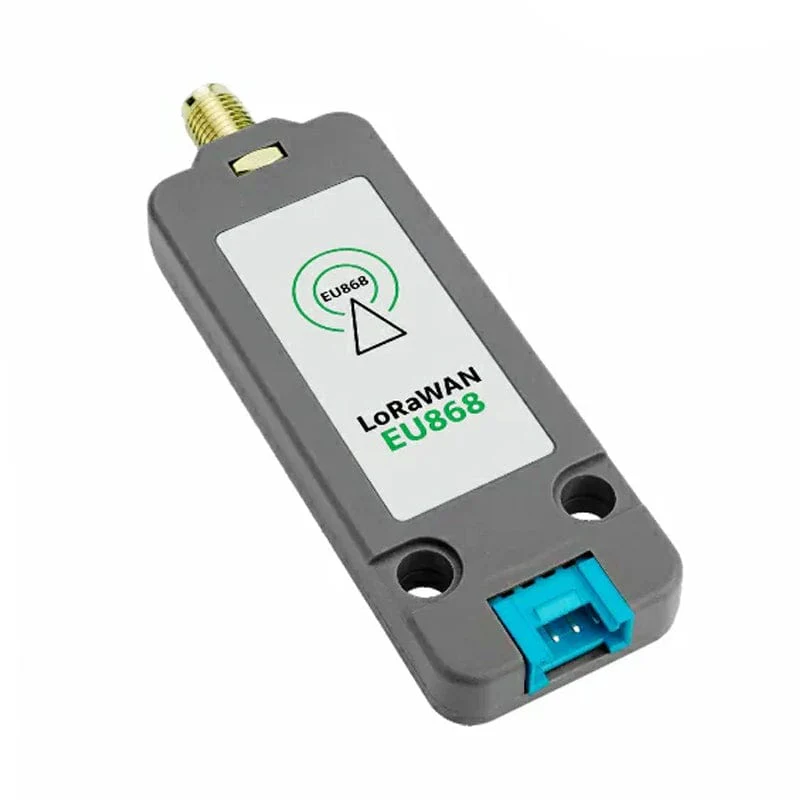

LoRaWAN Unit EU868 (STM32WLE5) with Antenna

This LoRaWAN-EU868 is a communication module based on LoRa technology, specifically designed for the EU868 frequency band, making it ideal for Europe and regions using the same frequency standard. The STM32WLE5 core gives the module long-range communication, low power consumption, and high sensitivity.

It comes with the LoRaWAN protocol stack and supports three operating modes: Class A, Class B, and Class C. It also supports point-to-point (P2P) communication, allowing flexible data transmission even without a central gateway. Configuration is done through a UART connection using simple AT commands, making setup straightforward and adaptable to different needs.

Equipped with a rubber antenna, it provides stable signal coverage and an extended communication range, even in difficult areas. It can function as a data collection node, sending information to a gateway for centralised management, or it can enable direct communication between devices when no gateway is available.

Features

• Follows LoRaWAN® 1.0.3 protocol
• Supports EU868 frequency band
• Supports LoRa® P2P (point-to-point) communication
• LoRaWAN activation modes: OTAA, ABP
• Serial communication (AT commands)
• High-sensitivity stub antenna
• Low power consumption
• Compatible with LEGO holes
• Development platforms:
  • UIFlow 1.0
  • UIFlow 2.0
  • Arduino IDE

Specifications

LoRa Solution	STM32WLE5 @256 KB flash, 64 KB RAM
Supported Frequency	EU868 (868-870 MHz)
Protocol Support	LoRaWAN® 1.0.3 (Class A, Class B, Class C)
Reception Sensitivity	-137 dBm
LoRaWAN Activation	OTAA, ABP
Communication Mode	LoRaWAN and point-to-point (P2P)
Communication Distance (P2P)	2300m (125Kbps), 1300m (500Kbps)
Interface Type	UART serial supports AT commands

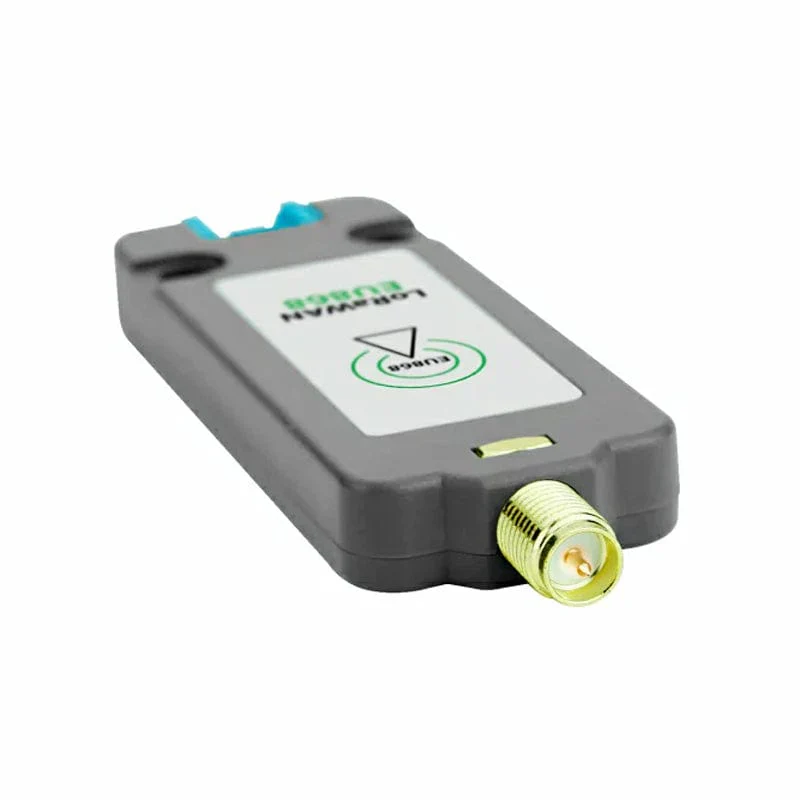

Antenna Type	High-performance stub antenna, 50-ohm impedance @2.8dBi, total length 195mm SMA inner pin
Standby Power	Idle state: DC5V/7.23mA
	Sleep state: DC5V/28.61uA
Operating Current	500Kbps Data reception: DC5V/9.20mA
	Data transmission: DC5V/11.36mA
	125Kbps Data reception: DC5V/8.43mA
	Data transmission: DC5V/117.16mA
Operating Temperature	0 - 40°C
Product Size	71.4 x 24 x 8mm
Product Weight	31.9g
Package Size	240 x 92 x 10mm
Package Weight	33.4g

Resources

• Product Wiki
• Unit LoRaWAN-EU868 AT Command Manual
• Datasheet

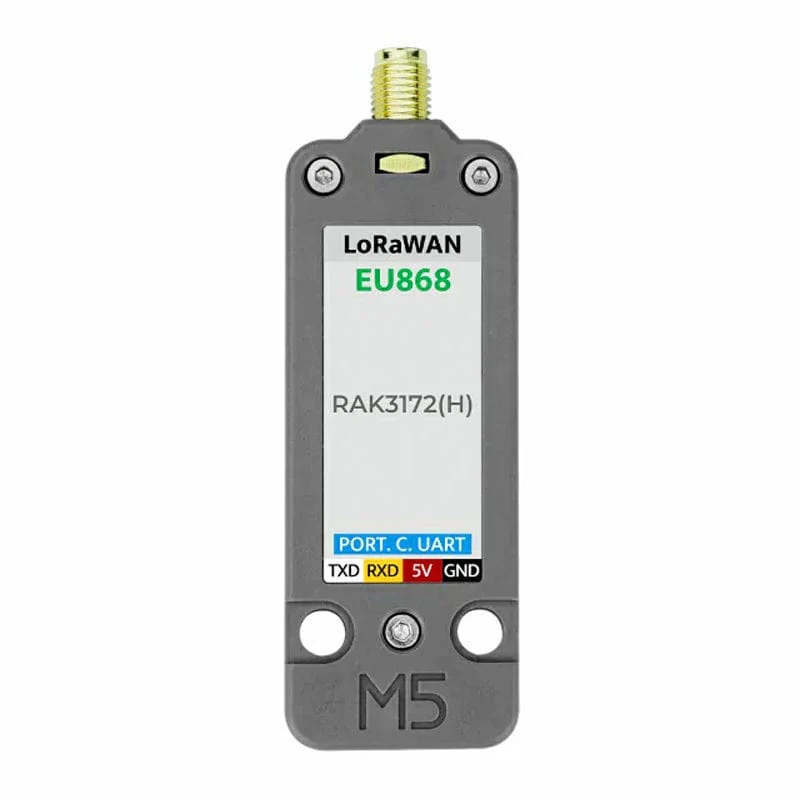

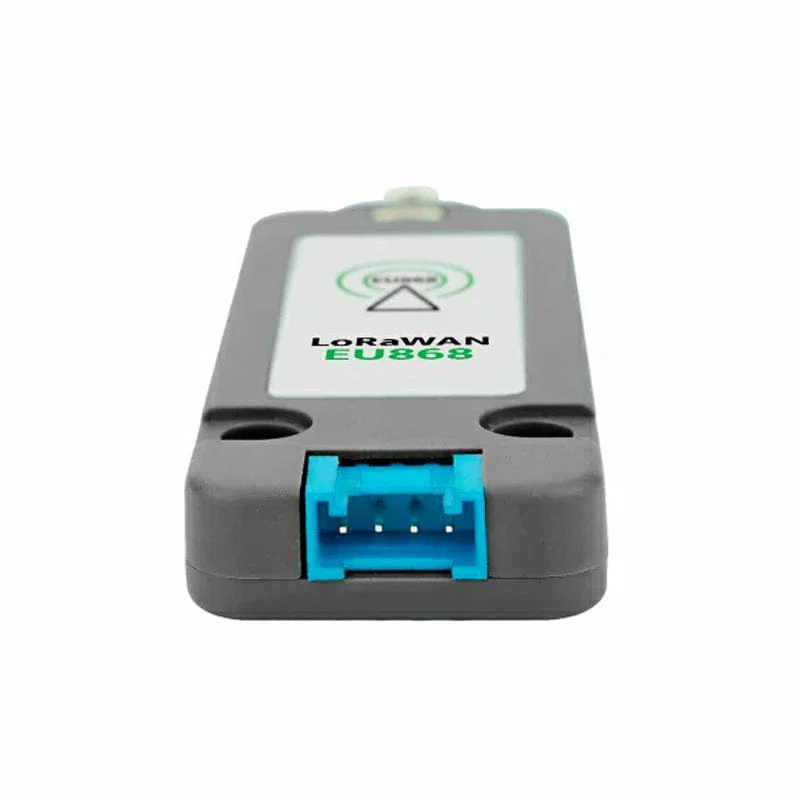

Pinout

HY2.0-4P	Black	Red	Yellow	White
Define	GND	5V	TXD	RXD

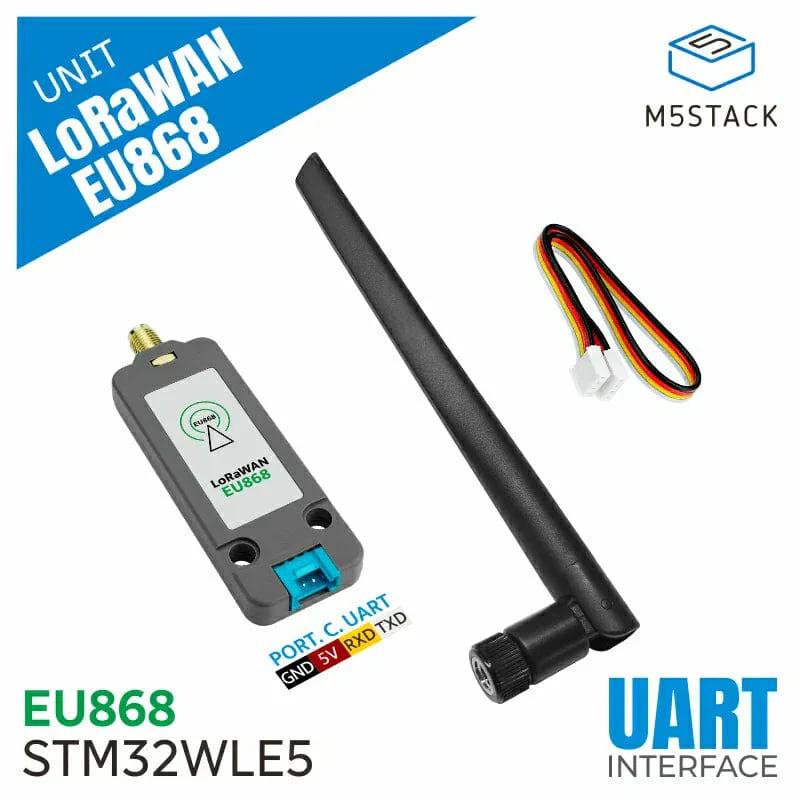

Package Contents

• 1x Unit LoRaWAN-EU868
• 1x HY2.0-4P cable (20cm)
• 1x Stub antenna (@2.8dBi, total length 195mm SMA inner pin)
