Jumbo Adhesive Heatsink for Raspberry Pi 5

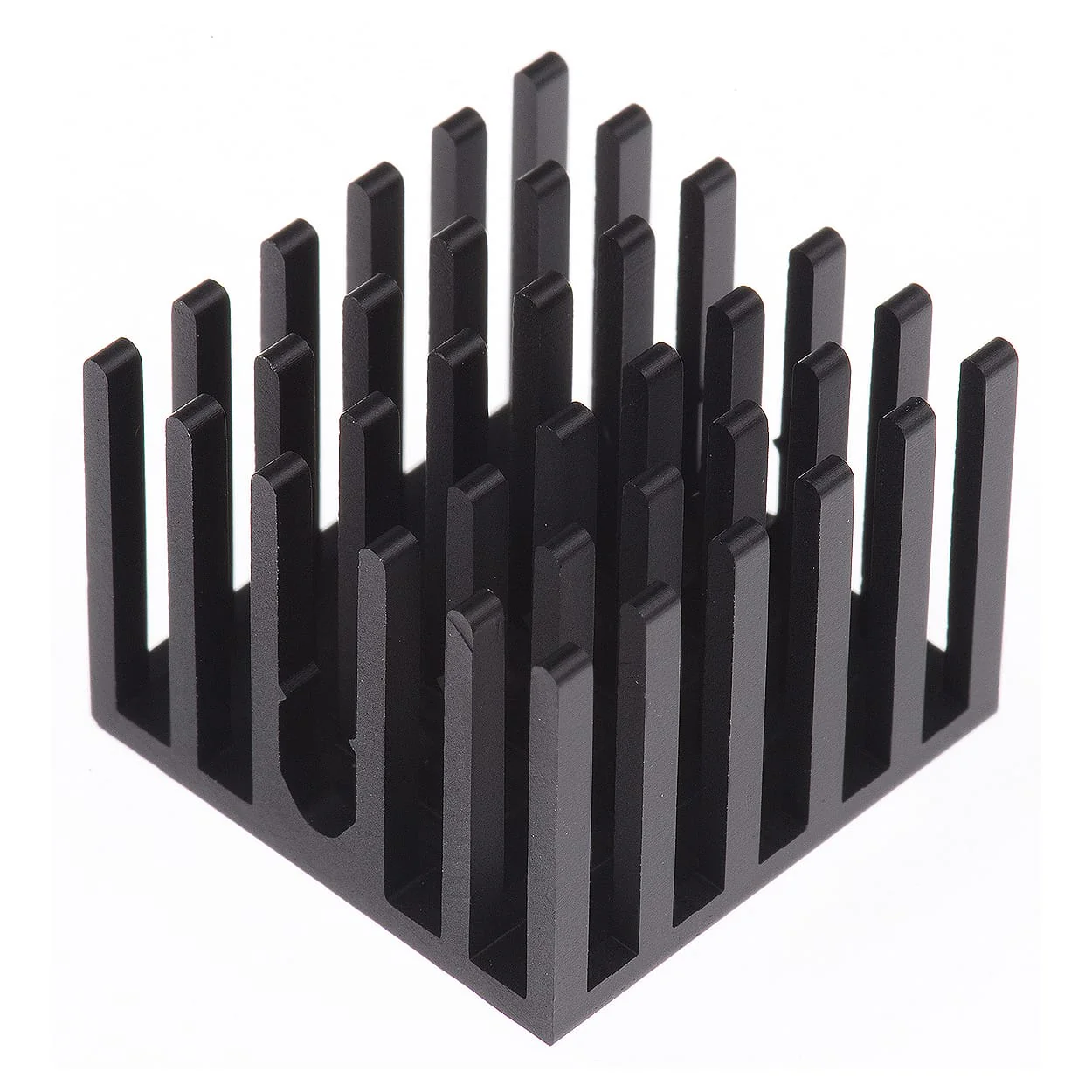

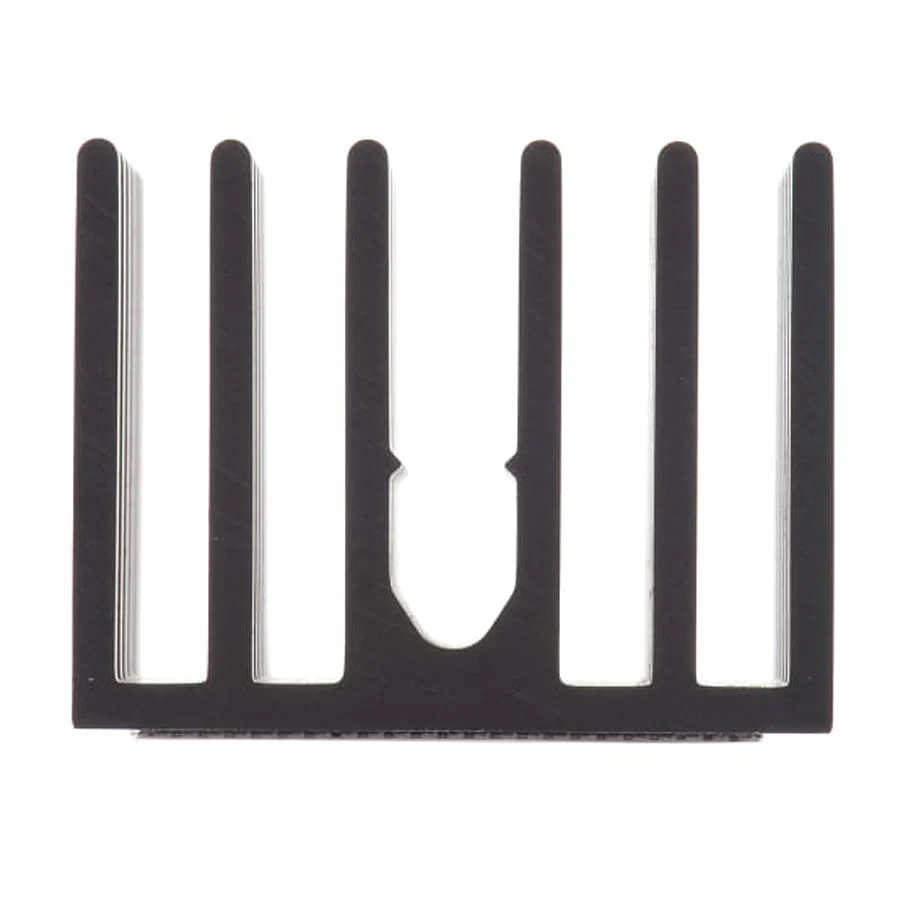

We don't care what anyone says - when it comes to heatsinks for your Raspberry Pi 5, size matters This super sinky measures 23mm x 23mm, and sits 18mm tall. Ok, it's no ICE Tower Plus, but it's pretty buff as far as adhesive heatsinks go.

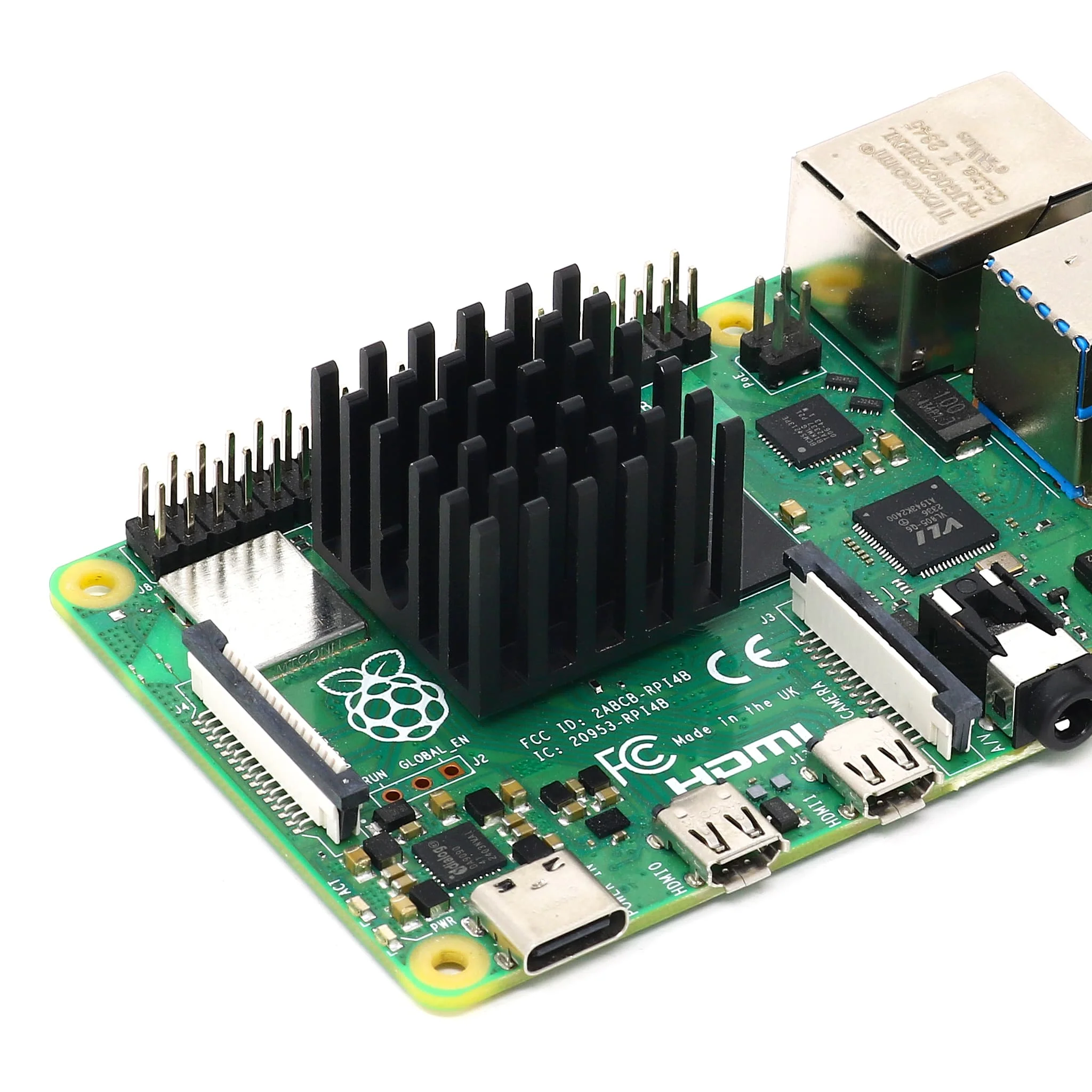

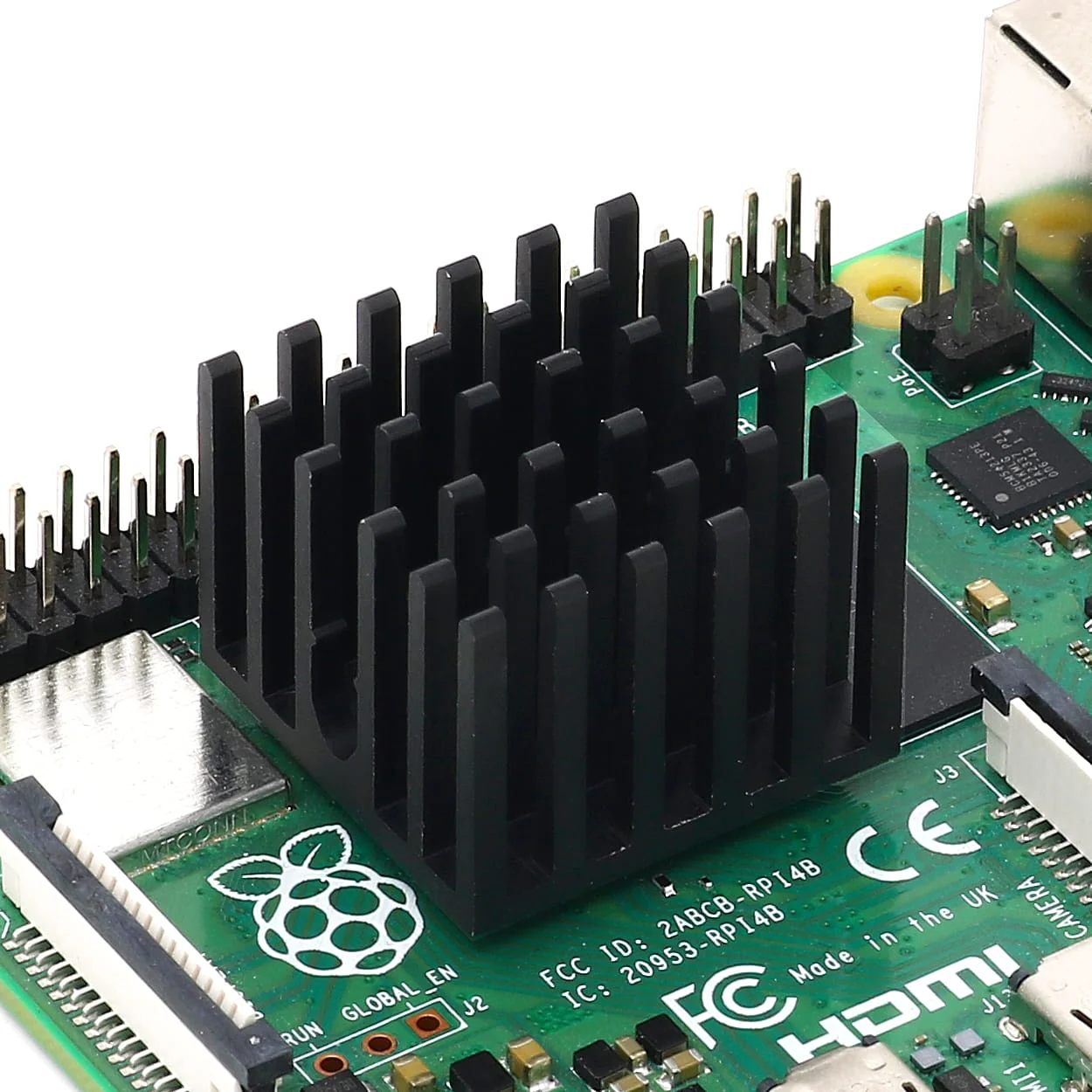

The heatsink uses a thermally-conductive foil adhesive tape on the underside to stick to your Pi 5 CPU, so it's not ideal for any projects where your board isn't sitting flat (like most adhesive heatsinks).

It comes in any colour you want, as long as it's black.

Raspberry Pi 5 not included.

Features

• Aluminium heatsink for Raspberry Pi 5
• 23x23mm footprint, 18mm tall
• Adhesive mount with thermally-conductive foil tape (pre-applied)
• Pin Fin array allows omni-directional airflow to maximise heat dissipation
• Anodised black

Resources

To fit: make sure your CPU is clean before applying (some IPA is good for that), peel the backing paper off, then hold firmly in place for a good 30 seconds.

Package Contents

• 1x Jumbo Adhesive Heatsink for Raspberry Pi 5

Raspberry Pi 5 not included.
