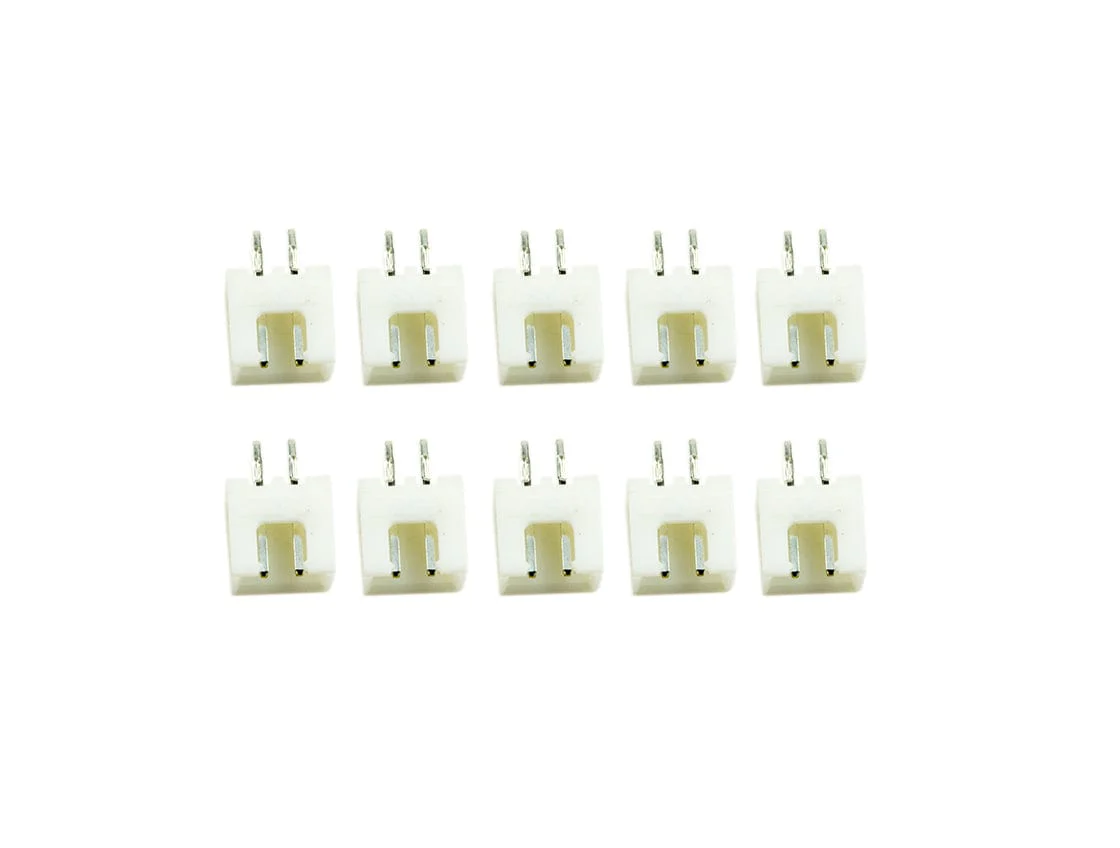

JST-XH 2 Pin Header for Quick-Connect Wires (10 Pack)
This 10 Pack of "XH Series" 2-Position 2.5mm pitch through-hole JST headers are designed to match these Arcade Button Quick-Connect Wires!
Specification
- Original folded beam contact
- Box-shaped shrouded header w/ boss
- Current Rating: 3A AC, DC(AWG #22)
- Voltage Rating: 250V AC, DC
- Contact Resistance: Initial value/10m? max.
- Insulation Resistance: 1000 M? min
- Withstanding voltage: 1000V AC/minute
- Applicable wire: AWG #30 to #22
- Operating Temperature range of -25° C to +85° C.
- B2B-XH-A(LF)(SN)
- Mounting Height: 9.8mm
- Applicable to PCB Thickness: 1.6mm
$0.82
Original: $2.72
-70%JST-XH 2 Pin Header for Quick-Connect Wires (10 Pack)—
$2.72
$0.82
Description
This 10 Pack of "XH Series" 2-Position 2.5mm pitch through-hole JST headers are designed to match these Arcade Button Quick-Connect Wires!
Specification
- Original folded beam contact
- Box-shaped shrouded header w/ boss
- Current Rating: 3A AC, DC(AWG #22)
- Voltage Rating: 250V AC, DC
- Contact Resistance: Initial value/10m? max.
- Insulation Resistance: 1000 M? min
- Withstanding voltage: 1000V AC/minute
- Applicable wire: AWG #30 to #22
- Operating Temperature range of -25° C to +85° C.
- B2B-XH-A(LF)(SN)
- Mounting Height: 9.8mm
- Applicable to PCB Thickness: 1.6mm
