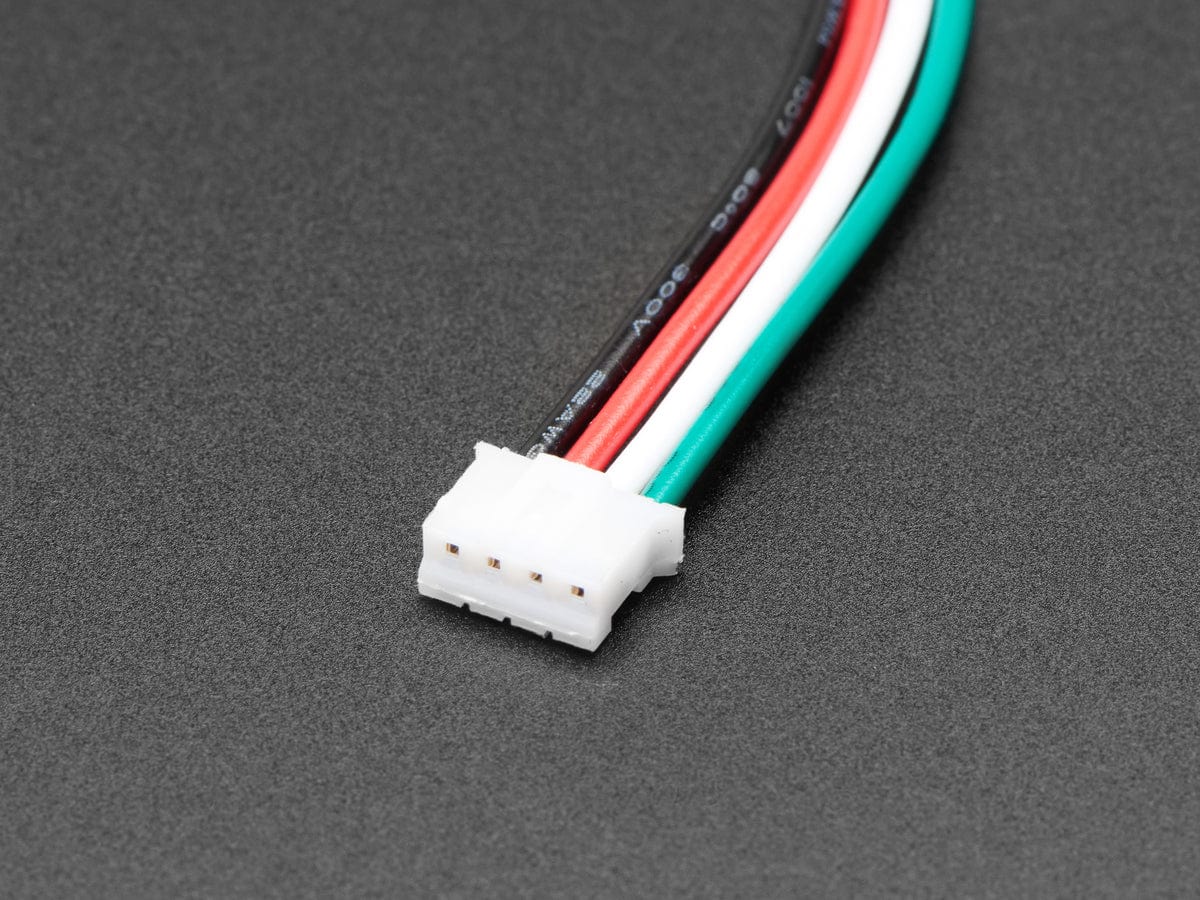

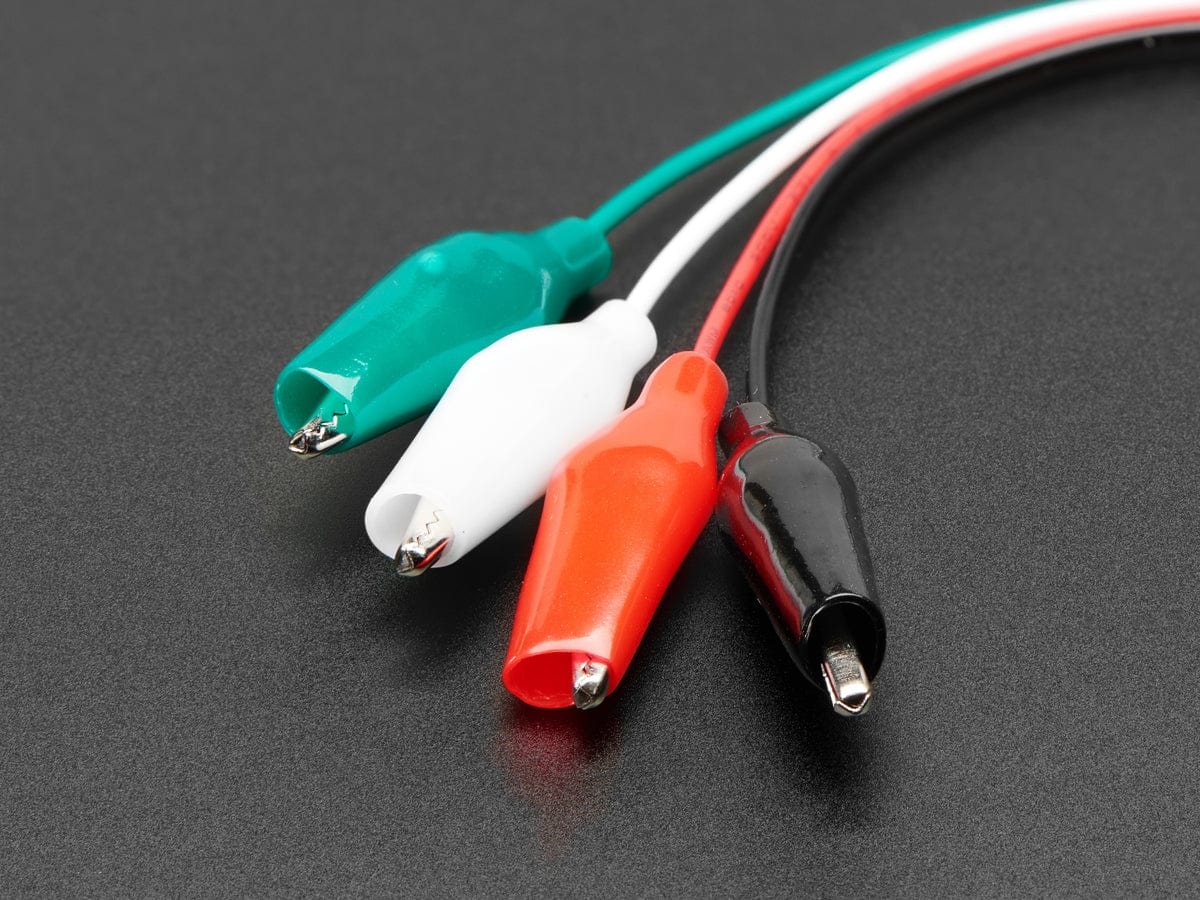

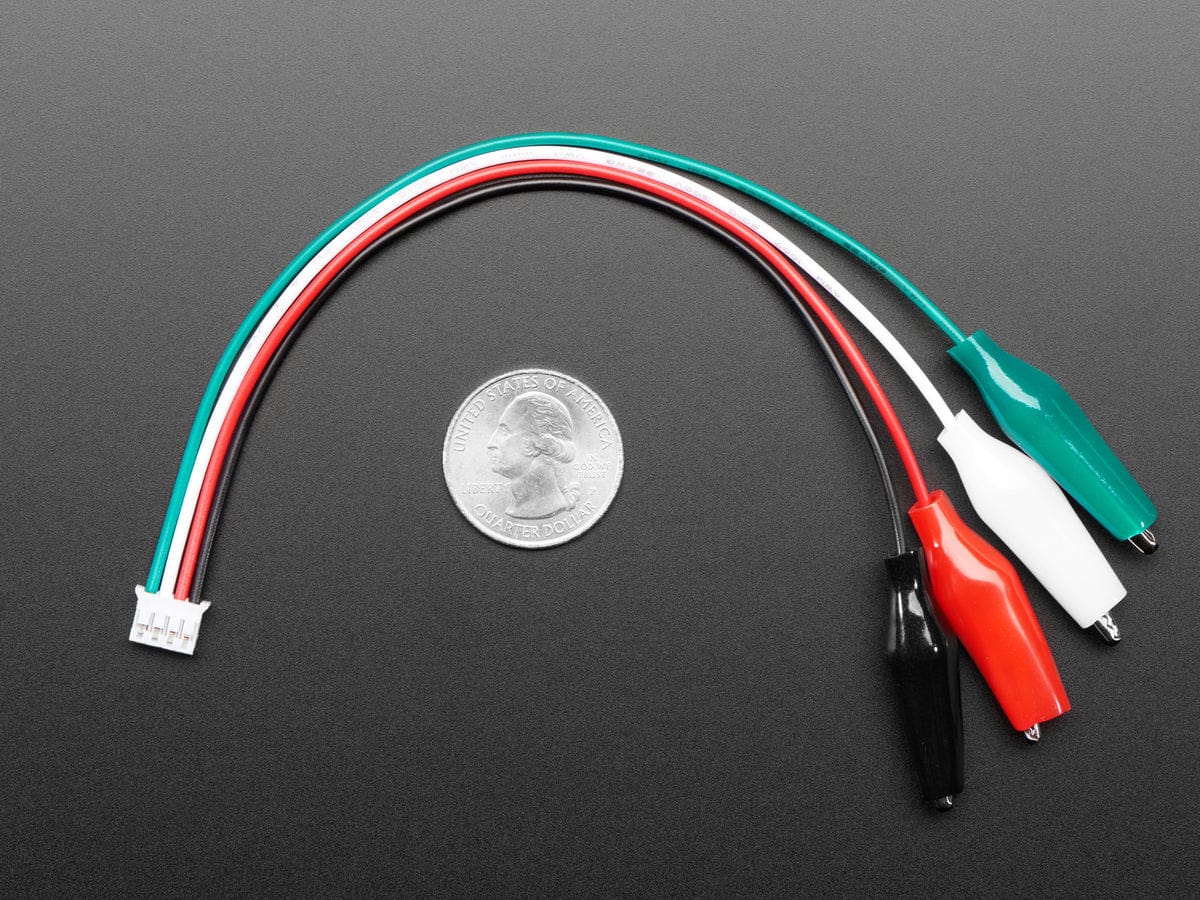

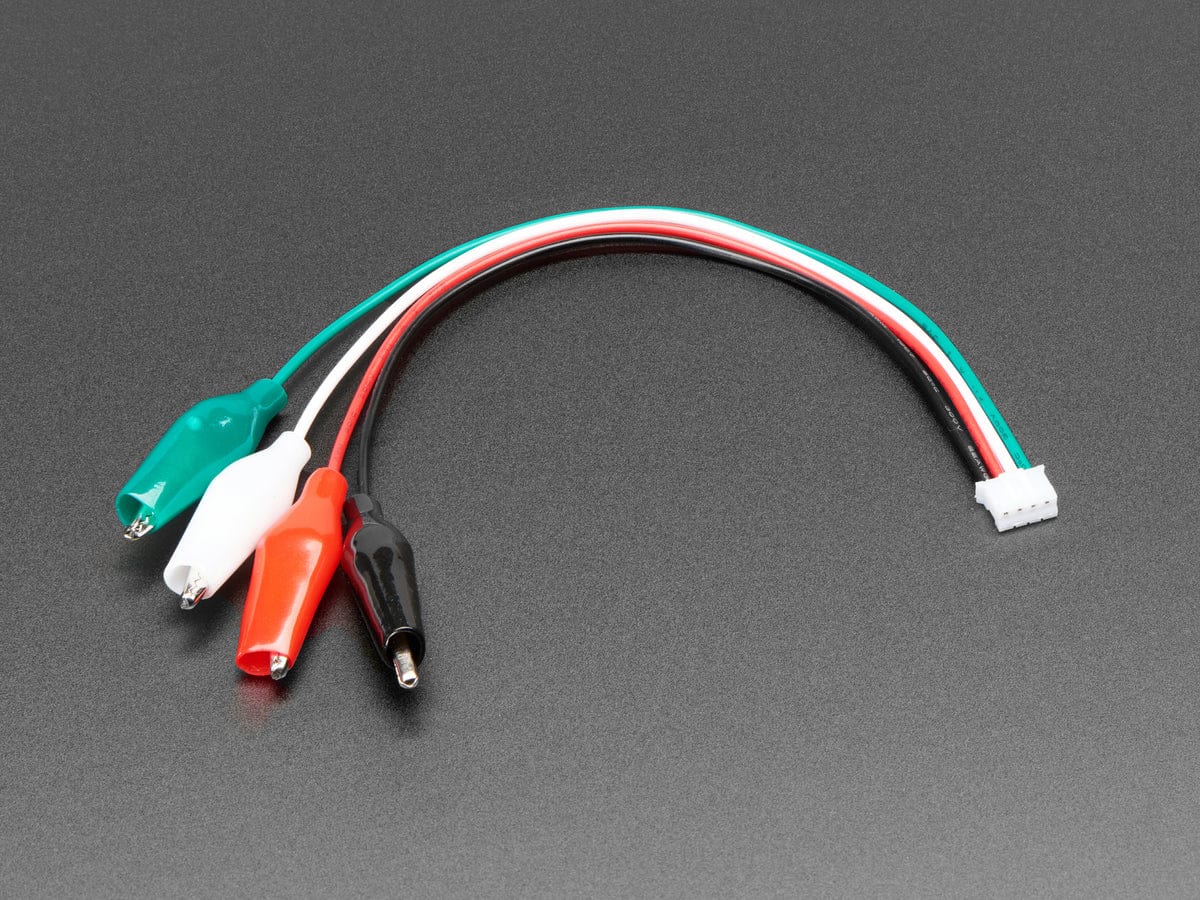

JST PH 4-pin Plug to Color Coded Alligator Clips Cable
This cable will let you turn a JST PH 4-pin cable port into 4 individual wires with grippy mini alligator clips. We're carrying these to match up with any of our boards or breakouts with 'STEMMA' connectors on them such as the HalloWing or NeoTrellis M4. Can also be used with any STEMMA breakouts!

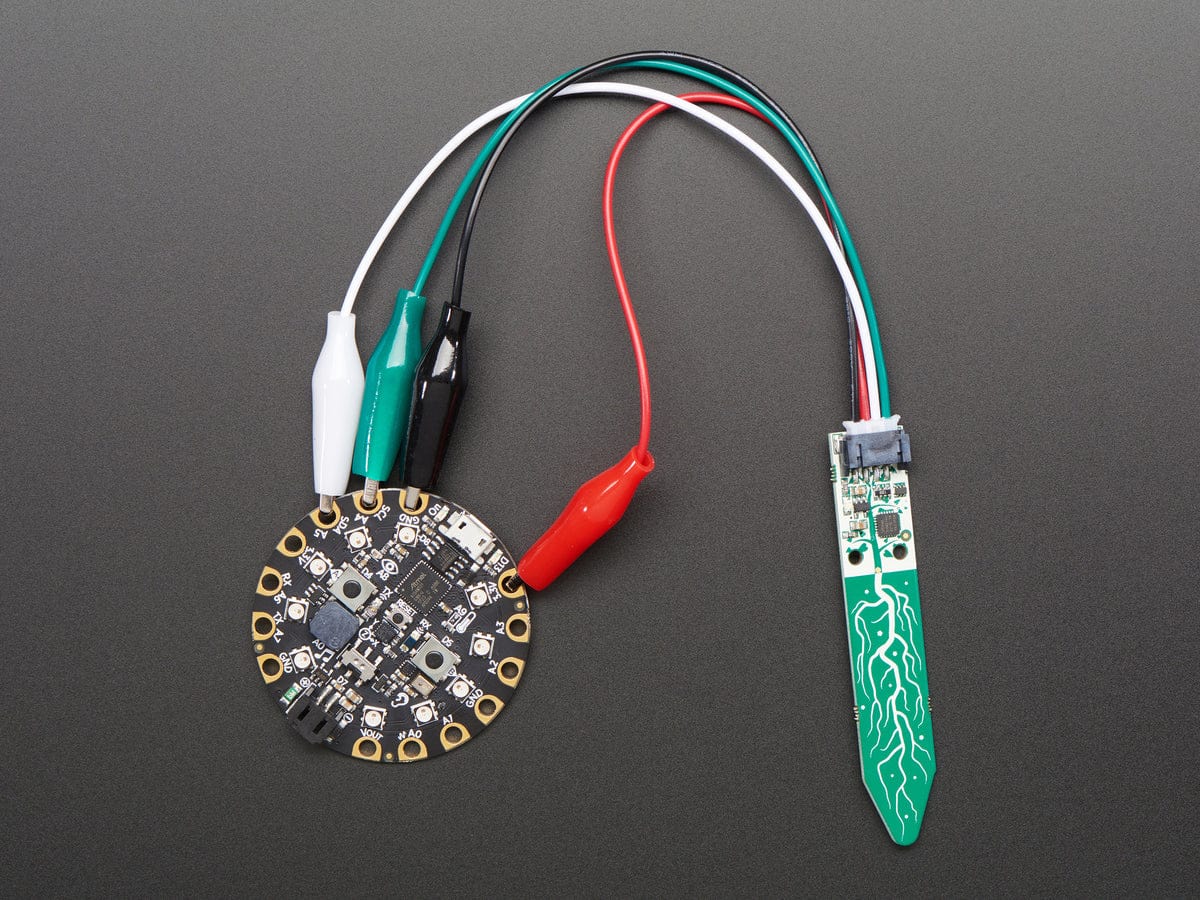

This cable has a JST PH 4-pin on one side and alligator clips on the other, so it could be used to connect to wires or pads like that on the Circuit Playground or micro:bit.
- Black for GND
- Red for V+
- White for SDA
- Green for SCL
For more information about JST PH connectors, visit the JST website
Technical Details
- Wire Length: 7.6" / 195mm
- Wire Diameter: 1.6mm
- JST Connector: 8.5mm
- JST Pitch: 2mm
Original: $3.00
-70%$3.00
$0.90
Description
This cable will let you turn a JST PH 4-pin cable port into 4 individual wires with grippy mini alligator clips. We're carrying these to match up with any of our boards or breakouts with 'STEMMA' connectors on them such as the HalloWing or NeoTrellis M4. Can also be used with any STEMMA breakouts!
This cable has a JST PH 4-pin on one side and alligator clips on the other, so it could be used to connect to wires or pads like that on the Circuit Playground or micro:bit.
- Black for GND
- Red for V+
- White for SDA
- Green for SCL
For more information about JST PH connectors, visit the JST website
Technical Details
- Wire Length: 7.6" / 195mm
- Wire Diameter: 1.6mm
- JST Connector: 8.5mm
- JST Pitch: 2mm
