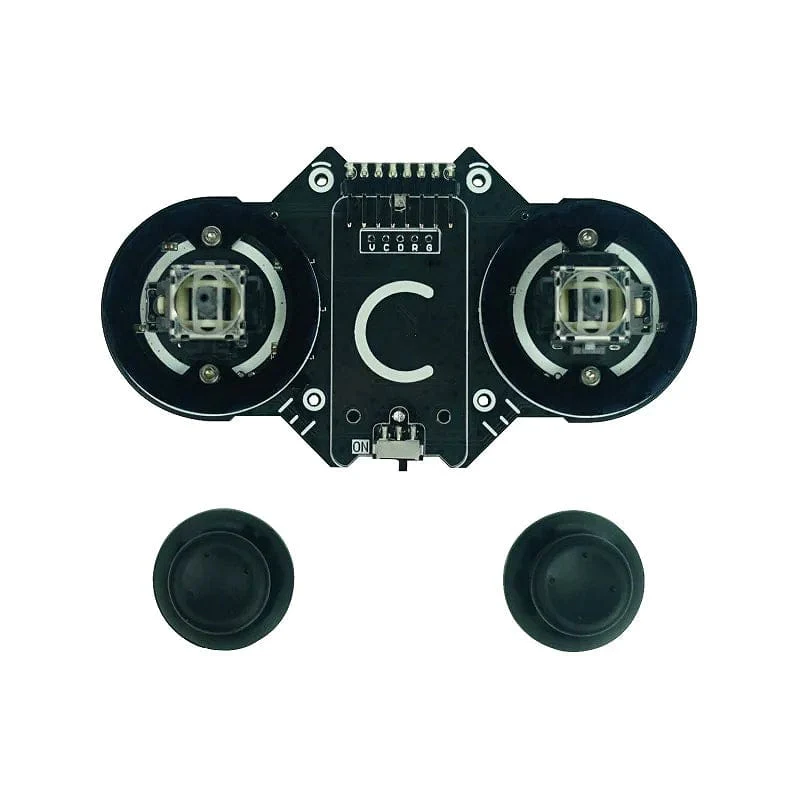

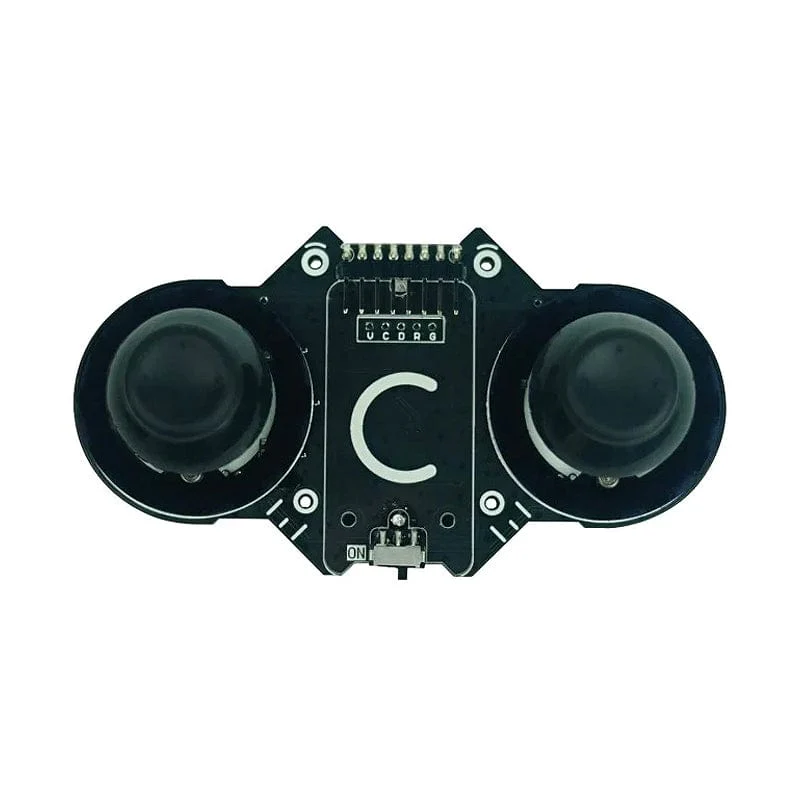

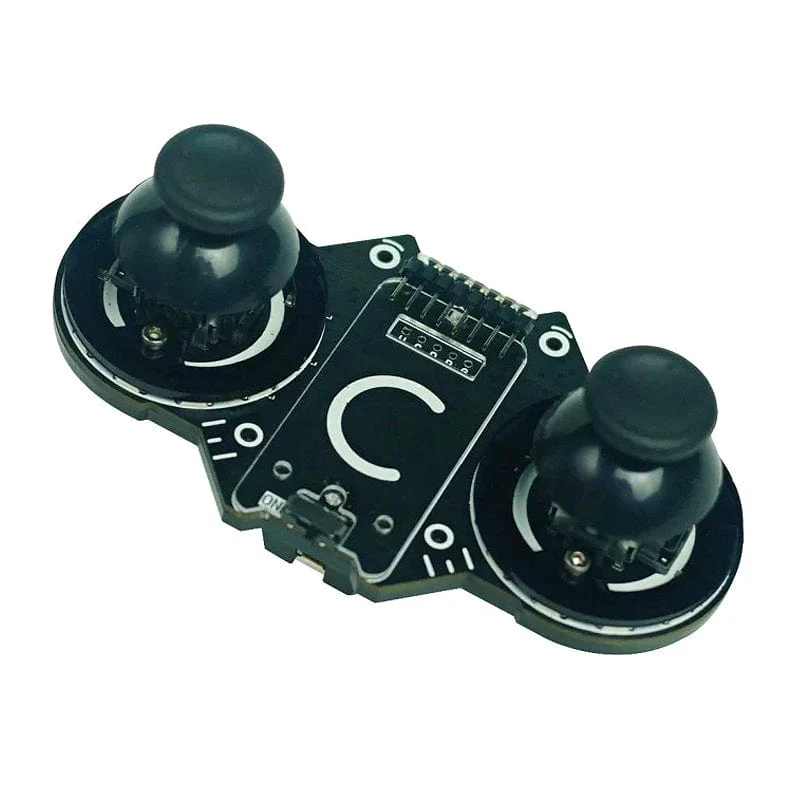

JoyC Omni-directional Controller (Without M5StickC)

The JoyC is a rocker module designed for the M5StickC. It supports the two-hand operation and there is an embedded STM32F030F4 main control chip, using I2C communication protocol and host M5StickC for data transmission.

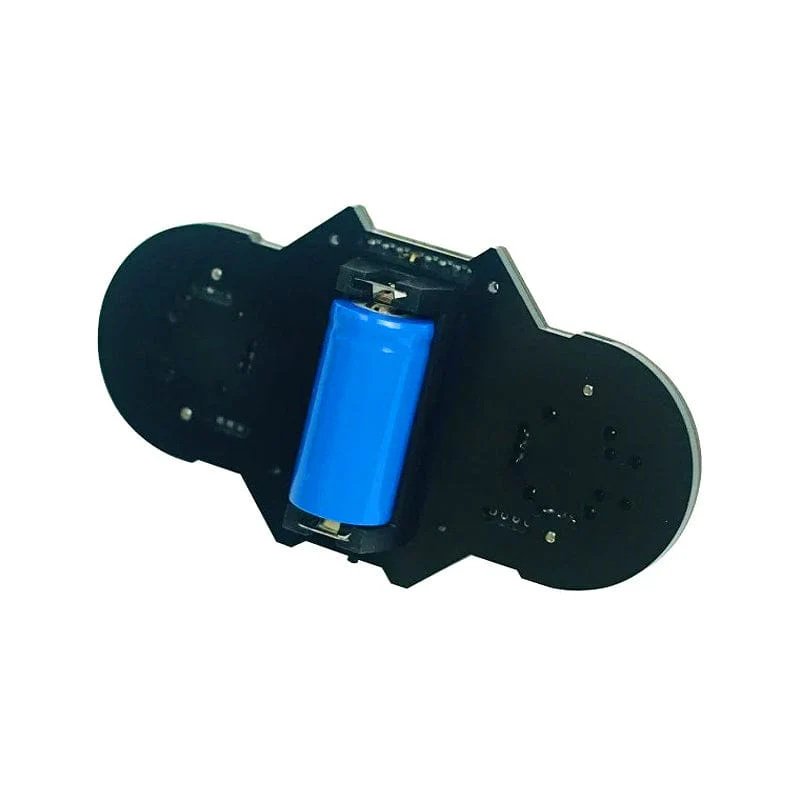

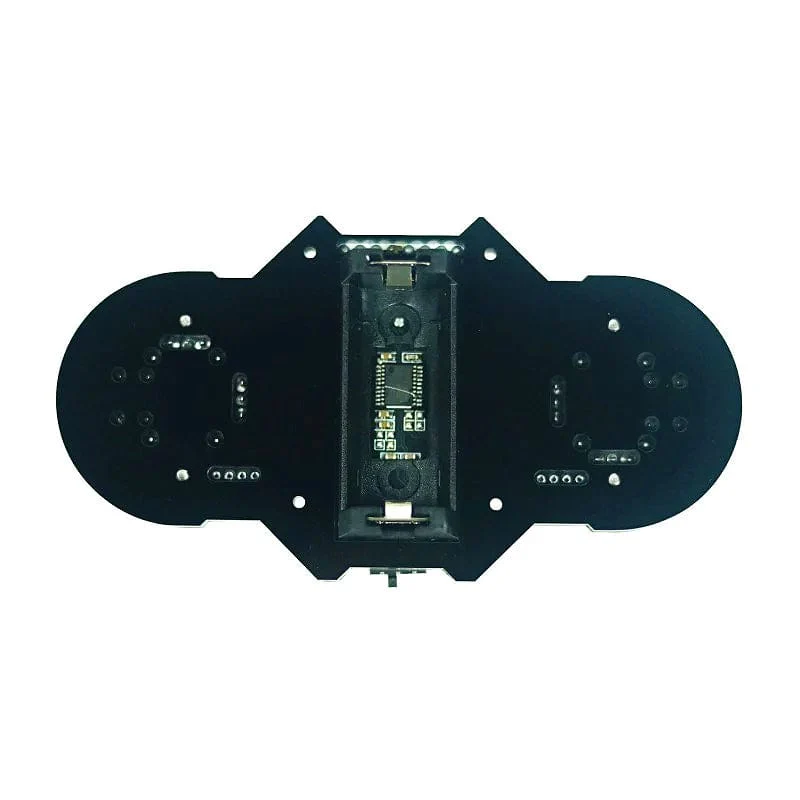

The range of the joystick is 0~200, there are 12 RGB LEDs under the left and right joysticks, and the bottom of the joystick is equipped with a 16340 battery base for continuous battery life.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• STM32F030F4 inside
• Communication protocol: I2C (address: 0x38)
• Support omnidirectional movement/button press

Specifications

Resources	Parameter
Communication protocol	I2C:0x38
Net weight	81g
Gross weight	117g
Product Size	200x55x50mm
Package Size	119x89x65mm

Resources

• Product Wiki

Package Contents

• 1x JoyC
• 1x 16340 700mAh Battery
