Insectbot Kit [DISCONTINUED]

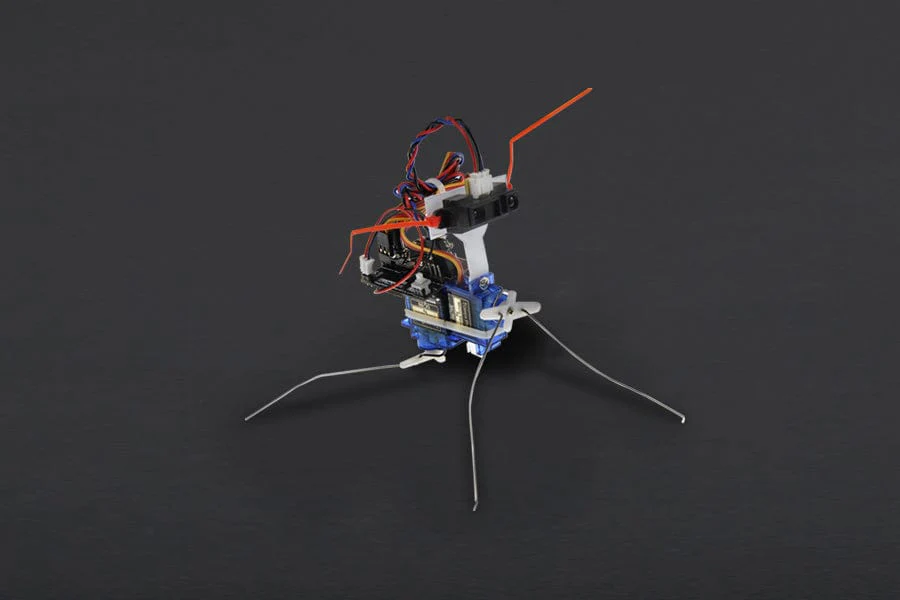

The Insect Bot mini is an easy to assemble robot for young engineers from 6 to 100. With assembling this robot you will learn the basic robotics in terms of how all the components work together. There is a microcontroller which is working as the robot brain and two servo motors for the movement. The IR sensor on it's head will act as an eye to detect obstacles in front. The programming can be done by simply connecting the Beetle controller with the USB port on your computer. It is the best way to start building robot on Arduino.

Assembling parts

The brain of Insectbot is "world’s smallest Leonardo", a.k.a. Beetle. It is ideal for DIY projects, wearable projects and etc. Its body is made up of two 9-gram servos powered by a rechargable 3.7V LiPo battery. Its eyes are an infrared sensor to detect obstacles.

Tools Needed:

• Soldering iron
• Scissors
• Screwdriver
• Pliers

• Wiki (Insect bot mini)
• this guide
• Ardublock Code
• Arduino IDE Code

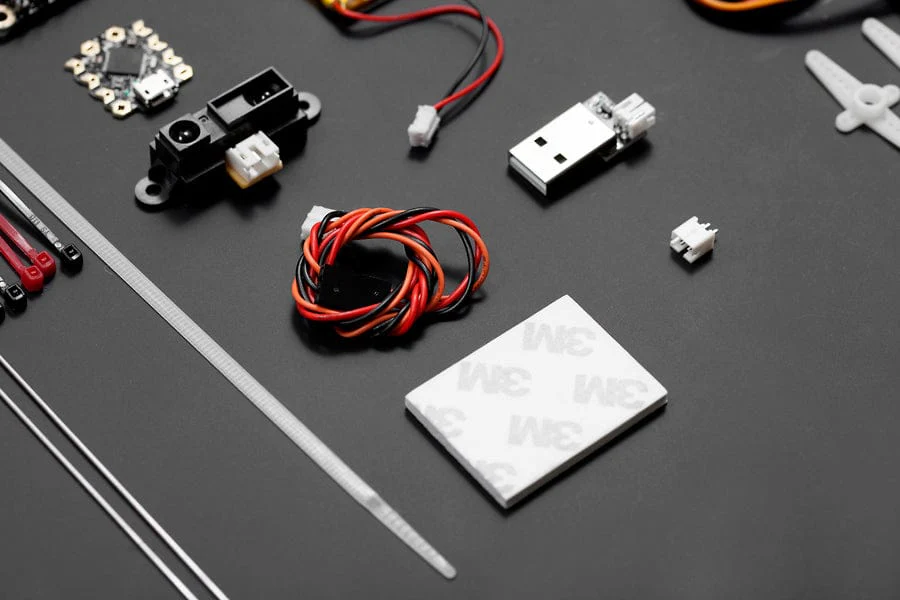

• 1x Beetle (Arduino compatible)
• 1x Beetle Shield

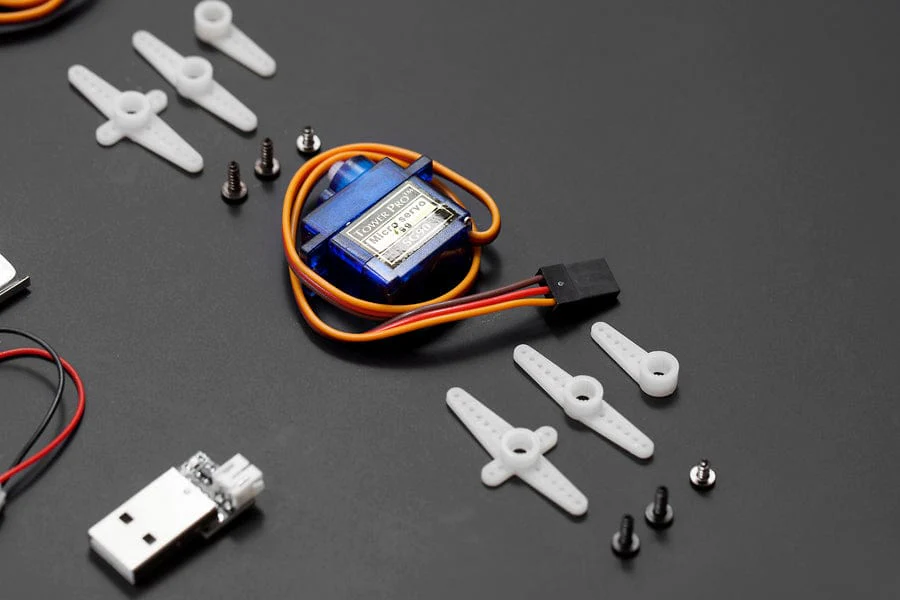

• 2x 9g Micro Servo
• 1x Sharp IR Sensor
• 1x LiPo Battery 3.7V/ 180mAh + Charger
• 2x Steel Wire 200mm x 1 mm(7.87"x0.039")
• 1x ABS Sheet (50x50mm)(1.97"x1.97")
• 1x Double Sided Foam Tape(L/W/H:40x30x3mm)(L/W/H:1.57x1.18x0.12")
• 5x Cable Tie 1.8x100mm90.07x3.93')
• 1x Cable Tie 4x200mm(0.16x7.87')
