IDC Breakout Helper - 2x5 (10 pin)

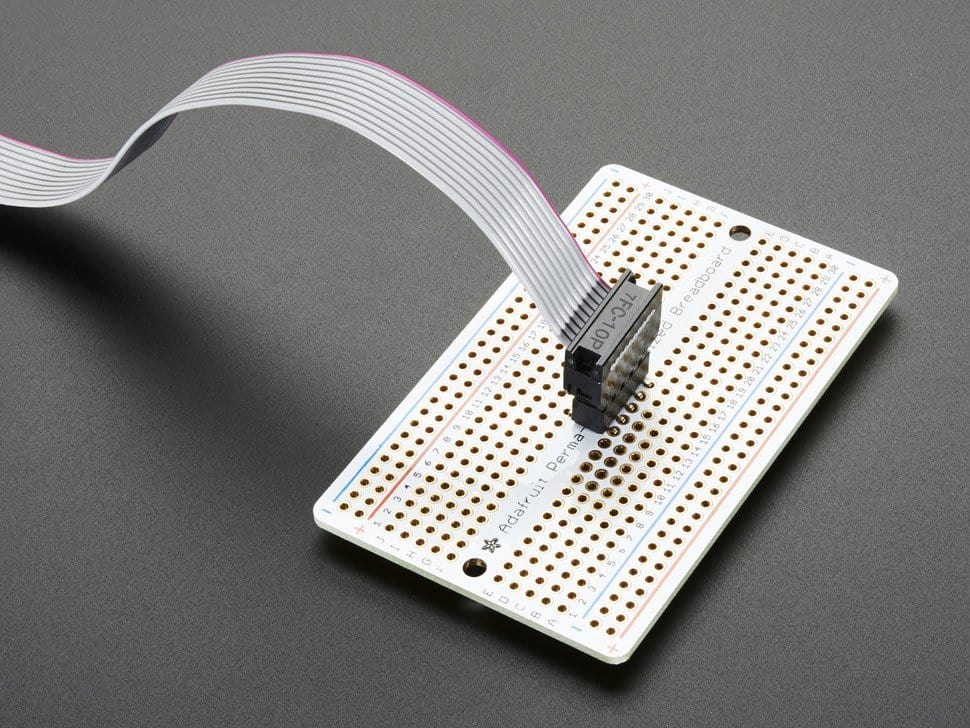

This little 2x5 (10 pin - 0.1 spaced) IDC Breadboard Helper is great in conjunction with any of our 10-pin IDC cables.

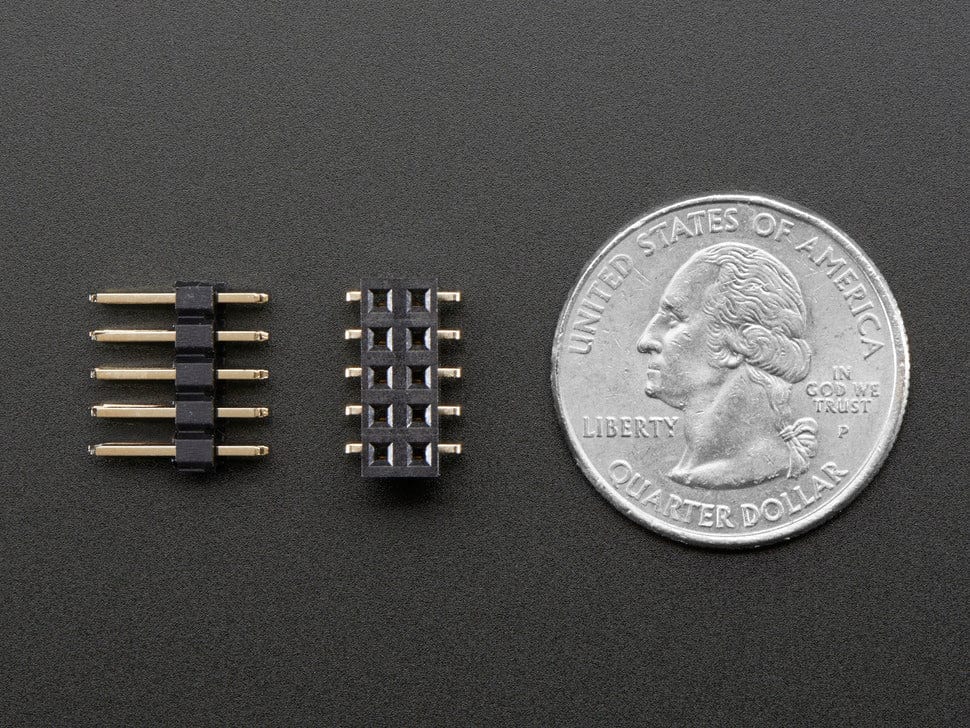

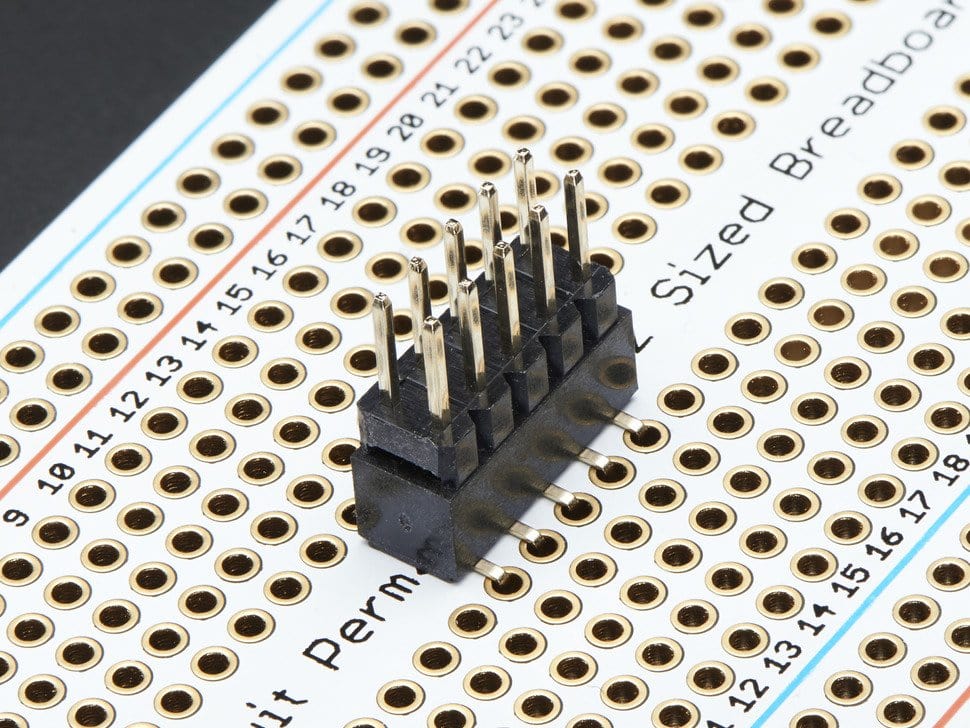

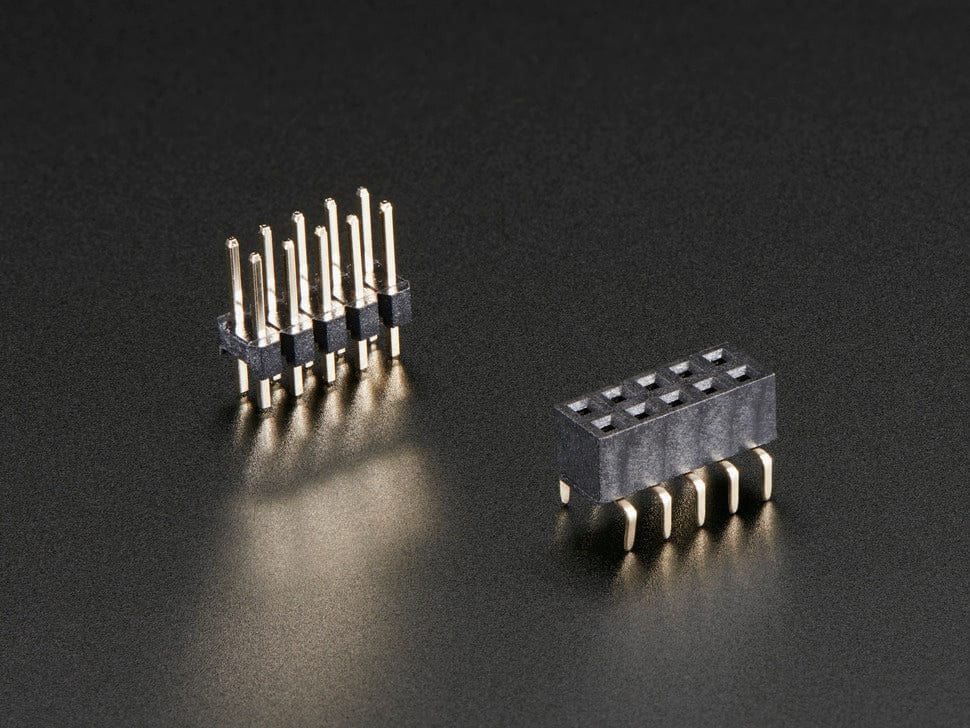

It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the centre of a Perma-Proto and then the header plugs into the top of the socket.
Works best when soldered in place (they don't always stay put in a breadboard).
Each order comes with one socket and one header. Perma Proto and IDC cable not included!
Technical details
- Dimensions (assembled): 13mm x 8mm x 16.5mm
- Dimensions (header): 12.5mm x 5mm x 12mm
- Dimensions (socket): 13mm x 8mm x 8mm
- Weight (assembled): 1g
