IDC Breakout Helper - 2x13 (26 pin)

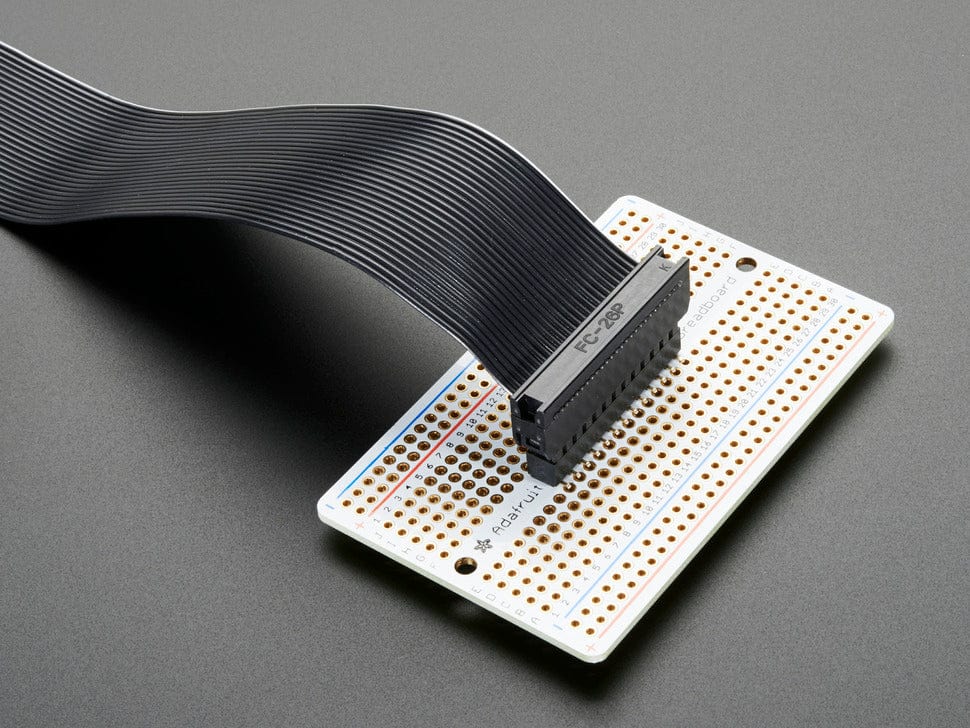

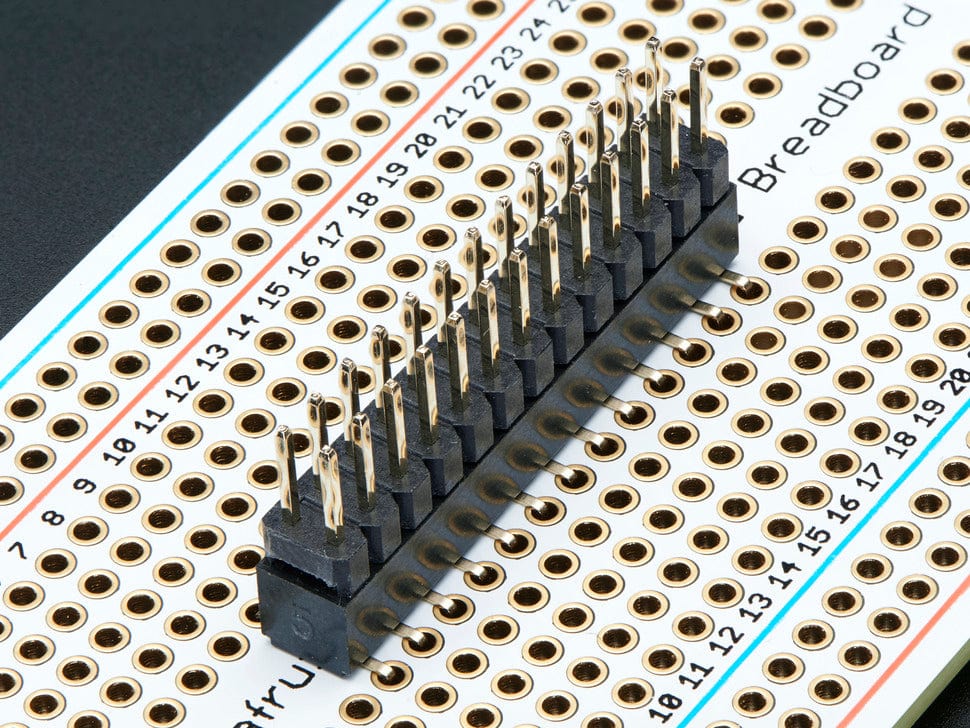

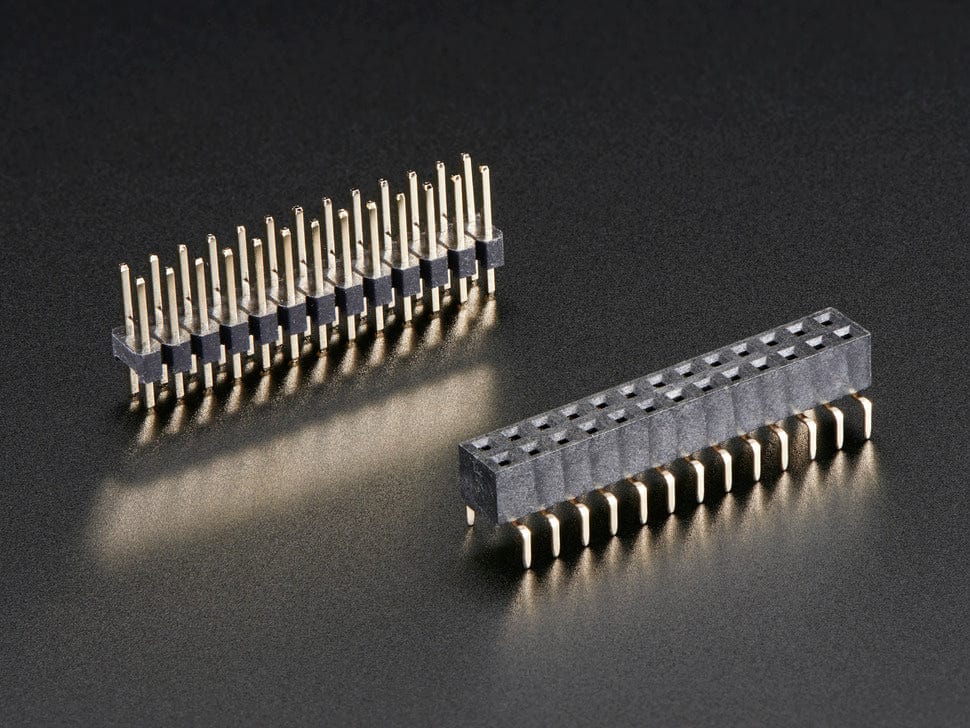

The "poor woman's" Raspberry Pi cobbler! This combo of 2x13 pin (0.1 spaced) header and socket is for our popular GPIO Ribbon Cable for Raspberry Pi. It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the centre of a Perma-Proto and then the header plugs into the top of the socket.
Works best when soldered in place (they don't always stay put in a breadboard).

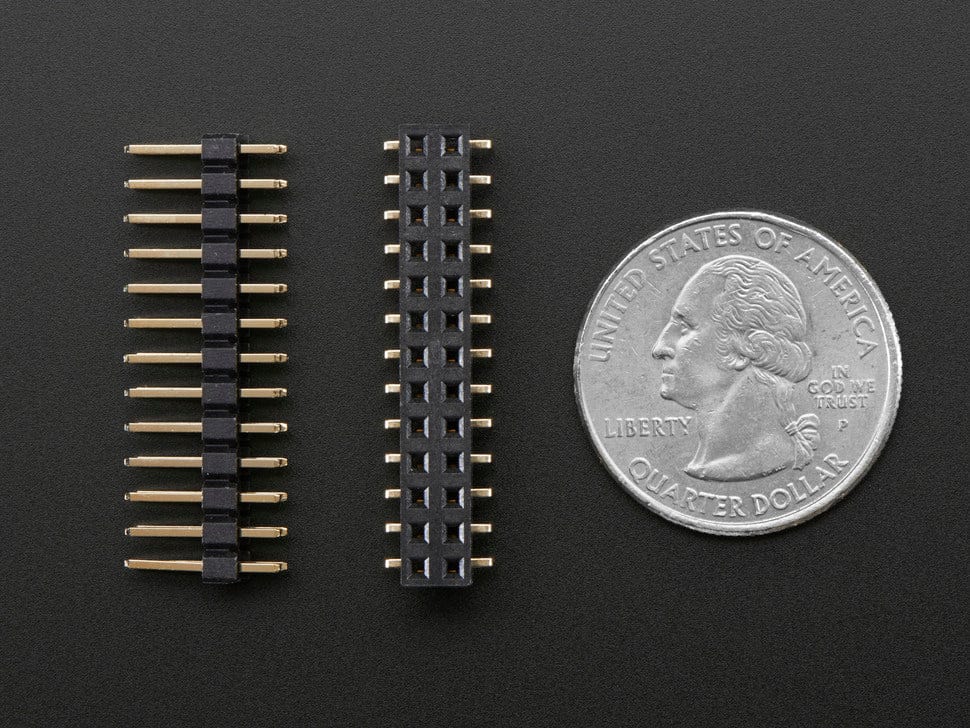

Each order comes with one socket and one header. Perma Proto and IDC cable not included!
Technical details
- Dimensions (assembled): 33.5mm x 8mm x 17mm
- Dimensions (header): 33mm x 5mm x 12mm
- Dimensions (socket): 33.5mm x 8mm x 8mm
- Weight (assembled): 3gÂ
