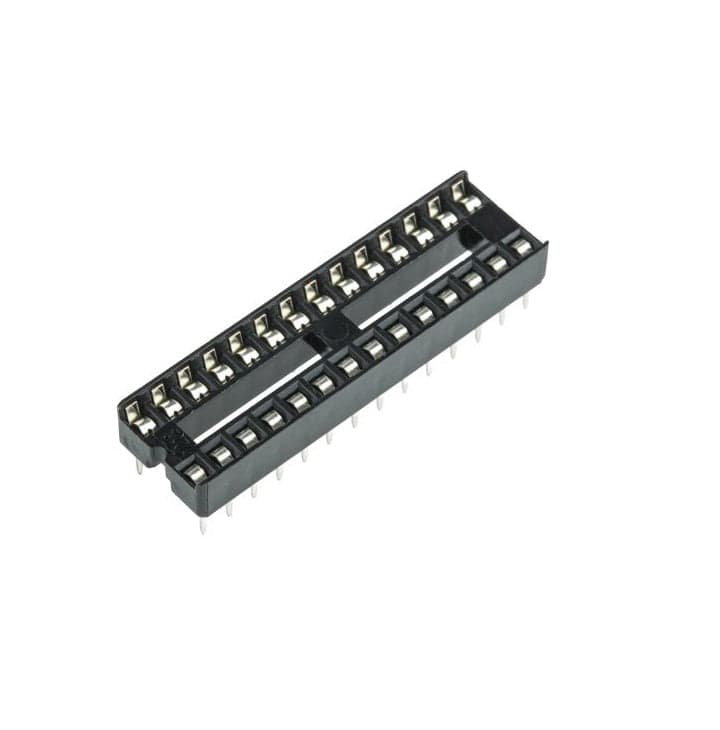

IC DIP Socket - 2.54mm (28 Way) [discontinued]

This is a 28-way 2.54mm pitch DIP socket! Designed for push fit DIP IC's like our MCP23017 port expander chip.

Features

• Number of Contacts: 28
• Mounting Type: Through Hole
• Pin Type: Stamped
• Pitch: 2.54mm
• Row Width 7.62mm
• Frame Type: Open Frame
• Termination Method: Solder
• Contact Plating: Tin
• Current Rating: 1A
• Orientation: Vertical
• Length: 35.46mm
• Width: 10.16mm
• [Maximum Operating Temperature: +105°C
• Minimum Operating Temperature: -55°C
• Contact Material: Phosphor Bronze
• Housing Material: PET
