HighPi Pro Case for Raspberry Pi 4

The HighPi Pro case for the Raspberry Pi 4 is the evolution of the original HighPi case.

HighPi kept the features that everyone loved (how easy it is to assemble, clean looks) and added three great new features: active cooling with an optional software-controlled fan, a removable secure microSD card cover and a sliding lid design that can accommodate almost any HAT!

Multiple case versions are available in the store - this closed lid version, a universal cable port version, and a version specifically designed for the IQAudio DAC+.

Note: Raspberry Pi/HATs not included

What Fits Inside?

The generous internal volume provides plenty of room for the add-ons you love. Specifically:

• Raspberry Pi 4 board
• HighPi Pro 5V Software-controlled Cooling Fan
• Heatsinks, including oversized ones
• HATs that only require GPIO connections with heights up to 30.5mm above the Pi PCB, such as PoE or UPS HATs

Features

• Industry-leading ease of use, rapid tool-free assembly and disassembly
• Large internal volume for HATs, break-out boards or heat sinks
• Self-adhesive rubber feet included, set of 4
• GPIO ribbon cable port

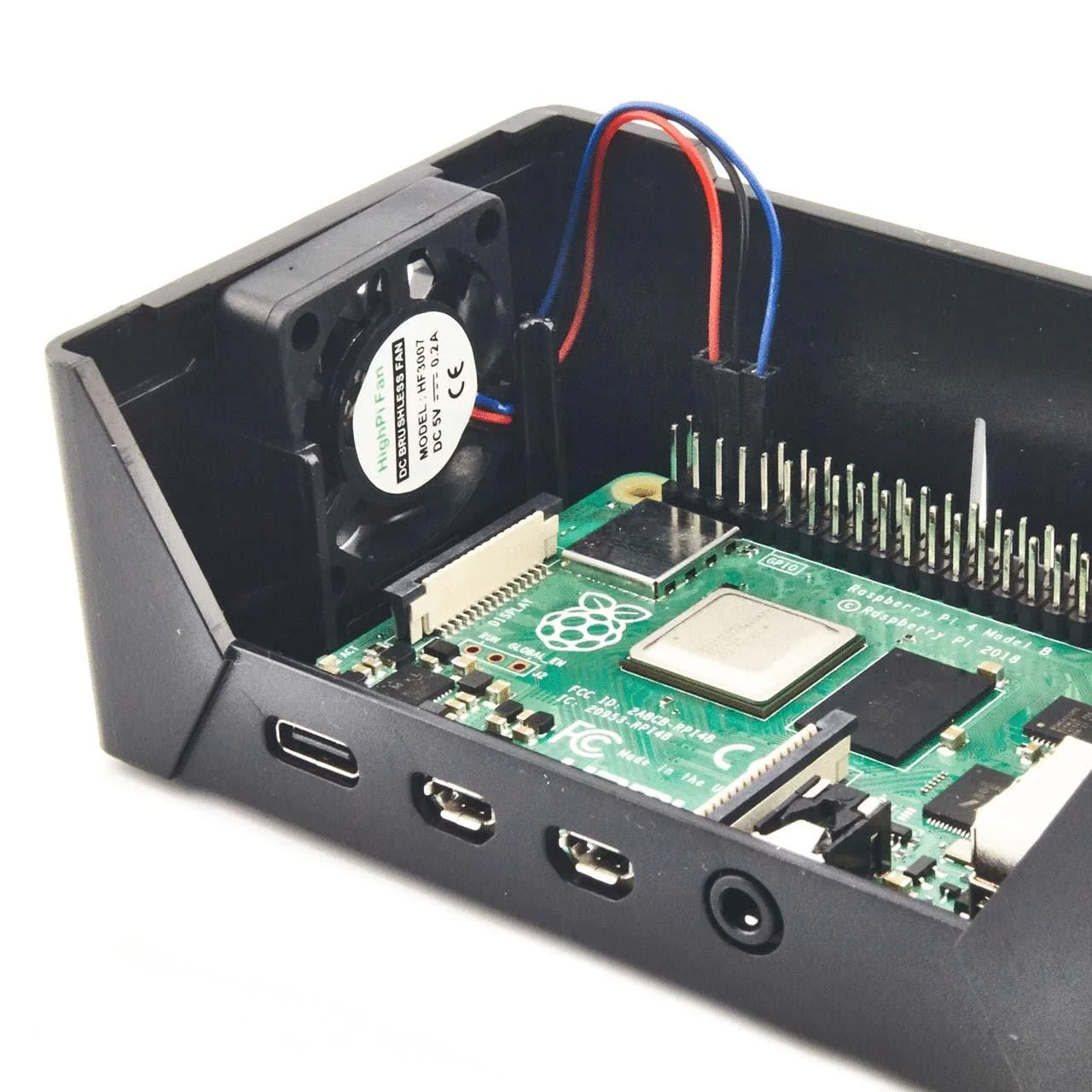

• Optional active software-controlled cooling: quiet high quality 30mm fan, powerful cooling with and without HATs

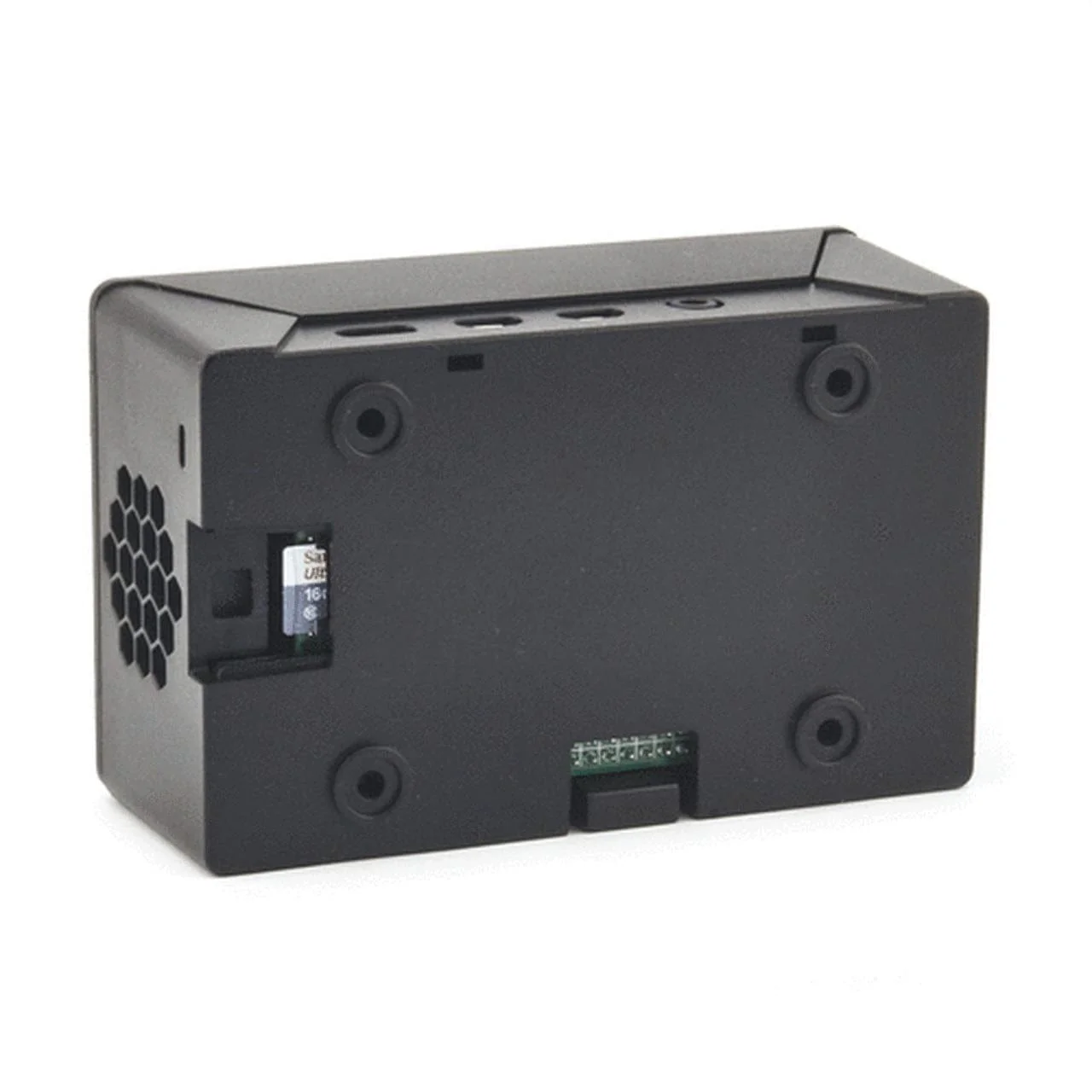

• Secure microSD card cover: removable from the inside of the case with tool

Specifications

• Made in Canada with Lustran 433 ABS Plastic
• External dimensions: 106.5 x 67 x 41.45mm
• Internal volume for breakout boards: 85 x 56 x 30.5mm
• Dimensional Drawing
• Lustran 433 Material Sheet
• Lustran 433 Certification Sheet
• HighPi Pro ISO Certification Sheet

Assembly Instructions
