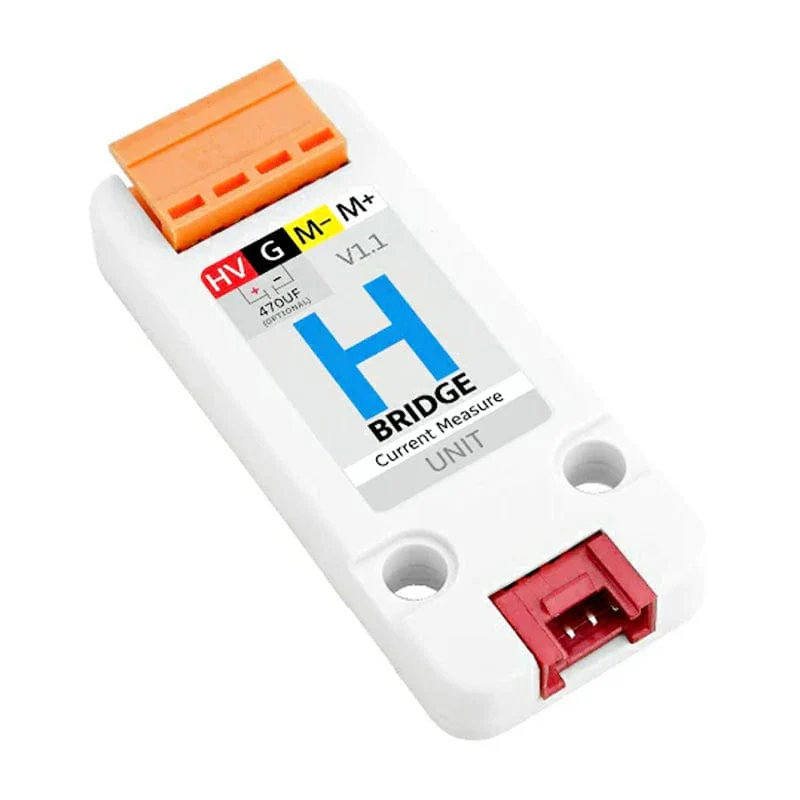

H-bridge Unit v1.1 (STM32F030)

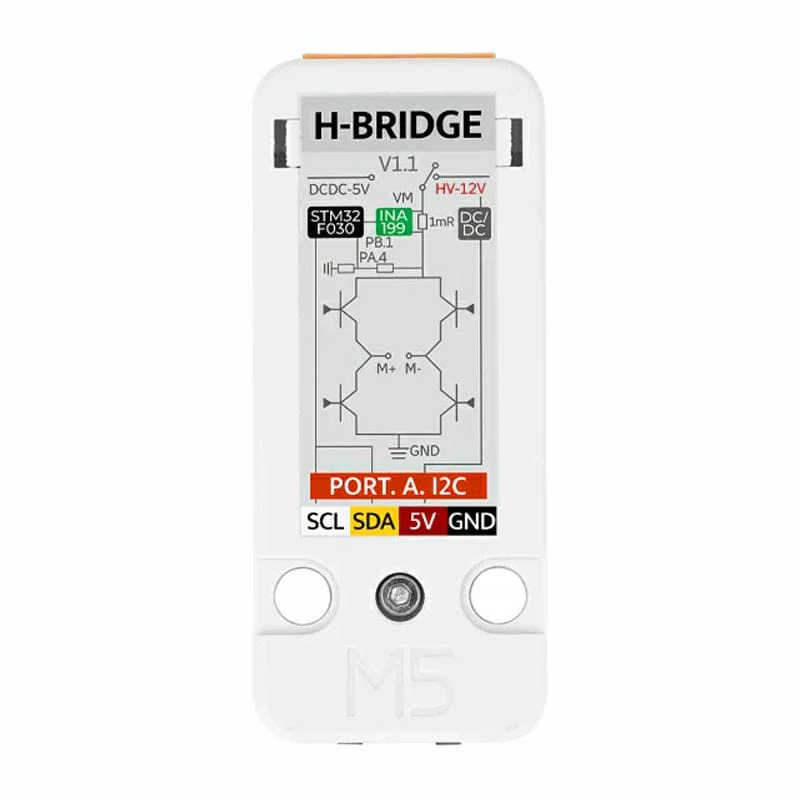

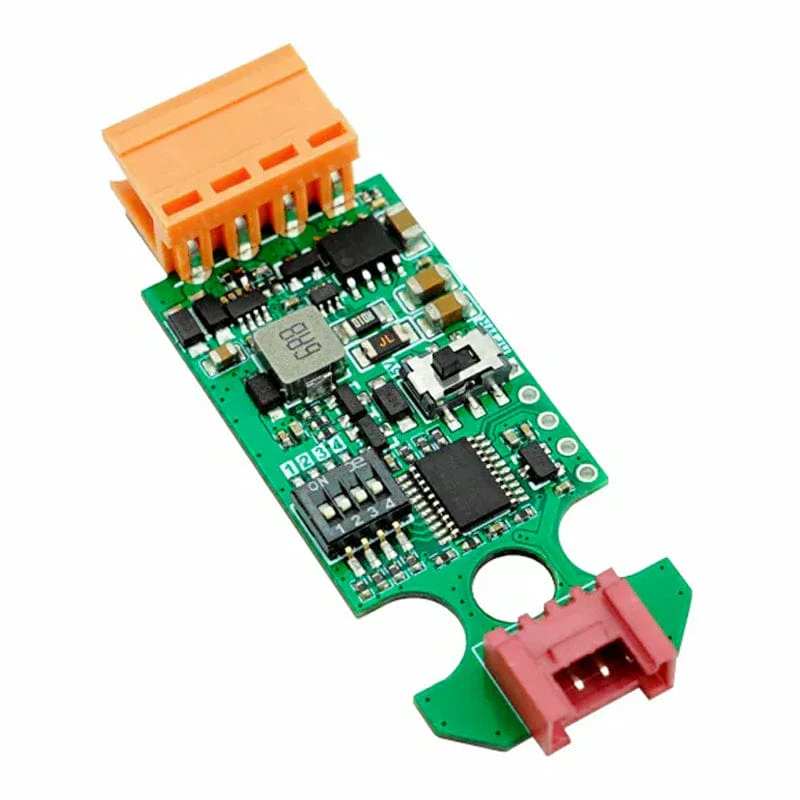

This HBridge v1.1 Unit is a DC motor drive module that is powered by the STM32F030 microcontroller and RZ7899 driver chip. It provides I2C communication with the M5 host, and accurate PWM control for speed adjustment and easy management of forward, reverse, and braking functions.

Safety and reliability come first with built-in protections against over-current, over-voltage, and over-temperature. The module features a total power MOSTUBE switch circuit for dynamic motor control and an integrated current acquisition circuit for safe motor operation. It adapts to various needs with a smart 6-12V and 5V switching circuit, making it ideal for robotics, motor drives, industrial automation, and smart homes.

Note: Aluminum electrolytic capacitors connected to the positive and negative poles of the power input can provide buffer protection for the circuit. Be careful not to connect them in the opposite direction

Features

• Overcurrent, overvoltage, overtemperature protection
• Power switching
• I2C address: Default 0x20
• Current Detect
• Programming platform: Arduino, UIFlow

Specifications

Resources	Parameters
MCU	STM32F030F4P6
DC bidirectional motor driver chip	RZ7899
Current acquisition chip	INA199A1DCKR
External access DC voltage	MAX 12V
I2C mailing address	Default 0x20 (can be modified by toggle of the encoding switch)
Maximum allowable current	3A
Use Temperature	0-40°C

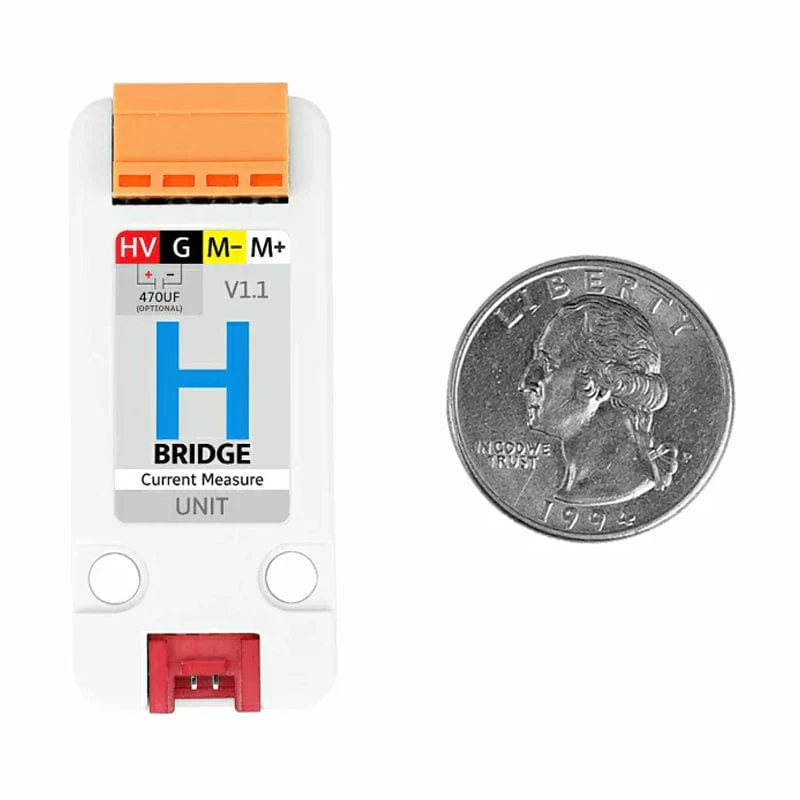

Product Size	48mm x 24mm x 8mm
Package Size	136mm x 92mm x 13mm
Product Weight	9.1g
Package Weight	14g

Resources

• Product Wiki

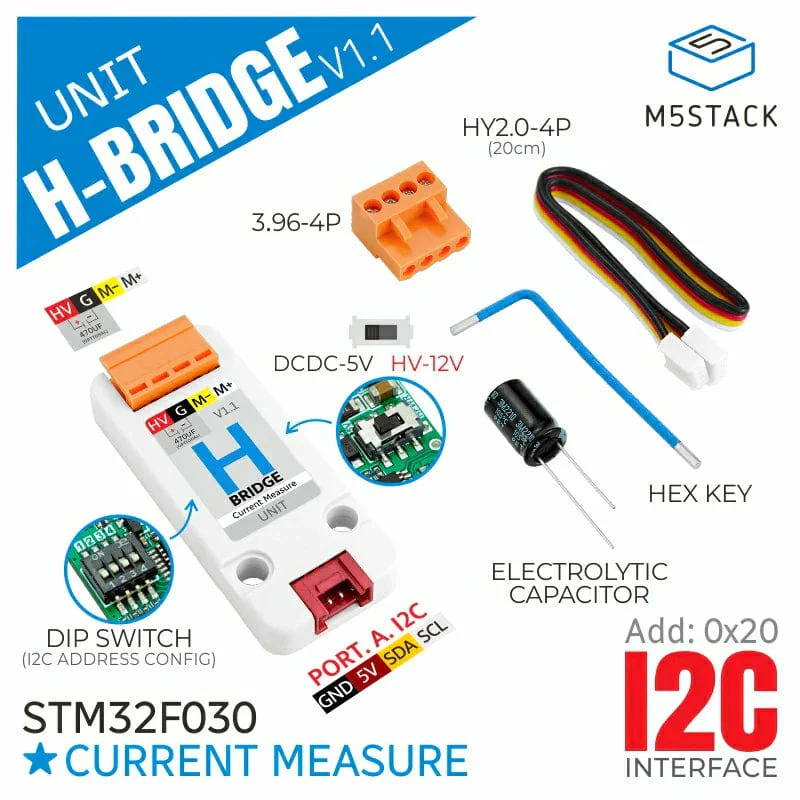

Package Contents

• 1x Hbridge V1.1 Unit
• 1x VH3.964P
• 1x HY2.0 4-Pin Cable (20cm)
• 1x M2 Hex Wrench
• 1x 470uf aluminium electrolytic capacitor
