Grove - Slide Potentiometer

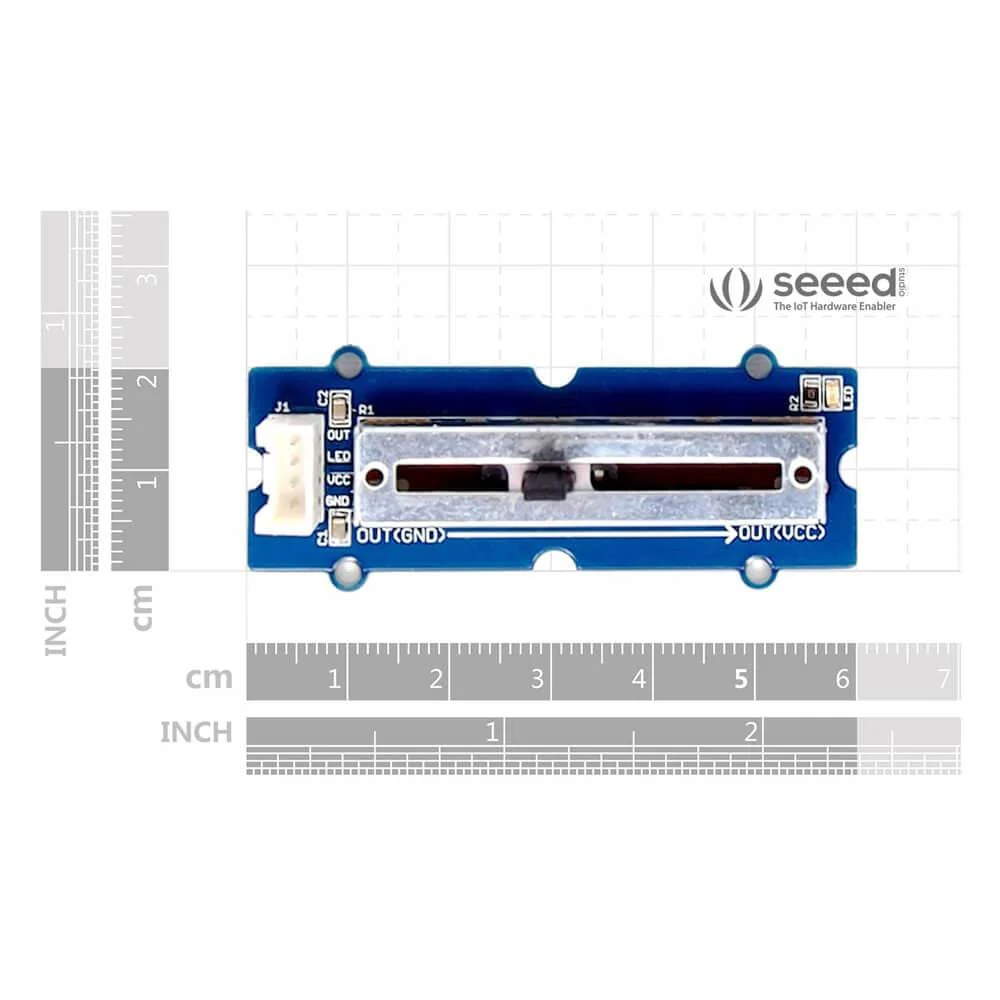

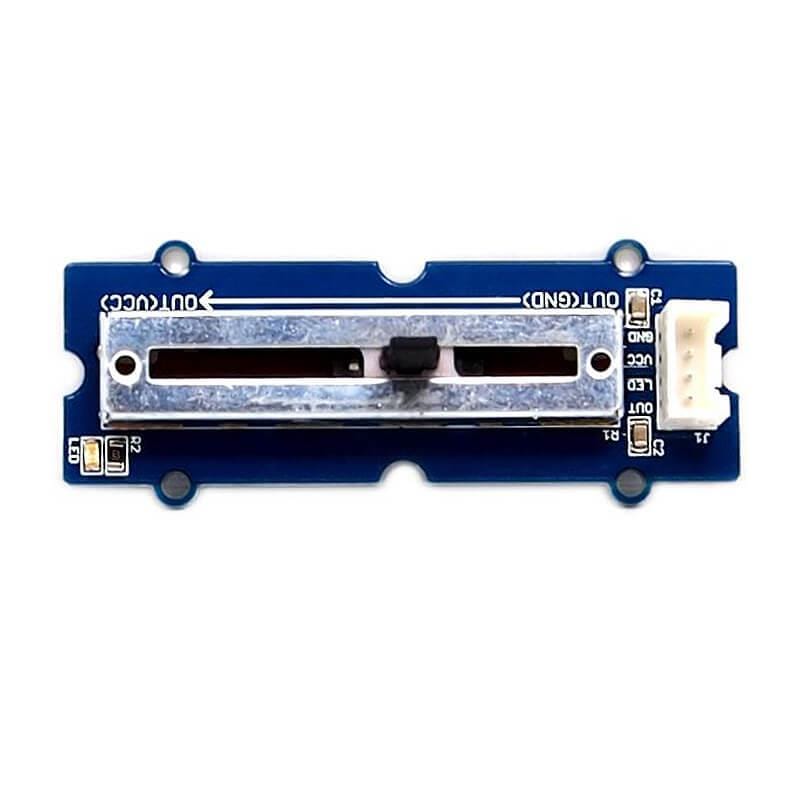

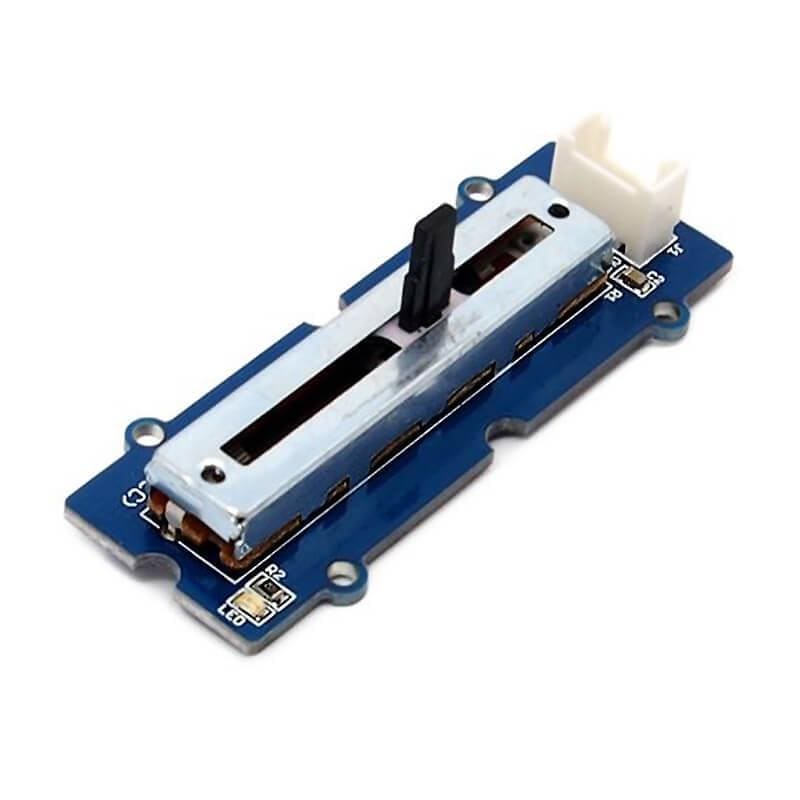

The Grove Slide Potentiometer is a linear variable resistor with a total resistance of 10k. When you move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. Three of four Grove pins are connected to VCC, GND and the ADC IN on the slide, while the remaining pin is connected to a green indicator LED. You can use the indicator LED to visually display the change on the potentiometer.
Grove - Slide Potentiometer is compatible with both Arduino and Raspberry Pi. Please use a Base Shield V2 to connect it with your Arduino boards and use a Base HAT for Raspberry Pi to connect with your Raspberry Pi.
We also stock the Grove Rotary Angle Sensor (Rotary Potentiometer).
Features
- 30 mm long slide length
- Linear resistance taper
- Grove compatible
- Weight: 13g
- Product number: Seeed 101020036
Resources
- Product Wiki
Package Contents
- 1x Grove - Slide Potentiometer
Description
The Grove Slide Potentiometer is a linear variable resistor with a total resistance of 10k. When you move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. Three of four Grove pins are connected to VCC, GND and the ADC IN on the slide, while the remaining pin is connected to a green indicator LED. You can use the indicator LED to visually display the change on the potentiometer.
Grove - Slide Potentiometer is compatible with both Arduino and Raspberry Pi. Please use a Base Shield V2 to connect it with your Arduino boards and use a Base HAT for Raspberry Pi to connect with your Raspberry Pi.
We also stock the Grove Rotary Angle Sensor (Rotary Potentiometer).
Features
- 30 mm long slide length
- Linear resistance taper
- Grove compatible
- Weight: 13g
- Product number: Seeed 101020036
Resources
- Product Wiki
Package Contents
- 1x Grove - Slide Potentiometer
