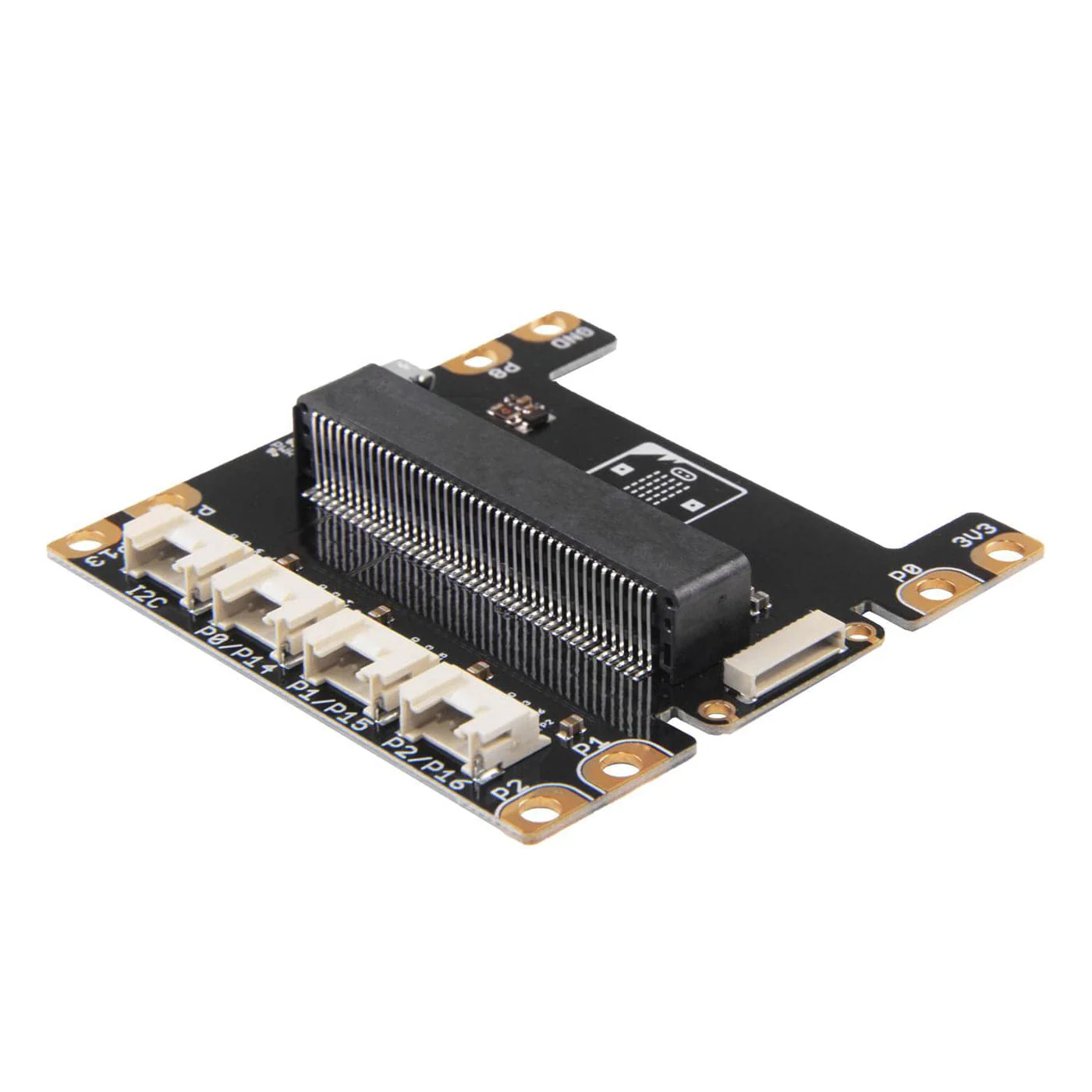

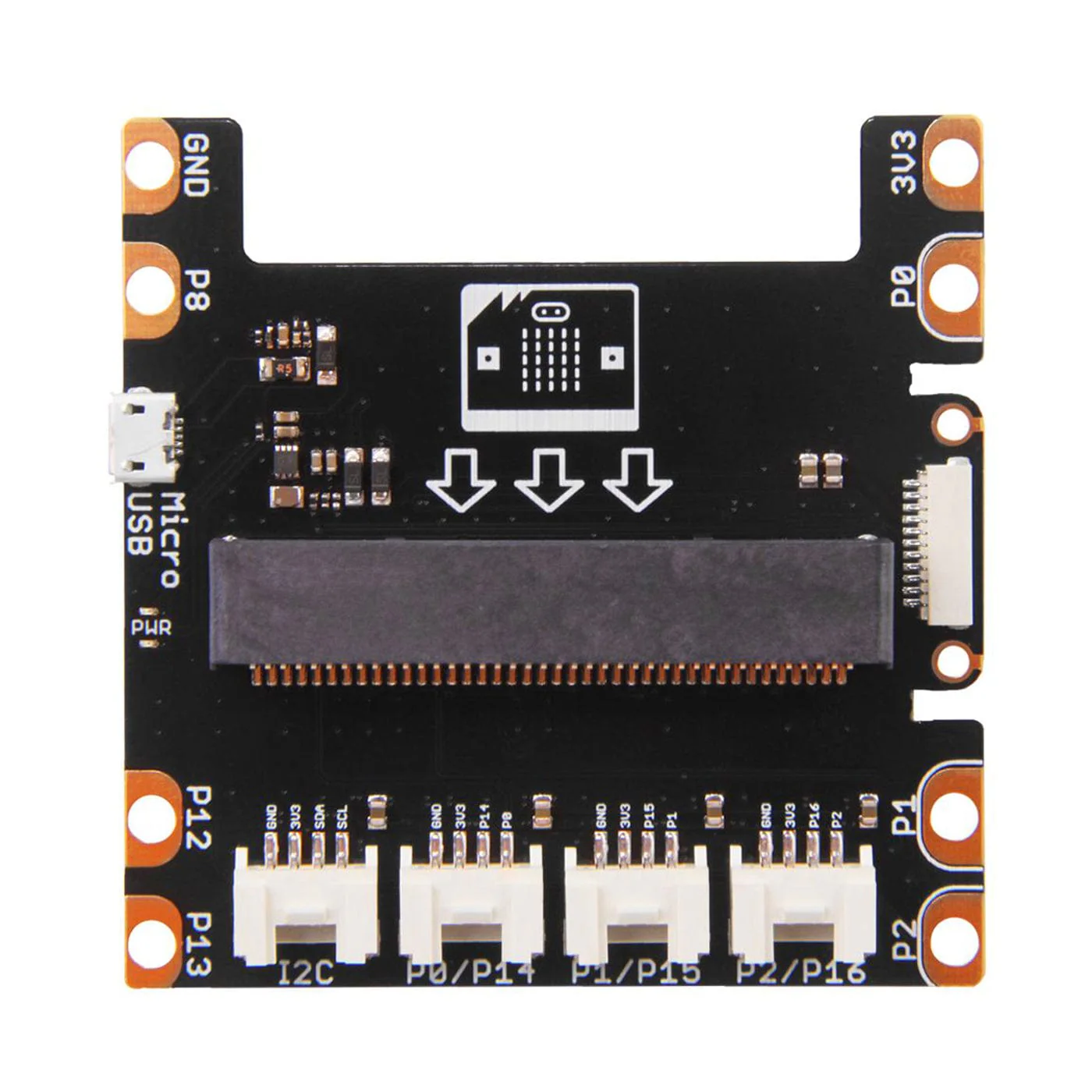

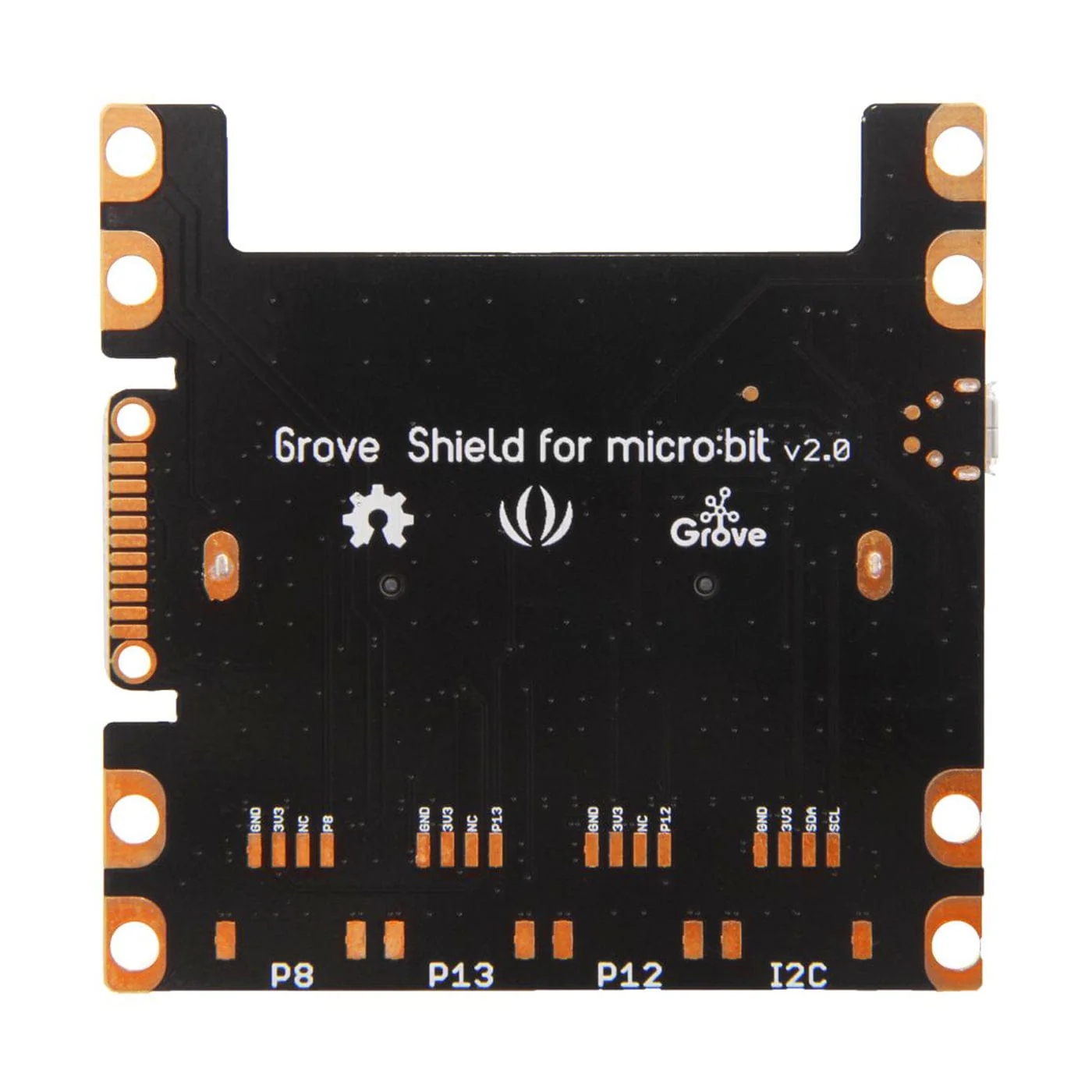

Grove Shield for micro:bit v2.0

The Grove Shield for micro:bit v2.0 is an extension board designed to add to the capabilities of the micro:bit. It has a compact and user-friendly microcontroller aimed towards introducing programming to kids and beginners. This shield links the micro:bit and the Grove system, with an ecosystem made up of various modules such as sensors, actuators, communication devices, and displays. This integration expands the potential of the micro:bit, allowing an easy development of a wide array of projects.

Note: This does NOT come with the micro:bit

Features

• Plug-and-Play Interface
• Grove Connectors
• Special Function Pinouts: P0, P1, and P2, have touch functionality
• On-board USB port to power up your micro:bit
• Edge connectors for crocodile clip and 4mm banana plugs
• Product Number: Seeed 103100063

Specifications

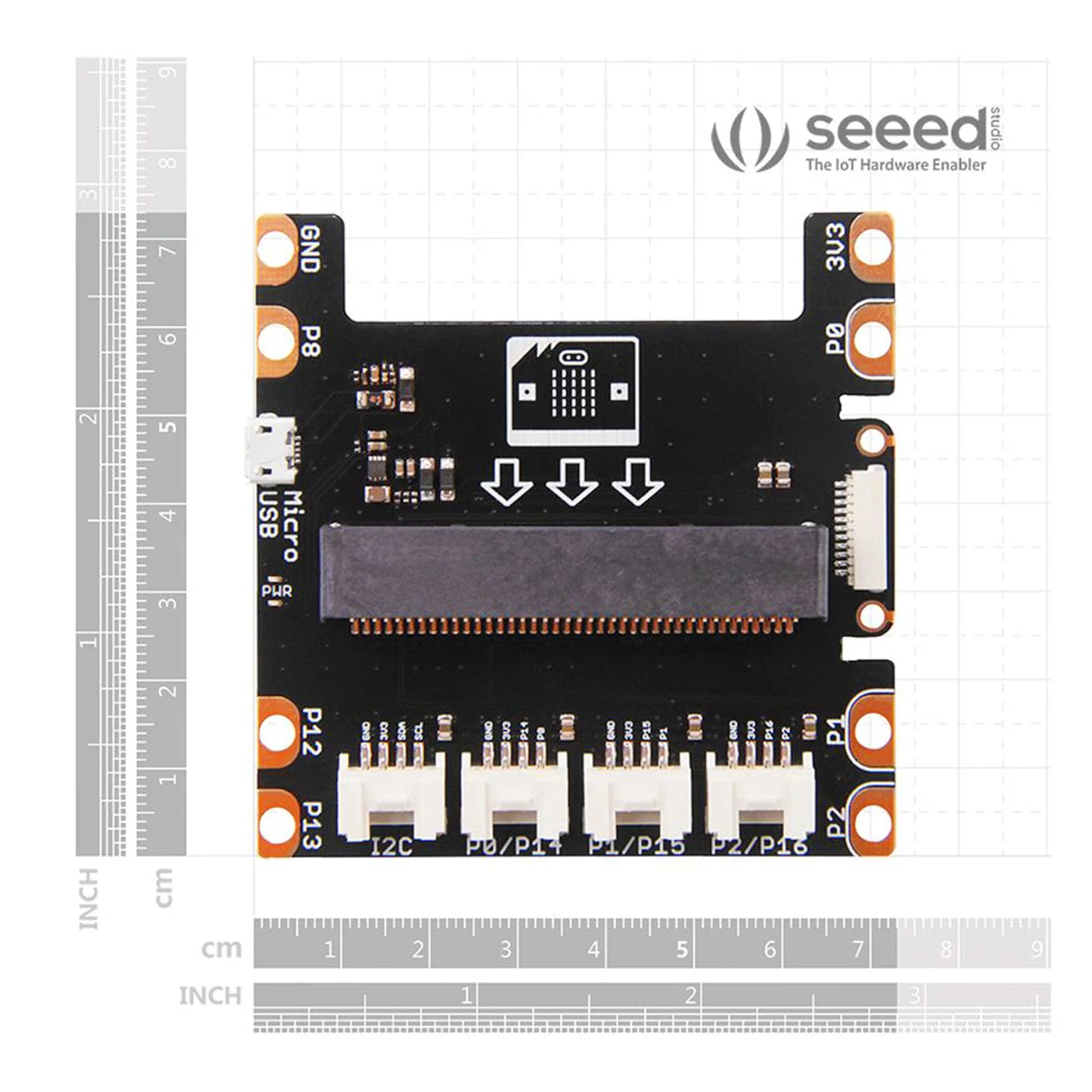

Dimensions	72mm x 72mm x 13mm
Weight	G.W 27.5g
Battery	Exclude
DC Interfaces	1x Micro USB
Grove Interface	P0/P14,P1/P15,P2/P16,I2C
Grove ZERO Interface	1x Grove ZERO
Logic Interface	3V3/P0/P1/P2/P8/P12/P13/GND

Resources

• User Manual
• Product Wiki
• Getting Started Videos
• About micro:bit
• Grove Shield for microbit_eagle file.zip
• Grove Modules for microbit v2.xlsx

Package Contents

• 1x Grove Shield for micro:bit v2.0
