Grove - LED String Light

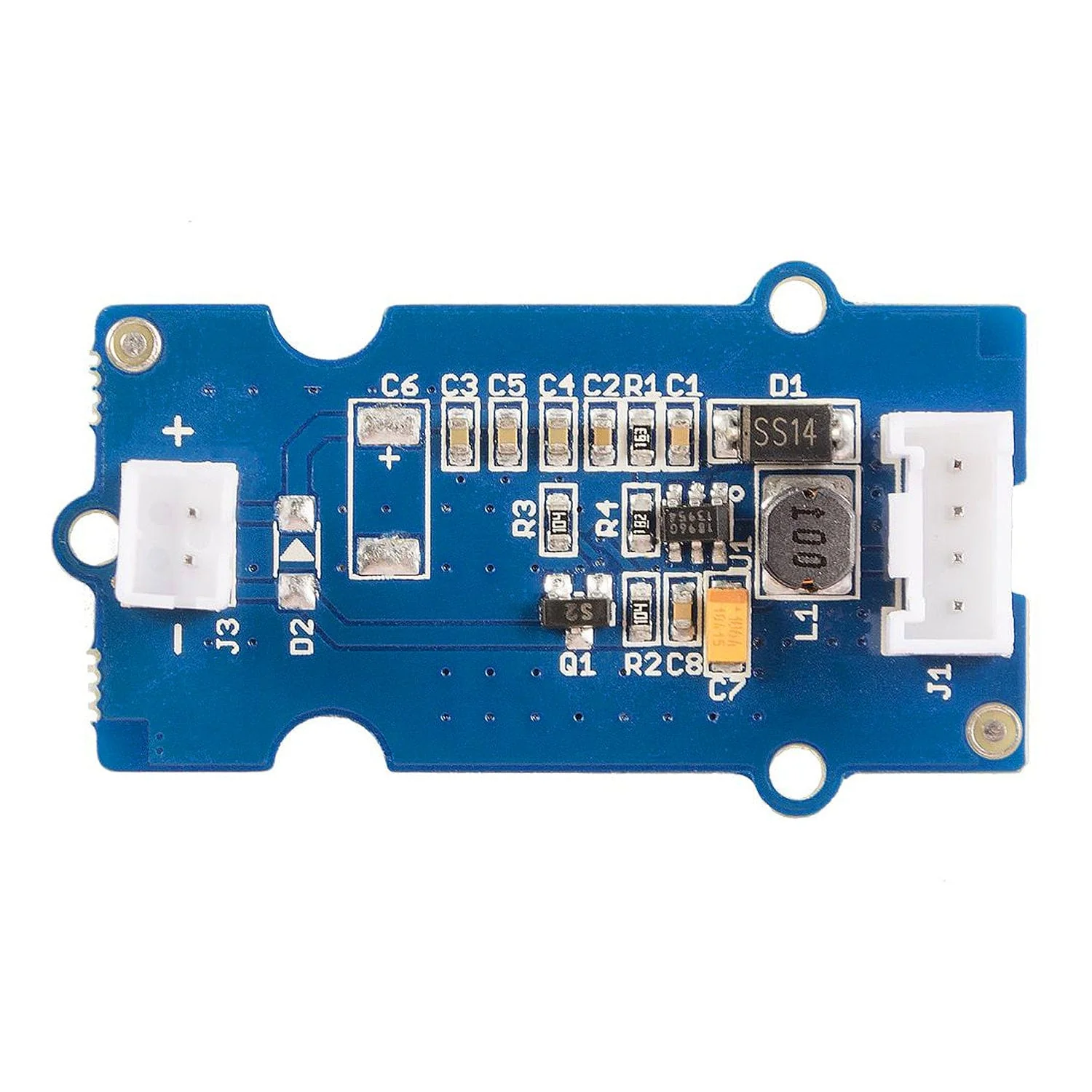

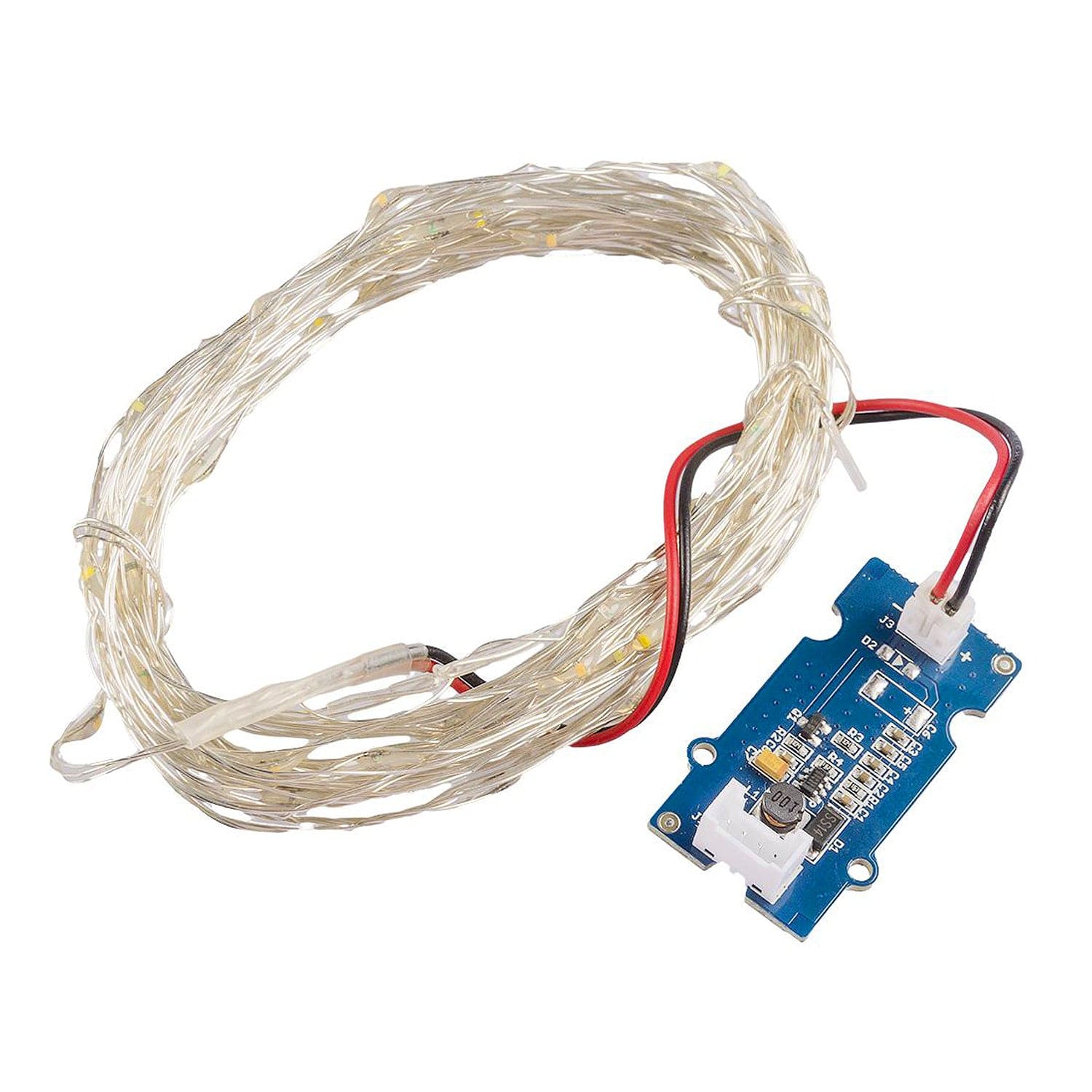

The Grove - LED String Light module is essentially an LED driver for the LED string lights included in the pack. The voltage of the module is 3.3V/5V, however, the LED string lights require a working voltage of 12V. Therefore, this module uses an AIC1896 current mode step-up DC-DC converter to provide the requisite voltage to the LED string lights. The LED string light is 5 meters in length and has 50 RGB LEDs on it connected equidistant to one another. You can use these to dress a Christmas tree, light your party or decorate your room.

Features

• Used in conjunction with LED string lights
• LED String lights of 5 meters in length included with the pack
• 50 RGB LEDs connected at equal distances along the entire length of 5 meters give a colourful appearance
• JST 2.0 Interface used to connect the LED String lights with the driver module
• Uses Standard 4-pin Grove Cables to connect to other Grove modules
• Product number: Seeed 104020005

Specifications

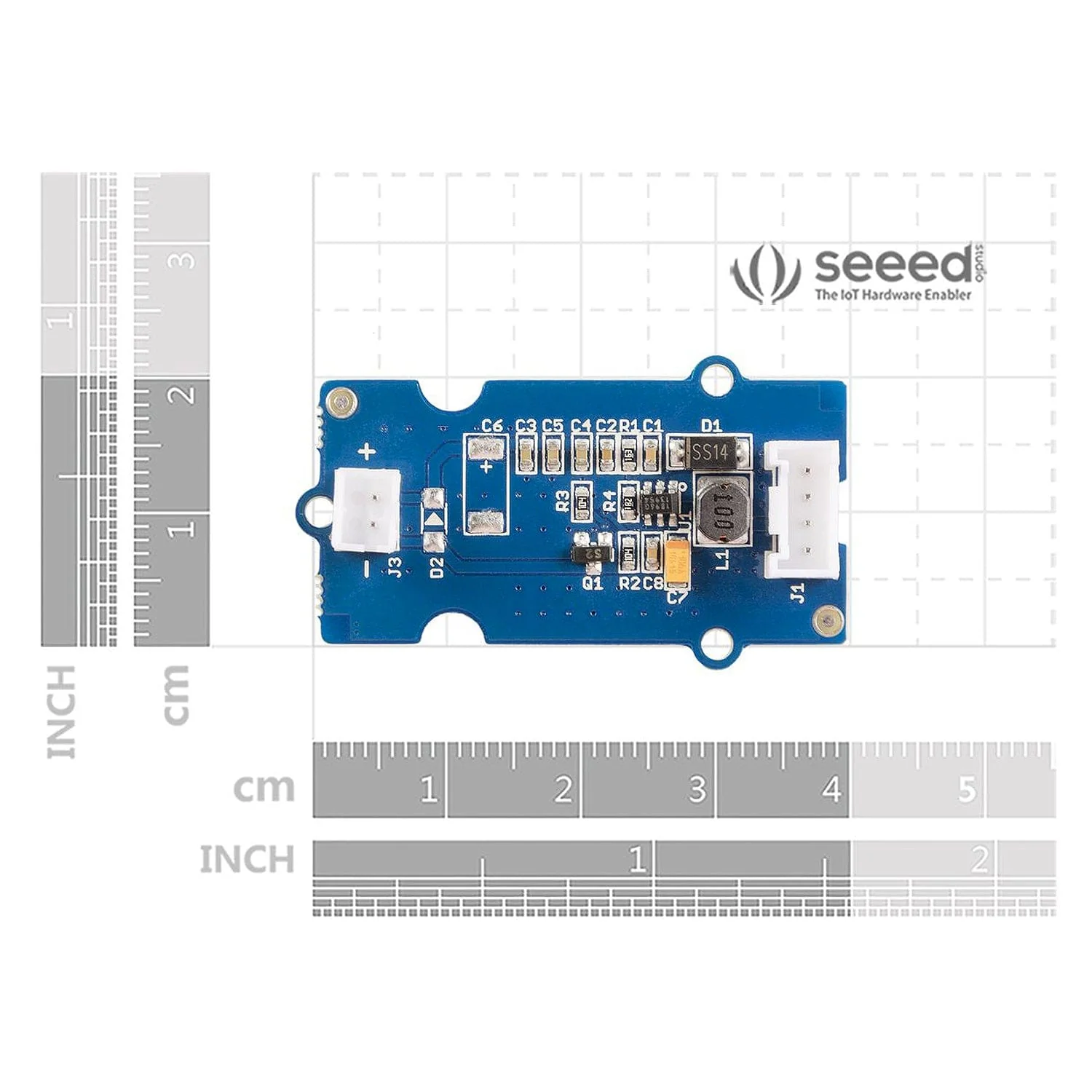

• Dimensions: 110mm x 70mm x 11mm
• Weight: 27g

Resources

• Product Wiki
• Schematic PDF
• Eagle File

Package Contents

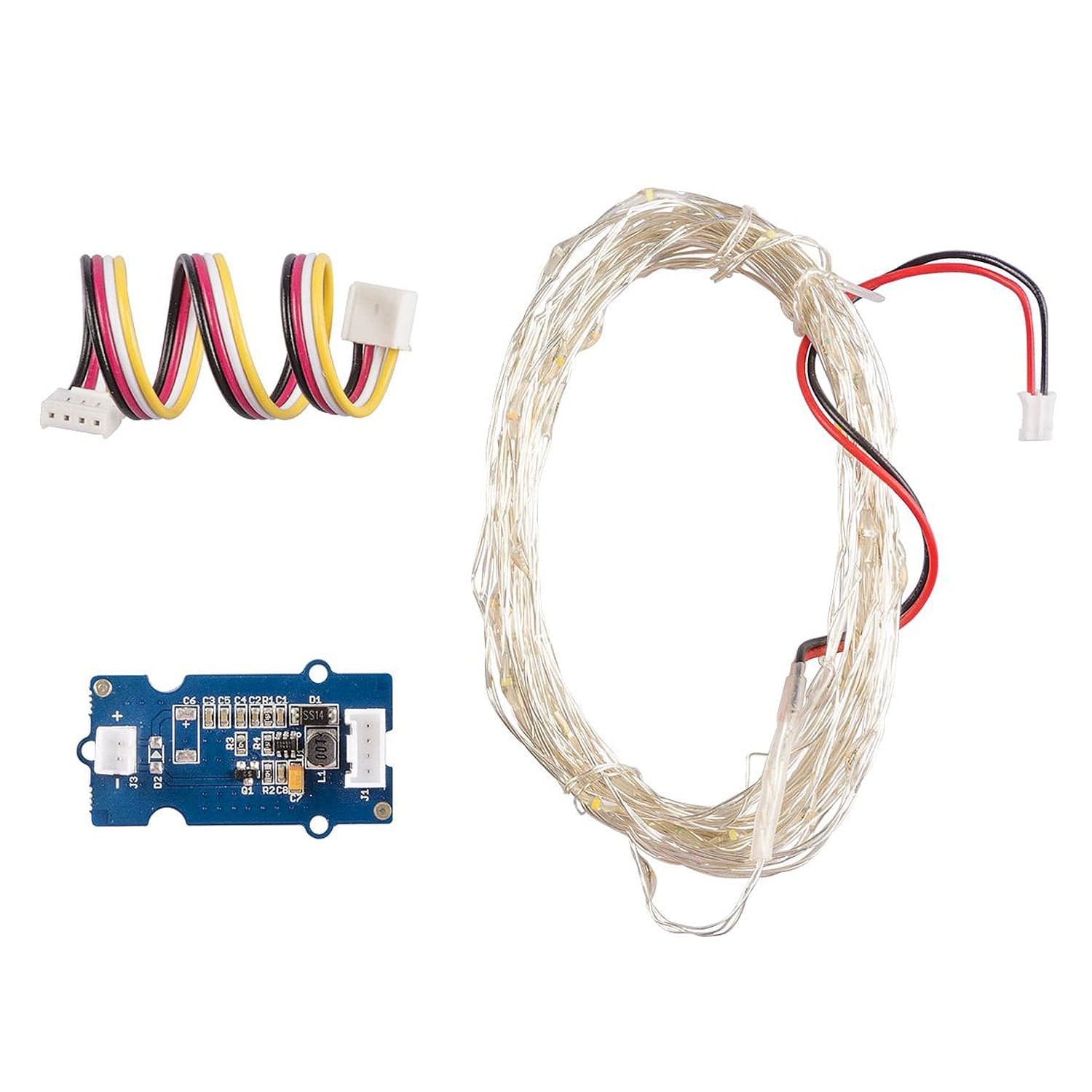

• 1x Grove - LED String Light
• 1x LED String
• 1x Grove cable - 20cm
