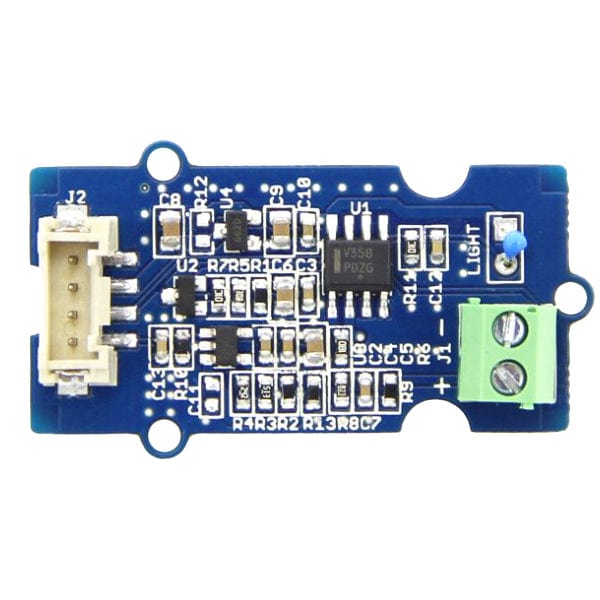

Grove - High Temperature Sensor [Discontinued]

Thermocouples are very sensitive, requiring a good amplifier with a cold - compensation reference. The Grove - Temperature Sensor USES a K-type thermocouple Temperature detection, with a Thermistor to detect The ambient Temperature as Temperature compensation. The detectable range of this Sensor is -50-600? , and The accuracy is ±(2.0% + 2)

Specifications

• Voltage: 3.3 ~ 5V
• Max power rating at 25 - 300mW
• Operating temperature range?-40 ~ +125
• The temperature measurement range is (-50 ~ +600)
• Amplifier output voltage range (0 ~ 3.3 V) mv
• Cold junction compensation (environment temperature measurement)
• Thermocouple temperature measurement accuracy of + / - 2.0% (+2)
• Product number: Seeed 111020002

Package Contents

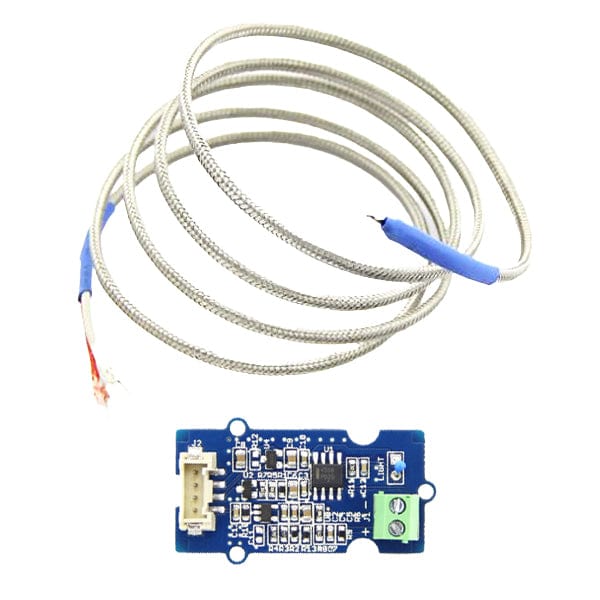

• 1x Grove - High-Temperature Sensor
• 1x Thermocouple Temperature Sensor
• 1x 24AWG Grove Cable - 4P-4P-2.0-200mm

Resources

• Wiki
• Grove - High Temperature Sensor PDF
• Grove - High Temperature Sensor Eagle File
• High Temperature Sensor Library
